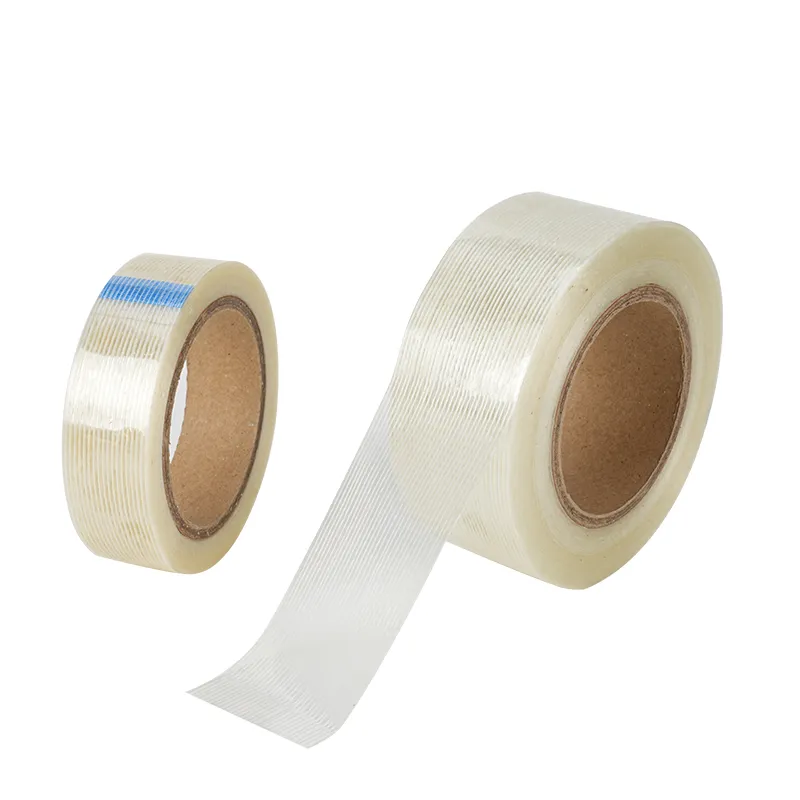

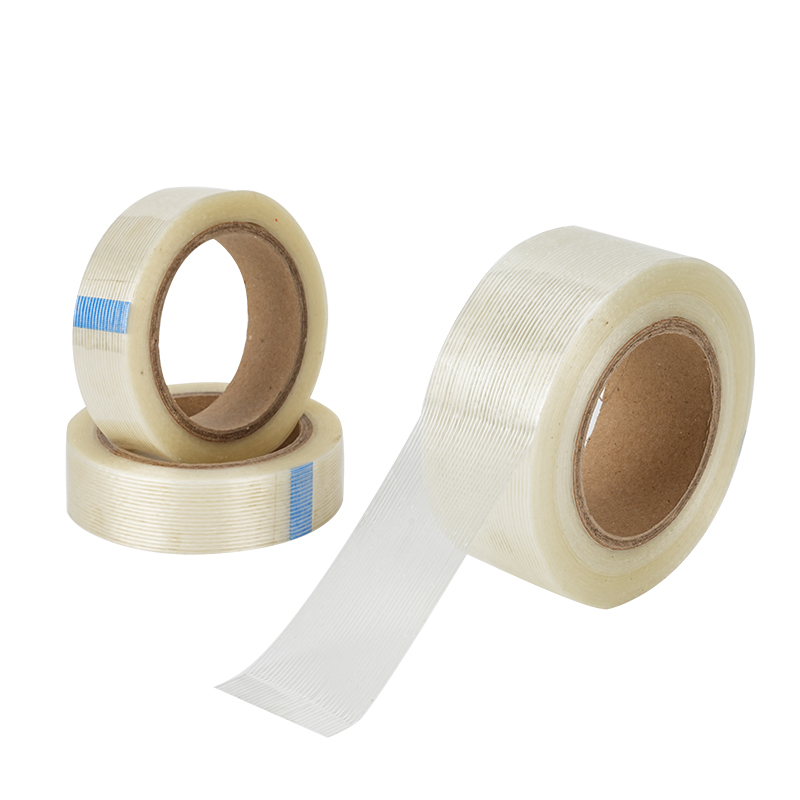

Striped Fiberglass Adhesive Tape for Component Fixing is a reinforced adhesive tape designed for applications where components, wires, Insulating Materials, connectors, protective layers, and other parts need reliable positioning and mechanical support. The combination of fiberglass reinforcement and pressure sensitive adhesive provides a balance of holding strength, dimensional stability, abrasion resistance, conformability, and thermal performance.
Unlike ordinary general purpose adhesive tape, fiberglass adhesive tape is designed to provide mechanical reinforcement in addition to bonding. Glass fibers increase tensile strength and tear resistance, while the adhesive layer allows the tape to attach to compatible surfaces. Industry glass Adhesive Tapes are commonly positioned for applications requiring both electrical insulation and mechanical strength, with fiberglass reinforcement improving resistance to abrasion, tearing, and elevated temperatures.
For component fixing, the tape can be used to hold selected components in position, stabilize wires and leads, secure Insulation Materials, reinforce connection areas, prevent movement during assembly, and provide an additional layer of mechanical protection. Depending on the tape construction, it can also be used in electrical and electronic equipment exposed to heat, vibration, abrasion, and repeated handling.
The striped design provides a distinctive visual appearance. It can be useful for production identification, process differentiation, component grouping, or visual management. The stripes may be produced through colored fibers, printed patterns, coatings, or other manufacturing techniques. The exact construction should always be confirmed from the relevant product specification.
This comprehensive guide explains the material structure, fixing mechanism, component applications, mechanical characteristics, adhesive behavior, thermal considerations, installation methods, surface preparation, component compatibility, customization, quality control, storage, and selection principles associated with Striped Fiberglass Adhesive Tape for Component Fixing.
1. What Is Striped Fiberglass Adhesive Tape for Component Fixing?
Striped Fiberglass Adhesive Tape for Component Fixing is a reinforced single sided adhesive tape that uses fiberglass or glass cloth as its backing material and an adhesive coating on one side.
The basic structure normally consists of:
Fiberglass backing
Woven or reinforced glass fibers
Adhesive coating
Stripe or visual marking
Roll core
Optional release liner
The fiberglass backing provides mechanical reinforcement. The adhesive creates contact between the tape and the component or substrate. The striped surface provides visual differentiation.
The exact properties vary according to the fiberglass construction, adhesive chemistry, coating weight, total thickness, width, and manufacturing process.
A glass cloth adhesive tape can be engineered for high tensile strength and thermal resistance. For example, published electrical glass cloth products use silicone or thermosetting rubber adhesives and are designed for applications involving mechanical strength, heat resistance, bundling, securing, insulation, and reinforcement.
When the primary purpose is component fixing, the tape should be selected according to the mechanical load and environmental conditions rather than simply its visual appearance.
2. Why Fiberglass Reinforcement Matters for Component Fixing
The most important difference between fiberglass adhesive tape and many ordinary adhesive tapes is the reinforcement structure.
Fiberglass provides:
High tensile strength
Dimensional stability
Tear resistance
Abrasion resistance
Puncture resistance
Thermal stability
Mechanical reinforcement
These characteristics make fiberglass tape suitable for applications where a component must remain stable after installation.
A component fixing tape may encounter:
Pulling forces
Shear forces
Vibration
Thermal expansion
Repeated handling
Abrasion
Impact
Surface movement
The glass reinforcement helps the tape resist deformation.
Industry glass adhesive tape products specifically highlight increased tensile strength, tear resistance, abrasion resistance, and thermal resistance resulting from fiberglass reinforcement.
This makes reinforced tape particularly useful when a component must be secured without adding a large mechanical Bracket or fastening structure.
3. How Adhesive Component Fixing Works
Component fixing depends on the interaction between the adhesive and the substrate.
When the tape is pressed onto a surface, the adhesive flows into microscopic irregularities. This increases the actual contact area between the adhesive and substrate.
The resulting bond can resist:
Peel forces
Shear forces
Sliding
Movement
Vibration
Localized lifting
The actual holding performance depends on:
Adhesive chemistry
Adhesive thickness
Surface energy
Surface cleanliness
Application pressure
Contact area
Temperature
Loading direction
Aging
Chemical exposure
A large contact area generally provides more effective mechanical support than a very small contact patch.
For this reason, component fixing should be designed around the actual geometry of the component.
4. Fiberglass Adhesive Tape Versus Ordinary Adhesive Tape
Ordinary adhesive tape may provide basic attachment, but component fixing can require greater mechanical strength.
Fiberglass adhesive tape can offer advantages in:
The fiberglass reinforcement helps the tape resist pulling.
The reinforced structure can resist propagation of tears.
The tape is less likely to stretch significantly during application.
The fiberglass structure can tolerate mechanical rubbing better than many thin plastic films.
Fiberglass reinforcement can improve the stability of the tape construction at elevated temperatures.
The tape can perform as both a bonding material and a reinforcing material.
These properties are why glass cloth adhesive tapes are used in demanding electrical and industrial applications.
5. Main Functions in Component Fixing
Striped Fiberglass Adhesive Tape can perform several different functions.
The tape can hold a lightweight component in a defined position during assembly.
It can hold wires, leads, and small harnesses against a selected surface.
The tape can secure insulation sheets, sleeves, protective films, and other materials.
It can help prevent selected connectors or cable transitions from moving.
It can reinforce areas where an existing insulation or protective layer requires additional support.
The tape can hold parts during manufacturing before permanent fastening is completed.
Depending on adhesive construction, fiberglass tape can provide long-term attachment for suitable lightweight components.
The tape should not be used as the sole structural fastening system for heavy components unless the application has been specifically validated.
6. Components That May Be Fixed With Fiberglass Adhesive Tape
Suitable applications can include lightweight or moderately loaded components such as:
Wire harnesses
Cable branches
Insulation films
Protective sheets
Small connectors
Sensor wires
Terminal insulation
Coil leads
Cable ends
Insulating pads
Protective sleeves
Small electronic components
Identification materials
Flexible insulation layers
The suitability of the tape depends on the component's weight, geometry, surface material, operating temperature, vibration level, and required service life.
7. Electrical and Electronic Component Fixing
Fiberglass adhesive tape is particularly useful in electrical and electronic assemblies because mechanical fixing and insulation often need to be addressed simultaneously.
An electrical assembly may contain:
Wires
Coils
Terminals
Transformers
Inductors
Connectors
Control components
Sensors
Power components
Insulation films
The tape can help keep selected parts organized and protected.
Published glass cloth tape products are used for holding electrical wiring, bundling, coil applications, transformer insulation, terminal board applications, and other electrical assemblies.
8. Component Fixing in Control Panels
Control panels frequently contain many wires and small components arranged in limited spaces.
Fiberglass adhesive tape can support:
Wire routing
Cable grouping
Harness stabilization
Insulation fixing
Component positioning
Mechanical protection
A striped appearance can also help visually identify a particular fixing operation during manufacturing.
However, visual stripes should be treated as an organizational feature rather than an automatic electrical code.
9. Component Fixing in Battery Assemblies
Battery assemblies contain components that may experience vibration and thermal cycling.
Potential applications include fixing:
Insulation films
Protective sheets
Small wire groups
Sensor cables
Flexible insulating components
Cable transitions
For battery applications, the tape must be evaluated for compatibility with the battery environment.
Important factors include:
Operating temperature
Adhesive outgassing
Chemical compatibility
Electrical insulation
Flame behavior
Long-term adhesion
Cell chemistry environment
Mechanical vibration
The tape should not cover safety vents, pressure relief structures, thermal paths, or other areas where covering could interfere with safe operation.
10. Component Fixing in Motors
Motors generate vibration, heat, and electromagnetic forces.
Fiberglass adhesive tape can be useful for:
Holding motor leads
Securing insulation
Bundling wires
Reinforcing connection points
Stabilizing insulation layers
Glass cloth electrical tape is widely used in motor and electrical insulation applications because of its mechanical strength and thermal performance.
For motor applications, the tape should be compatible with the insulation system, varnish, resin, temperature, and electrical requirements.
11. Component Fixing in Transformers
Transformers can require tapes for:
Lead fixing
Coil wrapping
Insulation holding
Layer reinforcement
Terminal support
Mechanical stabilization
Glass cloth tapes with silicone adhesives are used in transformer insulation applications.
When used in transformer construction, the tape must be compatible with the complete insulation system.
Important considerations include:
Thermal class
Dielectric strength
Resin compatibility
Oil compatibility where applicable
Adhesive stability
Mechanical strength
Long-term aging
12. Component Fixing in Power Supplies
Power supply assemblies may contain transformers, capacitors, inductors, wires, connectors, and thermal components.
Fiberglass adhesive tape can provide additional support for selected wiring and insulation layers.
It may help:
Prevent wire movement
Hold insulation materials
Stabilize cable branches
Reinforce connection areas
Reduce mechanical abrasion
However, heat-generating components require careful thermal evaluation.
The tape should not be applied in a manner that blocks cooling airflow or traps excessive heat.
13. Mechanical Strength
Mechanical strength is one of the primary reasons to use fiberglass tape for component fixing.
Important mechanical properties include:
Tensile strength
Tear strength
Peel strength
Shear holding power
Puncture resistance
Abrasion resistance
Dimensional stability
The fiberglass structure provides reinforcement while the adhesive transfers load to the substrate.
A published high-temperature glass cloth tape, for example, reports tensile strength of 600 N per 19 mm width, while another glass cloth construction reports 665 N per 20 mm. These figures illustrate that fiberglass tape can have substantial mechanical strength, but they are examples of individual products rather than universal specifications.
14. Tensile Strength and Component Fixing
Tensile strength measures the force required to break the tape when pulled.
High tensile strength is valuable when:
Components move
Harnesses are pulled
Tape is wrapped under tension
Mechanical reinforcement is needed
However, tensile strength alone does not determine component fixing performance.
A tape may have very high tensile strength but poor adhesion to a particular plastic.
Therefore, both backing strength and adhesive performance must be evaluated.
15. Peel Adhesion
Peel adhesion measures how strongly the tape resists being peeled away from a surface.
Peel performance can be influenced by:
Surface cleanliness
Surface energy
Adhesive formulation
Contact pressure
Application temperature
Aging
For component fixing, high peel resistance can be useful where an edge may be lifted.
However, extremely aggressive adhesion is not always desirable if components require later service or replacement.
16. Shear Performance
Shear occurs when a component tries to slide parallel to the adhesive surface.
For component fixing, shear resistance can be particularly important.
Examples include:
Holding a wire against a vertical surface
Fixing a small component horizontally
Stabilizing a cable branch
Securing an insulation sheet
The adhesive must maintain cohesion under the expected load.
Temperature can significantly influence adhesive shear performance.
17. Thermal Stability
Temperature is an important factor in component fixing.
Electrical and electronic components can generate heat.
Potential heat sources include:
Transformers
Power resistors
Motors
Relays
Power supplies
Inductors
Switching devices
The adhesive may soften, harden, or lose bonding strength if exposed beyond its intended temperature range.
Glass cloth itself has strong thermal stability, but the adhesive system determines much of the finished tape's practical temperature performance.
Published glass cloth products are available in different thermal classes, including medium-temperature and high-temperature constructions.
18. High Temperature Component Fixing
For high-temperature component fixing, the adhesive system must be selected carefully.
Silicone adhesive is commonly used in high-temperature glass cloth tapes.
For example, a glass cloth tape with cured silicone adhesive is specified for high thermal rating, flame retardancy, solvent resistance, and mechanical performance.
Another glass cloth electrical tape uses silicone adhesive and is specified for Class H applications, with stable electrical properties at elevated temperature.
This demonstrates why adhesive chemistry matters as much as the fiberglass backing.
19. Vibration Resistance
Vibration is a common reason for component fixing.
Industrial equipment may experience continuous vibration from:
Motors
Fans
Pumps
Compressors
Gearboxes
Production machinery
Vibration can cause:
Wire movement
Connector movement
Insulation rubbing
Adhesive fatigue
Mechanical wear
Fiberglass reinforcement can help maintain the physical integrity of the tape during repeated movement.
The adhesive must also maintain sufficient shear and peel performance.
20. Abrasion Protection
Components and wires may rub against:
Metal frames
Plastic housings
Cable channels
Mounting brackets
Other cables
Fiberglass adhesive tape can provide an abrasion-resistant protective layer.
Glass adhesive tape manufacturers specifically identify abrasion resistance as an advantage of fiberglass-reinforced constructions.
This can extend the practical durability of the taped assembly.
21. Dimensional Stability
Dimensional stability is particularly important when tape is wrapped around a component.
A tape that stretches excessively can:
Change width
Reduce thickness
Distort stripes
Create uneven overlap
Lose predictable coverage
Fiberglass reinforcement helps minimize these changes.
High-dimensional stability glass cloth tape is used in electrical applications where maintaining insulation geometry and mechanical structure is important.
22. The Importance of Stripe Design
The striped pattern can provide several practical benefits.
Workers can identify a particular tape type quickly.
Different stripe patterns may be assigned to different manufacturing processes.
Selected components or wire groups can be visually differentiated.
Technicians may recognize previously taped areas more easily.
A stripe pattern can provide a professional and recognizable appearance.
The stripe itself does not necessarily improve adhesion or tensile strength. Its principal value is usually visual and organizational unless the stripe is integrated into a functional multilayer construction.
23. Surface Compatibility
Component fixing depends strongly on the substrate.
Common substrates include:
Metal
Aluminum
Copper
Stainless steel
Painted metal
Powder-coated surfaces
ABS
Polycarbonate
PVC
PET
Polyimide
Fiberglass
Rubber
Insulation paper
The same adhesive may behave differently on each substrate.
Testing is recommended when the tape will be used for long-term fixing.
24. Metal Component Fixing
Metal surfaces generally provide a relatively stable substrate, but surface contamination can significantly reduce adhesion.
Before applying tape to metal:
Remove oil
Remove grease
Remove dust
Remove loose particles
Ensure the surface is dry
Oxidized or contaminated surfaces may require additional preparation.
25. Plastic Component Fixing
Plastics can present greater adhesive challenges.
Some plastics have:
Low surface energy
Mold-release residues
Plasticizer migration
Smooth surfaces
These conditions can reduce adhesion.
Compatibility testing is particularly important for plastics.
26. Painted and Powder-Coated Surfaces
Electrical cabinets and industrial components are often painted or powder coated.
The adhesive bonds to the coating rather than directly to the metal.
The coating must therefore be:
Clean
Firmly attached
Free from oil
Free from loose particles
If the coating itself is weak, the tape may pull the coating away rather than detach from the coating.
27. Adhesive Types
Several adhesive systems can be used with fiberglass backing.
Commonly selected for high-temperature applications.
Typical advantages include:
High-temperature capability
Flexible adhesion
Good thermal stability
Good electrical insulation compatibility
Can provide:
Strong initial tack
Good bonding
Flexible handling
Glass cloth tapes with thermosetting rubber adhesives are used where mechanical and thermal resistance are required.
Can provide:
Good aging stability
Good environmental resistance
Stable long-term adhesion
The actual properties depend on the formulation.
28. Choosing Adhesive Type for Component Fixing
The adhesive should be selected according to:
Surface material
Operating temperature
Required service life
Required adhesion
Removal requirements
Chemical exposure
Vibration
Humidity
For high-temperature component fixing, silicone-based glass cloth tapes are often appropriate starting candidates.
For general industrial fixing, rubber or acrylic systems may be suitable depending on the substrate and environment.
29. Electrical Insulation During Component Fixing
Many components being fixed are electrically active or located near conductive parts.
A suitable fiberglass adhesive tape can provide an additional insulation layer.
Electrical properties may include:
Dielectric strength
Insulation resistance
Electrical stability
Low corrosion characteristics
Published electrical glass cloth tapes can provide dielectric strength in the kilovolt range, but actual values vary significantly by construction and thickness.
The tape should never be assumed to provide a specific insulation voltage without reference to its technical data.
30. Component Fixing and Electrical Safety
Component fixing should not interfere with:
Electrical clearances
Creepage distances
Cooling
Grounding
Ventilation
Access to terminals
Serviceability
Tape should also not be used to conceal damaged electrical connections as a substitute for proper repair.
Mechanical fixing and electrical insulation are related but separate design requirements.
31. Heat Dissipation Considerations
A tape can affect local heat transfer.
When fixing components near heat-generating parts, consider:
Component temperature
Ambient temperature
Airflow
Heat conduction
Tape thickness
Adhesive thermal stability
Do not wrap heat-generating components excessively if doing so could interfere with cooling.
32. Component Weight
Fiberglass adhesive tape is generally most appropriate for lightweight components and flexible parts.
For heavier components, engineers should consider:
Mechanical fasteners
Clips
Brackets
Screws
Snap-fit structures
Structural adhesives
The tape can sometimes be used as a secondary retention system, but the actual load capacity must be validated.
33. Component Geometry
The shape of the component affects fixing performance.
Flat components can offer large bonding areas.
Cylindrical components may require wrapping.
Irregular components may require multiple tape segments.
Sharp corners can create localized stress.
Small-radius bends may require a more conformable adhesive construction.
34. Conformability
Conformability refers to how well the tape follows the surface shape.
Highly conformable fiberglass tape can be useful for:
Curved components
Wires
Cable transitions
Irregular surfaces
Rounded edges
Glass cloth adhesive tapes can combine mechanical strength with conformability, depending on the weave and adhesive construction.
35. Application Pressure
Pressure helps the adhesive establish contact with the substrate.
After positioning the tape:
Press the tape firmly.
Smooth the tape.
Remove trapped air.
Ensure full surface contact.
Check the edges.
The required pressure depends on the adhesive.
36. Application Temperature
Some adhesives perform better when applied within a specified temperature range.
Cold surfaces may reduce:
Adhesive flow
Initial tack
Wetting
Extremely hot surfaces may also change adhesive behavior.
The product technical specification should be followed.
37. Component Fixing During Assembly
Fiberglass adhesive tape can be useful during manufacturing.
It can hold components while:
Screws are installed
Connectors are assembled
Wires are routed
Insulation is positioned
Housing parts are closed
Additional fasteners are installed
This can improve assembly efficiency.
38. Temporary Versus Permanent Fixing
It is important to distinguish temporary fixing from permanent fixing.
The tape holds the component during production.
The tape remains during the product's service period but may be removable during maintenance.
The tape is expected to remain bonded throughout the intended service life.
The adhesive system should match the intended function.
39. Removal Considerations
Some components need to be serviced.
If future removal is important, the adhesive should be selected accordingly.
Potential concerns include:
Adhesive residue
Surface damage
Coating removal
Fiber residue
Difficult peeling
A very aggressive adhesive may be excellent for permanent fixing but inconvenient for maintenance.
40. Chemical Resistance
Industrial components may encounter:
Oils
Lubricants
Cleaning fluids
Solvents
Coolants
Moisture
The adhesive and stripe material must be chemically compatible with the environment.
Some glass cloth silicone tapes are specifically designed for solvent resistance and high-temperature applications.
However, chemical resistance must be verified for the actual chemical and exposure conditions.
41. Moisture and Humidity
Humidity can affect adhesive performance.
Potential effects include:
Reduced adhesion
Surface contamination
Corrosion
Electrical leakage
Material aging
For humid environments, choose a tape with appropriate moisture resistance and protect the finished assembly from unnecessary water exposure.
42. Flame Retardancy
In electrical and electronic assemblies, flame behavior may be an important consideration.
Some glass cloth adhesive tapes have recognized flame or electrical insulation properties.
For example, certain published glass cloth products carry UL-related recognition or flame-retardant characteristics.
However, fiberglass backing alone does not guarantee a particular flame classification.
The complete tape must be tested.
43. Component Fixing in High Temperature Equipment
High-temperature applications can include:
Industrial control systems
Heating equipment
Furnaces
Motors
Transformers
Power electronics
Industrial ovens
Fiberglass adhesive tape is useful when mechanical strength must be maintained alongside thermal resistance.
High-temperature glass cloth tapes are available with silicone adhesives and are used in applications such as high-temperature cable harnessing and electrical insulation.
44. Component Fixing in Cable Harnesses
Cable harnesses benefit from organized fixing because uncontrolled movement can cause abrasion and fatigue.
Fiberglass tape can:
Bundle wires
Hold branches
Stabilize transitions
Protect against abrasion
Reinforce insulation
The tape should not compress sensitive wires excessively.
45. Fixing Insulation Films
Electrical insulation films can move during assembly.
Fiberglass adhesive tape can secure selected edges or sections of:
PET insulation
Polyimide films
Polycarbonate insulation
Fiberglass sheets
Electrical paper
The adhesive should be chemically compatible with the film.
46. Fixing Protective Sleeves
Protective sleeves can sometimes move under vibration.
A small amount of fiberglass adhesive tape can secure the sleeve ends or transitions.
This can help prevent:
Sleeve migration
Wire exposure
Abrasion
Loose ends
47. Fixing Sensor Wires
Sensor wiring may require stable positioning.
Fiberglass tape can help keep sensor leads away from:
Moving parts
Hot surfaces
Sharp edges
Rotating components
The tape should be selected according to the sensor environment.
48. Fixing Connector Leads
Connector leads can experience movement during assembly and service.
The tape can stabilize the cable transition and reduce mechanical stress.
However, it should not prevent connector locking mechanisms from operating correctly.
49. Mechanical Reinforcement of Connections
Certain connection areas may require additional mechanical support.
Fiberglass tape can reinforce:
Wire transitions
Cable branches
Insulation joints
Coil leads
Terminal areas
This is especially useful when vibration or repeated movement is expected.
50. Product Thickness
Tape thickness influences:
Mechanical protection
Dielectric thickness
Flexibility
Wrapping behavior
Finished dimensions
Typical industrial glass cloth tapes can vary considerably in thickness.
For example, published products include constructions around 0.178–0.190 mm as well as thicker 0.260 mm glass cloth tape.
These values are examples only and should not be treated as universal requirements.
51. Width Selection
Narrow widths can be useful for:
Small wires
Narrow components
Local reinforcement
Medium widths can be used for:
Cable harnesses
Insulation sheets
Connector transitions
Wide widths can be suitable for:
Large components
Broad insulation layers
Surface reinforcement
Custom slitting can allow the tape to match a particular production process.
52. Roll Length
Longer rolls can improve manufacturing efficiency by reducing:
Roll changes
Packaging waste
Production interruptions
Shorter rolls can be useful for:
Maintenance
Small assemblies
Prototyping
Low-volume production
53. Custom Striped Fiberglass Adhesive Tape
Customization can include:
Tape width
Tape length
Thickness
Adhesive type
Stripe color
Stripe spacing
Stripe direction
Core diameter
Roll diameter
Packaging
Die-cut shape
Special converting processes can produce precision-cut pieces for component fixing.
Industry tape suppliers also offer slitting and punched or formed parts for Electrical Adhesive Tape applications.
54. Die-Cut Component Fixing Parts
Instead of applying tape from a roll, manufacturers may use die-cut pieces.
Advantages can include:
Consistent dimensions
Faster assembly
Reduced waste
Better positioning
Repeatable production
Automated application
Die-cut fiberglass adhesive parts can be designed around a specific component shape.
55. Automated Component Fixing
Automated assembly requires consistent tape performance.
Important characteristics include:
Uniform width
Consistent thickness
Controlled unwind
Stable adhesive
Clean edges
Predictable roll geometry
Automation can improve production consistency and reduce manual variation.
56. Quality Control
Quality control should evaluate both the backing and adhesive.
Important tests can include:
Check:
Stripe consistency
Surface defects
Contamination
Wrinkles
Edge quality
Color variation
Measure:
Thickness
Width
Length
Core diameter
Roll diameter
Evaluate:
Tensile strength
Tear resistance
Elongation
Shear performance
Evaluate:
Peel adhesion
Tack
Holding power
Unwind force
For electrical applications, evaluate:
Dielectric strength
Insulation resistance
Corrosion behavior
57. Typical Technical Specification Categories
A professional specification may include:
Backing material
Fiberglass construction
Adhesive type
Total thickness
Backing thickness
Width
Length
Tensile strength
Elongation
Adhesion to steel
Dielectric strength
Temperature class
Flame performance
Chemical resistance
Color
Stripe design
Core diameter
Storage conditions
Shelf life
Certification
Actual numerical values should always be taken from the relevant product datasheet.
For example, one published glass cloth silicone tape lists 0.190 mm total thickness, 235 N/cm tensile strength, 4 kV dielectric strength, 3.9 N/cm adhesion to steel, and 200°C thermal class.
58. Storage Requirements
Adhesive tapes should normally be stored:
In a clean environment
In a dry location
Away from direct sunlight
Away from excessive heat
In original packaging when possible
A published glass cloth electrical tape specification recommends storage around 20°C and 50–60% relative humidity, with a stated storage period of 12 months for that particular product.
Storage requirements vary by adhesive system.
59. Shelf Life
Adhesive properties can change over time.
Potential changes include:
Lower tack
Higher tack
Adhesive transfer
Hardening
Softening
Reduced holding power
Before production use, aged tape should be inspected and, where necessary, tested.
60. Packaging
Industrial fiberglass adhesive tape can be supplied in:
Individual rolls
Multiple-roll cartons
Jumbo rolls
Precision slit rolls
Die-cut pieces
Spools
Packaging should protect against:
Dust
Moisture
Heat
Compression
Physical damage
61. Manufacturing Consistency
For component fixing, consistency is critical.
Variations in:
Adhesive coating
Fiberglass density
Thickness
Stripe position
Width
Roll tension
can affect production performance.
Stable manufacturing processes help ensure repeatable component fixing.
62. Sustainability Considerations
Modern industrial manufacturing increasingly evaluates material efficiency.
Potential considerations include:
Reduced material waste
Efficient roll conversion
Reduced packaging
Longer service life
Lower replacement frequency
Compliance with environmental requirements
Where required, documentation such as RoHS or REACH compliance should be requested for the specific product.
63. Common Component Fixing Problems
May result from poor surface preparation, insufficient pressure, or incompatible adhesive.
May result from excessive peel load.
May indicate insufficient shear strength.
May result from excessive mechanical load or sharp edges.
May result from unsuitable adhesive chemistry or excessive temperature.
May occur if the tape is excessively stretched during application.
64. How to Improve Fixing Reliability
To improve reliability:
Select the correct adhesive system.
Clean the substrate.
Use sufficient contact area.
Apply consistent pressure.
Avoid excessive stretching.
Control application temperature.
Avoid sharp edges.
Validate thermal conditions.
Test vibration resistance.
Confirm long-term adhesion.
65. Component Fixing Design Principles
A good fixing design should consider the complete load path.
The component load must transfer through:
Component → Adhesive → Fiberglass Backing → Adhesive Contact Area → Substrate
Failure can occur at any stage.
Therefore, high-strength fiberglass backing does not compensate for poor substrate adhesion.
66. Importance of Contact Area
A larger contact area generally improves load distribution.
For component fixing:
Increase bonding area where possible.
Avoid very narrow adhesive strips for high loads.
Spread the load across the component.
Avoid concentrating force at one corner.
This reduces localized stress.
67. Stress Concentration
Sharp corners can concentrate mechanical stress.
When fixing irregular components, rounded transitions can help reduce stress concentration.
The tape should conform smoothly without wrinkles.
68. Wrinkle Prevention
Wrinkles can create:
Reduced contact
Uneven thickness
Air pockets
Local stress
Poor appearance
Apply the tape gradually and smooth it during installation.
69. Air Entrapment
Air pockets can reduce effective contact area.
For electrical applications, voids can also be undesirable because they may influence insulation performance.
Press the tape carefully from one side toward the other to minimize trapped air.
70. Edge Sealing
In selected applications, tape edges may require firm bonding.
Edge lifting can occur when:
The substrate is contaminated.
The tape is under excessive tension.
The surface is curved.
The adhesive is incompatible.
The component moves.
Correct surface preparation and appropriate adhesive selection help reduce these problems.
71. Component Fixing in Harsh Industrial Environments
Harsh environments may involve:
High temperature
Vibration
Oil
Chemicals
Dust
Humidity
For these environments, a high-performance glass cloth tape may provide greater durability than ordinary adhesive tape.
Published glass cloth products are available with combinations of abrasion resistance, thermal resistance, solvent resistance, flame retardancy, and mechanical strength.
72. Component Fixing in Automotive Electrical Systems
Automotive electrical assemblies can experience:
Vibration
Temperature cycling
Humidity
Mechanical movement
Chemical exposure
Fiberglass adhesive tape may be useful for selected harness and insulation applications where its specifications meet automotive requirements.
The tape must be validated against the actual automotive environment.
73. Component Fixing in Industrial Automation
Automation equipment contains:
Sensors
Motors
Cable harnesses
Controllers
Connectors
Pneumatic components
Cable movement can cause repeated mechanical stress.
Fiberglass adhesive tape can stabilize selected wiring and insulation components.
74. Component Fixing in Renewable Energy Equipment
Electrical equipment associated with solar, energy storage, and power conversion can require durable insulation and wire management.
Potential applications include:
Cable fixing
Insulation reinforcement
Connector lead stabilization
Component positioning
The tape must be selected for the specific temperature, humidity, UV exposure, and electrical environment.
75. Component Fixing in Power Electronics
Power electronics can generate localized heat.
Examples include:
Inverters
Converters
Motor drives
Power modules
Control cabinets
Fiberglass adhesive tape may help secure wiring and insulation near these components.
Thermal compatibility must be carefully checked.
76. Why Component Fixing Requires More Than Adhesion
A tape may have strong adhesion but still fail if:
The backing tears.
The component is too heavy.
The surface coating fails.
Temperature exceeds the rating.
Vibration is excessive.
The adhesive loses cohesion.
Reliable component fixing therefore requires a balanced material system.
77. Selection Guide
When selecting Striped Fiberglass Adhesive Tape for Component Fixing, consider:
Prioritize:
Adhesion
Conformability
Easy application
Prioritize:
Thermal class
Adhesive stability
Electrical insulation
Prioritize:
Tensile strength
Shear performance
Abrasion resistance
Prioritize:
Dielectric strength
Insulation resistance
Corrosion behavior
Certification
Prioritize:
Controlled adhesion
Clean removal
Repositioning requirements
78. Advantages Summary
Striped Fiberglass Adhesive Tape for Component Fixing can provide:
Strong mechanical reinforcement
Reliable adhesion
High tensile strength
Good dimensional stability
Abrasion resistance
Tear resistance
Thermal resistance
Electrical insulation support
Flexible processing
Wire bundling capability
Component stabilization
Visual identification
Custom converting options
These properties make it a versatile material for industrial component fixing.
79. Frequently Asked Questions
It is used for component fixing, wire bundling, insulation support, mechanical reinforcement, cable stabilization, and selected electrical protection applications.
Generally, fiberglass reinforcement provides significantly greater tensile and tear resistance than many non-reinforced adhesive tapes. The exact performance depends on the construction.
Yes, it can be used to fix suitable lightweight electrical components, wires, insulation materials, and protective parts when the tape's mechanical and thermal properties match the application.
Certain fiberglass adhesive tapes are specifically designed for high-temperature applications. Silicone adhesive glass cloth tapes are commonly used for higher-temperature electrical applications.
Not necessarily. The stripe is primarily a visual feature unless it is part of a specially engineered reinforcement structure.
Yes. Glass cloth adhesive tapes are used for holding and bundling electrical wiring and cable harnesses.
Only for suitable lightweight applications that have been validated. Heavy or safety-critical components normally require dedicated mechanical fastening.
Yes. Industrial converting can provide different widths, lengths, thicknesses, stripe designs, roll formats, and die-cut shapes.
Electrical-grade fiberglass adhesive tapes can provide electrical insulation. However, the dielectric strength must be verified from the product specification.
Silicone adhesives are commonly used for high-temperature glass cloth tapes, although the best adhesive depends on the component, substrate, temperature, and required service life.
The surface should normally be clean, dry, and free from oil, grease, dust, and loose particles.
It can be suitable for selected vibration applications because fiberglass provides mechanical reinforcement, but the adhesive and component load must also be validated.
80. Conclusion
Striped Fiberglass Adhesive Tape for Component Fixing is a specialized reinforced adhesive material that combines the mechanical strength of fiberglass with the bonding capability of a pressure-sensitive adhesive. It can be used to stabilize lightweight components, secure wires, reinforce insulation, organize cable assemblies, protect connection areas, and support manufacturing processes.
Its main advantage is the combination of mechanical reinforcement and adhesive fixing. Fiberglass provides tensile strength, tear resistance, dimensional stability, and abrasion resistance, while the adhesive provides surface attachment. This combination makes the tape substantially different from ordinary lightweight adhesive tape.
The product is especially valuable in electrical and electronic applications where components may experience vibration, heat, mechanical movement, or abrasion. Glass cloth adhesive tapes are commercially available in different adhesive systems and thermal constructions, including silicone and thermosetting rubber systems. Published products demonstrate applications ranging from electrical wiring and component holding to transformer insulation, coil wrapping, motor leads, and high-temperature cable harnessing.
For component fixing, the most important selection criteria are not simply tensile strength or appearance. The complete application should be evaluated according to component weight, contact area, substrate material, adhesive compatibility, temperature, vibration, humidity, chemical exposure, electrical requirements, and expected service life.
A properly selected Striped Fiberglass Adhesive Tape can provide a clean, efficient, and durable method for fixing and reinforcing components while also offering additional insulation and abrasion protection. For industrial production, the material can be supplied in rolls, precision-slit widths, or converted die-cut pieces, allowing the tape construction to be adapted to different assembly processes.
When correctly specified and applied, Striped Fiberglass Adhesive Tape for Component Fixing can contribute to more organized assemblies, improved mechanical stability, better wire management, and longer-lasting protection in demanding electrical and industrial environments.
This website uses cookies to ensure you get the best experience on our website.
Phone
