Striped Fiberglass Adhesive Tape for Electrical Panel Insulation is a reinforced electrical insulation material designed for applications where mechanical strength, dimensional stability, adhesion, and electrical protection are required at the same time. The tape combines a fiberglass-based reinforcement structure with an adhesive layer, providing a practical method for securing, insulating, bundling, reinforcing, and protecting components inside or around electrical panels.
Electrical panels contain a wide variety of components, including busbars, terminal blocks, circuit protection devices, contactors, relays, wiring harnesses, control transformers, power supplies, connectors, and other conductive parts. These components can experience mechanical movement, vibration, heat, abrasion, installation stress, and contamination. A properly selected fiberglass adhesive tape can provide an additional layer of mechanical and electrical protection while helping maintain the organization of internal wiring and Insulation Materials.
Fiberglass-based electrical tapes are valued because glass fibers provide high tensile strength and dimensional stability compared with many ordinary flexible film tapes. Electrical-grade glass cloth tapes are commonly used for electrical insulation, mechanical protection, coil wrapping, bundling, and high-temperature applications. Depending on the adhesive system and construction, fiberglass electrical tapes can be designed for different thermal classes and operating environments.
The striped construction adds a distinctive visual feature that can also support identification, separation, or visual management in electrical assemblies. Depending on the product construction, the stripes may be produced as colored markings, printed lines, or integrated visual patterns. The exact appearance and function should always be confirmed according to the intended application.
This guide explains the structure, characteristics, electrical insulation considerations, applications, selection criteria, processing methods, storage requirements, and practical benefits of Striped Fiberglass Adhesive Tape for Electrical Panel Insulation.
1. What Is Striped Fiberglass Adhesive Tape?

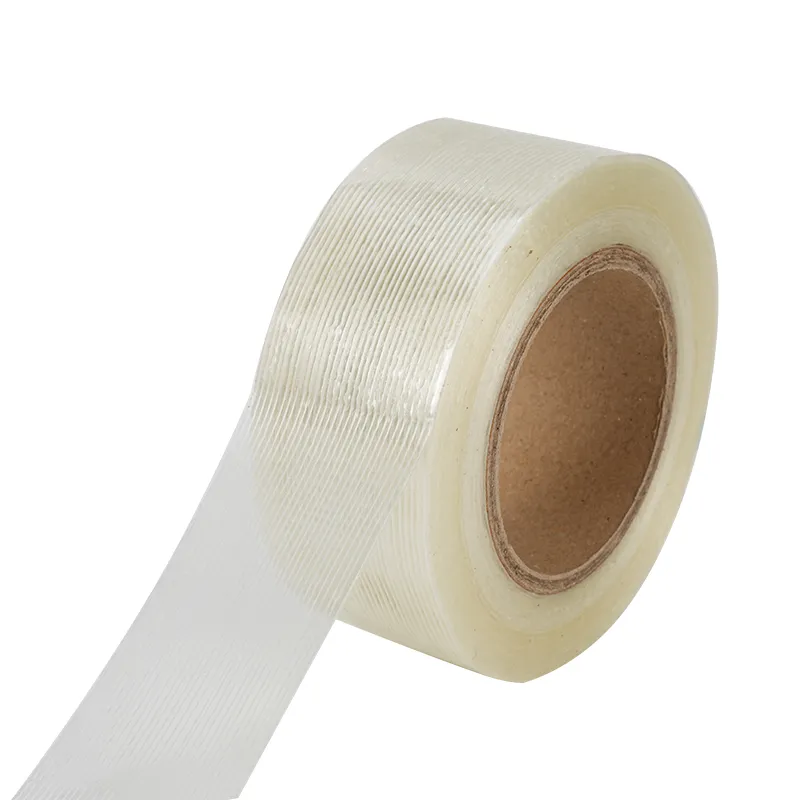

Striped Fiberglass Adhesive Tape is an adhesive electrical tape incorporating fiberglass reinforcement and a visually striped surface or pattern. It is generally designed as a flexible roll material that can be cut, wrapped, overlapped, or applied to selected areas of an electrical assembly.
The basic construction can include:
Fiberglass reinforcement
Woven glass cloth or fiberglass substrate
Pressure-sensitive adhesive
Surface treatment or coating
Stripe marking or colored pattern
Release liner when required
The fiberglass component gives the tape its mechanical reinforcement. The adhesive provides bonding to a suitable surface. The striped appearance distinguishes the product from plain fiberglass electrical tape and can be useful where visual differentiation is desirable.
Electrical Adhesive Tapes generally consist of a flexible backing or carrier combined with an adhesive system. The backing contributes mechanical and electrical properties, while the adhesive contributes bonding performance, handling characteristics, and part of the thermal performance of the finished tape.
For electrical panel applications, the tape should not be selected simply because it is labeled “fiberglass tape.” The actual dielectric strength, insulation class, adhesive type, thickness, temperature rating, flame behavior, chemical resistance, and compatibility with surrounding materials should be evaluated.
2. Why Fiberglass Is Used in Electrical Insulation Tape
Fiberglass is a widely used reinforcement material because it offers a useful combination of mechanical strength, dimensional stability, thermal resistance, and electrical insulation characteristics.
Compared with some conventional plastic film tapes, fiberglass-based tape can maintain better mechanical integrity when subjected to pulling, wrapping, abrasion, and localized stress.
This makes fiberglass adhesive tape particularly useful where the tape needs to do more than simply cover a surface.
Typical performance objectives include:
Electrical insulation
Mechanical reinforcement
Abrasion protection
Wire bundling
Component securing
Insulation layer holding
Edge protection
Thermal resistance
Dimensional stability
Surface protection
Glass cloth electrical tapes are used in electrical equipment such as transformers, motors, generators, and other assemblies where both electrical insulation and mechanical protection are important.
In an electrical panel, these characteristics can be useful around wiring transitions, insulated components, harnesses, terminal areas, and locations where additional mechanical protection is required.
3. Role of Striped Fiberglass Adhesive Tape in Electrical Panels
An electrical panel is not simply a collection of electrical components. It is an engineered assembly in which insulation coordination, wiring arrangement, heat dissipation, mechanical protection, and accessibility all affect system reliability.
Striped Fiberglass Adhesive Tape can serve several supporting functions.
The tape can provide an additional insulating layer over suitable surfaces and components.
It may be used to:
Cover exposed non-contact areas
Support existing insulation
Separate selected components
Reinforce insulation edges
Secure Insulating Materials
Protect wiring from abrasion
However, tape should not automatically be treated as a replacement for a designed primary insulation barrier. The insulation system must be evaluated according to the voltage, clearance, creepage distance, temperature, contamination level, and applicable standards.
Fiberglass reinforcement allows the tape to withstand pulling and wrapping forces better than many lightweight tapes.
This is particularly useful when the tape is used for:
Harness bundling
Wire grouping
Insulation layer holding
Component wrapping
Reinforcement around transitions
Mechanical protection
Electrical panel wiring can come into contact with:
Metal edges
Cable channels
Mounting hardware
Enclosures
Fasteners
Other components
A reinforced fiberglass tape can help protect selected surfaces from mechanical wear when properly applied.
The striped appearance can provide a visual distinction between different tape applications or areas of an assembly.
This can support:
Manufacturing identification
Process differentiation
Insulation marking
Maintenance recognition
Component grouping
Assembly organization
Color and stripe patterns should not be assumed to have a universal electrical meaning unless they are explicitly defined by the relevant engineering documentation or standard.
4. Construction of Fiberglass Electrical Adhesive Tape
The construction of Striped Fiberglass Adhesive Tape can vary significantly depending on the intended application.
The fiberglass backing is the structural component of the tape.
It may be manufactured using glass fiber yarns arranged into a woven or reinforced structure. The resulting backing can provide:
High tensile strength
Tear resistance
Dimensional stability
Abrasion resistance
Heat resistance
Reinforcement
Woven glass cloth is widely used in electrical adhesive tapes because it combines mechanical durability with electrical insulation properties. High-temperature glass cloth tapes are available with different adhesive systems and thermal classifications.
The adhesive determines how the tape bonds to the application surface.
Possible adhesive technologies include:
Acrylic adhesive
Rubber-based adhesive
Silicone adhesive
Thermosetting adhesive systems
The choice affects:
Initial tack
Peel adhesion
Shear holding power
Temperature resistance
Chemical resistance
Aging performance
Removal characteristics
Compatibility
For example, glass cloth tapes with silicone adhesive are commonly associated with high-temperature electrical insulation applications, while acrylic and rubber adhesive systems are also used for medium-temperature electrical applications.
The stripe pattern can be incorporated into the tape's visual construction in different ways.
Depending on the product, stripes may be:
Printed
Coated
Laminated
Integrated into the backing
Produced using colored fibers
The stripe design should not negatively affect adhesion, insulation, flexibility, or mechanical integrity.
5. Electrical Insulation Performance
Electrical insulation is one of the most important considerations when selecting fiberglass adhesive tape.
The tape must be evaluated based on the actual electrical system rather than on its general product name.
Important properties include:
Dielectric strength indicates the ability of an insulating material to withstand an electric field without electrical breakdown.
A fiberglass electrical tape may have a specified dielectric strength based on:
Backing construction
Thickness
Adhesive
Manufacturing process
Test method
Environmental conditions
A published example of electrical-grade glass cloth tape lists dielectric strength in the kilovolt range, demonstrating why the exact grade and test method matter when comparing products.
Insulation resistance describes the material's ability to resist leakage current.
It can be affected by:
Moisture
Contamination
Temperature
Surface condition
Material composition
Aging
Breakdown voltage depends on the complete insulation construction, not merely tape thickness. It is influenced by material defects, air gaps, surface contamination, edges, pressure, temperature, and test conditions.
Even a high-performance insulating tape does not automatically eliminate the need for adequate clearance and creepage distances.
Electrical panel design should consider the complete insulation system.
6. Thermal Performance
Electrical panels may contain heat-generating devices such as:
Circuit breakers
Contactors
Relays
Transformers
Power supplies
Resistors
Motor controllers
Switching components
The surrounding temperature can therefore be significantly higher than room temperature.
The thermal performance of fiberglass adhesive tape depends on both its backing and adhesive.
Electrical insulation systems commonly use thermal classes such as:
Class A: 105°C
Class B: 130°C
Class F: 155°C
Class H: 180°C
Class N: 200°C
These classifications are used in electrical insulation systems, but the exact rating of a specific adhesive tape depends on its construction and certification.
Some glass cloth tapes with silicone adhesives are designed for high-temperature electrical applications and can reach thermal Class H or Class N depending on the specific grade.
Therefore, users should never assume that every fiberglass adhesive tape can operate continuously at the same temperature.
7. Thermal Aging and Electrical Panel Reliability
Temperature has a major effect on the service life of electrical insulation.
Long-term exposure to elevated temperatures can cause:
Adhesive degradation
Loss of tack
Hardening
Softening
Shrinkage
Embrittlement
Reduced mechanical strength
Reduced insulation performance
A tape that performs well during initial assembly may not maintain the same characteristics after prolonged thermal aging.
For electrical panels, thermal evaluation should therefore consider:
Normal operating temperature
Maximum operating temperature
Local hot spots
Short-term temperature excursions
Heat generated by adjacent components
Expected service life
Adhesive aging
Electrical insulation requirements
The temperature rating of the tape should be compatible with the actual insulation system.
8. Main Advantages of Striped Fiberglass Adhesive Tape
Fiberglass reinforcement gives the tape strong resistance to pulling and mechanical stress.
This makes it useful for applications where the tape must hold an insulation layer or bundle wires.
Fiberglass reinforcement helps reduce unwanted stretching during application.
Dimensional stability is particularly valuable for:
Straight wrapping
Edge reinforcement
Repeated production processes
Controlled overlap
Harness bundling
Suitable electrical-grade fiberglass tapes can provide strong dielectric performance.
The actual insulation capability depends on product construction, thickness, adhesive, and testing.
Fiberglass can tolerate elevated temperatures better than many general-purpose polymeric tapes.
The adhesive system remains a key factor in determining the final service temperature.
Fiberglass cloth offers strong resistance to mechanical wear.
This makes it suitable for electrical assemblies exposed to vibration and rubbing.
Some fiberglass electrical tapes are designed with flame-resistant constructions.
However, flame performance should be confirmed from the actual technical specification rather than assumed from the presence of fiberglass.
The adhesive can help maintain the tape position during assembly and service.
The ideal adhesive level depends on the surface and application.
The striped pattern gives the product a distinctive appearance and may help users visually distinguish an insulated or reinforced area.
Fiberglass adhesive tape can generally be supplied in rolls and converted into different widths and lengths.
It can also be slit or die-cut for specialized assembly processes.
9. Electrical Panel Applications
Striped Fiberglass Adhesive Tape can be used in a variety of electrical panel insulation and protection tasks.
Electrical panels often contain groups of wires that must be organized and secured.
Fiberglass adhesive tape can help bundle wires while providing mechanical reinforcement.
The tape should be applied without excessively compressing the wires.
The tape can provide additional protection around selected cable sections.
It can help reduce exposure to abrasion from nearby metal components.
Insulating sheets, sleeves, wraps, and other materials may need to remain in position during assembly.
The adhesive tape can secure these layers.
Selected terminal areas may require additional mechanical protection.
The tape can help prevent accidental rubbing against surrounding structures when the application design permits.
Control transformers and other transformer-related components can require insulation and mechanical protection.
Fiberglass electrical tape is commonly used across the broader electrical industry for transformer and coil applications.
Motor control systems can contain components exposed to heat, vibration, and mechanical movement.
Reinforced fiberglass tape may provide additional bundling and insulation support.
Fiberglass electrical tapes are used for electrical insulation and mechanical protection in electrical equipment.
Their application can include bundling, wrapping, holding, and reinforcement.
Power supply panels can contain wiring, transformers, inductors, and heat-generating components.
A suitable fiberglass tape can support insulation and wire management where compatible with the design.
10. Fiberglass Tape for Busbar Insulation
Busbars are conductive components that require carefully engineered insulation and spacing.
Fiberglass adhesive tape may be considered for selected busbar insulation or mechanical protection applications, but the tape must not be used casually as a substitute for an engineered busbar insulation system.
Important factors include:
Working voltage
Peak voltage
Temperature
Busbar geometry
Edge sharpness
Creepage distance
Clearance
Short-circuit forces
Environmental contamination
Required flame performance
Mechanical protection
Where high-current busbars are involved, thermal expansion and electromagnetic forces can create significant mechanical stresses.
The tape must therefore be appropriate for the actual application.
11. Fiberglass Tape for Wire Harness Protection
Wire harnesses inside electrical panels can be exposed to constant mechanical contact.
Fiberglass adhesive tape can provide:
Bundle organization
Abrasion resistance
Additional insulation
Mechanical reinforcement
Surface protection
For wire harnessing, users should consider the tape's flexibility and adhesive behavior.
An excessively rigid tape may be difficult to wrap around tight bends.
A tape that is too soft may not provide sufficient mechanical support.
The ideal product balances conformability with reinforcement.
12. Chemical Resistance
Electrical panels may be exposed to:
Cleaning agents
Oils
Lubricants
Solvents
Industrial vapors
Moisture
Dust
Condensation
Fiberglass itself can provide good resistance in many industrial environments, but the adhesive may behave differently.
Chemical compatibility should therefore be evaluated for the complete tape construction.
The relevant questions include:
Does the adhesive soften?
Does the adhesive lose tack?
Does the backing swell?
Does the stripe coating migrate?
Does contamination reduce adhesion?
Does long-term chemical exposure affect dielectric performance?
High-performance electrical tapes are commonly evaluated against thermal, mechanical, electrical, and chemical stresses because electrical insulation systems experience these stresses simultaneously.
13. Moisture Resistance
Moisture can negatively affect electrical insulation systems.
Electrical panels installed in humid environments may experience:
Condensation
High humidity
Water vapor
Surface contamination
Moisture can influence adhesion and insulation performance.
When the application requires moisture resistance, users should select a tape with documented environmental performance.
The tape should also be applied to a clean, dry surface.
14. Abrasion and Mechanical Protection
One of the strongest reasons for using fiberglass tape is mechanical durability.
Compared with lightweight Insulating Films, fiberglass cloth can provide greater resistance to:
Scratching
Rubbing
Tearing
Edge damage
Handling stress
This makes it particularly useful where electrical insulation is combined with mechanical protection.
Electrical glass cloth tapes are specifically recognized for abrasion resistance, puncture resistance, tensile strength, and mechanical durability.
15. Striped Design and Visual Management
The striped design can be useful from a manufacturing and maintenance perspective.
In a complex electrical panel, visual differentiation may help technicians quickly identify specific taped areas.
Possible functions include:
Process identification
Insulation zone recognition
Harness grouping
Assembly differentiation
Maintenance reference
Product appearance
However, color or stripe patterns should not be interpreted as standardized electrical identification unless the project documentation explicitly defines them.
A professional electrical panel should use documented labeling and wiring identification practices.
16. Choosing the Correct Fiberglass Adhesive Tape
Choosing the correct tape requires more than selecting the right width.
A systematic evaluation should include the following factors.
Determine the working voltage and insulation requirements.
Identify both continuous and short-term temperature exposure.
Select acrylic, rubber, silicone, or another adhesive system according to temperature and surface requirements.
Compare woven fiberglass, glass cloth, reinforced structures, or other constructions.
Thickness influences:
Dielectric performance
Flexibility
Edge coverage
Mechanical protection
Wrapping behavior
Consider adhesion to:
Metal
Plastic
Painted surfaces
Insulation films
Fiberglass
Powder-coated panels
Consider:
Humidity
Oils
Chemicals
Dust
UV exposure
Vibration
Temperature cycling
Consider whether the tape will be:
Hand applied
Machine wrapped
Die cut
Laminated
Slit
Applied automatically
17. Recommended Technical Specification Categories
A professional product specification for Striped Fiberglass Adhesive Tape may include:
Product name
Backing material
Fiberglass type
Adhesive type
Color
Stripe pattern
Total thickness
Backing thickness
Standard width
Standard length
Tensile strength
Elongation
Adhesion to steel
Dielectric strength
Temperature rating
Thermal class
Flame performance
Chemical resistance
Moisture resistance
Storage conditions
Shelf life
Core diameter
Roll diameter
Applicable standards
The actual numerical values must come from the manufacturer's validated technical data.
For example, an electrical-grade glass cloth tape specification published by SynFlex identifies glass cloth backing, silicone adhesive, 0.190 mm total thickness, 4 kV dielectric strength, 235 N/cm tensile strength, and a 200°C thermal class for that particular product. These figures are product-specific and should not be generalized to every fiberglass tape.
18. Thickness Selection
Thickness is an important factor in electrical insulation tape selection.
A thinner tape can provide:
Better flexibility
Easier wrapping
Lower material consumption
Smaller finished dimensions
A thicker tape can provide:
Greater mechanical protection
More robust insulation coverage
Better resistance to localized abrasion
Increased dielectric thickness
However, increasing thickness does not automatically produce a proportionally better electrical insulation system.
The actual dielectric performance must be established by testing.
19. Width Selection
The tape width should correspond to the application.
Narrow tape can be useful for:
Small wires
Narrow insulation edges
Small components
Local reinforcement
Medium-width tape can be suitable for:
Wire harnesses
Insulation sheets
Terminal protection
Component wrapping
Wide tape can be used for:
Large insulation layers
Panel assemblies
Broad surface protection
Heavy-duty wrapping
Custom slitting is commonly available for electrical adhesive tape products, allowing widths to be matched to production requirements.
20. Adhesive Selection
Adhesive selection is one of the most important decisions.
Acrylic adhesive can provide:
Good aging performance
Good temperature resistance
Chemical resistance
Stable adhesion
Electrical glass cloth tapes using acrylic adhesives are commonly associated with medium-to-high thermal classes depending on the product.
Silicone adhesive is frequently selected for high-temperature applications.
Advantages can include:
High-temperature capability
Good flexibility
Stable adhesion at elevated temperatures
Resistance to demanding environments
Glass cloth tapes with silicone adhesives are used for high-temperature electrical insulation and coil applications.
Rubber adhesive can provide:
High initial tack
Good adhesion
Flexible handling
Some electrical glass cloth tapes with rubber adhesives are used in Class B applications around 130°C, depending on the specific construction.
21. Surface Preparation
Proper surface preparation is essential for reliable adhesive performance.
Before applying the tape:
Remove dust.
Remove loose particles.
Remove oil and grease.
Ensure the surface is dry.
Ensure the surface is sufficiently smooth.
Remove loose coatings.
Check for sharp edges.
Confirm compatibility.
Poor surface preparation can cause:
Poor adhesion
Edge lifting
Wrinkling
Contamination
Premature detachment
The tape should generally be applied to a clean and dry surface unless the specific adhesive system states otherwise.
22. Correct Application Method
A typical manual application process is:
Check for contamination, sharp edges, moisture, and loose materials.
Avoid unnecessary waste.
Use a clean cutting tool.
Align the tape carefully with the intended insulation or protection area.
Press the tape onto the surface to promote adhesive contact.
Fiberglass tape should not be stretched excessively unless the product is designed for tensioned application.
Maintain a consistent overlap where multiple layers are needed.
Check for:
Wrinkles
Gaps
Lifting edges
Loose sections
Contamination
Excessive tension
23. Avoiding Common Application Problems
Several application problems can reduce tape performance.
Overstretching may cause dimensional changes or reduced coverage after application.
Irregular overlap can create inconsistent insulation thickness.
Dust and oil reduce adhesive contact.
Sharp metal edges may cut or damage the backing.
The actual service temperature must remain within the tape's validated rating.
Poor storage can alter adhesive properties before use.
24. Fiberglass Adhesive Tape Compared With Ordinary Electrical Tape
Ordinary vinyl electrical tape is designed primarily for flexible insulation and general electrical applications.
Fiberglass adhesive tape is different because it emphasizes mechanical reinforcement.
Fiberglass tape typically offers stronger:
Tensile strength
Abrasion resistance
Dimensional stability
Mechanical reinforcement
High-temperature capability
However, ordinary flexible electrical tape may offer better conformability for irregular shapes.
Therefore, the correct choice depends on the application.
25. Fiberglass Tape Compared With Polyester Tape
Polyester electrical tape can provide:
Thin construction
Good dielectric strength
Smooth surface
Good conformability
Low profile
Fiberglass tape can provide greater mechanical reinforcement and abrasion resistance.
Electrical insulation suppliers commonly distinguish PET, glass cloth, fiberglass-reinforced, polyimide, and other tape constructions based on their electrical, thermal, and mechanical properties.
26. Fiberglass Tape Compared With Polyimide Tape
Polyimide tape is often selected for high-temperature electrical insulation where thinness, dielectric performance, and dimensional stability are important.
Fiberglass tape is often selected when mechanical reinforcement and abrasion resistance are more important.
The choice depends on:
Temperature
Voltage
Mechanical load
Surface geometry
Required thickness
Adhesive requirements
Cost
Application process
27. Fiberglass Tape Compared With PTFE Fiberglass Tape
PTFE-coated fiberglass tape is a specialized product combining fiberglass reinforcement with PTFE.
It is typically chosen where:
Non-stick properties
Low friction
Chemical resistance
High-temperature release
are important.
It should not be confused with adhesive fiberglass electrical tape.
PTFE-coated fiberglass tape and glass cloth electrical adhesive tape serve different purposes. PTFE-coated versions can provide non-stick surfaces and high-temperature performance, while adhesive glass cloth tape is intended for bonding and insulation applications.
28. Use in Control Panels
Control panels contain numerous low- and medium-power components.
Typical applications include:
Relay wiring
Contactor wiring
Terminal wiring
Sensor cables
Control harnesses
Power supply wiring
Transformer wiring
Connector protection
Striped Fiberglass Adhesive Tape can provide additional organization and mechanical protection.
Its striped appearance may also help distinguish selected wiring groups during manufacturing.
29. Use in Industrial Electrical Cabinets
Industrial cabinets may be exposed to:
Vibration
Heat
Dust
Oil mist
Mechanical impact
Repeated maintenance
A mechanically reinforced insulation tape can be useful where ordinary lightweight tape is insufficient.
Fiberglass electrical tapes are commonly used for bundling, mechanical protection, and electrical insulation in industrial electrical equipment.
30. Use in Transformer-Related Assemblies
Fiberglass tape is widely used in transformer insulation systems, particularly for:
Coil wrapping
Banding
Layer holding
Lead protection
Mechanical reinforcement
High-temperature glass cloth tapes are specifically used for coil and transformer applications.
The tape must be compatible with the complete transformer insulation system, including resin, varnish, oil, paper, films, and thermal class.
31. Use in Motor and Generator Panels
Motors and generators can expose insulation materials to:
Heat
Vibration
Mechanical stress
Electrical stress
Abrasion
Fiberglass tape can be used to secure insulation layers and protect selected components.
Glass cloth electrical tapes are commonly used in motors and generators because of their tensile strength and abrasion resistance.
32. Flame and Fire Considerations
Electrical panels can contain components that generate significant heat.
Fire performance therefore deserves careful consideration.
Fiberglass itself is inherently heat-resistant, but the complete tape includes adhesive and possibly coatings or stripe materials.
The final fire behavior can therefore depend on:
Fiberglass construction
Adhesive chemistry
Coating
Stripe material
Thickness
Product formulation
Never infer flame-retardant certification solely from the product name.
33. Standards and Certification
Electrical Insulation Materials may be evaluated against various standards depending on the market and application.
Potential areas of evaluation include:
Electrical insulation
Thermal classification
Flame performance
Adhesion
Tensile strength
Dielectric strength
Environmental compliance
UL 510 is one standard associated with electrical tape recognition in applicable products, while IEC standards may also be relevant depending on the application. Published electrical tape examples demonstrate that certification is product-specific.
For an electrical panel project, the appropriate certification should be verified against the actual design requirements.
34. Quality Control for Fiberglass Adhesive Tape
Quality control should cover both the raw materials and finished tape.
Important inspection items include:
Check:
Stripe uniformity
Surface cleanliness
Edge quality
Color consistency
Wrinkles
Foreign particles
Check:
Width
Length
Thickness
Core diameter
Roll diameter
Potential tests include:
Tensile strength
Elongation
Tear resistance
Shear strength
Potential tests include:
Peel adhesion
Holding power
Tack
Unwind force
Potential tests include:
Dielectric strength
Insulation resistance
Breakdown performance
35. Importance of Dielectric Testing
Dielectric testing is especially important for electrical panel insulation.
A tape may appear physically intact while still having electrical weaknesses caused by:
Pinholes
Voids
Contamination
Inconsistent thickness
Adhesive defects
Mechanical damage
Therefore, electrical insulation materials should be validated using appropriate testing procedures.
A published glass cloth electrical tape example demonstrates that dielectric strength is a measurable specification alongside tensile strength, thickness, and thermal class.
36. Aging Evaluation
For long-term electrical applications, aging evaluation is important.
Potential aging mechanisms include:
Thermal aging
Humidity aging
Chemical aging
Electrical aging
Mechanical aging
UV exposure
Accelerated aging tests can help estimate long-term performance.
The actual test method should match the intended application and relevant standard.
37. Storage Requirements
Adhesive tapes should be stored carefully before use.
Recommended general conditions often include:
Cool environment
Dry environment
Moderate temperature
Protection from direct sunlight
Protection from excessive humidity
Original packaging
Clean storage area
Specific storage recommendations should always follow the manufacturer's technical data.
For example, one electrical fiberglass tape specification recommends storage at approximately 20°C and 50–60% relative humidity and limits storage duration to 12 months. This is a product-specific example, not a universal requirement.
38. Shelf Life
Adhesive tape is not indefinitely stable.
Over time, adhesive properties can change because of:
Oxidation
Temperature
Humidity
Contamination
Packaging conditions
Possible symptoms of aging include:
Reduced tack
Excessive tack
Adhesive transfer
Edge lifting
Hardening
Softening
Older material should be inspected before production use.
39. Packaging Considerations
Electrical fiberglass adhesive tape can be packaged as:
Individual rolls
Multi-roll cartons
Bulk rolls
Slit rolls
Jumbo rolls
Custom converted rolls
Packaging should protect the tape from:
Moisture
Dust
Heat
UV exposure
Physical deformation
For industrial production, the packaging format should also support efficient material handling.
40. Customization Options
Industrial users may require customized fiberglass adhesive tape.
Potential customization includes:
Width
Length
Thickness
Stripe color
Stripe spacing
Adhesive type
Adhesive thickness
Core size
Roll diameter
Die-cut shape
Packaging
Labeling
Custom slitting and die cutting are common converting options for electrical adhesive tape materials.
41. Automatic Application
Large-scale electrical panel manufacturing may use automated or semi-automated tape application.
Automation can improve:
Application consistency
Production speed
Overlap accuracy
Material utilization
Operator safety
Process repeatability
For automatic application, the tape must have:
Consistent thickness
Controlled unwind
Stable adhesive
Uniform width
Smooth edges
Controlled roll geometry
42. Importance of Unwind Performance
Unwind behavior can affect production efficiency.
A tape with excessive unwind force may:
Stretch
Tear
Slow production
Cause operator fatigue
A tape with very low unwind force may:
Unwind uncontrollably
Create wrinkles
Produce telescoping
Complicate automatic processing
Therefore, controlled unwind performance is valuable for industrial applications.
43. Environmental Considerations
Modern electrical manufacturing increasingly considers environmental performance.
Important factors may include:
Material efficiency
Reduced solvent use
Packaging reduction
RoHS compliance
REACH compliance
Halogen content
Waste reduction
Compliance should always be confirmed using actual documentation for the selected product.
44. Design Considerations for Electrical Panels
When integrating fiberglass adhesive tape into an electrical panel, engineers should consider the complete system.
Important questions include:
What is the working voltage?
What is the maximum temperature?
Is the tape exposed to vibration?
Is chemical resistance necessary?
Is flame performance required?
Is mechanical reinforcement required?
Is permanent adhesion needed?
Will the tape contact insulation varnish or resin?
Will the tape be exposed to moisture?
What certifications are required?
These questions help prevent inappropriate material selection.
45. Electrical Compatibility
Tape should be compatible with adjacent insulation materials.
Potential neighboring materials include:
PET film
Polycarbonate
Polyimide
Nomex aramid paper
PVC
Silicone rubber
Epoxy resin
Fiberglass
Powder coating
Painted metal
Adhesive interaction should be considered.
Some adhesives may soften, migrate, or react with certain coatings or chemicals.
46. Mechanical Compatibility
The tape should also match the mechanical behavior of the surface.
For example:
Rigid metal surfaces require strong adhesion.
Flexible wires require conformability.
Rough surfaces require suitable adhesive flow.
Sharp edges require mechanical protection.
Vibrating components require strong shear performance.
No single tape is optimal for every electrical panel.
47. Temperature Cycling
Electrical panels frequently experience temperature changes.
A panel may move from:
Room temperature during startup
Elevated temperature during operation
Lower temperature after shutdown
Repeated thermal cycling can create expansion and contraction between materials.
The tape must maintain adhesion and dimensional stability through these cycles.
48. Vibration Resistance
Industrial electrical panels may be installed near:
Motors
Pumps
Compressors
Fans
Production equipment
Continuous vibration can cause insulation materials to move or rub.
Fiberglass reinforcement can help improve mechanical durability.
However, tape alone should not be relied upon as the only structural retention method for heavy components.
49. Edge Protection
Sharp edges are a common source of insulation damage.
Metal panel edges can cut or abrade wiring.
Fiberglass adhesive tape can be used as a localized protective layer where appropriate.
The tape should be wrapped carefully around the edge without creating an unintended reduction in electrical clearance.
50. Maintenance Applications
Fiberglass adhesive tape can also be useful during maintenance.
Possible maintenance applications include:
Temporary insulation reinforcement
Harness bundling
Cable protection
Insulation repair support
Identification
Mechanical protection
However, temporary repair should not automatically be considered an equivalent replacement for a permanent engineered insulation system.
51. Safety Considerations
Electrical insulation work should be performed by qualified personnel.
Before applying tape inside an electrical panel:
Disconnect power where required.
Follow lockout and tagout procedures.
Confirm absence of hazardous voltage.
Inspect surrounding components.
Avoid blocking ventilation.
Avoid covering heat-generating components unless specifically permitted.
Maintain required clearances.
Follow applicable electrical standards.
The tape is an insulation material, not a substitute for safe electrical design and work practices.
52. Common Application Mistakes
Several mistakes can reduce performance.
A striped fiberglass tape may look suitable but may not have the required electrical rating.
The adhesive may fail even if the fiberglass backing remains intact.
Contamination reduces adhesion.
Overstretching can distort the tape.
Tape should not interfere with equipment cooling.
Tape cannot automatically compensate for insufficient electrical spacing.
Industrial fiberglass tape and electrical-grade fiberglass tape are not necessarily interchangeable.
53. Product Selection Checklist
Before purchasing Striped Fiberglass Adhesive Tape for Electrical Panel Insulation, verify:
Fiberglass backing
Electrical-grade construction
Adhesive type
Total thickness
Dielectric strength
Thermal class
Tensile strength
Adhesion
Flame performance
Chemical resistance
Moisture resistance
Stripe construction
Available widths
Roll length
Core diameter
Applicable certification
Shelf life
Storage requirements
54. Why Striped Fiberglass Adhesive Tape Is Suitable for Industrial Insulation
The combination of fiberglass reinforcement and adhesive creates a multifunctional material.
It can simultaneously provide:
Electrical insulation
Mechanical reinforcement
Abrasion resistance
Component holding
Wire bundling
Heat resistance
Visual identification
This combination makes it particularly useful in electrical assemblies where a thin flexible insulating material also needs mechanical strength.
55. Future Development of Fiberglass Electrical Tapes
The electrical industry continues to demand materials with better performance and easier processing.
Future fiberglass adhesive tape development may focus on:
Higher thermal stability
Improved dielectric strength
Better flame resistance
Lower adhesive residue
Better chemical resistance
Improved automatic processing
More consistent thickness
Environmentally improved adhesive systems
Custom visual identification
More precise die-cut components
As electrical equipment becomes more compact and powerful, insulation materials must handle increasingly demanding combinations of electrical, thermal, mechanical, and environmental stresses.
56. Frequently Asked Questions
It is a fiberglass-reinforced adhesive tape with a striped visual pattern, designed for applications such as electrical insulation, mechanical reinforcement, bundling, and component protection.
Electrical-grade fiberglass adhesive tape can be suitable for electrical panels when its electrical, thermal, mechanical, and environmental specifications match the application.
Fiberglass itself has high thermal stability, but the final temperature rating depends heavily on the adhesive and complete tape construction.
It can provide insulation support in suitable applications, but it should not automatically replace an engineered primary insulation system.
Yes. Fiberglass electrical tape is commonly used for wire and cable bundling where mechanical strength and abrasion resistance are important.
Silicone adhesive is commonly used for high-temperature glass cloth electrical tapes, while acrylic and rubber systems are also used for different thermal classes and applications.
Not necessarily. Stripe patterns can provide visual differentiation, but their electrical meaning should only be defined by the relevant engineering documentation.
Depending on the converting capability, customization can include width, length, thickness, adhesive, color, stripe pattern, core size, and die-cut configuration.
Generally, adhesive tape should be kept in a clean, dry, moderate-temperature environment and protected from direct sunlight. The exact storage requirements should follow the product specification.
Choose thickness according to the required dielectric performance, mechanical protection, flexibility, wrapping geometry, and applicable insulation system.
57. Conclusion
Striped Fiberglass Adhesive Tape for Electrical Panel Insulation is a versatile reinforced tape designed to combine electrical insulation support with mechanical protection, adhesion, abrasion resistance, and visual differentiation. Its fiberglass reinforcement provides dimensional stability and tensile strength, while the adhesive layer enables bonding to suitable surfaces.
The product can be useful for wire harness bundling, insulation layer securing, cable protection, component wrapping, transformer-related applications, control panels, industrial electrical cabinets, and selected electrical insulation tasks.
The most important consideration is that tape selection should be based on the actual electrical and environmental requirements rather than the product name alone. Voltage, dielectric performance, thermal class, adhesive type, mechanical strength, chemical exposure, moisture, vibration, and applicable certification should all be evaluated.
Glass cloth electrical tapes are available across different thermal classes and adhesive systems, including rubber, acrylic, and silicone constructions. Published industry references show examples ranging from medium-temperature Class B and Class F products to high-temperature Class H and Class N constructions.
For demanding electrical panel applications, a properly specified Striped Fiberglass Adhesive Tape can provide a practical combination of insulation support, mechanical reinforcement, abrasion protection, controlled adhesion, and visual identification. When integrated correctly into a complete electrical insulation system, it can contribute to safer, more organized, and more durable electrical assemblies.
This website uses cookies to ensure you get the best experience on our website.
Phone
