Unbreakable High-Voltage Flame-Retardant PC Mylar Sheet is a specialized polycarbonate insulation film designed for demanding electrical, battery, electronic, and industrial applications where mechanical toughness, electrical isolation, flame-retardant performance, and reliable dimensional integrity are important.

In practical engineering language, the term “unbreakable” is generally used as a product-description expression for a tough, impact-resistant, crack-resistant material rather than a literal claim that the film can never break. Polycarbonate is particularly attractive when a thin insulation material must tolerate handling, bending, forming, vibration, and localized mechanical stress without becoming excessively brittle.

For lithium-ion battery assemblies, Insulation Materials play an important role in separating conductive components, protecting electrical interfaces, reducing accidental contact, and supporting the overall mechanical organization of the battery structure. A properly selected PC insulation sheet can be converted into flat barriers, die-cut parts, formed separators, terminal covers, protective liners, and other customized components.

Commonly available Mylar-type insulation sheets on the market mainly include PP, PET, PVC, PC and Teflon grades. These materials should not be regarded as identical simply because they are all marketed as thin insulation films. Each polymer has its own combination of temperature performance, mechanical behavior, chemical resistance, flexibility, dielectric properties, forming capability, and cost.

Available colors can include black, clear, matte-black, and milky-white. Color selection can be functional as well as cosmetic. Black and matte-black films can provide light blocking and a low-reflection appearance, while clear film allows visual inspection of the underlying structure. Milky-white film can provide a clean, neutral appearance while maintaining the insulating function.

The construction can also be customized with single-sided adhesive or double-sided adhesive, including double-coated adhesive configurations with a release liner. Self-adhesive construction provides a convenient method for fixing insulation components during assembly and can reduce unwanted movement after installation.

1. Understanding PC Mylar-Type Insulation Film

The expression “PC Mylar Sheet” is commonly used in industrial product searches to describe thin polycarbonate insulation film.

Technically, however, PC film and traditional PET Mylar film are different materials.

PC stands for polycarbonate, while PET stands for polyethylene terephthalate.

The difference matters because the two materials behave differently under mechanical stress, temperature, forming, and impact.

PC is generally associated with:

• High toughness

• Good impact resistance

• Crack resistance

• Formability

• Good dimensional stability

• Electrical insulation

• Engineering-grade durability

• Availability in flame-retardant formulations

This makes PC film suitable for applications where an insulation layer must also tolerate mechanical handling or complex geometry.

2. Why Toughness Matters in Battery Insulation

Battery insulation components are not always installed on perfectly flat surfaces.

A film may need to:

• Wrap around an edge

• Pass around a terminal

• Cover a metal structure

• Follow a formed surface

• Remain attached during vibration

• Resist handling damage

• Maintain its designed position

A brittle insulation film can be more susceptible to cracking or tearing during these operations.

A tough PC film can offer a useful combination of flexibility and mechanical strength.

This is one reason polycarbonate film is considered for demanding insulation applications where ordinary brittle films may not provide the desired handling characteristics.

3. Lithium-Ion Battery Insulation Requirements

Lithium-ion batteries contain multiple conductive and non-conductive components.

Depending on battery architecture, the assembly may include:

• Cylindrical cells

• Prismatic cells

• Pouch cells

• Cell terminals

• Busbars

• Nickel Strips

• Copper conductors

• Aluminum conductors

• BMS components

• Sampling wires

• Connectors

• Metal frames

• Module housings

Electrical Insulation Materials help create separation between these components.

A suitable insulation sheet can provide a physical barrier without requiring a thick rigid plastic component.

4. PC Film as a Battery Insulation Material

PC film can be converted into different insulation components for battery assemblies.

Possible applications include:

• Terminal insulation

• Cell surface protection

• Module insulation

• Busbar separation

• BMS protection

• Wire routing barriers

• Housing insulation

• Electrical interface protection

• Structural isolation

The exact application depends on the battery design and material qualification requirements.

5. Flame-Retardant PC for Battery Systems

Flame-retardant PC formulations are available for applications requiring improved resistance to ignition and flame propagation.

In battery systems, flame-retardant materials can form part of a broader safety strategy.

The purpose is not to make a battery “fireproof.” Instead, the insulation material can contribute to controlling the behavior of the polymer component when exposed to an ignition source or elevated thermal conditions.

A battery safety design may combine:

• Flame-retardant polymers

• Electrical isolation

• Thermal management

• Overcurrent protection

• Mechanical protection

• Cell spacing

• Venting

• Monitoring systems

Therefore, flame-retardant PC film should be considered one component within the overall battery safety architecture.

6. High-Voltage Insulation

High-voltage battery systems require carefully engineered electrical isolation.

The insulation structure may need to separate:

• Busbars

• Terminals

• Conductive plates

• High-voltage connectors

• Power cables

• Metal housings

• BMS-related interfaces

PC film can be used as a physical insulating barrier in selected locations.

However, a film's suitability for a particular voltage system cannot be determined from the polymer name alone.

Engineers should evaluate:

• Dielectric strength

• Film thickness

• Creepage distance

• Clearance

• Temperature

• Humidity

• Contamination

• Mechanical stability

• Aging

7. Electrical Isolation Versus Mechanical Protection

An insulation sheet can perform more than one function.

In a battery assembly, a PC component may simultaneously provide:

Electrical isolation + mechanical separation + surface protection + positioning

This multifunctional capability can help reduce the number of individual components required.

For example, a custom PC barrier may separate a conductive busbar from a metal frame while also protecting the surface from abrasion.

8. Common Mylar-Type Insulation Materials

Common thin-film insulation materials include:

• PP

• PET

• PVC

• PC

• Teflon or PTFE

They differ substantially in performance.

This comparison is intended as general industry information. Actual material performance depends on grade, thickness, additives, processing, and application conditions.

9. Why PC Is Different from PET

PET is widely used for electrical insulation because it provides a useful combination of dielectric performance, mechanical strength, dimensional stability, and cost efficiency.

PC offers a different performance profile.

For applications where mechanical toughness and impact resistance are important, PC can be advantageous.

PC is also attractive for formed insulation parts because certain grades can be processed into shapes that would be difficult to produce from more brittle film materials.

Therefore, choosing between PET and PC should be based on the complete application rather than simply the material name.

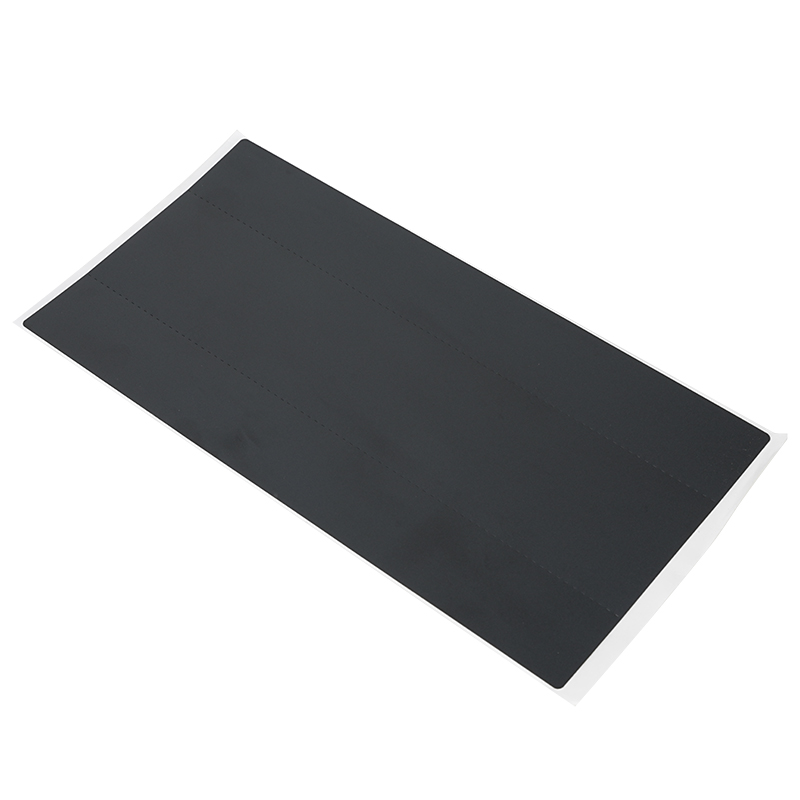

10. Black PC Insulation Sheet

Black is one of the most common colors for industrial PC insulation film.

Black PC film can provide:

• Light blocking

• Low visual reflection

• Industrial appearance

• Concealment of internal structures

• Visual consistency

• Surface protection

Black film is particularly useful when the insulation component is visible through an opening or transparent enclosure.

11. Clear PC Insulation Sheet

Clear PC film can be useful when visual inspection is desirable.

Potential advantages include:

• Visibility of underlying components

• Easy inspection

• Transparent appearance

• Reduced visual obstruction

• Convenient prototype evaluation

Clear film may be selected for inspection windows, electronic assemblies, and applications where technicians need to see the protected structure.

12. Matte-Black PC Film

Matte-black PC film combines the functional characteristics of a dark film with a lower-reflection surface appearance.

It can be useful for:

• Electronic housings

• Industrial equipment

• Internal barriers

• Display-related components

• Light-sensitive structures

The matte surface can also reduce unwanted reflections compared with a highly glossy surface.

13. Milky-White PC Film

Milky-white insulation film provides a light-colored appearance without the full transparency of clear film.

It may be selected when:

• A neutral appearance is preferred

• Light diffusion is acceptable

• Internal components should be partially concealed

• A clean industrial appearance is desired

14. Color Selection for Battery Applications

Color can sometimes provide practical assembly benefits.

For example:

Black: easy visual distinction from metallic structures.

Clear: useful for visual inspection.

Matte-black: suitable for low-reflection designs.

Milky-white: provides a neutral insulating layer.

Color should not be used as the primary indicator of electrical or thermal performance. Material grade and technical qualification remain more important.

15. Self-Adhesive PC Insulation Film

A self-adhesive PC insulation sheet combines the PC substrate with a pressure-sensitive adhesive.

A typical structure can be represented as:

PC Film → Adhesive Layer → Release Liner

The liner is removed during installation.

The adhesive helps keep the film positioned on the selected surface.

This can be particularly useful for thin insulation pieces that could otherwise move during assembly.

16. Single-Sided Adhesive PC Film

Single-sided adhesive construction has adhesive on one side of the PC film.

The opposite side remains exposed.

This structure is suitable when:

• The film needs to be fixed to one surface

• The opposite surface must remain non-adhesive

• The component needs a simple attachment method

• The insulation film must follow a housing or structural surface

17. Double-Sided Adhesive PC Film

Double-sided adhesive construction has adhesive on both sides.

This can be useful when the PC film must be positioned between two components.

Potential applications include:

• Component mounting

• Layer bonding

• Insulation laminates

• Structural separation

• Multi-layer protective constructions

The two adhesive faces can also be selected according to different substrate requirements.

18. Double-Coated Adhesive Construction

Double-coated adhesive refers to adhesive applied to both sides of a carrier or film structure.

A release liner can protect the exposed adhesive surfaces before use.

This construction can provide:

• Easy assembly

• Secure positioning

• Layer-to-layer bonding

• Reduced mechanical fastening

• Convenient installation

The adhesive should be selected according to temperature, substrate, aging, and chemical exposure requirements.

19. Adhesive Selection for Lithium-Ion Batteries

Battery assemblies can experience:

• Heat

• Humidity

• Vibration

• Pressure

• Thermal cycling

• Chemical exposure

Therefore, the adhesive must be qualified for the intended environment.

Important adhesive characteristics can include:

• Peel strength

• Shear resistance

• Temperature stability

• Aging resistance

• Humidity resistance

• Chemical compatibility

• Substrate adhesion

• Residue behavior

The adhesive should be evaluated together with the PC film rather than treated as an independent material.

20. Release Liner Function

The release liner protects the adhesive before installation.

A suitable liner helps prevent:

• Dust contamination

• Premature adhesion

• Surface damage

• Handling problems

During installation, the liner is removed and the adhesive is exposed.

For automated battery assembly, liner design can influence feeding, peeling, positioning, and robotic handling.

21. Die-Cut PC Battery Insulation

PC film can be converted into precision die-cut parts.

Common shapes can include:

• Circular pieces

• Rectangular sheets

• Rings

• Slotted barriers

• Multi-hole components

• L-shaped shields

• U-shaped covers

• Irregular profiles

Die cutting allows the insulation material to match the actual battery component geometry.

22. Custom Shapes for Battery Packs

Battery packs often have limited internal space.

A custom insulation component can be designed around:

• Cell dimensions

• Busbar location

• Terminal geometry

• BMS structures

• Wiring routes

• Mounting holes

• Metal Brackets

This can improve space utilization.

23. Cell Terminal Protection

Cell terminals require careful insulation because they are electrically active areas.

A custom PC film can be designed with openings and protective extensions.

The geometry can help separate:

• Positive terminals

• Negative terminals

• Conductive tabs

• Nearby metal structures

The actual insulation design must satisfy the electrical requirements of the cell and battery system.

24. Busbar Insulation

Busbars can carry significant electrical current.

They may be installed close to:

• Other busbars

• Metal housings

• Cell terminals

• Structural components

A PC insulation sheet can be designed as a barrier around selected areas.

Custom holes can provide access to fastening points while retaining insulation coverage.

25. BMS Protection

Battery Management Systems contain electronic circuits responsible for monitoring and controlling battery operation.

PC film can be used as an insulating protective layer around selected BMS structures.

Possible functions include:

• PCB isolation

• Wire protection

• Terminal separation

• Housing insulation

• Mechanical protection

26. Sampling Wire Protection

Battery sampling wires can be routed through compact spaces.

A thin PC barrier can help prevent unwanted contact between wires and conductive surfaces.

Custom cutouts can be included for:

• Wire passages

• Connectors

• Mounting features

• Cable ties

• Structural components

27. Module-Level Insulation

At the module level, PC insulation can separate cell structures from:

• Metal end plates

• Frames

• Covers

• Busbars

• Fasteners

This can provide an additional physical barrier.

28. Pack-Level Insulation

At battery-pack level, insulation requirements can become more complex.

The insulation system may need to coordinate with:

• Pack enclosure

• Cooling system

• Busbars

• BMS

• Wiring harness

• Service disconnects

• Structural supports

PC film can be used in localized positions where thin insulation is required.

29. Formable PC Film

One major advantage of selected PC grades is their ability to be formed.

Formable film can be processed into:

• Bent barriers

• Curved shields

• Folded covers

• Edge wraps

• Three-dimensional separators

This can reduce the need for several individual flat components.

30. Three-Dimensional Insulation Structures

A three-dimensional PC insulation component may be designed to protect several surfaces simultaneously.

For example, one formed part may cover:

• A metal edge

• A conductive terminal

• A wire route

This multifunctional design can improve assembly efficiency.

31. Mechanical Strength

Mechanical strength is important when an insulation film is exposed to handling or assembly forces.

A tough PC sheet can resist deformation better than some more brittle film materials.

Potential advantages include:

• Better handling durability

• Reduced cracking

• Improved impact resistance

• Better resistance to accidental bending

• Greater design flexibility

32. Crack Resistance

Cracks can compromise an insulation barrier.

They may originate from:

• Sharp bends

• Impact

• Punching

• Stress concentration

• Repeated vibration

• Thermal cycling

A tough PC construction can help reduce the likelihood of cracking under suitable conditions.

33. Impact Resistance

Battery packs and industrial equipment can encounter mechanical shocks.

PC is known for its impact-resistant characteristics.

This makes PC film attractive when an insulation barrier must also withstand mechanical handling.

34. Vibration Resistance

Battery systems installed in vehicles, industrial machines, or mobile equipment can experience vibration.

A properly attached PC insulation component can help maintain electrical separation.

The complete assembly should be tested under the expected vibration profile.

35. Thermal Cycling

Battery systems can repeatedly heat and cool during operation.

Thermal cycling can cause different materials to expand and contract at different rates.

Potentially affected components include:

• PC film

• Adhesive

• Metal housings

• Busbars

• Plastic frames

Therefore, the complete insulation assembly should be evaluated for thermal cycling.

36. Dimensional Stability

Dimensional stability helps a custom insulation part retain its designed geometry.

This is important for parts containing:

• Holes

• Slots

• Narrow tabs

• Complex edges

• Fold lines

Good dimensional control supports consistent assembly.

37. Chemical Exposure

Battery and industrial environments can expose insulation materials to various substances.

Depending on the application, possible exposure may include:

• Cleaning fluids

• Oils

• Weak acids

• Organic solvents

• Processing chemicals

Chemical compatibility should be tested using the actual chemical, concentration, temperature, and exposure period.

38. Flame-Retardant Electrical Safety

Flame-retardant insulation materials can contribute to safer electrical equipment.

They can be particularly useful where an internal polymer component is located near:

• Power electronics

• Conductors

• Connectors

• High-current paths

• Heat-generating components

The flame-retardant grade should be selected according to the applicable product requirements.

39. UL94 Considerations

When a product is described as flame retardant, the specific test classification should be clearly identified.

UL94 classifications are related to the flammability behavior of polymeric materials under defined laboratory conditions.

A statement such as UL94 V-0 should be associated with the actual material grade and applicable thickness.

It should not automatically be interpreted as proof that an entire battery pack or power system meets every fire-safety requirement.

40. High-Voltage Battery Environments

High-voltage battery systems require insulation that remains reliable throughout the expected operating conditions.

The insulation design should consider:

• Voltage

• Temperature

• Humidity

• Contamination

• Mechanical movement

• Aging

• Electrical clearance

• Creepage distance

A PC film can be one element of this insulation architecture.

41. Dielectric Performance

Electrical insulation materials must prevent unwanted current flow.

The dielectric properties of a PC film depend on:

• Material formulation

• Film thickness

• Temperature

• Frequency

• Moisture

• Test method

Therefore, engineering selection should use the manufacturer's actual technical data for the selected material.

42. Creepage and Clearance

High-voltage insulation design requires careful attention to the difference between creepage and clearance.

Clearance concerns the shortest distance through air.

Creepage concerns the distance along an insulating surface.

A die-cut film must be designed without accidentally creating inadequate distances around openings or conductive parts.

43. Battery Safety and Insulation Design

Electrical insulation is only one part of lithium-ion battery safety.

A complete battery design may also require:

• Cell monitoring

• Temperature monitoring

• Current protection

• Short-circuit protection

• Thermal management

• Mechanical protection

• Appropriate spacing

• Controlled venting

• Fire-resistant materials

PC insulation should therefore be integrated into a broader safety strategy.

44. PC Insulation for Cylindrical Cells

Cylindrical lithium-ion cells are commonly arranged in structured arrays.

Insulation film may be used around:

• Cell ends

• Terminal areas

• Interconnection structures

• Cell holders

• Module frames

The film can be die cut to match the circular or irregular geometry of the assembly.

45. PC Insulation for Prismatic Cells

Prismatic cells have a different physical architecture.

Insulation components may be designed around:

• Large flat surfaces

• Terminal areas

• Busbars

• End plates

• Module frames

Formed PC parts can be useful when the insulation needs to follow a three-dimensional structure.

46. PC Insulation for Pouch Cells

Pouch cells use flexible packaging structures and have different insulation requirements.

PC film may be considered for selected surrounding components, frames, connectors, or protective structures.

The film should not be treated as a universal replacement for pouch-cell packaging or dedicated battery insulation systems.

47. Battery Module End Structures

Module end plates can be metal or polymer structures.

A PC insulation layer can provide separation between the end plate and electrical components.

Potential functions include:

• Electrical isolation

• Surface protection

• Mechanical separation

• Localized shielding

48. Metal Housing Insulation

Battery and power electronics housings can be conductive.

PC film can create a thin insulating barrier between internal components and metal structures.

This can be especially valuable when the available clearance is limited.

49. Adhesive Fixation in Battery Modules

Adhesive-backed PC film can be positioned directly onto a housing or structural surface.

This can reduce the possibility of the film shifting during assembly.

The adhesive should be compatible with:

• Housing material

• Surface coating

• Operating temperature

• Humidity

• Vibration

• Service life

50. Insulation Around Fasteners

Fasteners can create local conductive paths.

A custom PC component can be designed with:

• Holes

• Rings

• Tabs

• Washers-like profiles

• Protective extensions

This allows the insulation component to work around the mechanical fastening system.

51. Protection Around Connectors

Connectors may contain exposed conductive elements.

PC film can provide localized insulation around connector housings.

Custom openings can preserve connector access while increasing physical separation.

52. Wire Routing Structures

A formed PC barrier can also assist in wire routing.

The insulation part may include:

• Slots

• Tabs

• Channels

• Retention features

• Clearance areas

This can combine insulation and mechanical organization.

53. EMI and RFI Shielding Structures

PC film itself is electrically insulating.

However, when laminated with a conductive foil or conductive layer, the overall composite can provide a structure capable of supporting electromagnetic shielding functions.

This can be useful in electronic systems where both:

Electrical insulation

and

EMI/RFI shielding

are required.

The shielding performance depends on the conductive layer, grounding strategy, frequency range, geometry, and overall system design.

54. Insulation and Shielding in One Construction

A multilayer structure may be designed as:

PC Film + Conductive Foil + Adhesive

This type of construction can combine mechanical insulation with electromagnetic shielding.

It may be useful around:

• Power electronics

• Communication circuits

• Battery electronics

• Control systems

• Sensitive PCB assemblies

55. Industrial Power Electronics

Although lithium-ion batteries are an important application, PC insulation film can also be used in:

• Inverters

• Converters

• Industrial power supplies

• Motor controllers

• Charging equipment

• Control systems

These applications can require similar combinations of insulation, mechanical protection, and flame-retardant performance.

56. Electric Vehicle Applications

Electric vehicles contain high-voltage battery systems and power electronics.

PC film may be considered for localized insulation in:

• Battery modules

• Electrical junction structures

• Inverters

• Charging systems

• High-voltage connectors

• Electronic control modules

Automotive applications require extensive validation for vibration, temperature, humidity, chemicals, and long-term aging.

57. Energy Storage Systems

Stationary energy storage systems can contain numerous electrical and mechanical interfaces.

Custom PC Insulation components can be used to separate:

• Busbars

• Metal structures

• Electronics

• Wiring

• Power modules

The material selection should correspond to the expected operating environment.

58. Industrial Battery Packs

Industrial battery packs may be installed in:

• Backup power systems

• Robotics

• Automated machinery

• Mobile equipment

• Portable industrial devices

These applications can benefit from lightweight and customizable insulation components.

59. Robotics and Automation

Robotic battery systems can experience continuous movement and vibration.

A mechanically durable insulation film can help protect electrical interfaces.

Self-adhesive components can also reduce unwanted movement of the insulation layer.

60. Portable Power Equipment

Portable power systems may require thin insulation because enclosure space is limited.

PC film can provide a lightweight barrier while allowing customized geometry.

61. Custom Converting

PC film can be converted through various industrial processes.

Potential processes include:

• Slitting

• Die cutting

• Punching

• Laminating

• Forming

• Folding

• Adhesive coating

• Kiss cutting

• Roll processing

The selected process depends on film thickness and component geometry.

62. Precision Die Cutting

Precision die cutting can produce repeatable insulation components.

This is particularly useful for high-volume battery manufacturing.

A custom die can produce multiple features in one operation.

63. CNC and Prototype Processing

For early-stage development, prototype processing can be useful before dedicated tooling is produced.

Prototype parts allow engineers to verify:

• Fit

• Shape

• Installation

• Adhesion

• Electrical separation

• Mechanical clearance

64. Tooling Development

For complex high-volume components, custom tooling may improve manufacturing consistency.

Tooling development typically considers:

• Part geometry

• Material thickness

• Cutting tolerance

• Production quantity

• Waste reduction

• Forming requirements

65. Material Utilization

Battery insulation components can be relatively small.

Efficient nesting can place multiple parts within the same sheet or roll width.

This can improve material utilization and reduce production waste.

66. Reducing Assembly Complexity

A customized PC insulation part can replace several manually cut insulation pieces.

This can help:

• Reduce labor

• Improve consistency

• Reduce positioning errors

• Simplify assembly

• Improve production repeatability

67. Automation Compatibility

Self-adhesive die-cut parts can be designed for automated assembly.

Features that may help include:

• Carrier liners

• Registration holes

• Pick tabs

• Standardized orientation

• Repeatable geometry

Automation compatibility should be considered during the initial part design.

68. Quality Control

Quality control for PC insulation components can include:

• Appearance inspection

• Dimensional inspection

• Adhesive coverage inspection

• Die-cut edge inspection

• Material identification

• Surface inspection

• Assembly verification

Critical electrical applications may require additional qualification tests.

69. Appearance Inspection

The film surface should be checked for:

• Scratches

• Contamination

• Wrinkles

• Bubbles

• Uneven coating

• Foreign particles

• Cutting damage

Appearance requirements depend on the final application.

70. Dimensional Inspection

Custom insulation components should be checked for:

• Length

• Width

• Hole position

• Slot size

• Profile geometry

• Bend location

Dimensional accuracy is especially important for automated assembly.

71. Adhesive Inspection

Adhesive-backed PC film should be inspected for:

• Correct adhesive side

• Uniform adhesive coverage

• Liner integrity

• Surface contamination

• Adhesive transfer

• Edge lifting

72. Thermal Aging

Long-term thermal aging can be used to evaluate the stability of the complete construction.

Testing may examine:

• Film appearance

• Adhesion

• Mechanical properties

• Dimensional changes

• Electrical insulation

The test conditions should correspond to the actual application.

73. Humidity Aging

Humidity can affect polymer and adhesive interfaces.

Humidity testing can help determine whether the insulation system remains stable under expected environmental conditions.

74. Vibration Testing

For vehicle and industrial applications, vibration testing can evaluate whether the film remains correctly positioned.

This is especially important for adhesive-backed components.

75. Electrical Reliability

Electrical reliability may be evaluated through:

• Insulation resistance

• Dielectric strength

• High-voltage testing

• Leakage testing

• Environmental aging

The appropriate test depends on the application.

76. Storage and Handling

PC insulation film should be handled carefully before installation.

Important factors include:

• Clean environment

• Controlled storage

• Protection from contamination

• Protection of adhesive surfaces

• Avoidance of excessive folding

• Correct liner handling

77. Installation Best Practices

A practical installation process can include:

1. Clean the application surface.

2. Verify the correct insulation component.

3. Confirm orientation.

4. Remove the release liner.

5. Align the component.

6. Apply uniform pressure.

7. Inspect the finished part.

Good installation practices improve repeatability.

78. Preventing Misalignment

Misaligned insulation can leave conductive structures insufficiently covered.

Custom parts can use:

• Alignment holes

• Tabs

• Reference edges

• Asymmetric geometry

These features can make incorrect orientation less likely.

79. Preventing Contamination

Dust and oil can reduce adhesive bonding.

The installation area should therefore be clean and dry.

For critical applications, controlled assembly environments may be appropriate.

80. Service-Life Considerations

The expected service life of an insulation system depends on:

• Temperature

• Voltage

• Humidity

• Chemical exposure

• Mechanical stress

• Adhesive aging

• UV exposure

• Vibration

The film should be qualified under representative conditions.

81. Engineering Selection Matrix

82. Material Comparison for General Insulation Applications

This is a general material-family comparison rather than a specification sheet. Actual performance varies according to grade and application.

83. Choosing Between Black and Clear Film

The choice between black and clear PC film depends on the intended function.

Black film may be preferred when:

• Light must be blocked

• Internal components should be concealed

• A dark appearance is desired

Clear film may be preferred when:

• Inspection is important

• The protected component must remain visible

• Prototype evaluation is required

84. Choosing Between Adhesive and Non-Adhesive Film

Non-adhesive film can be useful when:

• Mechanical retention already exists

• The insulation must be removable

• Adhesive contamination is undesirable

Self-adhesive film can be useful when:

• Positioning is difficult

• The component is thin

• Vibration is present

• Fast assembly is important

85. Single-Sided Versus Double-Sided Adhesive

Single-sided adhesive is suitable when the film attaches to one surface.

Double-sided adhesive is useful when the film is intended to connect two surfaces or layers.

The choice should consider:

• Assembly sequence

• Removal requirements

• Substrate compatibility

• Thermal conditions

• Service life

86. PC Film as a Lightweight Barrier

One reason thin PC film is useful is that it can create a physical barrier without adding significant bulk.

This can help designers maintain compact battery and electronic assemblies.

87. Space-Saving Battery Design

Battery packs increasingly require high component density.

Custom insulation film can be shaped around existing components instead of requiring large additional clearance.

This can contribute to efficient internal packaging.

88. Component Separation

A PC sheet can separate two components that could otherwise make unwanted contact.

This is useful around:

• Metal frames

• Busbars

• Terminals

• Screws

• PCB assemblies

• Wiring

89. Surface Protection

PC film can protect selected surfaces against:

• Scratching

• Abrasion

• Handling marks

• Minor mechanical contact

This can add value beyond basic electrical insulation.

90. Mechanical Barrier Function

A formed PC component can function as a physical barrier.

For example:

Conductive Component → PC Barrier → Metal Housing

This structure can help prevent direct contact between the conductive component and housing.

91. Industrial Design Integration

Custom PC film can be integrated into the product from the beginning of the design process.

Instead of adding insulation after the mechanical design is complete, engineers can design dedicated insulation geometry.

This can improve:

• Coverage

• Assembly

• Serviceability

• Manufacturing consistency

92. Design Drawing Requirements

For custom PC insulation parts, useful engineering information may include:

• Part dimensions

• Hole locations

• Bend locations

• Material thickness

• Adhesive side

• Surface finish

• Required tolerances

• Application substrate

Clear drawings improve development efficiency.

93. Prototype Validation

Before mass production, prototype components can be installed into the actual battery or electronic assembly.

The prototype should be evaluated for:

• Fit

• Coverage

• Interference

• Adhesion

• Forming

• Electrical separation

• Assembly sequence

94. Production Validation

Once the design is finalized, production validation can evaluate:

• Dimensional consistency

• Adhesive consistency

• Part cleanliness

• Forming repeatability

• Die-cut quality

• Packaging

This helps ensure the converted part performs consistently.

95. High-Volume Manufacturing

For large battery programs, high-volume converting can improve production efficiency.

Manufacturing optimization may include:

• Roll-to-roll processing

• Automated die cutting

• Automatic stripping

• Inline inspection

• Batch tracking

• Automated counting

• Customized packaging

96. Packaging of Die-Cut Parts

Die-cut PC insulation pieces should be packaged to prevent:

• Dust contamination

• Adhesive damage

• Bending

• Crushing

• Surface scratching

The release liner should remain intact until installation when adhesive protection is required.

97. Application Examples

98. Important Material Qualification Principle

The phrase “high-voltage flame-retardant PC” describes a desired application profile, not a universal material certification.

A material should be selected based on its actual technical documentation.

Important information may include:

• Electrical properties

• Flame classification

• Thermal behavior

• Mechanical properties

• Chemical compatibility

• Adhesive characteristics

• Thickness-dependent performance

99. Why “Unbreakable” Should Be Used Carefully

“Unbreakable” is a strong marketing expression.

For technically accurate industrial documentation, alternatives can include:

• High-impact PC insulation film

• Tough PC insulation sheet

• Crack-resistant PC film

• High-strength polycarbonate insulation film

• Durable PC electrical insulation sheet

These descriptions communicate the mechanical advantage without suggesting that the material is physically impossible to break.

100. Advantages of PC Battery Insulation Film

The key advantages can be summarized as:

• High mechanical toughness

• Good impact resistance

• Crack resistance

• Electrical insulation

• Formability

• Custom die-cut capability

• Flame-retardant grades

• Multiple color options

• Self-adhesive options

• Thin and lightweight construction

• Compatibility with customized shapes

• Potential integration with conductive shielding layers

101. Why Custom PC Film Is Valuable

Standard sheets may not fit every battery architecture.

Custom converting allows the insulation component to follow the actual engineering design.

A customized part can include:

• Holes

• Slots

• Tabs

• Cutouts

• Fold lines

• Curved sections

• Adhesive zones

This improves the relationship between insulation and mechanical design.

102. PC Film for Next-Generation Battery Design

As battery systems become more compact and power density increases, insulation components must often provide multiple functions.

A future-oriented insulation design may combine:

Electrical insulation + flame retardancy + mechanical protection + adhesive fixation + electromagnetic shielding

This multifunctional approach can reduce the need for separate materials.

103. Sustainability Considerations

Material efficiency is an important consideration in modern manufacturing.

Thin PC film can reduce material volume compared with bulky rigid insulation components.

Efficient die-cut nesting can also reduce waste.

Where appropriate, production planning can optimize:

• Material utilization

• Scrap reduction

• Packaging

• Part consolidation

Environmental considerations should nevertheless be evaluated across the complete product lifecycle.

104. Manufacturing Efficiency

A well-designed PC insulation component can simplify manufacturing.

Potential benefits include:

• Faster installation

• Consistent positioning

• Reduced manual cutting

• Lower part count

• Improved repeatability

• Easier automated assembly

105. Service and Maintenance

Insulation components should not interfere with required service procedures.

For battery equipment that requires maintenance, engineers should consider:

• Removal access

• Connector access

• Fastener access

• Inspection visibility

• Replacement procedures

Clear or removable constructions may be useful in certain designs.

106. Inspection-Friendly Designs

Clear PC film can support visual inspection.

Black film can make the insulation component easy to identify against metallic structures.

Matte-black film can reduce visual glare.

The appropriate choice depends on the maintenance and inspection requirements.

107. PC Insulation in Harsh Industrial Environments

Industrial equipment can experience combinations of:

• Heat

• Vibration

• Dust

• Humidity

• Chemicals

• Mechanical impact

A properly selected PC insulation construction can address several of these requirements simultaneously.

108. Application Development Workflow

A practical custom project can follow this sequence:

Application analysis → Material selection → Geometry design → Adhesive selection → Prototype → Assembly testing → Environmental validation → Tooling → Mass production

This workflow helps ensure that the final insulation component is appropriate for the actual application.

109. Frequently Asked Questions

What is a PC Mylar sheet?

A PC Mylar-type sheet is commonly used as a general term for a thin polycarbonate insulation film. PC technically refers to polycarbonate, which is different from PET polyester film.

Is PC suitable for lithium-ion batteries?

PC can be considered for selected battery insulation applications when the material and complete construction meet the required electrical, thermal, mechanical, chemical, and flame-retardant conditions.

What colors are available?

Common options include black, clear, matte-black, and milky-white. Other colors may be possible depending on material availability and project requirements.

Can PC film be adhesive backed?

Yes. Single-sided and double-sided adhesive constructions are available for suitable applications.

What is double-coated adhesive?

It is an adhesive construction with adhesive on both sides, generally supplied with a release liner to protect the adhesive before installation.

Can PC film be die cut?

Yes. PC film can be precision die cut into custom electrical insulation components.

Can PC film be formed?

Selected PC grades are suitable for forming, bending, or other customized shapes. Processing limits depend on grade and thickness.

Is PC film flame retardant by default?

No. Flame-retardant performance depends on the selected material formulation and should be verified against the specific technical documentation.

Is “unbreakable” a literal engineering claim?

No. It is better understood as a description of high toughness and crack resistance. For technical documents, terms such as “high-impact,” “tough,” or “crack-resistant” are more precise.

Can black PC film block light?

Black PC film can provide significant light-blocking functionality depending on formulation and thickness.

110. Final Conclusion

Unbreakable High-Voltage Flame-Retardant PC Mylar Sheet for Lithium-Ion Batteries is best understood as a tough, customizable polycarbonate insulation film designed for applications where electrical isolation must coexist with mechanical durability, flame-retardant performance, and practical assembly requirements.

The material is especially relevant to battery modules, battery packs, high-voltage electrical systems, industrial power electronics, energy storage equipment, automotive electronics, and other compact electrical assemblies.

A major advantage of PC film is its combination of toughness, impact resistance, crack resistance, electrical insulation, and forming potential. This makes it different from conventional thin insulation films that may be optimized primarily for basic dielectric separation.

The market also includes PP, PET, PVC, PC, and Teflon/PTFE-type insulation films. These materials each have different characteristics and should be selected according to the actual application.

PC can be particularly attractive where the insulation part must tolerate mechanical handling, forming, vibration, or localized impact.

Color options such as black, clear, matte-black, and milky-white allow engineers to select an appearance that matches the product's functional and visual requirements.

Black and matte-black films can provide light blocking and reduced reflection, while clear PC film can facilitate visual inspection. Milky-white film provides a neutral appearance while partially concealing the underlying structure.

Self-adhesive construction adds another practical advantage.

Single-sided adhesive PC film can be attached directly to one substrate.

Double-sided adhesive PC film can bond the insulation layer between two surfaces.

Double-coated adhesive structures can provide convenient attachment and positioning during assembly.

The adhesive should always be selected together with the PC substrate because temperature, humidity, vibration, chemicals, and aging can influence the performance of the complete construction.

For lithium-ion battery applications, PC insulation can be converted into terminal barriers, busbar separators, BMS protective layers, wire-routing barriers, housing insulation, module separators, and other custom components.

Precision die cutting allows the film to be produced with holes, slots, tabs, openings, and irregular profiles. Forming can further transform flat film into three-dimensional insulation structures.

This customization can reduce part count, improve assembly efficiency, and allow the insulation component to follow the actual battery architecture.

For high-voltage systems, however, material selection should never rely only on the phrase “high-voltage PC film.” The complete design must consider dielectric properties, thickness, clearance, creepage, temperature, humidity, contamination, aging, and mechanical stability.

Likewise, flame-retardant performance should be evaluated according to the actual material classification and test conditions. A flame-retardant PC film is one component of an overall battery safety system and should not be interpreted as making the entire battery fireproof.

The word “unbreakable” should also be interpreted as a product-description term representing toughness and resistance to cracking or impact. No polymer film should be assumed to be literally impossible to break under all conditions.

Overall, PC insulation film offers a versatile platform for customized electrical protection. By combining:

Polycarbonate substrate + electrical insulation + mechanical toughness + flame-retardant grade + custom converting + adhesive backing

the material can be engineered into highly functional insulation components for modern lithium-ion batteries and industrial electrical equipment.
