Black matte PC Mylar sheet is a formable polycarbonate film designed for electrical insulation, component protection, industrial separation, surface protection, and a wide range of custom converting applications. Combining the toughness of polycarbonate with a low-gloss matte surface, this type of PC film is suitable for applications where electrical insulation, mechanical durability, appearance, friction, formability, and dimensional consistency are important.

The term “PC Mylar sheet” is frequently used in industrial product descriptions to describe polycarbonate insulation film used in applications traditionally associated with Mylar-type electrical films. From a material perspective, however, PC and PET are different polymers. Traditional Mylar film is generally associated with polyester or PET film, while PC Mylar sheet refers to a polycarbonate-based film. This distinction is important when engineers select materials for electrical and industrial applications.

Black matte PC film is especially useful when a non-reflective surface, light blocking, clean industrial appearance, and reduced surface glare are desirable. The matte texture can also provide additional surface friction compared with a smooth glossy film. In applications where the sheet is used as a protective barrier, insulation layer, separator, or positioning component, the matte surface can help improve handling and reduce unwanted movement.

A formable-grade PC Mylar sheet offers additional design flexibility. Instead of being limited to simple flat insulation pieces, suitable PC film can be processed, bent, formed, die cut, punched, laminated, or converted into custom components depending on the material grade and manufacturing process. This makes it useful for three-dimensional electronic assemblies, curved surfaces, formed insulation barriers, protective covers, internal separators, control panels, and industrial components.

Polycarbonate is widely recognized for its combination of impact resistance, toughness, dimensional stability, electrical insulation properties, and thermal performance. When formulated for a particular electrical or industrial application, PC film can provide a strong balance between mechanical protection and insulation.

This article provides a comprehensive overview of black matte PC Mylar sheet, including its definition, material characteristics, matte surface, formability, electrical insulation applications, industrial uses, advantages, processing methods, design considerations, quality control, adhesive options, customization possibilities, and application-specific selection principles.

1. What Is Black Matte PC Mylar Sheet?

Black matte PC Mylar sheet is a thin polycarbonate film with a black color and matte or textured surface finish.

The substrate is polycarbonate, commonly abbreviated as PC. Polycarbonate is an engineering thermoplastic known for high toughness, impact resistance, transparency potential, dimensional stability, and useful electrical insulation characteristics.

The black coloration is generally selected for practical and aesthetic reasons. Black can provide light blocking, reduce visible reflections, create a consistent industrial appearance, and visually integrate with dark electronic housings and components.

The matte finish gives the surface a lower-gloss appearance than conventional smooth PC film. Depending on the texture and manufacturing method, a matte surface can also provide increased friction and reduced glare.

A formable grade is designed for applications where the film must be shaped or bent during manufacturing. The exact forming capability depends on the selected PC formulation, film thickness, temperature, forming method, bend radius, tooling, and final component geometry.

Black matte PC Mylar sheet can therefore function as more than a simple flat insulation film. It can become a custom-formed component used in electrical assemblies, electronic equipment, industrial machinery, battery systems, control panels, and protective structures.

2. PC Mylar Sheet Versus PET Mylar Sheet

One of the most important points in understanding PC Mylar sheet is the difference between polycarbonate and polyester film.

PET is polyethylene terephthalate. It is widely used as electrical insulation film and is often associated with the commercial term Mylar.

PC is polycarbonate. It has a different chemical structure and provides a different performance profile.

Traditional PET film is widely valued for electrical insulation, dimensional stability, chemical resistance, processability, and cost efficiency. Conventional PET electrical film typically has a temperature resistance of approximately 105–120°C, depending on grade and application conditions. Compared with PC, PET can be relatively brittle under certain mechanical conditions.

PC generally provides greater toughness, superior impact resistance, and improved crack resistance. It can therefore be attractive when the insulation material must withstand bending, impact, vibration, handling, or mechanical stress.

For applications close to heat-generating components, PC may be preferred where its higher temperature capability and mechanical toughness provide a more appropriate performance margin.

This distinction is particularly relevant in battery packs, switching power supplies, power electronics, chargers, inverters, and industrial electronic assemblies.

The selection between PET and PC should never be based solely on the word “Mylar.” The actual polymer, grade, thickness, temperature requirements, electrical requirements, mechanical conditions, and applicable safety standards should be considered.

3. Why Black Matte PC Film Is Used

Black matte PC film combines several useful functions in one material.

The black color provides light blocking and visual consistency. The matte finish reduces surface reflection. The polycarbonate substrate provides toughness and formability.

This combination can be valuable for internal electrical components where a smooth, reflective surface is undesirable.

The matte surface may also provide a better tactile feel and increased friction compared with a glossy surface. This can help reduce sliding when the film is used as a separator or protective barrier.

Black matte PC film is also suitable for visible industrial surfaces. It can provide a professional, understated appearance in equipment where a glossy plastic surface would create excessive reflection.

The material is therefore useful in both hidden internal structures and selected external or semi-exposed components.

4. Matte Surface Finish

The matte finish is one of the defining characteristics of this product.

A matte surface contains controlled micro-texture or surface roughness that reduces the level of reflected light compared with a smooth glossy surface.

Depending on the manufacturing method, matte PC film can range from lightly textured to medium matte or more strongly textured.

A medium matte finish is commonly selected when a balance between appearance, friction, cleanability, and processability is required.

Matte surfaces can provide several functional advantages:

• Reduced glare

• Lower reflectivity

• Increased surface friction

• Improved visual uniformity

• Reduced visibility of minor surface marks

• Improved tactile characteristics

• More controlled appearance under industrial lighting

The exact surface texture should be matched to the application because excessive roughness may influence adhesive bonding, printing, cleaning, or contact with other materials.

5. Black Color and Light Blocking

Black is one of the most widely used colors for industrial PC film.

A black PC sheet can block or significantly reduce the transmission of visible light depending on its formulation and thickness.

This is useful in electronic equipment where internal light leakage is undesirable.

Black film can also conceal internal structures and wiring, creating a cleaner appearance.

In electrical equipment, black insulation film can visually integrate with dark housings, circuit boards, cables, connectors, and other components.

Color consistency is important for products that contain multiple visible insulation components. Manufacturing controls should therefore be used to maintain consistent appearance between production batches.

6. Formable Grade PC Mylar Sheet

A formable grade is designed for applications requiring more than simple flat-film conversion.

Formable PC film can be shaped through controlled bending, thermoforming, folding, or other suitable forming processes depending on the material grade.

This is particularly useful for products with:

• Curved surfaces

• Folded insulation barriers

• Three-dimensional housings

• Formed electrical separators

• Protective covers

• Internal partitions

• Complex component geometries

• Wrap-around insulation structures

The forming process should be developed according to film thickness and material characteristics.

A bend that is acceptable for one thickness or grade may not be appropriate for another.

Forming temperature, heating time, cooling conditions, tooling radius, and forming speed can all influence the final result.

7. Formability and Design Flexibility

The formability of PC film allows engineers to reduce the number of separate parts in certain designs.

Instead of using multiple flat insulation pieces, a single formed PC component may wrap around several surfaces.

This can simplify assembly and reduce the number of individual components.

A formed insulation part can also improve positioning because the geometry itself can help retain the component.

However, forming should not be treated as unlimited flexibility. Material thickness, polymer formulation, bend radius, temperature, and forming direction all affect performance.

Engineering prototypes should be tested before high-volume production.

8. Electrical Insulation Properties

Polycarbonate is an electrically insulating material and can be used to separate conductive components.

Black matte PC film can provide a physical barrier between:

• Circuit boards

• Metal housings

• Conductive terminals

• Busbars

• Wiring

• Connectors

• Heat sinks

• Battery components

• Power modules

Electrical insulation performance depends on the complete material construction and application.

Important factors include voltage, frequency, temperature, humidity, thickness, surface contamination, mechanical damage, and aging.

For high-voltage applications, engineers must also consider creepage distance, clearance, dielectric requirements, pollution conditions, and applicable safety standards.

The PC sheet should therefore be considered as one element within a complete insulation system.

9. Mechanical Toughness

One of the strongest advantages of PC over many conventional thin insulation films is its toughness.

Electrical insulation components can experience mechanical stress during assembly and operation.

A tough material can better withstand:

• Bending

• Impact

• Vibration

• Handling

• Installation pressure

• Localized stress

• Repeated assembly

This is particularly valuable for custom die-cut components containing holes, slots, tabs, and narrow sections.

The mechanical performance of the finished part depends not only on the PC substrate but also on the geometry of the component.

10. Impact Resistance

Polycarbonate is well known for its impact resistance.

This characteristic can improve the durability of insulation components during transportation, assembly, and equipment operation.

For industrial equipment subjected to vibration or occasional impact, a tougher insulation film may provide a more reliable barrier than a more brittle film.

Impact resistance is particularly relevant when the film is exposed or positioned near components that may move during assembly.

11. Crack Resistance

Crack resistance is another important property of formable PC film.

A thin insulation sheet may contain holes, cutouts, corners, and narrow sections that can concentrate mechanical stress.

A material with better toughness can help reduce the likelihood of cracking under normal mechanical loading.

Proper part design remains important. Sharp internal corners, excessively narrow bridges, and overly small bend radii can still create stress concentration even when a tough polymer is used.

12. Thermal Performance

Thermal performance is a major consideration in electrical and industrial applications.

Electronic equipment may contain heat-generating components such as transformers, power transistors, resistors, motors, batteries, busbars, and power modules.

PC film can be selected for applications requiring a higher level of thermal performance than conventional PET film.

The actual operating temperature limit depends on the PC grade, thickness, load, duration, environment, and application.

Short-term temperature exposure and continuous operating temperature should be evaluated separately.

When adhesive is used, the adhesive must also be evaluated because the adhesive may have different thermal characteristics from the PC substrate.

13. Flame-Retardant PC Options

Flame-retardant PC film is available for applications where fire behavior is a significant design requirement.

This is particularly relevant to electrical and electronic equipment.

Potential applications include:

• Power supplies

• Battery systems

• Chargers

• Inverters

• Control equipment

• Industrial electronics

• Communication equipment

• Electronic housings

Flame-retardant performance depends on the specific polymer formulation and thickness.

The black color of a film does not automatically indicate flame retardancy.

Where flame performance is required, the exact material grade and relevant test classification should be confirmed through technical documentation.

14. Formable PC for Electrical Assemblies

Electrical assemblies are becoming increasingly compact and three-dimensional.

A formable PC insulation film can follow contours and create physical separation around components.

This can be useful in compact equipment where there is insufficient room for a thick rigid insulation board.

The film can be shaped to fit around:

• Circuit boards

• Battery modules

• Connectors

• Terminals

• Metal Brackets

• Power components

• Internal housings

Formable film can also reduce the need for multiple pieces of insulation.

15. PC Mylar Sheet for Switching Power Supplies

Switching power supplies contain multiple electrical components operating at different potentials.

Insulation barriers may be required around circuit boards, transformers, terminals, heat sinks, wires, and metal structures.

Black matte PC film can be converted into custom insulation barriers for these areas.

Potential applications include:

• PCB isolation

• Transformer barriers

• Terminal protection

• Heat sink insulation

• Wire separation

• Internal housing insulation

• Component barriers

• Connector protection

The insulation design should be evaluated according to voltage, temperature, creepage, clearance, mechanical stability, and relevant safety requirements.

16. PC Film for Battery Packs

Battery packs require careful electrical insulation because cells, busbars, terminals, wires, connectors, and control electronics can be located in close proximity.

Custom PC film can be used as a separator or protective barrier.

Potential applications include:

• Cell-to-cell insulation

• Busbar protection

• Terminal-area insulation

• BMS insulation

• PCB isolation

• Housing insulation

• Connector protection

• Formed internal barriers

For areas close to heat-generating components, PC can provide a useful combination of thermal capability and mechanical toughness.

17. PC Versus PET in Lithium-Ion Battery Applications

Lithium-ion batteries can generate heat during normal charging and discharging, especially under high-current conditions.

Insulation Materials near heat sources should therefore be carefully selected.

PET remains widely used for many battery insulation applications. It provides good electrical insulation and dimensional stability and can be economical for applications within its operating range.

However, conventional PET film typically has a temperature resistance of approximately 105–120°C and may be relatively brittle compared with PC.

PC provides higher thermal capability, superior impact resistance, and better crack resistance.

For lithium-ion battery applications located close to heat sources, PC is often considered a stronger material choice where additional thermal and mechanical performance is required.

18. Industrial Electrical Insulation

Industrial equipment often operates for long periods under demanding conditions.

Electrical insulation components may experience heat, vibration, dust, mechanical pressure, and repeated maintenance.

Black matte PC film can be used as an insulating barrier in:

• Industrial power supplies

• Motor controllers

• Control cabinets

• Inverters

• Power modules

• Automation equipment

• Industrial sensors

• Electrical control systems

Custom conversion allows the film to match the specific structure of the equipment.

19. Electronic Equipment Applications

PC film is suitable for numerous electronic assemblies.

Typical applications include:

• Consumer electronics

• Industrial electronics

• Communication equipment

• Control systems

• Power adapters

• Chargers

• Display equipment

• Electronic modules

• Battery management systems

The material can be used as an insulation layer, protective barrier, separator, or component-positioning layer.

20. PC Film for PCB Insulation

Printed circuit boards contain conductive traces and components that may need separation from metal structures.

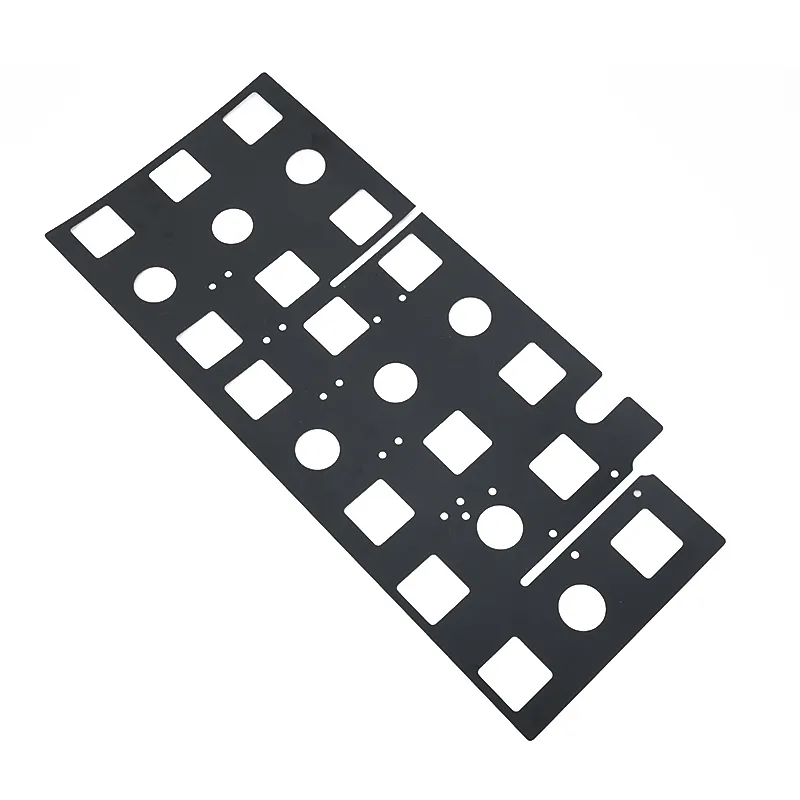

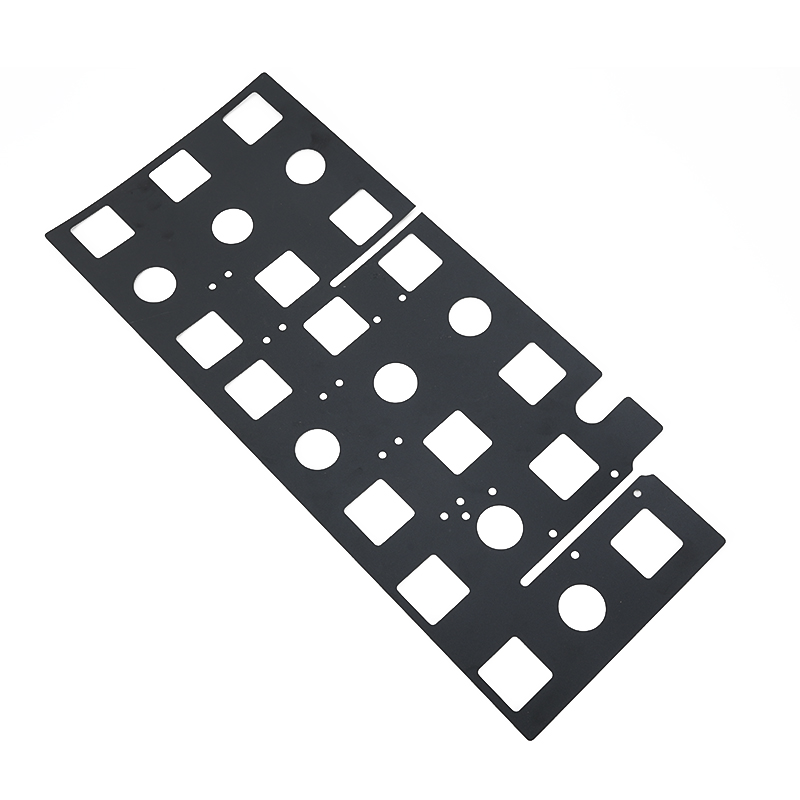

Black matte PC film can be die cut to match the PCB shape.

Cutouts can be created for:

• Mounting screws

• Connectors

• Terminals

• Heat sinks

• Cable routes

• Component clearance

This allows the insulation layer to provide coverage without interfering with functional components.

21. PCB-to-Metal Housing Insulation

Metal housings can potentially contact conductive areas of a PCB.

A Custom PC Insulation sheet can act as a physical barrier between the board and housing.

The film can be shaped around mounting holes and connectors while maintaining coverage across the required area.

A matte surface can also provide increased friction between the insulation film and housing in certain mechanical retention designs.

22. Insulation Around Heat Sinks

Heat sinks are often electrically conductive.

Depending on the circuit design, an insulating barrier may be required between a heat sink and nearby conductive components.

PC film can be customized to provide localized separation while leaving airflow paths and mounting features accessible.

Thermal management must be considered carefully so that the insulation component does not unintentionally block required cooling.

23. Busbar Insulation

Busbars can carry substantial current and may become warm during operation.

Custom PC insulation components can be designed around busbar structures.

Openings can accommodate mounting bolts, terminals, and connectors.

The material should maintain the required electrical clearance and should not interfere with busbar movement or thermal expansion.

24. Connector Protection

Electrical connectors can contain exposed or semi-exposed conductive structures.

Custom PC film can be used around connector assemblies to reduce the risk of unintended contact with nearby components.

The film can be die cut with precise openings to accommodate the connector geometry.

Formable PC can also wrap around irregular connector structures.

25. Industrial Control Panels

Industrial control panels contain switches, circuit boards, relays, terminals, wires, and other electrical components.

Black matte PC film can provide insulation and protective separation inside these systems.

The matte black surface can also visually integrate with industrial equipment.

26. Protective Barrier Applications

PC film can function as a physical barrier in addition to electrical insulation.

A barrier can help protect components from:

• Mechanical contact

• Scratching

• Abrasion

• Dust

• Accidental contact

• Component movement

The effectiveness depends on the exact material thickness and installation design.

27. Surface Friction

A matte surface generally provides more surface texture than a glossy film.

This can increase friction between the film and an adjacent surface.

In applications without adhesive, additional friction can help stabilize the insulation component.

However, friction should not be considered a substitute for positive mechanical retention when component movement could create a safety problem.

28. Reduced Glare

Glossy plastic surfaces can produce strong reflections under factory lighting.

A matte PC surface reduces specular reflection and can make the material easier to visually inspect.

This can be useful in industrial environments with strong overhead lighting.

Reduced glare can also improve the appearance of equipment with exposed or semi-exposed film surfaces.

29. Custom Die Cutting

Black matte PC Mylar sheet is suitable for precision converting.

Die cutting can produce custom shapes such as:

• Circles

• Rectangles

• Slots

• Tabs

• Notches

• Mounting holes

• Irregular outlines

• Corner cutouts

• Connector openings

Custom die cutting allows the film to match a specific equipment design.

30. CNC and Precision Cutting

Depending on material thickness and production requirements, PC film may also be processed using precision cutting methods.

This can be useful for prototypes or lower-volume production.

For large-scale production, dedicated tooling may provide higher throughput.

The best manufacturing process depends on geometry, thickness, quantity, dimensional tolerance, and required production efficiency.

31. Adhesive-Backed PC Mylar Sheet

Black matte PC film can be supplied with adhesive backing when required.

Common configurations include:

• Non-adhesive PC film

• Single-sided adhesive PC film

• Double-sided adhesive PC film

• Acrylic pressure-sensitive adhesive

• Adhesive with release liner

Adhesive backing can simplify installation.

It can also improve component positioning and reduce the number of separate mechanical fasteners.

32. Acrylic Pressure-Sensitive Adhesive

Acrylic PSA is commonly used for adhesive-backed electrical films.

Pressure-sensitive adhesive can provide convenient bonding without liquid adhesive or curing equipment.

However, adhesive performance depends on:

• Temperature

• Surface energy

• Bonding pressure

• Surface cleanliness

• Humidity

• Chemical exposure

• Aging

• Material compatibility

The adhesive should therefore be evaluated independently from the PC substrate.

33. Double-Sided Adhesive Construction

Double-sided adhesive PC film can bond the insulation sheet between two components.

A release liner is generally used to protect the adhesive before installation.

This construction can be useful for:

• Internal insulation

• Component bonding

• Protective overlays

• Flexible barriers

• Electronic assembly components

The adhesive thickness and type should be selected according to the actual application.

34. Release Liner

A release liner protects the adhesive surface before use.

It should remain attached during storage and transportation while allowing easy removal during assembly.

For high-volume production, release liners can be designed to support efficient manual or automated peeling.

35. Forming Methods

Formable PC film can be processed through suitable forming methods depending on the grade.

Potential processes include:

• Controlled bending

• Heat forming

• Thermoforming

• Folding

• Vacuum forming for suitable grades

• Custom forming operations

The forming process must be matched to the material.

Improper heating can cause surface damage, deformation, dimensional instability, or unwanted changes in appearance.

36. Bend Radius

Bend radius is an important design factor.

A very small bend radius can create localized stress.

For repeated bending applications, the required radius may be greater than for a one-time forming process.

Designers should therefore evaluate the material thickness, forming direction, temperature, and expected service conditions.

Prototype testing is recommended for complex formed parts.

37. Three-Dimensional Insulation

Formable PC film makes it possible to create three-dimensional insulation structures.

Instead of placing several flat pieces around a component, one formed part may cover multiple surfaces.

This can improve assembly efficiency.

It can also reduce the possibility of incorrect placement caused by multiple separate components.

38. PC Film in Compact Battery Assemblies

Battery systems often have limited internal space.

A thin formable PC barrier can fit around cells and electrical components without requiring a bulky rigid structure.

The material can be formed around selected areas while leaving access for connectors and thermal management.

The final design should be validated for thermal expansion, vibration, cell movement, and electrical safety.

39. Surface Treatment and Printing

Depending on the selected surface, PC film may be suitable for printing or marking.

Possible markings include:

• Part identification

• Assembly instructions

• Orientation indicators

• Warning information

• Positioning marks

• Manufacturing codes

Matte surfaces can provide useful visual contrast for certain printing methods.

Ink and surface compatibility should be evaluated before mass production.

40. Dimensional Stability

Dimensional stability is important for custom insulation parts.

A component containing precisely positioned holes must maintain its dimensions during storage, assembly, and operation.

PC provides useful dimensional stability, but temperature, humidity, stress, and processing conditions can influence dimensional behavior.

For precision applications, dimensional testing should be performed under expected service conditions.

41. Moisture Resistance

Environmental moisture can influence electrical insulation systems.

The actual moisture resistance of a finished component depends on the PC formulation, thickness, adhesive, surface condition, and surrounding environment.

For humid or outdoor applications, the complete construction should be tested under appropriate environmental conditions.

42. Chemical Compatibility

Industrial equipment may expose insulation components to oils, cleaners, solvents, fuels, electrolytes, and other chemicals.

PC compatibility should be checked against the specific chemical.

Elevated temperature can increase the severity of chemical exposure.

Adhesive-backed products should also be evaluated because the adhesive may react differently from the PC film.

43. Vibration Resistance

Industrial equipment and automotive electronics can experience vibration.

A tough PC substrate can provide a durable physical barrier under vibration.

Part geometry is equally important.

The insulation component should be properly retained so that vibration does not cause displacement, fatigue, or abrasion.

44. Abrasion Resistance

During assembly or operation, insulation film may contact adjacent components.

Repeated movement can cause abrasion.

The matte surface should therefore be selected according to the required wear performance.

If continuous sliding occurs, additional testing may be necessary.

45. Environmental Aging

Long-term aging can affect polymer films and adhesives.

Important aging factors include:

• Heat

• Humidity

• UV exposure

• Chemicals

• Mechanical stress

• Electrical stress

For long-service industrial equipment, accelerated aging tests may be used during product development.

46. Thermal Cycling

Repeated heating and cooling can cause dimensional changes in materials.

This is particularly relevant in power electronics and battery systems.

The PC substrate and adhesive may have different coefficients of thermal expansion.

Therefore, the complete laminated structure should be evaluated under repeated thermal cycling when required.

47. Design for Manufacturing

A good PC insulation design should consider how the component will actually be manufactured.

Important factors include:

• Film thickness

• Die-cut geometry

• Hole size

• Corner radius

• Narrow bridges

• Adhesive coverage

• Release liner configuration

• Forming requirements

• Production volume

Designing for manufacturing can reduce waste and improve consistency.

48. Avoiding Excessively Narrow Sections

Narrow sections can become weak points in a die-cut part.

When possible, designers should maintain sufficient material width around holes and slots.

This can reduce tearing during handling and installation.

The appropriate geometry depends on material thickness and final application.

49. Hole and Slot Design

Holes and slots should be positioned accurately.

Their size should provide sufficient clearance for screws, terminals, connectors, and other components.

Poorly positioned openings can expose conductive areas or interfere with assembly.

Precision drawings are therefore important for custom insulation components.

50. Corner Design

Rounded corners can reduce stress concentration.

This is especially useful for formed and die-cut parts.

Sharp corners may create stress concentrations during bending.

Appropriate corner radius should be determined according to film thickness and geometry.

51. Quality Control of PC Film

Quality inspection may include:

• Visual inspection

• Thickness inspection

• Dimensional inspection

• Surface inspection

• Color consistency

• Matte texture consistency

• Die-cut accuracy

• Adhesive coverage

• Release liner condition

• Formed shape inspection

For electrical applications, material-level electrical and flame testing may also be required.

52. Visual Inspection

The surface should be checked for:

• Scratches

• Contamination

• Bubbles

• Wrinkles

• Color variation

• Surface defects

• Uneven texture

Consistent visual quality is particularly important for black matte film because surface irregularities can be visible under strong lighting.

53. Adhesive Quality Control

Adhesive-backed PC film should be checked for:

• Uniform adhesive coverage

• Contamination

• Air bubbles

• Wrinkles

• Edge lifting

• Release liner alignment

• Bonding performance

The adhesive should remain stable during storage and transportation.

54. Packaging and Handling

Black matte PC film should be protected from contamination and excessive mechanical stress.

Packaging should help prevent:

• Scratching

• Bending

• Dust

• Moisture

• Adhesive contamination

• Deformation

Finished die-cut parts may be stacked, bagged, tray-packed, or supplied in other protective packaging depending on geometry.

55. Storage of Adhesive-Backed Film

Adhesive-backed PC components should be stored under conditions appropriate for the adhesive.

Excessive heat, humidity, pressure, and direct sunlight may affect adhesive performance.

Release liners should remain intact until assembly.

56. Customization Options

Black matte PC Mylar sheet can be customized in several ways.

Possible customization areas include:

• Material grade

• Thickness

• Color

• Matte level

• Surface texture

• Formability

• Die-cut shape

• Hole pattern

• Adhesive type

• Adhesive side

• Release liner

• Printing

• Packaging

This flexibility makes PC film suitable for both standard and highly specialized applications.

57. Black Matte PC Film for Industrial Housings

Industrial housings often require internal insulation between electrical components and metal or plastic structures.

Black matte PC film can provide a clean internal barrier.

When visible from the outside, the matte black appearance can also create a professional industrial aesthetic.

58. Electrical Component Separation

Component separation is a major function of insulation film.

PC film can physically separate components that should not contact each other.

This is useful for:

• PCB assemblies

• Battery packs

• Power modules

• Control systems

• Industrial electronics

The final geometry should ensure adequate separation under normal operating conditions.

59. Heat Source Proximity

When PC film is located near a heat source, thermal analysis becomes particularly important.

Potential heat sources include:

• Power transistors

• Transformers

• Resistors

• Batteries

• Busbars

• Motors

• Power modules

• Heat sinks

The PC grade should be selected according to the expected temperature exposure.

60. PC Film for Power Electronics

Power electronics often combine high electrical loads with compact component layouts.

Black matte PC film can provide localized insulation around power components.

Its formability can help create barriers around irregular shapes.

This is useful in converters, inverters, chargers, motor drives, and energy storage systems.

61. PC Film for Energy Storage

Energy storage equipment requires reliable electrical separation between conductive components.

Custom PC insulation parts can be used in battery modules and power conversion systems.

The material should be selected based on the thermal, electrical, mechanical, and environmental conditions of the equipment.

62. Automotive Electrical Applications

Automotive electrical and electronic systems can experience vibration, temperature variation, mechanical impact, and limited installation space.

Formable PC insulation film can be used in selected automotive electronic components where the material meets the applicable requirements.

Potential applications include:

• Battery systems

• Control modules

• Power electronics

• Connectors

• Electrical housings

• Sensor assemblies

Automotive applications require application-specific validation.

63. Consumer Electronics

Compact consumer electronics can benefit from thin, formable insulation materials.

PC film can provide electrical separation while occupying relatively little space.

Black matte film can also reduce glare and provide a visually consistent internal structure.

64. Communication Equipment

Communication equipment contains circuit boards, connectors, power supplies, and metal structures.

Custom PC film can provide insulation between these components.

Matte black material is often useful for internal structures because of its clean appearance and reduced reflection.

65. Control Systems

Industrial control systems require organized separation between electrical components.

Custom PC barriers can support safe and orderly internal layouts.

Die-cut openings can be positioned around switches, connectors, terminals, and wiring paths.

66. Advantages of Black Matte PC Mylar Sheet

The major advantages can be summarized as follows:

67. Application Benefits

The value of PC film often comes from combining several functions into one component.

A single custom part may provide:

1. Electrical insulation

2. Mechanical separation

3. Surface protection

4. Component positioning

5. Light blocking

6. Reduced glare

7. Heat-area separation

8. Assembly simplification

This multifunctional approach can reduce the need for several separate materials.

68. Why Formable PC Is Useful

Formable PC can follow three-dimensional component geometry.

This can reduce gaps and improve physical coverage.

It can also reduce the number of separate pieces needed for complex assemblies.

For compact electronic products, this can improve space utilization.

69. Why Matte PC Is Useful

Matte PC provides a controlled, low-reflection surface.

This is beneficial for equipment where visual glare is undesirable.

The textured surface may also improve friction.

For internal barriers, these characteristics can support more stable positioning.

70. Why Black PC Is Useful

Black PC provides:

• Light blocking

• Clean appearance

• Visual consistency

• Reduced visibility of minor contamination

• Compatibility with dark housings

• Professional industrial appearance

It is therefore a common choice for electrical and industrial components.

71. Material Selection Considerations

Selecting a PC Mylar sheet requires evaluation of the entire application.

Engineers should consider:

• Operating temperature

• Peak temperature

• Electrical voltage

• Mechanical stress

• Vibration

• Required flexibility

• Required forming

• Chemical exposure

• Moisture

• Flame-retardant requirements

• Adhesive requirements

• Surface appearance

No single material grade is ideal for every application.

72. Thickness Selection

Thickness should be selected according to the required mechanical and electrical performance.

Thin film is useful when space is limited.

Thicker film can provide greater mechanical stiffness.

However, greater thickness may reduce flexibility or formability.

The appropriate balance depends on the application.

73. Adhesive Selection Considerations

Adhesive selection should consider:

• Operating temperature

• Surface type

• Bond strength

• Aging

• Humidity

• Chemical exposure

• Flame performance

• Electrical requirements

• Removal requirements

An adhesive suitable for indoor electronics may not be suitable for high-temperature battery applications.

74. Surface Finish Selection

A matte finish is suitable when glare reduction and surface friction are useful.

A glossy surface may be preferred when smoothness, easy cleaning, or specific optical characteristics are important.

Some applications can use different finishes on opposite sides.

75. Prototyping

Prototype production is highly recommended for custom PC insulation components.

Prototype testing can identify:

• Incorrect dimensions

• Insufficient bend radius

• Interference with components

• Adhesive problems

• Forming defects

• Assembly difficulties

• Thermal issues

Design changes are generally easier before production tooling is finalized.

76. Application Testing

Testing should reproduce actual service conditions as closely as possible.

Potential tests include:

• Electrical insulation testing

• Thermal exposure

• Thermal cycling

• Vibration

• Mechanical impact

• Adhesion

• Chemical compatibility

• Humidity

• Flame performance where applicable

The required testing depends on the finished equipment.

77. Safety Considerations

PC film should be incorporated into a properly engineered insulation system.

For electrical products, designers should consider:

• Working voltage

• Transient voltage

• Creepage

• Clearance

• Material thickness

• Temperature

• Pollution

• Mechanical retention

• Flame requirements

The insulation film should not be treated as the only safety measure.

78. Common Application Mistakes

Potential design mistakes include:

• Choosing PET when PC toughness is required

• Selecting adhesive without considering temperature

• Using insufficient mechanical retention

• Creating excessively sharp corners

• Making narrow sections too thin

• Ignoring thermal expansion

• Failing to test the finished laminated construction

• Assuming black color automatically means flame retardant

• Using a matte surface without considering adhesive bonding

Careful engineering can prevent these issues.

79. PET Is Not Always the Wrong Choice

Although PC can offer significant advantages, PET remains an important electrical insulation material.

PET can be suitable where the operating temperature and mechanical requirements are within its capability.

It may also offer cost and processing advantages.

The correct material should therefore be selected according to actual application requirements rather than assuming that PC is universally superior.

80. When PC Is the Better Choice

PC is particularly attractive when the application requires:

• Greater impact resistance

• Higher toughness

• Better crack resistance

• Greater formability

• Higher thermal capability

• Improved mechanical durability

• Three-dimensional forming

• Repeated handling

These characteristics make PC useful in demanding electronic and industrial environments.

81. Custom PC Film for Complex Geometry

Modern electronic components often have irregular shapes.

Custom PC film can be designed around these geometries.

A die-cut and formed part can include multiple openings and bends.

This enables the insulation to follow the actual equipment architecture.

82. Integration With Other Materials

PC film may be integrated with:

• Adhesive

• Release liner

• Foam

• Rubber

• Fabric

• Metal components

• Other polymer films

Material compatibility should be checked for every combination.

The final laminated structure may behave differently from the bare PC film.

83. PC Film for Protective Covers

Thin PC film can serve as a protective cover over selected electronic structures.

It can provide separation from adjacent components while maintaining a compact profile.

For formed covers, the film can follow the shape of the underlying component.

84. Internal Separators

Separators are commonly used to maintain physical separation between components.

Black matte PC film can serve as a separator in electrical equipment.

Its surface friction can help maintain position in certain designs.

85. Insulation Barriers

An insulation barrier physically separates conductive components.

PC film can be die cut into barrier shapes.

In power electronics, these barriers may be placed between circuit boards, metal components, terminals, and power modules.

86. Manufacturing Efficiency

Custom PC film can improve manufacturing efficiency by supplying ready-to-install components.

Pre-cut parts eliminate manual cutting.

Adhesive-backed parts reduce additional bonding operations.

Formed parts can simplify assembly around complex geometries.

These benefits can reduce labor requirements and improve repeatability.

87. Waste Reduction

Optimized die-cut layouts can reduce material waste.

Nesting multiple parts efficiently within a sheet or roll can improve material utilization.

The optimum layout depends on part geometry, quantity, film width, and cutting method.

88. Consistent Assembly

Preformed and die-cut components can improve assembly consistency.

Each part can have the same dimensions and openings.

This reduces variation associated with manual cutting.

For automated or semi-automated manufacturing, consistent part geometry can be particularly valuable.

89. Industrial Appearance

Black matte PC provides a professional appearance.

The low-gloss finish is suitable for equipment designed with a technical or industrial aesthetic.

The material can blend with black plastics, coated metal, circuit boards, and cables.

90. Cleanability

The cleanability of matte surfaces depends on the exact texture.

A very rough surface may retain more contamination than a smooth surface.

A medium matte finish can provide a practical balance between appearance and cleanability.

Cleaning agents should always be checked for compatibility with PC.

91. UV Exposure

Outdoor equipment may experience UV exposure.

PC grades vary in UV resistance.

If the finished component will be exposed to direct sunlight for long periods, a suitable UV-resistant grade should be considered.

For internal electrical applications, UV exposure may be minimal.

92. Humidity and Condensation

Outdoor and industrial electronic systems may experience condensation.

Electrical insulation should be designed to maintain required separation under expected humidity conditions.

The PC material, adhesive, and surrounding structure should be evaluated together.

93. Thermal Expansion

PC expands and contracts with temperature.

In a confined assembly, this movement can create mechanical stress.

Formed parts should have sufficient clearance to accommodate expected dimensional changes.

Adhesive layers should also tolerate the expected thermal movement.

94. Mechanical Retention

Mechanical retention can be achieved using:

• Adhesive

• Clips

• Tabs

• Slots

• Housing pressure

• Fasteners

• Formed geometry

A formed PC part may use its own shape for positioning.

95. Black Matte PC Sheet for Control Panels

In selected control panel applications, black matte PC can provide an attractive low-reflection surface.

It may be used for protective overlays, electrical barriers, labels, or internal structures depending on the specific grade.

96. PC Film for Power Modules

Power modules generate significant electrical and thermal loads.

Insulation film can be used around module structures where physical separation is required.

The PC grade should be selected based on the expected thermal and electrical conditions.

97. PC Film for Chargers

Compact chargers require careful insulation because high-voltage and low-voltage areas may be positioned close together.

Custom PC film can provide additional separation between components and housing structures.

98. PC Film for Inverters

Inverters combine power electronics with substantial heat generation.

Formable insulation film can provide barriers around irregular internal components.

The design should not interfere with cooling or ventilation.

99. PC Film for Motor Controllers

Motor controllers can experience vibration and heat.

A tough PC insulation component can provide mechanical separation around electrical structures.

The material should be evaluated under the actual vibration and temperature conditions.

100. Future-Oriented Material Selection

As electronic equipment becomes smaller, more powerful, and more integrated, insulation materials must provide multiple functions.

Future insulation components are increasingly expected to combine:

• Electrical insulation

• Mechanical protection

• Flame resistance

• Thermal durability

• Lightweight construction

• Formability

• Adhesive integration

• Precision conversion

Black matte formable PC film fits this trend because it can combine several of these functions within one thin material system.

101. Summary of Key Characteristics

102. Selection Guide by Application Need

103. Engineering Documentation

For customized PC insulation products, clear documentation helps ensure consistent production.

A technical drawing may specify:

• Material

• Grade

• Color

• Thickness

• Surface finish

• Adhesive

• Adhesive orientation

• Part dimensions

• Hole locations

• Bend locations

• Forming geometry

• Tolerances

• Packaging requirements

Clear documentation minimizes misunderstandings between design and production teams.

104. Why Industry Uses Custom Insulation Film

Standard sheets are useful for simple applications, but modern electronic equipment often requires precise components.

Custom film conversion allows the insulation material to be manufactured specifically for the target assembly.

This can reduce installation time and improve product consistency.

105. Conclusion

Black matte PC Mylar sheet is a versatile formable polycarbonate film designed for electrical insulation, industrial separation, component protection, and customized electronic applications.

Its most important characteristics are the combination of a tough polycarbonate substrate, black light-blocking appearance, low-gloss matte surface, useful electrical insulation properties, mechanical durability, and formability.

It is important to distinguish PC Mylar sheet from traditional PET Mylar film. PET is widely used as a polyester electrical insulation material and typically offers a temperature resistance of approximately 105–120°C depending on grade and conditions. PET can also be relatively brittle in some mechanically demanding environments. PC provides higher thermal capability, superior impact resistance, greater toughness, and improved crack resistance. These characteristics can make PC particularly attractive for applications exposed to heat, vibration, bending, or mechanical impact.

The black matte surface provides both functional and aesthetic benefits. Black can block light and create a consistent industrial appearance, while the matte texture can reduce glare and increase surface friction. This makes black matte PC film useful in internal electronic structures as well as selected visible industrial components.

The formable grade provides additional design flexibility. It can be converted into shaped insulation barriers, three-dimensional separators, protective covers, and custom components that follow complex equipment geometries.

In switching power supplies, PC film can be used around circuit boards, transformers, terminals, heat sinks, connectors, and conductive structures. In lithium-ion battery systems, it can provide insulation around cells, busbars, terminals, BMS components, and enclosure interfaces. When an insulation component is located near a heat source, PC can be considered when greater thermal and mechanical performance is required.

Custom die cutting, punching, forming, adhesive lamination, and other conversion methods make it possible to produce application-specific parts. Non-adhesive, single-sided adhesive, and double-sided adhesive constructions can be selected according to assembly requirements.

The final material should always be evaluated according to the actual operating temperature, voltage, mechanical stress, environmental exposure, flame-retardant requirements, forming process, and applicable safety standards.

Overall, black matte formable PC Mylar sheet provides a practical material platform for modern electrical and industrial insulation applications where toughness, formability, appearance, surface friction, and reliable physical separation are important.
