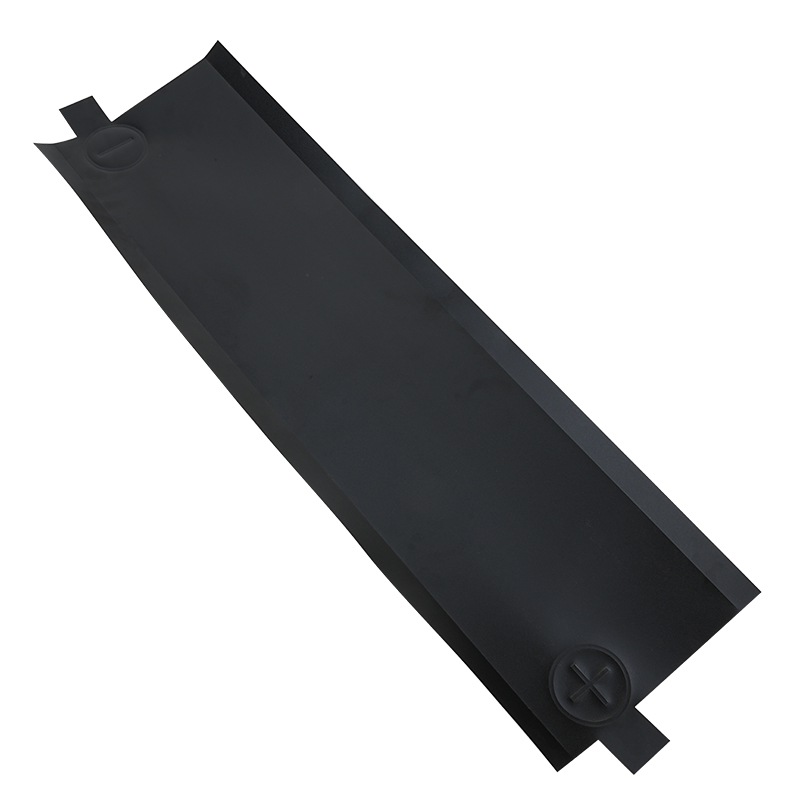

Self-adhesive flame-retardant PC Mylar sheet is a specialized polycarbonate insulation material developed for electrical protection, component separation, battery insulation, power electronics, and custom industrial assembly. By combining a polycarbonate substrate with flame-retardant performance and a pressure-sensitive adhesive backing, this type of insulation sheet can provide both electrical isolation and convenient installation.
Custom die-cutting further expands the application range of PC Mylar sheets. Instead of supplying only flat rectangular film, manufacturers can convert polycarbonate insulation material into circular pieces, rings, tabs, irregular profiles, slotted barriers, protective covers, terminal shields, and other application-specific shapes.
In lithium-ion battery systems, Custom PC Insulation sheets can be integrated into cell protection, module construction, high-voltage isolation, battery management systems, electrical connection areas, and structural interfaces. The ability to produce precise shapes is particularly useful because battery packs contain many closely positioned electrical and mechanical components.
A self-adhesive construction can simplify installation by allowing the insulation component to be positioned directly onto the target surface. This can reduce the need for additional mechanical fastening and can help maintain the intended position during assembly.
Flame-retardant polycarbonate is also valuable in applications where electrical insulation must coexist with strict requirements for heat resistance, mechanical durability, and fire behavior. When a suitable flame-retardant PC grade is selected, the material can contribute to the overall fire-safety design of an electrical or battery assembly.
This article provides an industry-focused overview of self-adhesive flame-retardant PC Mylar sheets and their custom die-cut applications, with particular attention to lithium-ion batteries, battery modules, high-voltage isolation, BMS structures, power electronics, and industrial electrical assemblies.
1. What Is a Self-Adhesive Flame-Retardant PC Mylar Sheet?
A self-adhesive flame-retardant PC Mylar sheet is a polycarbonate insulation film supplied with an adhesive layer on one side.
The basic construction consists of three functional elements:
| Construction | Function |
|---|---|
| Polycarbonate film | Main electrical and mechanical insulation substrate |
| Flame-retardant formulation | Provides improved resistance to ignition and flame propagation |
| Pressure-sensitive adhesive | Allows the insulation part to bond to the target surface |
A release liner is commonly applied over the adhesive before installation.
The term “PC Mylar sheet” is commonly used in industrial product terminology, although PC and traditional PET Mylar are chemically different materials. In this product category, the important point is that the actual insulation substrate is polycarbonate.
The PC substrate can be selected for applications requiring a combination of toughness, electrical insulation, dimensional stability, forming capability, and resistance to mechanical damage.
2. Why Self-Adhesive PC Insulation Is Important
Electrical insulation components are often installed inside compact assemblies where conventional fastening is difficult.
A self-adhesive insulation sheet can be positioned directly onto:
Metal plates
Battery module structures
Electronic housings
PCB surfaces
End plates
Insulating barriers
Electrical terminals
Internal Brackets
Component surfaces
The adhesive layer helps hold the film in its intended location.
This is especially useful when the insulation shape contains multiple openings or follows a complex component profile.
Instead of manually positioning a loose piece of film, an adhesive-backed die-cut part can be supplied as a ready-to-apply component.
3. Flame-Retardant Polycarbonate as an Insulation Material
Flame-retardant PC is engineered for electrical and electronic applications where improved fire behavior is required.
The flame-retardant characteristic comes from the formulation of the polymer rather than from the color of the film.
Black PC is widely used because it provides a professional appearance and can reduce light transmission, but black coloration itself does not establish a flame-retardant classification.
For applications requiring a specific flame classification, the exact PC grade, thickness, test method, and finished construction should be verified.
In battery and power-electronics applications, flame retardancy is one part of a broader safety system.
4. Custom Die-Cut PC Insulation
Custom die cutting allows PC film to be converted into application-specific shapes.
Typical shapes include:
Circular insulation discs
Annular rings
Rectangular barriers
Square insulation pads
U-shaped pieces
L-shaped barriers
Slotted sheets
Tab protection pieces
Terminal shields
Irregular profiles
Multi-hole insulation plates
Foldable insulation structures
The exact geometry can be designed according to the electrical and mechanical layout of the finished assembly.
5. Why Die-Cut Shapes Matter in Battery Manufacturing
Battery cells and modules rarely have completely open, uncomplicated surfaces.
A typical battery assembly can include:
Cylindrical cells
Prismatic cells
Busbars
Cell terminals
Sampling wires
BMS components
End plates
Metal frames
Plastic holders
Cooling structures
Fasteners
Electrical connectors
A standard rectangular insulation sheet may cover unnecessary areas or interfere with components.
A custom die-cut piece can provide insulation only where it is required.
This improves material utilization and allows the insulation to fit more precisely into the assembly.
6. Applications of PC Mylar Sheets in Lithium-Ion Batteries
PC Mylar sheets can perform several different functions in lithium-ion battery systems.
The most important applications include:
Cell top insulation
Cell bottom insulation
Module end-plate insulation
High-voltage zone isolation
BMS area insulation
Terminal protection
Busbar separation
Metal enclosure isolation
Connector-area insulation
Internal electrical barriers
The exact application depends on cell geometry, module design, voltage level, thermal conditions, and mechanical construction.
7. Cell Top Insulation Sheets
One important application is insulation around the top of cylindrical or prismatic battery cells.
The cell top area can contain conductive structures and terminals that require controlled electrical separation.
A custom die-cut PC insulation sheet can be designed to fit around the cell-top geometry.
Circular pieces are commonly considered for cylindrical cell structures, while irregular or customized profiles may be used for other cell designs.
The adhesive backing can help keep the insulation piece accurately positioned during subsequent assembly.
8. Cell Bottom Insulation Sheets
The bottom of a battery cell can also require electrical isolation.
A die-cut PC insulation sheet can cover a defined area of the cell bottom while leaving required mechanical or thermal interfaces accessible.
This type of insulation can help prevent unintended contact between the cell and adjacent conductive structures.
The shape can include:
Circular profiles
Rounded corners
Central openings
Terminal clearances
Alignment features
Irregular outlines
9. Cylindrical Cell Applications
Cylindrical lithium-ion cells have a generally round body.
Custom circular PC insulation discs can therefore be produced to match the cell geometry.
Potential uses include:
Cell top protection
Cell bottom protection
Terminal-area insulation
Cell holder interfaces
Pack assembly barriers
The actual insulation design must account for the cell construction and electrical connection method.
10. Prismatic Cell Applications
Prismatic cells have a rectangular or customized external profile.
For these cells, insulation sheets can be designed as rectangular, rounded, or irregular components.
Custom die cutting can provide openings around terminals, connectors, and structural interfaces.
Self-adhesive construction can help maintain alignment during module assembly.
11. Cell-to-Structure Electrical Isolation
Battery cells can be positioned close to metal frames, brackets, plates, and other conductive components.
An insulation layer can create a physical barrier between the cell and conductive structure.
PC film can be die cut to match the contact area.
This is particularly useful where space is limited and a thin insulation component is required.
12. Module End-Plate Insulation
Battery modules frequently use metal end plates to provide mechanical support.
The end plates can be positioned near cells, terminals, tabs, and conductive connection structures.
A custom PC insulation sheet can be bonded to the inner surface of an end plate.
This creates a separation layer between the metal structure and electrical components.
The insulation can be designed to match the end-plate geometry while leaving mounting features available.
13. Why End-Plate Insulation Matters
End-plate insulation is important because mechanical structures and electrical structures may occupy the same area.
Without suitable isolation, unintended contact can occur if conductive components shift, deform, or become displaced.
A properly designed insulation layer can help maintain separation during assembly and operation.
In battery modules, this becomes especially important because mechanical compression and vibration can occur during service.
14. Flame-Retardant PC for Module Structures
A flame-retardant PC grade may be selected for battery-module insulation when fire performance is part of the material specification.
A UL94 V-0 grade is often considered in electrical and electronic applications requiring a high level of flame-retardant performance.
However, a material classification should not be interpreted as a guarantee that a battery system cannot experience thermal runaway.
Battery safety depends on the complete cell, module, pack, thermal management, electrical protection, enclosure, spacing, venting, and control system.
The PC insulation layer is one component within this overall safety architecture.
15. High-Voltage Zone Isolation
High-voltage battery systems contain areas where multiple conductive components are located close together.
These areas may include:
BMS interfaces
Sampling circuits
Acquisition terminals
Relays
Contactors
Busbars
High-voltage connectors
Power distribution structures
Custom PC insulation sheets can be used as shielding or separation barriers around these regions.
The shape can be designed to maintain the required clearance while protecting selected areas from accidental contact.
16. BMS Sampling Wire Protection
Battery management systems monitor cell voltage and other operating conditions through electrical connections.
Sampling wires can run close to conductive structures.
A custom insulation sheet can be positioned beneath or around the sampling-wire area.
This can help maintain physical separation between wiring and nearby metal structures.
The design should provide sufficient clearance and should not create excessive pressure on delicate wires.
17. Acquisition Terminal Insulation
Acquisition terminals and related electrical connection points may require localized insulation.
Instead of covering the entire assembly, a small custom PC barrier can be die cut around the terminal.
This provides targeted protection while maintaining access to the connection point.
Such localized insulation can be especially useful in compact battery modules.
18. Relay and Contactor Area Insulation
High-voltage relays and contactors can be surrounded by conductive structures.
Custom PC insulation sheets can be used as barriers around selected areas.
The insulation component can include cutouts for mounting points and wiring paths.
The final design must consider the movement, temperature, voltage, and mechanical retention requirements of the assembly.
19. Busbar Insulation
Busbars are conductive components used to distribute electrical current.
They can operate at relatively high voltage and current levels depending on the system.
PC insulation film can be positioned around busbar structures to create electrical separation.
Custom die cutting allows openings for bolts, connectors, terminals, and mounting structures.
20. High-Voltage Connector Protection
High-voltage connectors require controlled electrical separation.
Custom PC insulation barriers can be used around connector interfaces.
A die-cut component can provide an opening for the connector while covering nearby conductive areas.
Self-adhesive backing can help hold the barrier in position during assembly.
21. Insulation Around Metal Housings
Battery packs frequently contain metal enclosures.
The metal housing provides mechanical strength but can also become an unwanted conductive contact point.
A PC insulation sheet can be installed between the housing and internal electrical structures.
Custom shapes can follow the enclosure geometry.
22. Battery Module Housing Insulation
Module housings can contain:
Metal walls
End plates
Frames
Brackets
Cooling components
Fasteners
Custom PC film can be used at selected interfaces where electrical isolation is required.
This approach allows the insulation to be concentrated in critical zones.
23. Adhesive-Backed Cell Insulation
The self-adhesive feature is particularly valuable for small cell insulation pieces.
Small circular or irregular parts can be difficult to install accurately if they are supplied as loose film.
An adhesive-backed part can be picked, positioned, pressed, and fixed.
This can support faster manual assembly and more consistent automated processes.
24. Pressure-Sensitive Adhesive
A pressure-sensitive adhesive is commonly used for self-adhesive insulation film.
It bonds when sufficient pressure is applied to establish contact.
Important adhesive characteristics include:
Initial tack
Final adhesion
Temperature resistance
Aging stability
Surface compatibility
Humidity resistance
Chemical resistance
Dielectric characteristics
Flame performance where required
The adhesive should be evaluated as part of the complete insulation construction.
25. Acrylic Adhesive Systems
Acrylic pressure-sensitive adhesives are frequently used for electrical and industrial bonding applications.
They can offer useful resistance to aging and temperature depending on formulation.
However, different acrylic adhesives have different properties.
Therefore, the phrase “acrylic adhesive” alone does not define the complete performance level.
The selected adhesive must match the operating conditions.
26. Adhesion to Metal Surfaces
Battery modules often contain aluminum or steel components.
Adhesive performance on metal depends on:
Surface cleanliness
Surface energy
Oxidation
Roughness
Contamination
Application pressure
Bonding temperature
Storage conditions
Metal surfaces should generally be clean and free from oil, dust, and other contaminants before application.
27. Adhesion to Plastic Surfaces
PC insulation may also be bonded to plastic components.
Different plastics have different surface energies.
Low-surface-energy plastics can be more difficult to bond.
Compatibility testing should therefore be performed before mass production.
28. Release Liner Function
The release liner protects the adhesive until the insulation part is ready for installation.
A suitable liner helps prevent:
Dust contamination
Premature bonding
Adhesive damage
Surface contamination
For automated assembly, liner design can also influence peelability and handling speed.
29. Custom Adhesive Positioning
Adhesive does not necessarily have to cover the entire PC sheet.
Depending on the application, adhesive can be configured to provide:
Full-surface bonding
Partial bonding
Edge bonding
Localized attachment
The best construction depends on whether the insulation part must remain flexible, removable, repositionable, or permanently fixed.
30. Die-Cut Circular Insulation Discs
Circular insulation discs are useful for round battery components.
A custom die can produce repeated circular parts with consistent dimensions.
The disc can contain:
Center holes
Off-center openings
Multiple holes
Radial slots
Alignment features
This makes the insulation component suitable for complex cell structures.
31. Irregular-Shaped PC Insulation
Not all battery components have symmetrical geometry.
Irregular PC insulation parts can follow:
Terminal shapes
Connector contours
Metal bracket edges
Busbar layouts
PCB outlines
Housing corners
Custom die cutting can reproduce these profiles consistently.
32. Ring-Shaped Insulation Parts
Ring-shaped PC components can be used around circular terminals or other cylindrical structures.
The inner opening provides clearance while the outer area provides insulation coverage.
This geometry can be useful where electrical separation is needed without covering the central connection point.
33. Slotted Insulation Barriers
Slots can provide flexibility and clearance.
A custom PC sheet may contain one or more slots to accommodate:
Wires
Fasteners
Terminals
Clips
Brackets
Movement
Slot geometry should be designed to prevent excessive stress concentration.
34. Tab and Terminal Insulation
Battery tabs and terminals can be positioned close to metal structures.
Localized PC insulation can cover selected portions without interfering with electrical connections.
Die-cut shapes can provide precise openings around tabs.
35. BMS Insulation Components
The BMS contains sensitive electronic circuits.
Custom PC film can be used to separate the BMS board from surrounding metal structures.
Potential functions include:
PCB isolation
Terminal protection
Wire separation
Housing insulation
Component shielding
36. PCB Protection in Battery Packs
A battery-management PCB may be installed inside a metal enclosure.
PC insulation film can provide a barrier between the PCB and enclosure.
A die-cut profile can include openings for:
Connectors
Screws
Wiring
Mounting posts
Heat-generating components
37. Electrical Creepage and Clearance
High-voltage insulation design must consider creepage and clearance.
Clearance refers to the shortest distance through air between conductive structures.
Creepage refers to the shortest path along a surface.
A die-cut PC sheet can help create a physical barrier, but the final electrical design must still comply with the applicable requirements.
The insulation sheet should not unintentionally reduce required creepage or clearance.
38. Insulation Barrier Geometry
Barrier geometry can be used to separate high-voltage and low-voltage regions.
For example, a custom PC part can include a raised, folded, or extended section that creates additional physical separation.
This can be useful in compact assemblies where conventional spacing is limited.
39. Thermal Runaway Considerations
Battery thermal runaway is a complex system-level event.
Flame-retardant PC insulation can help limit flame-related risks in selected components, but it should not be considered a standalone thermal-runaway solution.
Battery safety also requires:
Cell-level protection
Thermal management
Electrical monitoring
Current protection
Mechanical containment
Venting
Module spacing
Fire-resistant structures where required
The insulation material should be evaluated as part of the complete system.
40. Mechanical Stability During Battery Operation
Battery modules can experience:
Vibration
Shock
Compression
Thermal expansion
Assembly forces
The insulation sheet must remain securely positioned.
Adhesive bonding can help maintain location.
Mechanical retention should nevertheless be evaluated for the entire service life.
41. Thermal Cycling in Battery Systems
Battery modules can experience repeated heating and cooling.
This creates expansion and contraction in different materials.
PC, adhesive, metal, and plastic structures may have different thermal expansion behavior.
A good insulation design should account for these differences.
42. Electrical Isolation Under Compression
Battery modules can be mechanically compressed.
If an insulation film is placed between an end plate and a cell structure, compression may affect its geometry.
The material must be capable of maintaining electrical separation without tearing, folding unpredictably, or moving out of position.
43. Vibration Resistance of Adhesive Insulation
A battery pack installed in a mobile application may experience continuous vibration.
Adhesive selection should therefore account for dynamic loading.
The bond should remain stable without excessive edge lifting or peeling.
The PC substrate should also resist fatigue under expected mechanical conditions.
44. Surface Friction and Position Stability
Matte PC surfaces can provide greater texture than smooth surfaces.
In certain non-adhesive or partially adhesive constructions, this can help reduce sliding.
For self-adhesive products, friction can provide additional support during installation and handling.
45. Black PC for Battery Applications
Black is a common color for electrical insulation components.
It can provide:
Light blocking
Visual consistency
Low-reflection appearance
Easy integration with dark battery structures
A clean industrial appearance
Black PC is particularly common in internal electrical assemblies.
46. Formability of PC Insulation
Some PC grades can be formed into three-dimensional structures.
This is useful when a flat insulation sheet cannot fully follow the shape of a battery component.
A formed PC part may wrap around an edge or create a vertical barrier.
47. Folded Insulation Structures
Folded PC insulation can create multiple planes from a single piece.
For example, one component may contain:
A horizontal insulation section
A vertical barrier
A terminal shield
A mounting tab
This can reduce the number of separate components.
48. Custom PC Insulation for Battery Frames
Battery frames can contain numerous structural components.
Custom PC film can be shaped to fit between the frame and electrical components.
This can provide localized protection without covering the entire frame.
49. Insulation Between Busbars and Structural Parts
Busbars may be located near:
Frames
Brackets
End plates
Metal housings
Fasteners
A die-cut PC barrier can provide targeted separation.
The design must preserve adequate electrical spacing.
50. PC Film Around Fasteners
Fasteners can create conductive paths when made from metal.
An insulation washer, ring, or custom film component can be used around selected fasteners.
This can help isolate the fastener from conductive components.
51. Custom Washers and Insulation Rings
Die-cut PC film can be converted into thin washers and rings.
These parts can be used around:
Screws
Bolts
Terminals
Studs
Connector posts
The geometry should match the fastener and mounting structure.
52. Terminal Isolation
Terminal isolation is important in battery systems and power electronics.
A custom PC sheet can cover surrounding areas while leaving the actual terminal exposed for connection.
This targeted approach minimizes material usage.
53. Electrical Contact Prevention
One major purpose of insulation film is to prevent unintended contact.
The barrier must remain stable throughout assembly and service.
Custom die-cut geometry can reduce exposed areas.
Adhesive attachment can help prevent the film from shifting.
54. High-Voltage Distribution Areas
High-voltage distribution systems may contain several conductive components within a compact enclosure.
Custom PC insulation barriers can separate these components.
The material must be selected according to the voltage, temperature, and mechanical environment.
55. Power Electronics Applications Beyond Batteries
Self-adhesive flame-retardant PC film is also useful outside battery systems.
Applications may include:
Switching power supplies
Inverters
Chargers
DC-DC converters
Motor controllers
Power modules
Industrial control equipment
Electrical cabinets
Communication equipment
56. Switching Power Supply Insulation
Switching power supplies contain transformers, circuit boards, terminals, heat sinks, and conductive structures.
Custom PC film can provide localized electrical barriers.
Adhesive backing can help secure the insulation to internal structures.
57. Inverter Insulation Components
Inverters can contain high-voltage and high-current components.
PC insulation barriers can help separate conductive structures.
Die-cut shapes can be designed around mounting points and wiring paths.
58. Charger Internal Insulation
Compact chargers have limited internal space.
Thin PC film can provide localized electrical separation without occupying the volume of a rigid plastic component.
Flame-retardant grades can be considered when fire behavior is an important design requirement.
59. Motor Controller Applications
Motor controllers can experience heat and vibration.
A tough PC insulation component can provide physical separation around electrical components.
Adhesive attachment can simplify installation in areas where mechanical fastening is difficult.
60. Industrial Control Equipment
Industrial controllers may contain PCBs, metal housings, connectors, relays, and wiring.
Custom die-cut PC insulation can be installed at selected contact points.
This helps create a controlled internal insulation structure.
61. Communication Equipment
Communication equipment often contains tightly packed electronic assemblies.
Self-adhesive PC film can provide localized protection around PCBs, connectors, and metal frames.
Black matte film can also provide a clean appearance inside equipment.
62. Automotive Electrical Systems
Automotive electronic systems can experience vibration, thermal cycling, and limited space.
Custom PC insulation components can be considered for suitable automotive electrical applications.
The selected material must satisfy the relevant automotive requirements for the specific application.
63. Energy Storage Systems
Energy storage systems contain multiple battery modules and high-voltage connections.
Custom PC insulation can be used around:
Module interfaces
Busbars
BMS components
Contactors
High-voltage terminals
Enclosure structures
The insulation design should be validated at the system level.
64. Custom Die-Cutting Process
The typical custom die-cutting process involves several stages.
The customer supplies a drawing or sample.
The appropriate PC grade, thickness, flame-retardant level, and adhesive construction are selected.
A cutting tool is designed according to the required shape.
Sample parts are produced for dimensional and functional evaluation.
The part is installed in the target assembly.
Cutting layout, adhesive configuration, packaging, and production tolerances are optimized.
65. Digital Drawing Requirements
A custom die-cut component should ideally be supported by a clear technical drawing.
Useful information includes:
Overall dimensions
Hole locations
Hole sizes
Cutout dimensions
Corner radii
Bend locations
Adhesive areas
Material orientation
Surface requirements
Tolerance requirements
Clear drawings reduce production errors.
66. Prototype Development
Prototypes are important for complex battery insulation parts.
A prototype can reveal:
Interference
Incorrect hole placement
Insufficient coverage
Excessive adhesive area
Difficult installation
Unexpected bending
Clearance problems
Design adjustments can then be made before mass production.
67. Automated Assembly Compatibility
Self-adhesive die-cut PC parts can potentially be integrated into automated or semi-automated assembly.
Important factors include:
Part-to-liner adhesion
Peel force
Part stiffness
Shape consistency
Positioning accuracy
Packaging format
Small parts may be supplied in rolls, sheets, strips, or other formats depending on assembly requirements.
68. Pick-and-Place Considerations
Small adhesive insulation pieces can be designed for automated handling.
The release liner and part geometry should allow reliable pickup.
The adhesive should not transfer prematurely to tooling.
Packaging design is therefore part of the overall manufacturing solution.
69. Roll and Sheet Converting
PC film can be supplied in roll or sheet form before conversion.
Die-cut components can then be nested to improve material utilization.
The optimum format depends on the part size and production quantity.
70. Material Utilization
Custom nesting can reduce scrap.
Small circular insulation pieces can often be arranged efficiently within the available material width.
Irregular parts require careful nesting optimization.
Efficient material utilization can reduce production cost and environmental waste.
71. Adhesive Lamination
Before die cutting, adhesive can be laminated to the PC film.
The construction may include:
PC film + adhesive + release liner.
After lamination, the complete structure is converted into the required shape.
72. Single-Sided Adhesive PC Film
Single-sided adhesive construction is one of the most common configurations.
One side provides the insulating PC surface.
The opposite side contains the adhesive.
This allows the insulation sheet to bond directly to a target surface.
73. Double-Sided Adhesive Construction
Some applications require bonding between two surfaces.
Double-sided adhesive PC film can provide an insulation layer between those surfaces while simultaneously bonding both sides.
This configuration should be selected only when the adhesive performance is suitable for both interfaces.
74. Partial Adhesive Coverage
Partial adhesive coverage may be useful when the entire PC surface should not be bonded.
This can preserve flexibility or allow controlled movement.
It can also simplify removal or repositioning.
75. Flame-Retardant Adhesive Considerations
If the PC substrate is flame retardant, the adhesive should also be evaluated.
A flame-retardant PC film combined with a non-flame-retardant adhesive does not automatically mean that the complete laminated construction has the same flame classification as the substrate.
The finished construction should be tested when a specific classification is required.
76. Chemical Compatibility in Battery Environments
Battery environments may expose materials to electrolyte-related contamination or other chemicals.
The compatibility of PC and adhesive should be evaluated according to the actual battery design and possible exposure conditions.
Testing is especially important where leakage or chemical contamination is possible.
77. Humidity Resistance
Humidity can influence adhesive bonding and electrical insulation.
For battery and industrial equipment used in humid environments, the complete insulation construction should undergo appropriate environmental testing.
78. Long-Term Adhesion
An adhesive that bonds well immediately after assembly may behave differently after months or years.
Long-term testing should consider:
Heat
Humidity
Vibration
Thermal cycling
Chemical exposure
Mechanical stress
This is particularly important for permanent battery installations.
79. Edge Lifting
Poor surface preparation or unsuitable adhesive selection can cause edge lifting.
Custom geometry with narrow corners may be especially sensitive.
Rounded corners can help reduce stress concentration at the adhesive edge.
80. Surface Preparation Before Bonding
Good bonding generally requires a clean surface.
Potential contaminants include:
Oil
Dust
Moisture
Grease
Release agents
Fingerprints
The cleaning process must be compatible with both the substrate and the adhesive.
81. Pressure During Application
Pressure helps establish intimate contact between adhesive and substrate.
Insufficient pressure may result in incomplete bonding.
The appropriate pressure depends on the adhesive system and target surface.
82. Application Temperature
Some adhesives perform better when applied within a recommended temperature range.
Very cold surfaces may reduce initial tack.
Excessively hot surfaces may influence processing or alignment.
Application conditions should therefore be controlled in production.
83. Storage of Self-Adhesive PC Parts
Adhesive-backed parts should be protected from excessive heat, moisture, dust, and pressure.
The release liner should remain intact until installation.
Proper storage helps maintain adhesive performance.
84. Quality Inspection
Quality control for custom PC insulation parts may include:
Material verification
Thickness inspection
Color inspection
Surface inspection
Dimensional inspection
Hole-position inspection
Die-cut accuracy
Adhesive coverage
Release liner alignment
Visual defect inspection
Electrical and flame tests may be performed where required.
85. Dimensional Accuracy
Dimensional accuracy is important because battery insulation parts often have very limited installation space.
An oversized part may interfere with adjacent components.
An undersized part may fail to provide adequate coverage.
Consistent die-cut dimensions are therefore important for reliable assembly.
86. Visual Quality
Black PC film should be inspected for:
Scratches
Contamination
Uneven surfaces
Bubbles
Wrinkles
Color differences
Die-cut damage
Visual inspection is especially important for visible battery or electronic components.
87. Edge Quality
Die-cut edges should be sufficiently clean for the intended application.
Excessive burrs, tearing, or deformation can create installation problems.
For electrical insulation, damaged edges should be evaluated carefully because they may reduce the intended protective function.
88. Electrical Testing
Depending on the application, electrical testing can include evaluation of:
Dielectric strength
Insulation resistance
Surface resistance
Volume resistivity
Electrical aging
The appropriate test depends on the final product requirements.
89. Flame Testing
Where flame-retardant performance is required, the exact material grade should be tested according to the relevant standard.
A UL94 V-0 classification is one example of a commonly referenced flammability classification for polymeric materials.
The actual classification depends on material formulation and test thickness.
90. Why Custom PC Mylar Is Valuable for Battery Packs
Custom PC insulation is valuable because battery packs contain many interfaces that require targeted protection.
Instead of using one large sheet, engineers can specify multiple small components that each protect a critical area.
This modular insulation approach can improve:
Assembly precision
Material efficiency
Component compatibility
Serviceability
Production repeatability
91. Cell Top and Bottom Insulation Strategy
A battery cell insulation strategy may use separate top and bottom components.
The top piece protects the terminal region.
The bottom piece protects the opposite interface.
Both pieces can be customized to match the cell structure.
This approach provides localized protection while avoiding unnecessary coverage.
92. Module End-Plate Strategy
End-plate insulation can be treated as a dedicated component.
The PC sheet can follow the plate outline while providing openings for mechanical attachment.
The insulation may be bonded to the plate before module assembly.
This can simplify production.
93. High-Voltage Barrier Strategy
High-voltage barriers should be designed around the actual electrical architecture.
A barrier may separate:
High-voltage busbars
Low-voltage wiring
BMS circuits
Metal structures
Relays
Contactors
The PC component should be positioned so that it remains effective under vibration and thermal cycling.
94. Component Positioning
Adhesive-backed PC film can also provide secondary positioning.
For example, an insulation piece may hold itself against a metal plate while other components are installed.
This can simplify assembly.
The adhesive should not, however, be relied upon as the sole mechanical retention mechanism where safety-critical movement is possible.
95. Lightweight Insulation
PC film is much thinner and lighter than many rigid insulation structures.
This can help reduce component weight.
For mobile battery systems, lightweight insulation can support overall weight reduction.
96. Space Efficiency
Compact insulation film occupies limited installation space.
This is useful for high-density battery modules.
A thin custom component can provide electrical separation without requiring a large rigid barrier.
97. Multi-Function Insulation Parts
A custom PC part can perform multiple functions simultaneously.
For example, a single die-cut component can:
Isolate a metal plate
Protect a terminal
Provide wire clearance
Position itself using adhesive
Reduce contact risk
This can simplify the assembly architecture.
98. Design Simplification
Replacing several small loose insulation pieces with one custom component can simplify manufacturing.
A single component may cover several related surfaces.
This can reduce installation steps.
99. Consistent Production
Pre-cut components provide a repeatable shape.
Every part can have the same:
Outline
Hole locations
Adhesive position
Material
Surface finish
This consistency is valuable in high-volume battery manufacturing.
100. Maintenance and Service Considerations
Battery insulation components should be designed with service requirements in mind.
A technician may need to access:
Terminals
Connectors
BMS boards
Fasteners
Fuses
Relays
The PC insulation should not unnecessarily obstruct service areas.
101. Removal and Replacement
If an adhesive-backed insulation component may need replacement, the adhesive should be selected accordingly.
Permanent adhesive systems may be appropriate for sealed assemblies.
Removable or repositionable systems may be appropriate for serviceable equipment.
102. Design for Reliability
A reliable insulation component should remain effective throughout the expected service life.
Reliability design should consider:
Electrical stress
Thermal exposure
Vibration
Mechanical pressure
Chemical exposure
Humidity
Adhesive aging
Material aging
103. Common Design Mistakes
Potential problems include:
Insufficient insulation coverage
Incorrect die-cut dimensions
Adhesive incompatibility
Poor surface preparation
Inadequate electrical clearance
Excessive bend stress
Insufficient mechanical retention
Ignoring thermal expansion
Assuming substrate flame rating applies to the adhesive laminate
Failing to test the finished assembly
104. How to Choose the Right PC Insulation Sheet
A practical selection process should begin with the application environment.
First identify:
Where the insulation will be installed.
What components it must separate.
The expected operating temperature.
The electrical voltage.
The mechanical environment.
The required flame performance.
Whether adhesive attachment is necessary.
Whether the component must be formed.
The required die-cut geometry.
The expected service life.
This information can then be used to select the appropriate PC construction.
105. When to Use Self-Adhesive Construction
Self-adhesive PC film is particularly useful when:
The component is small.
Positioning is important.
Mechanical fasteners are impractical.
The insulation must remain fixed during assembly.
The target surface is suitable for adhesive bonding.
Installation speed is important.
106. When Non-Adhesive PC Film May Be Better
Non-adhesive film may be preferred when:
The insulation must remain removable.
Adhesive contamination is undesirable.
Mechanical retention is already available.
The component requires free movement.
High-temperature exposure exceeds adhesive capability.
107. Why Custom Shapes Improve Insulation Performance
Custom geometry can reduce unnecessary openings.
The insulation can be placed precisely around conductive structures.
This helps create a more controlled physical barrier.
A properly designed shape can also reduce the risk of displacement.
108. Digital Manufacturing and Customization
Modern converting technologies allow PC film to be produced in increasingly complex geometries.
Digital design can support rapid prototype development.
This is valuable for new battery-module architectures where designs may change frequently during development.
109. Small-Batch Custom PC Components
Prototype and low-volume projects may require only a small quantity of die-cut insulation.
Digital cutting or prototype tooling can support development before high-volume tooling is created.
This allows engineers to test multiple geometries.
110. High-Volume Production
For mass production, dedicated tooling can improve speed and repeatability.
Automated feeding, die cutting, liner handling, inspection, and packaging can be integrated into the manufacturing process.
111. Packaging of Die-Cut Components
Small PC insulation pieces should be packaged to prevent:
Scratching
Dust contamination
Adhesive contamination
Deformation
Misalignment
Packaging format should also support efficient assembly.
112. Labeling and Traceability
For industrial applications, packaging can include information such as:
Material grade
Part number
Production batch
Quantity
Adhesive type
Manufacturing date
Traceability can simplify quality management.
113. PC Mylar in Electrical and Industrial Design
The usefulness of PC insulation extends beyond batteries.
It can be used in:
Power electronics
Industrial automation
Energy storage
Automotive electronics
Consumer electronics
Communication equipment
Electrical controls
Charging systems
The same basic converting technology can produce many different insulation geometries.
114. Environmental Considerations
Material selection should also consider product life cycle.
Optimized die-cutting can reduce material waste.
Thin-film insulation can reduce the amount of polymer used compared with thicker rigid structures.
Packaging can also be optimized to minimize unnecessary material.
115. Engineering Validation
Before final production, engineers should validate the insulation part under actual conditions.
Validation may include:
Electrical tests
Temperature testing
Thermal cycling
Vibration
Adhesion testing
Mechanical inspection
Flame testing
Environmental aging
116. Application-Specific Testing
There is no universal test sequence for every PC insulation application.
A battery cell-top insulation disc has different requirements from a power-supply PCB barrier.
Testing should therefore reflect the actual installation.
117. Integrated Battery Safety
Insulation is only one component of battery safety.
A complete battery design may include:
Cell monitoring
Overcurrent protection
Thermal management
Mechanical protection
Electrical isolation
Fire-resistant materials
Venting
BMS control
Module-level containment
PC insulation should be integrated into this complete system.
118. Advantages of Self-Adhesive Flame-Retardant PC Mylar
The main benefits include:
Electrical insulation
Mechanical toughness
Flame-retardant material options
Easy installation
Custom die-cut geometry
Lightweight construction
Space-efficient design
Good positioning capability
Compatibility with complex assemblies
Potential three-dimensional forming
Reduced manual cutting
Repeatable production
119. Advantages for Lithium-Ion Battery Manufacturing
For battery applications, custom adhesive-backed PC film can help support:
Cell insulation
Module isolation
High-voltage separation
BMS protection
Busbar isolation
Terminal protection
Metal housing isolation
Assembly consistency
The exact benefit depends on the final construction.
120. Overall Conclusion
Self-adhesive flame-retardant PC Mylar sheet is a versatile material solution for custom electrical insulation and component protection.
Its combination of a polycarbonate substrate, adhesive backing, flame-retardant options, and custom die-cut capability makes it particularly useful for modern battery systems and compact electronic assemblies.
In lithium-ion batteries, PC insulation sheets can be designed for cell top and bottom insulation, providing localized protection around cylindrical or prismatic cell structures. Circular, rectangular, ring-shaped, slotted, and irregular die-cut designs allow the material to match the actual geometry of the cell.
For module end-plate insulation, PC sheets can be bonded to the inner surfaces of metal end plates to isolate cells, tabs, terminals, and conductive structures from the metal framework. When a suitable flame-retardant PC grade is selected, the material can contribute to the overall fire-safety architecture of the module. A UL94 V-0 material classification may be specified for applications requiring that level of flame-retardant performance, but the classification should always be confirmed for the exact material thickness and construction.
For high-voltage zone isolation, custom PC barriers can be used around BMS sampling wires, acquisition terminals, relays, contactors, busbars, and high-voltage connectors. Precise die-cutting allows insulation to be placed exactly where it is needed while maintaining access to electrical connection points.
The self-adhesive construction can further simplify assembly. Small insulation discs, terminal shields, PCB barriers, and irregular protection pieces can be supplied ready for installation. Acrylic pressure-sensitive adhesive systems may be used where their temperature, aging, bonding, and environmental performance meet the application requirements.
Custom die cutting is particularly valuable because modern battery packs contain increasingly complex geometries. A single standard sheet cannot always provide efficient coverage. Customized components can follow the shape of cells, end plates, busbars, brackets, connectors, and housings.
The material selection process should consider the complete application rather than the PC substrate alone. Operating temperature, electrical voltage, flame requirements, mechanical loading, vibration, adhesive compatibility, chemical exposure, humidity, forming requirements, and service life should all be evaluated.
For high-voltage battery systems, electrical creepage and clearance requirements must be considered carefully. The insulation sheet should support the overall electrical design rather than being treated as an independent safety solution.
Ultimately, self-adhesive flame-retardant PC Mylar sheet provides a practical platform for precision electrical insulation, localized protection, custom battery-pack insulation, high-voltage separation, BMS protection, and industrial electronic assembly. Its ability to combine material performance with custom geometry and adhesive installation makes it suitable for applications where conventional flat Insulation Materials are difficult to install or cannot provide sufficiently precise coverage.
This website uses cookies to ensure you get the best experience on our website.
Phone
