High-Temperature Fire-Resistant PC Insulating Polyester Film for Power Batteries is a specialized electrical insulation material designed for demanding battery, power electronics, and industrial applications. This type of Insulating Film combines the dimensional stability of engineered thermoplastic materials with the electrical insulation characteristics required for battery systems.
Polycarbonate-based insulating film is widely recognized for its excellent mechanical strength, toughness, impact resistance, and thermal stability. When engineered with suitable flame-retardant additives and surface treatments, PC film can provide a reliable barrier for applications where electrical insulation, heat resistance, mechanical protection, and flame resistance are important.
In power battery systems, insulating films are used to separate conductive components, protect sensitive electrical areas, reinforce insulation structures, and reduce the possibility of accidental electrical contact. The film can also be processed into die-cut insulating sheets, spacers, barriers, liners, covers, protective layers, and custom-shaped components.
Unlike ordinary plastic sheets intended primarily for packaging or general mechanical applications, electrical-grade PC insulating film is selected according to a combination of dielectric performance, temperature resistance, flame-retardant behavior, thickness tolerance, dimensional stability, mechanical strength, surface characteristics, and processing requirements.
The material is particularly useful in applications involving lithium-ion battery modules, battery packs, power supplies, busbar assemblies, printed circuit boards, electrical enclosures, charging equipment, industrial control systems, and other high-density electronic assemblies.
1. Understanding PC Insulating Polyester Film
The term "PC insulating film" generally refers to a thin polycarbonate film used for electrical insulation and mechanical separation. Polycarbonate is a high-performance thermoplastic polymer known for its combination of toughness, strength, impact resistance, and thermal performance.
The phrase "polyester film" is sometimes used broadly in commercial product descriptions for electrical insulation films, but PC film and polyester PET film are different polymer systems. Therefore, buyers should always confirm the actual substrate composition in the technical data sheet.
For applications requiring higher impact resistance, greater toughness, or improved resistance to mechanical deformation, polycarbonate can provide advantages over some conventional thin-film Insulation Materials.
PC insulating film can be manufactured in different thicknesses, surface finishes, colors, and flame-retardant grades. Black, natural, transparent, translucent, matte, and textured surfaces may be available depending on the intended application.
For battery applications, black flame-retardant PC film is frequently considered when visual contrast, light blocking, surface appearance, and electrical insulation are required simultaneously.
2. High-Performance Thermoplastic Characteristics
Polycarbonate is a high-performance thermoplastic material renowned for its outstanding strength, durability, and impact resistance.
Its molecular structure gives it a useful balance between rigidity and toughness. Instead of behaving like a brittle plastic under moderate mechanical stress, properly selected PC film can tolerate bending, handling, vibration, and localized mechanical loads.
This characteristic is important in battery assembly because insulation materials can experience mechanical stress during:
Cell insertion
Module assembly
Busbar installation
Battery enclosure assembly
Wire routing
Vibration
Transportation
Equipment operation
Maintenance and service
A properly specified PC insulation film can therefore serve not only as an electrical barrier but also as a secondary mechanical protection layer.
3. Thermal Stability for Power Battery Applications
Temperature is an important consideration when selecting Insulating Materials for lithium-ion battery systems.
Battery modules can experience temperature changes during charging, discharging, high-current operation, environmental exposure, and thermal management events. Electrical components located close to conductive pathways may also generate localized heat.
High-temperature PC insulating film is designed to maintain useful mechanical and electrical properties within its specified operating temperature range.
Important thermal characteristics may include:
Heat resistance
Dimensional stability
Resistance to softening
Resistance to deformation
Thermal aging performance
Flame-retardant behavior
Electrical insulation retention
Surface stability
Actual temperature performance depends on the specific PC resin, thickness, formulation, flame-retardant system, processing conditions, and application environment.
For this reason, a nominal temperature rating should not be treated as a universal operating temperature. Engineers should evaluate the manufacturer's technical data for continuous-use temperature, short-term temperature exposure, thermal aging, and dielectric performance.
4. Flame-Resistant PC Insulating Film
Fire resistance is one of the major reasons flame-retardant PC film is selected for electrical and battery applications.
In a power battery assembly, insulation materials are located close to conductors, busbars, terminals, PCBs, battery cells, connectors, and other electrical components. A flame-retardant material can help reduce the risk of sustained flame propagation when the appropriate grade is used.
Depending on formulation and thickness, electrical-grade PC films may be engineered to meet recognized flammability classifications such as UL94 V-0 or VTM-0.
However, UL94 ratings are thickness-specific and material-specific. A film's flame rating at one thickness should not automatically be applied to another thickness.
When specifying flame-retardant PC film, users should confirm:
Exact film thickness
Flame-retardant grade
UL94 classification
Test thickness
Test method
Certification documentation
Application conditions
This approach helps avoid incorrect assumptions during battery insulation material selection.
5. Electrical Insulation Performance
Electrical insulation is one of the primary functions of PC insulating film.
The material can be used to create physical separation between conductive components and reduce the possibility of accidental electrical contact.
Potential electrical characteristics include:
Dielectric strength
Volume resistivity
Surface resistivity
Insulation resistance
Dielectric constant
Dissipation factor
Arc resistance
Comparative tracking characteristics, where applicable
The exact electrical performance varies according to film formulation, thickness, temperature, humidity, frequency, electrode configuration, and test method.
In battery systems, insulation film may be positioned between:
Battery cells and metal structures
Busbars and cell housings
Conductive plates and Brackets
PCBs and metal enclosures
Terminals and supporting structures
Electrical connectors and mounting components
High-voltage conductors and surrounding mechanical parts
The purpose is to maintain a controlled electrical separation throughout the intended operating conditions.
6. Impact Resistance and Mechanical Protection
One of the distinguishing characteristics of polycarbonate is its strong impact resistance.
This property makes PC film useful in assemblies where the insulation material may be exposed to mechanical contact, vibration, bending, or installation forces.
Power battery packs may experience mechanical movement during:
Vehicle operation
Road vibration
Acceleration and braking
Equipment transportation
Battery installation
Assembly-line handling
Repeated maintenance
An insulation film with suitable mechanical strength can help protect sensitive electrical interfaces from accidental contact and physical abrasion.
For thin films, mechanical performance should be considered together with thickness and mounting method. A very thin film may provide excellent flexibility but lower puncture resistance than a thicker engineered sheet.
7. Dimensional Stability
Dimensional stability is another important characteristic for precision electrical insulation.
Battery modules often contain multiple cells, busbars, brackets, sensors, wiring components, and electronic boards arranged within a restricted space.
If an insulating film expands, contracts, curls, or deforms excessively during temperature changes, it may affect:
Component positioning
Clearance
Electrical separation
Assembly tolerances
Automated processing
Die-cut part dimensions
Long-term reliability
High-quality PC film can provide good dimensional stability when properly manufactured and processed.
For precision battery applications, thickness tolerance, shrinkage, flatness, and dimensional change should be evaluated against the actual design requirements.
8. Surface Finish Options
PC insulating film can be manufactured with different surface finishes.
Common options include:
A matte surface reduces visible glare and can provide a controlled appearance for internal or external electrical components.
Semi-matte film provides a balance between smoothness and controlled reflection.
Glossy PC film offers a smooth, clean appearance and can be suitable for applications where surface appearance and easy cleaning are important.
Some applications use textured or treated surfaces to improve handling, friction characteristics, or bonding behavior.
Surface selection should be based on the assembly process rather than appearance alone.

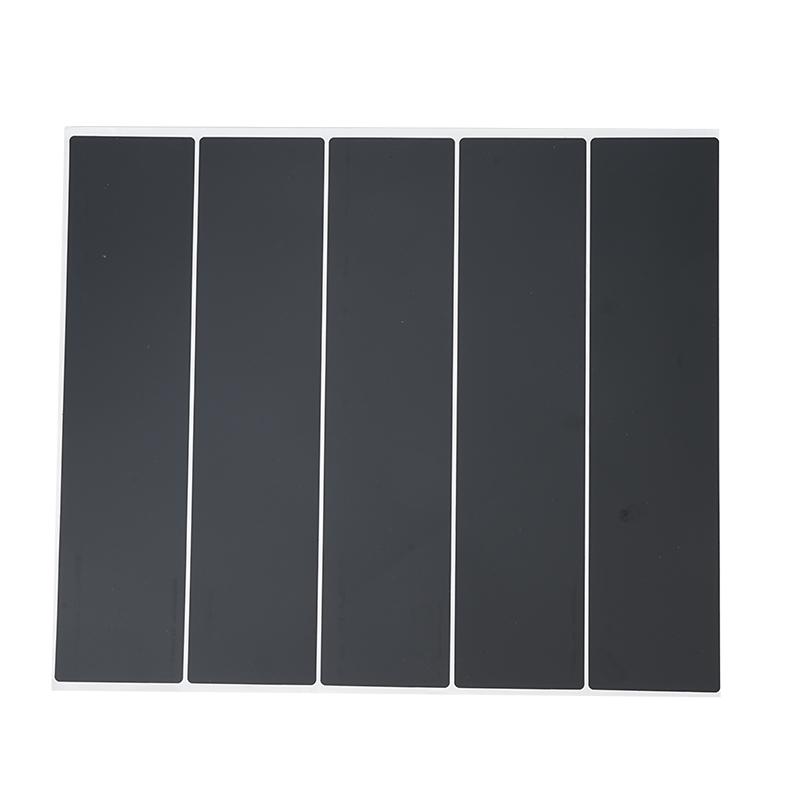

9. Black PC Insulating Film
Black PC film is widely used when visual identification and light blocking are desirable.
The dark appearance can help distinguish insulation components from metallic conductors, PCB surfaces, and other materials during assembly and inspection.
Black PC film can also provide a consistent appearance in finished electrical equipment.
Potential advantages include:
Easy visual identification
Light-blocking characteristics
Professional appearance
Reduced visibility of minor surface contamination
Compatibility with die-cutting
Suitable for internal battery insulation
Suitable for electrical barriers
Color itself does not determine flame resistance or electrical performance. These properties must be confirmed from the material specification.
10. PC Film in Lithium-Ion Battery Packs
Lithium-ion battery packs contain numerous conductive and mechanical components that must be properly separated.
PC insulating film can be incorporated into different areas of a battery pack, including:
Film can be used around selected areas of cylindrical, prismatic, or pouch-cell assemblies where an additional insulation barrier is required.
A die-cut PC film component can separate conductive busbars from adjacent structural parts.
Insulating film can be placed between a PCB and a conductive metal housing to reduce the risk of accidental contact.
Custom-shaped film can cover selected terminal regions and prevent unwanted contact during assembly.
PC film can function as an insulating barrier between mechanical supports and electrical components.
11. Battery Module Insulation
A battery module typically contains multiple cells arranged in a defined configuration.
The module may include:
Battery cells
Cell holders
Busbars
Monitoring wires
Temperature sensors
PCBs
Insulating components
Compression structures
Metal brackets
Protective housings
PC insulating film can be converted into custom components for these structures.
Its combination of electrical insulation and mechanical toughness makes it useful where a simple paper-like insulation material may not provide sufficient mechanical protection.
12. Busbar Insulation Applications
Busbars carry relatively high electrical currents and therefore require carefully controlled insulation and clearance.
PC insulating film can be die-cut into protective shapes around busbar assemblies.
Typical functions include:
Preventing accidental contact
Creating electrical separation
Protecting against abrasion
Supporting creepage and clearance design
Covering selected conductive areas
Separating conductive components from mechanical structures
The film should never be treated as a replacement for the complete electrical safety design. Engineers must consider voltage, current, temperature, creepage distance, clearance, contamination, mechanical movement, and applicable standards.
13. PCB Insulation and Protection
Printed circuit boards are often installed close to metal housings or structural components.
A PC insulating film layer can act as an additional protective barrier between the PCB and conductive surfaces.
Applications may include:
PCB rear-side insulation
Battery management system insulation
Power supply board protection
Control board isolation
Converter insulation
Inverter insulation
Electrical enclosure insulation
The film may be supplied as a flat sheet or converted into a precision die-cut component.
14. Die-Cutting and Custom Processing
PC film is suitable for various converting processes.
Depending on thickness and grade, processing may include:
Die cutting
Punching
Slitting
Laser cutting
CNC cutting
Kiss cutting
Laminating
Adhesive coating
Printing
Custom forming
Die-cut PC insulation components can be manufactured to match the geometry of a battery module or electronic assembly.
Typical shapes include:
Rectangles
Rings
Washers
Tabs
Covers
Strips
Protective shields
Terminal covers
Custom profiles
Custom processing can reduce manual trimming during assembly and improve consistency between production batches.
15. Adhesive-Laminated PC Insulation
Some battery and electronic applications require an insulating film with an adhesive layer.
A pressure-sensitive adhesive can be laminated to one side of PC film to simplify installation.
Possible advantages include:
Easy positioning
Reduced movement during assembly
Faster installation
Reduced need for mechanical fasteners
Improved component retention
However, adhesive selection is critical in high-temperature battery applications.
The adhesive should be evaluated for:
Temperature resistance
Shear strength
Peel adhesion
Aging
Electrical properties
Chemical resistance
Outgassing
Residue
Flame retardancy
The film and adhesive should be treated as a complete insulation system.
16. Moisture Resistance
Moisture can affect electrical insulation systems, particularly in humid environments.
PC has useful resistance to moisture compared with many porous insulation materials.
A suitable PC film can act as a physical barrier against environmental moisture and contaminants.
Nevertheless, moisture resistance does not mean that the film alone provides complete waterproofing.
Battery assemblies exposed to water or condensation require a comprehensive sealing strategy involving:
Enclosures
Gaskets
Sealants
Vents
Drainage
Adhesive systems
Insulation films
PC film can serve as one component within that larger protection system.
17. Chemical Resistance Considerations
Battery environments can contain a variety of chemicals and processing materials.
Depending on the formulation, PC film may provide useful resistance to selected oils, cleaning agents, and chemicals.
However, polycarbonate can be sensitive to certain solvents and aggressive chemicals.
Potential chemical exposure should therefore be evaluated before final material selection.
Important factors include:
Electrolyte exposure
Cleaning solvents
Adhesive chemicals
Lubricants
Oils
Plasticizers
Alcohol-based cleaners
Alkaline solutions
Acidic environments
Compatibility testing is recommended when the film will be exposed directly to a chemical for an extended period.
18. Thermal Management and Insulation Design
Electrical insulation and thermal management are closely connected in battery systems.
An insulating material should not unintentionally interfere with the intended thermal pathway.
For this reason, PC film placement should be evaluated carefully around:
Cell surfaces
Heat sinks
Cooling plates
Thermal interface materials
Busbars
High-current conductors
Battery enclosures
Thin insulation layers can provide electrical separation while occupying limited installation space.
The final design must balance electrical safety, mechanical protection, thermal performance, and available clearance.
19. PC Insulation for Electric Vehicles
Electric vehicles contain numerous high-voltage electrical systems.
PC insulating film may be used in selected components within:
Battery packs
Battery modules
High-voltage junction boxes
Inverters
DC-DC converters
Charging systems
Electronic control modules
Power distribution components
The material can provide localized insulation and mechanical protection where verified performance meets automotive requirements.
For automotive applications, engineers should also evaluate vibration, temperature cycling, aging, flame behavior, chemical exposure, and long-term mechanical durability.
20. Energy Storage System Applications
Energy storage systems require reliable insulation for battery racks, modules, power conversion systems, and electrical distribution components.
PC insulating film may be used in:
Battery module barriers
Busbar covers
Terminal insulation
PCB barriers
Electrical enclosure insulation
Cable management components
Power electronics insulation
In stationary energy storage applications, the material may encounter long operating periods, repeated charging cycles, temperature variation, and continuous electrical loading.
Material selection should therefore consider long-term aging rather than short-term laboratory performance alone.
21. Power Supply Applications
High-temperature PC insulating film is also useful in power supply assemblies.
Potential applications include:
Transformer insulation
Coil insulation
PCB barriers
Component separators
Terminal protection
Internal enclosure insulation
Power conversion equipment
The film can provide a lightweight electrical barrier without requiring a thick rigid plastic component.
22. Busbar and Metal Foil Lamination
PC film may be laminated with metal foil in applications requiring both insulation and electromagnetic shielding.
A metal-foil laminate can provide an engineered structure where the metal layer contributes electrical shielding while the polymer film provides insulation.
Potential applications include:
EMI shielding
RFI shielding
Electrical barriers
Shielded cable structures
Electronic enclosures
Power electronics
The laminate construction must be designed carefully because the conductive foil itself requires proper grounding and electrical isolation.
23. Advantages of High-Temperature Fire-Resistant PC Film
The major advantages of engineered PC insulating film can be summarized as follows:
Polycarbonate provides strong resistance to mechanical impact and handling damage.
Properly selected grades can maintain dimensional and mechanical stability under elevated temperatures.
Special formulations can provide high flame-retardant performance.
The material can function as an electrical barrier between conductive components.
PC film can be processed into various shapes for custom applications.
Precision film can maintain consistent dimensions during manufacturing and use.
Thin film provides insulation without adding significant weight.
Slitting, die-cutting, punching, laminating, and other converting processes can support customized designs.
Glossy, matte, textured, black, and other surface constructions can be available.
24. Typical Product Specification Reference
The following values are general reference categories rather than universal specifications. Actual values depend on resin grade, film thickness, formulation, and manufacturer testing conditions.
| Property | Typical Specification Reference |
|---|---|
| Material | Polycarbonate |
| Product Type | Electrical Insulating Film |
| Appearance | Black, transparent, translucent or custom |
| Surface | Matte, semi-matte, glossy or textured |
| Thickness | Custom according to application |
| Flame Retardancy | Selected grades available |
| UL94 Rating | V-0 / VTM-0 possible for qualified grades |
| Electrical Insulation | High dielectric resistance |
| Mechanical Strength | High |
| Impact Resistance | Excellent |
| Dimensional Stability | Good |
| Thermal Stability | High for qualified grades |
| Moisture Resistance | Good |
| Processing | Die cutting, punching, slitting and laminating |
| Application | Battery, PCB, busbar, power supply and electronics |
These values should be treated as a product-development reference. The final engineering specification should always be based on the TDS, certification documents, and test conditions of the selected material.
25. Recommended Thickness Selection
Thickness is one of the most important factors when selecting PC insulation film.
A thinner film can provide:
Lower material consumption
Better flexibility
Easier forming
Reduced assembly space
Lower weight
A thicker film can provide:
Higher puncture resistance
Greater mechanical protection
Increased handling strength
Greater physical separation
Improved resistance to accidental abrasion
The optimal thickness depends on the required dielectric strength, mechanical protection, available clearance, processing method, and thermal environment.
Engineers should avoid selecting film thickness based only on nominal dielectric strength. The complete insulation system must be evaluated.
26. PC Film Compared with Conventional PET Film
PC and PET films are both widely used in electrical insulation, but their characteristics differ.
PC generally provides stronger impact resistance and greater toughness.
PET is often selected for applications requiring excellent dimensional stability, good electrical insulation, thin-gauge performance, and cost efficiency.
PC may be preferable when mechanical toughness, impact resistance, and flame-retardant engineering are especially important.
The choice should be based on actual requirements rather than simply selecting the material with the highest nominal temperature rating.
27. PC Film Compared with PVC
PVC Electrical Insulation Materials are commonly used for wires, cables, and general electrical applications.
However, PC film can offer advantages in applications requiring:
Higher mechanical toughness
Precision die cutting
Improved dimensional stability
Flame-retardant engineering
Better appearance
Thin rigid-flexible insulation structures
PVC may remain appropriate for applications specifically designed around flexible PVC insulation.
Battery manufacturers should evaluate the complete material system rather than substituting one polymer for another without validation.
28. PC Film Compared with Polyimide Film
Polyimide film is known for exceptional high-temperature performance and is widely used in demanding electrical and electronics applications.
PC film generally provides a different balance of:
Mechanical toughness
Impact resistance
Formability
Surface appearance
Cost
Flame-retardant options
Polyimide can be preferred for extremely high-temperature applications, while PC can be attractive for applications where mechanical toughness, flame retardancy, and dimensional performance are balanced against cost and processing requirements.
The final choice should be determined by the actual thermal profile and electrical requirements.
29. Safety Considerations in Battery Insulation
Battery insulation materials play an important role in preventing unintended electrical contact.
However, an insulating film alone cannot guarantee battery safety.
A complete battery safety design should consider:
Electrical clearance
Creepage distance
Insulation thickness
Mechanical fixation
Cell expansion
Vibration
Thermal expansion
Flame propagation
Short-circuit protection
Overcurrent protection
Enclosure design
Thermal management
The film should remain securely positioned throughout the expected service life.
30. Quality Control for PC Insulating Film
Manufacturing quality can significantly influence insulation reliability.
Important quality-control parameters may include:
Consistent thickness helps maintain predictable electrical and mechanical performance.
The film should be evaluated for:
Scratches
Pinholes
Bubbles
Contamination
Wrinkles
Cracks
Uneven texture
Width, length, and die-cut dimensions should remain within specified tolerances.
Depending on the application, dielectric and insulation tests may be performed.
Flame-retardant grades should be verified according to the applicable test method and thickness.
Tensile strength, elongation, impact resistance, and puncture resistance may be evaluated.
31. Storage and Handling
PC insulating film should be stored under suitable environmental conditions.
Recommended handling practices include:
Keep material clean and dry.
Avoid excessive heat.
Protect rolls from direct sunlight.
Prevent heavy pressure on film edges.
Avoid sharp objects during handling.
Maintain packaging until the material is required.
Prevent contamination of adhesive or treated surfaces.
Follow the manufacturer's storage recommendations.
For adhesive-laminated PC film, temperature and humidity control can be particularly important because adhesive performance may change during prolonged storage.
32. Installation Guidelines
Before installing PC insulating film, the application surface should be clean and free from excessive oil, dust, moisture, and contamination.
For die-cut insulation parts:
Confirm the correct orientation.
Check the dimensions.
Inspect the film for damage.
Position the component accurately.
Avoid wrinkles and folds.
Ensure required electrical clearance is maintained.
Confirm that edges do not interfere with moving components.
Verify that the film remains securely positioned.
For adhesive-backed products, installation pressure and bonding conditions should follow the adhesive manufacturer's recommendations.
33. Custom PC Insulating Film Solutions
Custom PC film can be developed for specific battery and electronic assemblies.
Customization may include:
Thickness
Width
Length
Color
Surface finish
Flame-retardant grade
Dielectric performance
Adhesive backing
Die-cut shape
Punching pattern
Printing
Laminated construction
This flexibility makes PC insulating film suitable for both prototype development and high-volume production.
34. OEM and ODM Processing
OEM and ODM processing can support battery manufacturers and electronic equipment developers that require customized insulation components.
A custom project may involve:
Product drawing review
Material selection
Prototype development
Die design
Sample production
Performance testing
Dimensional verification
Mass-production conversion
Customized die-cut PC insulation can help reduce manual assembly and improve repeatability.
35. Why PC Insulating Film Is Important for Modern Battery Systems
Modern battery packs are becoming increasingly compact and powerful.
Higher energy density means that electrical components may be positioned closer together, leaving less room for traditional insulation structures.
This creates demand for insulation materials that provide multiple functions within a small thickness.
PC insulating film can combine:
Electrical isolation
Mechanical protection
Flame-retardant performance
Dimensional stability
Impact resistance
Lightweight construction
Custom processing
This multifunctional behavior makes engineered PC film useful for modern lithium-ion battery architectures.
36. Applications Beyond Power Batteries
Although power battery insulation is an important application, PC insulating film is not limited to batteries.
It can also be considered for:
Consumer electronics
Industrial electronics
Power supplies
Transformers
Motors
Generators
Automotive electronics
Communication equipment
Data equipment
Control panels
Electrical cabinets
Charging equipment
Renewable energy equipment
Its broad processing capabilities allow manufacturers to convert the material into application-specific insulation components.
37. Selection Checklist
Before purchasing high-temperature fire-resistant PC insulating film, users should confirm the following:
Material
Is the substrate actually polycarbonate, or is the product based on PET, PC/PET laminate, or another polymer?
Thickness
Does the selected thickness provide adequate electrical and mechanical performance?
Flame Rating
Is the UL94 rating verified at the required thickness?
Temperature
Does the film meet both continuous and short-term temperature requirements?
Electrical Performance
Is dielectric strength sufficient for the intended voltage?
Mechanical Performance
Does the film resist the expected bending, impact, abrasion, and vibration?
Chemical Compatibility
Can the film withstand the actual battery and assembly environment?
Processing
Can the film be die-cut, punched, laminated, or otherwise converted as required?
Certification
Are the required compliance documents available?
38. Frequently Asked Questions
PC insulating film is a thin polycarbonate material designed for electrical insulation, mechanical separation, and protective applications.
Yes. Properly specified PC film can be used in selected lithium-ion battery insulation applications, including cell barriers, busbar insulation, PCB protection, and electrical separation.
No. Flame retardancy depends on the formulation and grade. A standard PC film should not automatically be considered flame retardant.
Certain specially formulated PC grades can achieve UL94 V-0 at specified thicknesses. The exact rating must be confirmed from certification documentation.
Yes. Many PC film grades can be processed through die cutting and punching, subject to thickness and material characteristics.
It can be used as an insulating barrier around busbar assemblies when its dielectric, thermal, mechanical, and flame-retardant specifications satisfy the application requirements.
Color alone does not determine electrical insulation performance. Electrical properties depend primarily on the polymer formulation, additives, processing, and thickness.
In some applications, yes, but the materials are not interchangeable by default. Their thermal, mechanical, electrical, chemical, and processing characteristics should be compared against the application requirements.
39. Conclusion
High-Temperature Fire-Resistant PC Insulating Polyester Film for Power Batteries is an advanced insulation material concept for applications requiring a combination of electrical isolation, mechanical durability, thermal stability, and flame-retardant performance.
Polycarbonate provides a valuable balance of strength, toughness, impact resistance, dimensional stability, and processing flexibility. With suitable flame-retardant formulations, PC film can also be engineered for demanding electrical applications where controlled flame behavior is required.
In power battery systems, the material can be processed into cell insulation components, busbar barriers, PCB isolation layers, terminal protection parts, structural separators, and custom die-cut insulation components.
Its performance can be further enhanced through surface treatment, adhesive lamination, metal-foil lamination, precision die cutting, and customized thickness selection.
For battery manufacturers, electronic equipment developers, and industrial designers, the correct selection process should always consider the complete operating environment. Temperature, voltage, mechanical stress, chemical exposure, flame-retardant requirements, humidity, dimensional tolerances, and assembly methods all influence the appropriate film specification.
Most importantly, the exact technical characteristics of a PC insulating film should be verified against the manufacturer's current TDS, safety documentation, certification records, and application-specific test results before production use.
This website uses cookies to ensure you get the best experience on our website.
Phone
