Self-adhesive flame-retardant PC Mylar sheet is a specialized polycarbonate insulation material developed for electrical protection, component separation, battery insulation, power electronics, and custom industrial assembly. By combining a polycarbonate substrate with flame-retardant performance and a pressure-sensitive adhesive backing, this type of insulation sheet can provide both electrical isolation and convenient installation.
Custom die-cutting further expands the application range of PC Mylar sheets. Instead of supplying only flat rectangular film, manufacturers can convert polycarbonate insulation material into circular pieces, rings, tabs, irregular profiles, slotted barriers, protective covers, terminal shields, and other application-specific shapes.
In lithium-ion battery systems, Custom PC Insulation sheets can be integrated into cell protection, module construction, high-voltage isolation, battery management systems, electrical connection areas, and structural interfaces. The ability to produce precise shapes is particularly useful because battery packs contain many closely positioned electrical and mechanical components.
A self-adhesive construction can simplify installation by allowing the insulation component to be positioned directly onto the target surface. This can reduce the need for additional mechanical fastening and can help maintain the intended position during assembly.
Flame-retardant polycarbonate is also valuable in applications where electrical insulation must coexist with strict requirements for heat resistance, mechanical durability, and fire behavior. When a suitable flame-retardant PC grade is selected, the material can contribute to the overall fire-safety design of an electrical or battery assembly.
This article provides an industry-focused overview of self-adhesive flame-retardant PC Mylar sheets and their custom die-cut applications, with particular attention to lithium-ion batteries, battery modules, high-voltage isolation, BMS structures, power electronics, and industrial electrical assemblies.
A self-adhesive flame-retardant PC Mylar sheet is a polycarbonate insulation film supplied with an adhesive layer on one side.
The basic construction consists of three functional elements:
| Construction | Function |
|---|---|
| Polycarbonate film | Main electrical and mechanical insulation substrate |
| Flame-retardant formulation | Provides improved resistance to ignition and flame propagation |
| Pressure-sensitive adhesive | Allows the insulation part to bond to the target surface |
A release liner is commonly applied over the adhesive before installation.
The term “PC Mylar sheet” is commonly used in industrial product terminology, although PC and traditional PET Mylar are chemically different materials. In this product category, the important point is that the actual insulation substrate is polycarbonate.
The PC substrate can be selected for applications requiring a combination of toughness, electrical insulation, dimensional stability, forming capability, and resistance to mechanical damage.
Electrical insulation components are often installed inside compact assemblies where conventional fastening is difficult.
A self-adhesive insulation sheet can be positioned directly onto:
Metal plates
Battery module structures
Electronic housings
PCB surfaces
End plates
Insulating barriers
Electrical terminals
Internal Brackets
Component surfaces
The adhesive layer helps hold the film in its intended location.
This is especially useful when the insulation shape contains multiple openings or follows a complex component profile.
Instead of manually positioning a loose piece of film, an adhesive-backed die-cut part can be supplied as a ready-to-apply component.
Flame-retardant PC is engineered for electrical and electronic applications where improved fire behavior is required.
The flame-retardant characteristic comes from the formulation of the polymer rather than from the color of the film.
Black PC is widely used because it provides a professional appearance and can reduce light transmission, but black coloration itself does not establish a flame-retardant classification.
For applications requiring a specific flame classification, the exact PC grade, thickness, test method, and finished construction should be verified.
In battery and power-electronics applications, flame retardancy is one part of a broader safety system.

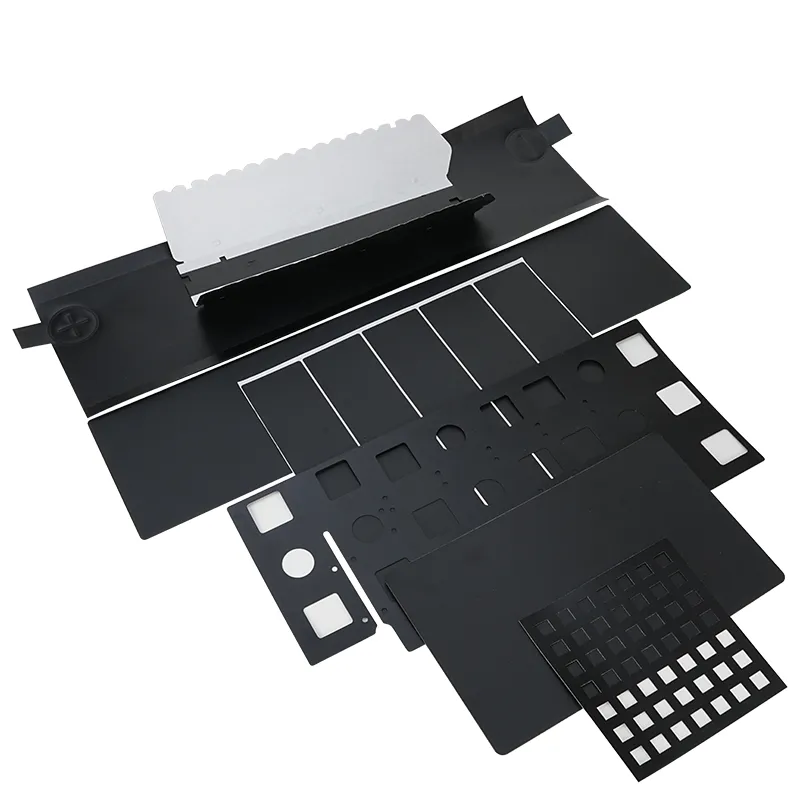

Custom die cutting allows PC film to be converted into application-specific shapes.
Typical shapes include:
Circular insulation discs
Annular rings
Rectangular barriers
Square insulation pads
U-shaped pieces
L-shaped barriers
Slotted sheets
Tab protection pieces
Terminal shields
Irregular profiles
Multi-hole insulation plates
Foldable insulation structures
The exact geometry can be designed according to the electrical and mechanical layout of the finished assembly.
Battery cells and modules rarely have completely open, uncomplicated surfaces.
A typical battery assembly can include:
Cylindrical cells
Prismatic cells
Busbars
Cell terminals
Sampling wires
BMS components
End plates
Metal frames
Plastic holders
Cooling structures
Fasteners
Electrical connectors
A standard rectangular insulation sheet may cover unnecessary areas or interfere with components.
A custom die-cut piece can provide insulation only where it is required.
This improves material utilization and allows the insulation to fit more precisely into the assembly.
PC Mylar sheets can perform several different functions in lithium-ion battery systems.
The most important applications include:
Cell top insulation
Cell bottom insulation
Module end-plate insulation
High-voltage zone isolation
BMS area insulation
Terminal protection
Busbar separation
Metal enclosure isolation
Connector-area insulation
Internal electrical barriers
The exact application depends on cell geometry, module design, voltage level, thermal conditions, and mechanical construction.
One important application is insulation around the top of cylindrical or prismatic battery cells.
The cell top area can contain conductive structures and terminals that require controlled electrical separation.
A custom die-cut PC insulation sheet can be designed to fit around the cell-top geometry.
Circular pieces are commonly considered for cylindrical cell structures, while irregular or customized profiles may be used for other cell designs.
The adhesive backing can help keep the insulation piece accurately positioned during subsequent assembly.
The bottom of a battery cell can also require electrical isolation.
A die-cut PC insulation sheet can cover a defined area of the cell bottom while leaving required mechanical or thermal interfaces accessible.
This type of insulation can help prevent unintended contact between the cell and adjacent conductive structures.
The shape can include:
Circular profiles
Rounded corners
Central openings
Terminal clearances
Alignment features
Irregular outlines
Cylindrical lithium-ion cells have a generally round body.
Custom circular PC insulation discs can therefore be produced to match the cell geometry.
Potential uses include:
Cell top protection
Cell bottom protection
Terminal-area insulation
Cell holder interfaces
Pack assembly barriers
The actual insulation design must account for the cell construction and electrical connection method.
Prismatic cells have a rectangular or customized external profile.
For these cells, insulation sheets can be designed as rectangular, rounded, or irregular components.
Custom die cutting can provide openings around terminals, connectors, and structural interfaces.
Self-adhesive construction can help maintain alignment during module assembly.
Battery cells can be positioned close to metal frames, brackets, plates, and other conductive components.
An insulation layer can create a physical barrier between the cell and conductive structure.
PC film can be die cut to match the contact area.
This is particularly useful where space is limited and a thin insulation component is required.
Battery modules frequently use metal end plates to provide mechanical support.
The end plates can be positioned near cells, terminals, tabs, and conductive connection structures.
A custom PC insulation sheet can be bonded to the inner surface of an end plate.
This creates a separation layer between the metal structure and electrical components.
The insulation can be designed to match the end-plate geometry while leaving mounting features available.
End-plate insulation is important because mechanical structures and electrical structures may occupy the same area.
Without suitable isolation, unintended contact can occur if conductive components shift, deform, or become displaced.
A properly designed insulation layer can help maintain separation during assembly and operation.
In battery modules, this becomes especially important because mechanical compression and vibration can occur during service.
A flame-retardant PC grade may be selected for battery-module insulation when fire performance is part of the material specification.
A UL94 V-0 grade is often considered in electrical and electronic applications requiring a high level of flame-retardant performance.
However, a material classification should not be interpreted as a guarantee that a battery system cannot experience thermal runaway.
Battery safety depends on the complete cell, module, pack, thermal management, electrical protection, enclosure, spacing, venting, and control system.
The PC insulation layer is one component within this overall safety architecture.
High-voltage battery systems contain areas where multiple conductive components are located close together.
These areas may include:
BMS interfaces
Sampling circuits
Acquisition terminals
Relays
Contactors
Busbars
High-voltage connectors
Power distribution structures
Custom PC insulation sheets can be used as shielding or separation barriers around these regions.
The shape can be designed to maintain the required clearance while protecting selected areas from accidental contact.
Battery management systems monitor cell voltage and other operating conditions through electrical connections.
Sampling wires can run close to conductive structures.
A custom insulation sheet can be positioned beneath or around the sampling-wire area.
This can help maintain physical separation between wiring and nearby metal structures.
The design should provide sufficient clearance and should not create excessive pressure on delicate wires.
Acquisition terminals and related electrical connection points may require localized insulation.
Instead of covering the entire assembly, a small custom PC barrier can be die cut around the terminal.
This provides targeted protection while maintaining access to the connection point.
Such localized insulation can be especially useful in compact battery modules.
High-voltage relays and contactors can be surrounded by conductive structures.
Custom PC insulation sheets can be used as barriers around selected areas.
The insulation component can include cutouts for mounting points and wiring paths.
The final design must consider the movement, temperature, voltage, and mechanical retention requirements of the assembly.
Busbars are conductive components used to distribute electrical current.
They can operate at relatively high voltage and current levels depending on the system.
PC insulation film can be positioned around busbar structures to create electrical separation.
Custom die cutting allows openings for bolts, connectors, terminals, and mounting structures.
High-voltage connectors require controlled electrical separation.
Custom PC insulation barriers can be used around connector interfaces.
A die-cut component can provide an opening for the connector while covering nearby conductive areas.
Self-adhesive backing can help hold the barrier in position during assembly.
Battery packs frequently contain metal enclosures.
The metal housing provides mechanical strength but can also become an unwanted conductive contact point.
A PC insulation sheet can be installed between the housing and internal electrical structures.
Custom shapes can follow the enclosure geometry.
Module housings can contain:
Metal walls
End plates
Frames
Brackets
Cooling components
Fasteners
Custom PC film can be used at selected interfaces where electrical isolation is required.
This approach allows the insulation to be concentrated in critical zones.
The self-adhesive feature is particularly valuable for small cell insulation pieces.
Small circular or irregular parts can be difficult to install accurately if they are supplied as loose film.
An adhesive-backed part can be picked, positioned, pressed, and fixed.
This can support faster manual assembly and more consistent automated processes.
A pressure-sensitive adhesive is commonly used for self-adhesive insulation film.
It bonds when sufficient pressure is applied to establish contact.
Important adhesive characteristics include:
Initial tack
Final adhesion
Temperature resistance
Aging stability
Surface compatibility
Humidity resistance
Chemical resistance
Dielectric characteristics
Flame performance where required
The adhesive should be evaluated as part of the complete insulation construction.
Acrylic pressure-sensitive adhesives are frequently used for electrical and industrial bonding applications.
They can offer useful resistance to aging and temperature depending on formulation.
However, different acrylic adhesives have different properties.
Therefore, the phrase “acrylic adhesive” alone does not define the complete performance level.
The selected adhesive must match the operating conditions.
Battery modules often contain aluminum or steel components.
Adhesive performance on metal depends on:
Surface cleanliness
Surface energy
Oxidation
Roughness
Contamination
Application pressure
Bonding temperature
Storage conditions
Metal surfaces should generally be clean and free from oil, dust, and other contaminants before application.
PC insulation may also be bonded to plastic components.
Different plastics have different surface energies.
Low-surface-energy plastics can be more difficult to bond.
Compatibility testing should therefore be performed before mass production.
The release liner protects the adhesive until the insulation part is ready for installation.
A suitable liner helps prevent:
Dust contamination
Premature bonding
Adhesive damage
Surface contamination
For automated assembly, liner design can also influence peelability and handling speed.
Adhesive does not necessarily have to cover the entire PC sheet.
Depending on the application, adhesive can be configured to provide:
Full-surface bonding
Partial bonding
Edge bonding
Localized attachment
The best construction depends on whether the insulation part must remain flexible, removable, repositionable, or permanently fixed.
Circular insulation discs are useful for round battery components.
A custom die can produce repeated circular parts with consistent dimensions.
The disc can contain:
Center holes
Off-center openings
Multiple holes
Radial slots
Alignment features
This makes the insulation component suitable for complex cell structures.
Not all battery components have symmetrical geometry.
Irregular PC insulation parts can follow:
Terminal shapes
Connector contours
Metal bracket edges
Busbar layouts
PCB outlines
Housing corners
Custom die cutting can reproduce these profiles consistently.
Ring-shaped PC components can be used around circular terminals or other cylindrical structures.
The inner opening provides clearance while the outer area provides insulation coverage.
This geometry can be useful where electrical separation is needed without covering the central connection point.
Slots can provide flexibility and clearance.
A custom PC sheet may contain one or more slots to accommodate:
Wires
Fasteners
Terminals
Clips
Brackets
Movement
Slot geometry should be designed to prevent excessive stress concentration.
Battery tabs and terminals can be positioned close to metal structures.
Localized PC insulation can cover selected portions without interfering with electrical connections.
Die-cut shapes can provide precise openings around tabs.
The BMS contains sensitive electronic circuits.
Custom PC film can be used to separate the BMS board from surrounding metal structures.
Potential functions include:
PCB isolation
Terminal protection
Wire separation
Housing insulation
Component shielding
A battery-management PCB may be installed inside a metal enclosure.
PC insulation film can provide a barrier between the PCB and enclosure.
A die-cut profile can include openings for:
Connectors
Screws
Wiring
Mounting posts
Heat-generating components
High-voltage insulation design must consider creepage and clearance.
Clearance refers to the shortest distance through air between conductive structures.
Creepage refers to the shortest path along a surface.
A die-cut PC sheet can help create a physical barrier, but the final electrical design must still comply with the applicable requirements.
The insulation sheet should not unintentionally reduce required creepage or clearance.
Barrier geometry can be used to separate high-voltage and low-voltage regions.
For example, a custom PC part can include a raised, folded, or extended section that creates additional physical separation.
This can be useful in compact assemblies where conventional spacing is limited.
Battery thermal runaway is a complex system-level event.
Flame-retardant PC insulation can help limit flame-related risks in selected components, but it should not be considered a standalone thermal-runaway solution.
Battery safety also requires:
Cell-level protection
Thermal management
Electrical monitoring
Current protection
Mechanical containment
Venting
Module spacing
Fire-resistant structures where required
The insulation material should be evaluated as part of the complete system.
Battery modules can experience:
Vibration
Shock
Compression
Thermal expansion
Assembly forces
The insulation sheet must remain securely positioned.
Adhesive bonding can help maintain location.
Mechanical retention should nevertheless be evaluated for the entire service life.
Battery modules can experience repeated heating and cooling.
This creates expansion and contraction in different materials.
PC, adhesive, metal, and plastic structures may have different thermal expansion behavior.
A good insulation design should account for these differences.
Battery modules can be mechanically compressed.
If an insulation film is placed between an end plate and a cell structure, compression may affect its geometry.
The material must be capable of maintaining electrical separation without tearing, folding unpredictably, or moving out of position.
A battery pack installed in a mobile application may experience continuous vibration.
Adhesive selection should therefore account for dynamic loading.
The bond should remain stable without excessive edge lifting or peeling.
The PC substrate should also resist fatigue under expected mechanical conditions.
Matte PC surfaces can provide greater texture than smooth surfaces.
In certain non-adhesive or partially adhesive constructions, this can help reduce sliding.
For self-adhesive products, friction can provide additional support during installation and handling.
Black is a common color for electrical insulation components.
It can provide:
Light blocking
Visual consistency
Low-reflection appearance
Easy integration with dark battery structures
A clean industrial appearance
Black PC is particularly common in internal electrical assemblies.
Some PC grades can be formed into three-dimensional structures.
This is useful when a flat insulation sheet cannot fully follow the shape of a battery component.
A formed PC part may wrap around an edge or create a vertical barrier.
Folded PC insulation can create multiple planes from a single piece.
For example, one component may contain:
A horizontal insulation section
A vertical barrier
A terminal shield
A mounting tab
This can reduce the number of separate components.
Battery frames can contain numerous structural components.
Custom PC film can be shaped to fit between the frame and electrical components.
This can provide localized protection without covering the entire frame.
Busbars may be located near:
Frames
Brackets
End plates
Metal housings
Fasteners
A die-cut PC barrier can provide targeted separation.
The design must preserve adequate electrical spacing.
Fasteners can create conductive paths when made from metal.
An insulation washer, ring, or custom film component can be used around selected fasteners.
This can help isolate the fastener from conductive components.
Die-cut PC film can be converted into thin washers and rings.
These parts can be used around:
Screws
Bolts
Terminals
Studs
Connector posts
The geometry should match the fastener and mounting structure.
Terminal isolation is important in battery systems and power electronics.
A custom PC sheet can cover surrounding areas while leaving the actual terminal exposed for connection.
This targeted approach minimizes material usage.
One major purpose of insulation film is to prevent unintended contact.
The barrier must remain stable throughout assembly and service.
Custom die-cut geometry can reduce exposed areas.
Adhesive attachment can help prevent the film from shifting.
High-voltage distribution systems may contain several conductive components within a compact enclosure.
Custom PC insulation barriers can separate these components.
The material must be selected according to the voltage, temperature, and mechanical environment.
Self-adhesive flame-retardant PC film is also useful outside battery systems.
Applications may include:
Switching power supplies
Inverters
Chargers
DC-DC converters
Motor controllers
Power modules
Industrial control equipment
Electrical cabinets
Communication equipment
Switching power supplies contain transformers, circuit boards, terminals, heat sinks, and conductive structures.
Custom PC film can provide localized electrical barriers.
Adhesive backing can help secure the insulation to internal structures.
Inverters can contain high-voltage and high-current components.
PC insulation barriers can help separate conductive structures.
Die-cut shapes can be designed around mounting points and wiring paths.
Compact chargers have limited internal space.
Thin PC film can provide localized electrical separation without occupying the volume of a rigid plastic component.
Flame-retardant grades can be considered when fire behavior is an important design requirement.
Motor controllers can experience heat and vibration.
A tough PC insulation component can provide physical separation around electrical components.
Adhesive attachment can simplify installation in areas where mechanical fastening is difficult.
Industrial controllers may contain PCBs, metal housings, connectors, relays, and wiring.
Custom die-cut PC insulation can be installed at selected contact points.
This helps create a controlled internal insulation structure.
Communication equipment often contains tightly packed electronic assemblies.
Self-adhesive PC film can provide localized protection around PCBs, connectors, and metal frames.
Black matte film can also provide a clean appearance inside equipment.
Automotive electronic systems can experience vibration, thermal cycling, and limited space.
Custom PC insulation components can be considered for suitable automotive electrical applications.
The selected material must satisfy the relevant automotive requirements for the specific application.
Energy storage systems contain multiple battery modules and high-voltage connections.
Custom PC insulation can be used around:
Module interfaces
Busbars
BMS components
Contactors
High-voltage terminals
Enclosure structures
The insulation design should be validated at the system level.
The typical custom die-cutting process involves several stages.
The customer supplies a drawing or sample.
The appropriate PC grade, thickness, flame-retardant level, and adhesive construction are selected.
A cutting tool is designed according to the required shape.
Sample parts are produced for dimensional and functional evaluation.
The part is installed in the target assembly.
Cutting layout, adhesive configuration, packaging, and production tolerances are optimized.
A custom die-cut component should ideally be supported by a clear technical drawing.
Useful information includes:
Overall dimensions
Hole locations
Hole sizes
Cutout dimensions
Corner radii
Bend locations
Adhesive areas
Material orientation
Surface requirements
Tolerance requirements
Clear drawings reduce production errors.
Prototypes are important for complex battery insulation parts.
A prototype can reveal:
Interference
Incorrect hole placement
Insufficient coverage
Excessive adhesive area
Difficult installation
Unexpected bending
Clearance problems
Design adjustments can then be made before mass production.
Self-adhesive die-cut PC parts can potentially be integrated into automated or semi-automated assembly.
Important factors include:
Part-to-liner adhesion
Peel force
Part stiffness
Shape consistency
Positioning accuracy
Packaging format
Small parts may be supplied in rolls, sheets, strips, or other formats depending on assembly requirements.
Small adhesive insulation pieces can be designed for automated handling.
The release liner and part geometry should allow reliable pickup.
The adhesive should not transfer prematurely to tooling.
Packaging design is therefore part of the overall manufacturing solution.
PC film can be supplied in roll or sheet form before conversion.
Die-cut components can then be nested to improve material utilization.
The optimum format depends on the part size and production quantity.
Custom nesting can reduce scrap.
Small circular insulation pieces can often be arranged efficiently within the available material width.
Irregular parts require careful nesting optimization.
Efficient material utilization can reduce production cost and environmental waste.
Before die cutting, adhesive can be laminated to the PC film.
The construction may include:
PC film + adhesive + release liner.
After lamination, the complete structure is converted into the required shape.
Single-sided adhesive construction is one of the most common configurations.
One side provides the insulating PC surface.
The opposite side contains the adhesive.
This allows the insulation sheet to bond directly to a target surface.
Some applications require bonding between two surfaces.
Double-sided adhesive PC film can provide an insulation layer between those surfaces while simultaneously bonding both sides.
This configuration should be selected only when the adhesive performance is suitable for both interfaces.
Partial adhesive coverage may be useful when the entire PC surface should not be bonded.
This can preserve flexibility or allow controlled movement.
It can also simplify removal or repositioning.
If the PC substrate is flame retardant, the adhesive should also be evaluated.
A flame-retardant PC film combined with a non-flame-retardant adhesive does not automatically mean that the complete laminated construction has the same flame classification as the substrate.
The finished construction should be tested when a specific classification is required.
Battery environments may expose materials to electrolyte-related contamination or other chemicals.
The compatibility of PC and adhesive should be evaluated according to the actual battery design and possible exposure conditions.
Testing is especially important where leakage or chemical contamination is possible.
Humidity can influence adhesive bonding and electrical insulation.
For battery and industrial equipment used in humid environments, the complete insulation construction should undergo appropriate environmental testing.
An adhesive that bonds well immediately after assembly may behave differently after months or years.
Long-term testing should consider:
Heat
Humidity
Vibration
Thermal cycling
Chemical exposure
Mechanical stress
This is particularly important for permanent battery installations.
Poor surface preparation or unsuitable adhesive selection can cause edge lifting.
Custom geometry with narrow corners may be especially sensitive.
Rounded corners can help reduce stress concentration at the adhesive edge.
Good bonding generally requires a clean surface.
Potential contaminants include:
Oil
Dust
Moisture
Grease
Release agents
Fingerprints
The cleaning process must be compatible with both the substrate and the adhesive.
Pressure helps establish intimate contact between adhesive and substrate.
Insufficient pressure may result in incomplete bonding.
The appropriate pressure depends on the adhesive system and target surface.
Some adhesives perform better when applied within a recommended temperature range.
Very cold surfaces may reduce initial tack.
Excessively hot surfaces may influence processing or alignment.
Application conditions should therefore be controlled in production.
Adhesive-backed parts should be protected from excessive heat, moisture, dust, and pressure.
The release liner should remain intact until installation.
Proper storage helps maintain adhesive performance.
Quality control for custom PC insulation parts may include:
Material verification
Thickness inspection
Color inspection
Surface inspection
Dimensional inspection
Hole-position inspection
Die-cut accuracy
Adhesive coverage
Release liner alignment
Visual defect inspection
Electrical and flame tests may be performed where required.
Dimensional accuracy is important because battery insulation parts often have very limited installation space.
An oversized part may interfere with adjacent components.
An undersized part may fail to provide adequate coverage.
Consistent die-cut dimensions are therefore important for reliable assembly.
Black PC film should be inspected for:
Scratches
Contamination
Uneven surfaces
Bubbles
Wrinkles
Color differences
Die-cut damage
Visual inspection is especially important for visible battery or electronic components.
Die-cut edges should be sufficiently clean for the intended application.
Excessive burrs, tearing, or deformation can create installation problems.
For electrical insulation, damaged edges should be evaluated carefully because they may reduce the intended protective function.
Depending on the application, electrical testing can include evaluation of:
Dielectric strength
Insulation resistance
Surface resistance
Volume resistivity
Electrical aging
The appropriate test depends on the final product requirements.
Where flame-retardant performance is required, the exact material grade should be tested according to the relevant standard.
A UL94 V-0 classification is one example of a commonly referenced flammability classification for polymeric materials.
The actual classification depends on material formulation and test thickness.
Custom PC insulation is valuable because battery packs contain many interfaces that require targeted protection.
Instead of using one large sheet, engineers can specify multiple small components that each protect a critical area.
This modular insulation approach can improve:
Assembly precision
Material efficiency
Component compatibility
Serviceability
Production repeatability
A battery cell insulation strategy may use separate top and bottom components.
The top piece protects the terminal region.
The bottom piece protects the opposite interface.
Both pieces can be customized to match the cell structure.
This approach provides localized protection while avoiding unnecessary coverage.
End-plate insulation can be treated as a dedicated component.
The PC sheet can follow the plate outline while providing openings for mechanical attachment.
The insulation may be bonded to the plate before module assembly.
This can simplify production.
High-voltage barriers should be designed around the actual electrical architecture.
A barrier may separate:
High-voltage busbars
Low-voltage wiring
BMS circuits
Metal structures
Relays
Contactors
The PC component should be positioned so that it remains effective under vibration and thermal cycling.
Adhesive-backed PC film can also provide secondary positioning.
For example, an insulation piece may hold itself against a metal plate while other components are installed.
This can simplify assembly.
The adhesive should not, however, be relied upon as the sole mechanical retention mechanism where safety-critical movement is possible.
PC film is much thinner and lighter than many rigid insulation structures.
This can help reduce component weight.
For mobile battery systems, lightweight insulation can support overall weight reduction.
Compact insulation film occupies limited installation space.
This is useful for high-density battery modules.
A thin custom component can provide electrical separation without requiring a large rigid barrier.
A custom PC part can perform multiple functions simultaneously.
For example, a single die-cut component can:
Isolate a metal plate
Protect a terminal
Provide wire clearance
Position itself using adhesive
Reduce contact risk
This can simplify the assembly architecture.
Replacing several small loose insulation pieces with one custom component can simplify manufacturing.
A single component may cover several related surfaces.
This can reduce installation steps.
Pre-cut components provide a repeatable shape.
Every part can have the same:
Outline
Hole locations
Adhesive position
Material
Surface finish
This consistency is valuable in high-volume battery manufacturing.
Battery insulation components should be designed with service requirements in mind.
A technician may need to access:
Terminals
Connectors
BMS boards
Fasteners
Fuses
Relays
The PC insulation should not unnecessarily obstruct service areas.
If an adhesive-backed insulation component may need replacement, the adhesive should be selected accordingly.
Permanent adhesive systems may be appropriate for sealed assemblies.
Removable or repositionable systems may be appropriate for serviceable equipment.
A reliable insulation component should remain effective throughout the expected service life.
Reliability design should consider:
Electrical stress
Thermal exposure
Vibration
Mechanical pressure
Chemical exposure
Humidity
Adhesive aging
Material aging
Potential problems include:
Insufficient insulation coverage
Incorrect die-cut dimensions
Adhesive incompatibility
Poor surface preparation
Inadequate electrical clearance
Excessive bend stress
Insufficient mechanical retention
Ignoring thermal expansion
Assuming substrate flame rating applies to the adhesive laminate
Failing to test the finished assembly
A practical selection process should begin with the application environment.
First identify:
Where the insulation will be installed.
What components it must separate.
The expected operating temperature.
The electrical voltage.
The mechanical environment.
The required flame performance.
Whether adhesive attachment is necessary.
Whether the component must be formed.
The required die-cut geometry.
The expected service life.
This information can then be used to select the appropriate PC construction.
Self-adhesive PC film is particularly useful when:
The component is small.
Positioning is important.
Mechanical fasteners are impractical.
The insulation must remain fixed during assembly.
The target surface is suitable for adhesive bonding.
Installation speed is important.
Non-adhesive film may be preferred when:
The insulation must remain removable.
Adhesive contamination is undesirable.
Mechanical retention is already available.
The component requires free movement.
High-temperature exposure exceeds adhesive capability.
Custom geometry can reduce unnecessary openings.
The insulation can be placed precisely around conductive structures.
This helps create a more controlled physical barrier.
A properly designed shape can also reduce the risk of displacement.
Modern converting technologies allow PC film to be produced in increasingly complex geometries.
Digital design can support rapid prototype development.
This is valuable for new battery-module architectures where designs may change frequently during development.
Prototype and low-volume projects may require only a small quantity of die-cut insulation.
Digital cutting or prototype tooling can support development before high-volume tooling is created.
This allows engineers to test multiple geometries.
For mass production, dedicated tooling can improve speed and repeatability.
Automated feeding, die cutting, liner handling, inspection, and packaging can be integrated into the manufacturing process.
Small PC insulation pieces should be packaged to prevent:
Scratching
Dust contamination
Adhesive contamination
Deformation
Misalignment
Packaging format should also support efficient assembly.
For industrial applications, packaging can include information such as:
Material grade
Part number
Production batch
Quantity
Adhesive type
Manufacturing date
Traceability can simplify quality management.
The usefulness of PC insulation extends beyond batteries.
It can be used in:
Power electronics
Industrial automation
Energy storage
Automotive electronics
Consumer electronics
Communication equipment
Electrical controls
Charging systems
The same basic converting technology can produce many different insulation geometries.
Material selection should also consider product life cycle.
Optimized die-cutting can reduce material waste.
Thin-film insulation can reduce the amount of polymer used compared with thicker rigid structures.
Packaging can also be optimized to minimize unnecessary material.
Before final production, engineers should validate the insulation part under actual conditions.
Validation may include:
Electrical tests
Temperature testing
Thermal cycling
Vibration
Adhesion testing
Mechanical inspection
Flame testing
Environmental aging
There is no universal test sequence for every PC insulation application.
A battery cell-top insulation disc has different requirements from a power-supply PCB barrier.
Testing should therefore reflect the actual installation.
Insulation is only one component of battery safety.
A complete battery design may include:
Cell monitoring
Overcurrent protection
Thermal management
Mechanical protection
Electrical isolation
Fire-resistant materials
Venting
BMS control
Module-level containment
PC insulation should be integrated into this complete system.
The main benefits include:
Electrical insulation
Mechanical toughness
Flame-retardant material options
Easy installation
Custom die-cut geometry
Lightweight construction
Space-efficient design
Good positioning capability
Compatibility with complex assemblies
Potential three-dimensional forming
Reduced manual cutting
Repeatable production
For battery applications, custom adhesive-backed PC film can help support:
Cell insulation
Module isolation
High-voltage separation
BMS protection
Busbar isolation
Terminal protection
Metal housing isolation
Assembly consistency
The exact benefit depends on the final construction.
Self-adhesive flame-retardant PC Mylar sheet is a versatile material solution for custom electrical insulation and component protection.
Its combination of a polycarbonate substrate, adhesive backing, flame-retardant options, and custom die-cut capability makes it particularly useful for modern battery systems and compact electronic assemblies.
In lithium-ion batteries, PC insulation sheets can be designed for cell top and bottom insulation, providing localized protection around cylindrical or prismatic cell structures. Circular, rectangular, ring-shaped, slotted, and irregular die-cut designs allow the material to match the actual geometry of the cell.
For module end-plate insulation, PC sheets can be bonded to the inner surfaces of metal end plates to isolate cells, tabs, terminals, and conductive structures from the metal framework. When a suitable flame-retardant PC grade is selected, the material can contribute to the overall fire-safety architecture of the module. A UL94 V-0 material classification may be specified for applications requiring that level of flame-retardant performance, but the classification should always be confirmed for the exact material thickness and construction.
For high-voltage zone isolation, custom PC barriers can be used around BMS sampling wires, acquisition terminals, relays, contactors, busbars, and high-voltage connectors. Precise die-cutting allows insulation to be placed exactly where it is needed while maintaining access to electrical connection points.
The self-adhesive construction can further simplify assembly. Small insulation discs, terminal shields, PCB barriers, and irregular protection pieces can be supplied ready for installation. Acrylic pressure-sensitive adhesive systems may be used where their temperature, aging, bonding, and environmental performance meet the application requirements.
Custom die cutting is particularly valuable because modern battery packs contain increasingly complex geometries. A single standard sheet cannot always provide efficient coverage. Customized components can follow the shape of cells, end plates, busbars, brackets, connectors, and housings.
The material selection process should consider the complete application rather than the PC substrate alone. Operating temperature, electrical voltage, flame requirements, mechanical loading, vibration, adhesive compatibility, chemical exposure, humidity, forming requirements, and service life should all be evaluated.
For high-voltage battery systems, electrical creepage and clearance requirements must be considered carefully. The insulation sheet should support the overall electrical design rather than being treated as an independent safety solution.
Ultimately, self-adhesive flame-retardant PC Mylar sheet provides a practical platform for precision electrical insulation, localized protection, custom battery-pack insulation, high-voltage separation, BMS protection, and industrial electronic assembly. Its ability to combine material performance with custom geometry and adhesive installation makes it suitable for applications where conventional flat Insulation Materials are difficult to install or cannot provide sufficiently precise coverage.
自粘阻燃PC Mylar片材是一种用于电气绝缘、电子元件保护、电池绝缘、高压区域隔离以及工业装配的聚碳酸酯绝缘材料。
其基本结构通常由聚碳酸酯PC基材、阻燃体系和压敏胶层组成，并可以根据需要增加离型膜。
与普通无胶绝缘膜相比，自粘PC片材最大的优势之一是安装方便。绝缘片可以直接贴附在金属板、电池模块、PCB、端板、支架或其他适合粘接的表面上，从而减少额外的固定步骤。
同时，PC膜可以通过模切加工制成各种定制形状，包括：
圆形
环形
方形
长条形
U形
L形
带孔结构
带槽结构
不规则异形
端子保护片
BMS绝缘片
电池绝缘垫片
这种定制加工方式特别适合现代锂离子电池和高压电子设备。
圆柱电芯和方形电芯顶部区域通常包含端子和其他导电结构。
定制模切PC绝缘片可以根据电芯顶部结构加工成圆形或异形。
其主要作用是：
防止意外接触
增加电气隔离
保护端子周围区域
降低金属结构与导电部件发生接触的风险
对于圆柱电芯，可以使用圆形绝缘片。
对于特殊结构电芯，则可以使用异形PC绝缘片。
电芯底部同样可能需要电气隔离。
PC绝缘片可以根据电芯底部形状进行定制模切。
常见结构包括：
圆形
带孔圆形
异形
带缺口结构
带定位结构
自粘结构可以帮助绝缘片在安装过程中保持位置稳定。
电池模块通常需要使用金属端板提供机械支撑。
金属端板附近可能存在：
电芯
极耳
汇流排
端子
导线
其他导电结构
因此，可以在金属端板内侧安装PC绝缘片，使金属结构与电气部件之间形成绝缘隔离。
定制PC片材可以按照端板轮廓进行模切，并预留：
螺丝孔
安装孔
连接器位置
端子位置
线束通道
如果电池模块对阻燃性能有要求，可以选择相应的阻燃PC材料。
UL94 V-0是电子和电气领域常见的阻燃等级之一。
需要注意的是：
UL94 V-0并不意味着整个电池系统不会发生热失控。
电池热失控涉及电芯、BMS、热管理、机械结构、排气、阻燃结构以及电气保护等多个系统。
PC绝缘片只是整体安全设计中的一个组成部分。
高压电池系统中可能存在多个高压导电部件。
例如：
BMS采样线
采集端子
继电器
接触器
汇流排
高压连接器
高压配电结构
定制PC绝缘片可以用于这些区域的绝缘隔离。
通过模切加工，可以只覆盖需要保护的区域，同时为端子和连接器保留必要的开口。
BMS需要通过采样线监测电芯电压等信息。
采样线可能与金属结构距离较近。
此时可以在采样线下方或周围增加定制PC绝缘片。
其作用主要是：
隔离采样线
减少导线与金属结构接触
提高内部电气结构的有序性
降低意外接触风险
设计时还需要避免绝缘片对采样线产生过大的机械压力。
采集端子通常需要保持一定的电气间隔。
定制PC绝缘片可以围绕端子进行局部保护。
通过模切开孔，可以保证端子正常连接，同时对周围区域进行绝缘覆盖。
这种方式非常适合空间紧凑的电池模块。
高压继电器和接触器周围可能存在金属结构和其他导电部件。
PC绝缘片可以作为局部绝缘屏障。
根据实际结构，可以设计：
圆孔
长孔
接线槽
安装缺口
异形轮廓
最终设计需要考虑电压、温度、机械振动以及固定方式。
汇流排用于传输电流。
在电池系统中，汇流排可能具有较高的电压和电流。
PC绝缘片可以安装在汇流排周围，为汇流排与其他金属结构提供绝缘隔离。
模切结构可以为：
螺栓
螺母
端子
连接器
固定结构
预留安装空间。
高压连接器需要保持可靠的电气隔离。
定制PC绝缘片可以围绕连接器进行保护。
通过精确开孔，可以使连接器正常工作，同时覆盖附近可能产生接触风险的区域。
自粘结构可以帮助绝缘片在装配过程中保持准确位置。
电池包通常包含金属壳体。
金属壳体虽然可以提供良好的机械强度，但也可能成为不希望出现的导电接触点。
PC绝缘膜可以安装在金属外壳与内部电气结构之间。
根据壳体形状进行定制模切，可以实现更加精准的局部绝缘。
BMS电路板以及其他PCB可能安装在金属壳体内部。
PC绝缘片可以放置在PCB和金属结构之间。
通过模切，可以为以下位置预留开口：
螺丝
连接器
导线
安装柱
发热元件
从而避免绝缘片影响正常装配。
自粘PC绝缘片特别适合小型绝缘件。
例如：
圆形电芯绝缘片
端子保护片
BMS绝缘片
PCB绝缘片
汇流排隔离片
金属端板绝缘片
如果使用普通无胶薄膜，小尺寸零件在装配过程中容易移动。
背胶后，可以直接将绝缘片固定在目标位置。
自粘PC绝缘片常使用压敏胶。
常见的丙烯酸压敏胶可以提供较好的初粘和长期粘接性能，但具体性能取决于胶水配方。
选择胶粘剂时需要考虑：
工作温度
初粘力
持粘力
老化性能
金属粘接能力
塑料粘接能力
湿度
化学环境
阻燃要求
不能只根据“丙烯酸胶”这一名称判断最终性能。
圆形绝缘片非常适合圆柱电芯。
可以根据电芯直径进行模切。
同时还可以增加：
中心孔
偏心孔
多孔
定位缺口
放射状槽口
从而满足更加复杂的电池结构需求。
电池内部并不是所有结构都是规则形状。
异形PC绝缘片可以根据：
端子
连接器
汇流排
金属支架
PCB
电池壳体
进行设计。
这样可以只覆盖需要绝缘的区域，减少材料浪费。
环形PC绝缘片适用于圆形端子、螺栓和其他圆柱结构。
内部圆孔用于提供安装空间。
外部环形区域用于实现电气隔离。
这种结构常用于局部端子绝缘和紧固件隔离。
在高压区域中，可以通过定制PC片材形成物理隔离屏障。
例如：
高压汇流排 → PC绝缘屏障 → 低压线路
或者：
金属结构 → PC绝缘片 → PCB
通过这种结构可以减少不希望出现的电气接触。
高压绝缘设计不能只考虑材料本身。
还需要考虑：
电气间隙
以及：
爬电距离
定制PC片材可以形成物理屏障，但不能随意缩短原有的安全距离。
最终设计需要根据实际工作电压、污染等级、结构和相关安全标准进行验证。
阻燃PC能够在某些应用中改善材料的阻燃性能，但不能将其理解为解决电池热失控的唯一措施。
完整的电池安全系统还需要考虑：
电芯保护
BMS
热管理
过流保护
机械结构
高压绝缘
阻燃材料
排气
模组结构
电池包壳体
PC绝缘片属于整体安全体系的一部分。
定制模切最大的价值在于能够按照实际产品结构加工。
可以实现：
精确轮廓
精确孔位
精确缺口
精确槽位
多孔结构
不规则外形
局部粘胶
批量一致性
相比人工剪裁，模切产品的尺寸一致性更高。
自粘阻燃PC Mylar片材能够帮助电池制造实现：
电芯顶部绝缘
电芯底部绝缘
模组端板绝缘
汇流排隔离
高压区域隔离
BMS保护
端子保护
金属壳体绝缘
连接器周边保护
电气结构定位
除了锂离子电池之外，该类PC绝缘片还可应用于：
开关电源
充电器
逆变器
DC DC转换器
电机控制器
功率模块
储能设备
工业控制设备
通信设备
汽车电子
电气控制柜
Self-Adhesive Flame-Retardant PC Mylar Sheet, Custom Die-Cut to Shapes是一种适合现代电子、电气、锂离子电池和工业设备的定制绝缘材料。
其核心优势在于将：
PC聚碳酸酯基材 + 阻燃性能 + 自粘结构 + 精密模切加工
结合在一起。
在锂离子电池领域，它可以用于电芯顶部绝缘片、电芯底部绝缘片、模块端板绝缘、高压区域隔离、BMS采样线保护、采集端子绝缘、继电器区域隔离、汇流排绝缘以及金属壳体隔离。
通过圆形、环形、矩形、带孔、带槽和异形模切结构，可以根据实际电池结构实现精准覆盖。
自粘结构则能够减少安装步骤，提高绝缘片定位稳定性，并适合批量装配。
如果产品要求阻燃性能，可以根据实际应用选择相应的阻燃PC等级，例如适用于特定电气和电子应用的UL94 V-0等级。但需要注意，材料阻燃等级必须结合具体厚度和完整结构进行验证，不能仅凭材料名称或颜色判断。
对于高压电池和功率电子设备，还必须综合考虑工作电压、爬电距离、电气间隙、温度、振动、机械应力、胶粘剂老化以及长期可靠性。
总体来说，自粘阻燃PC Mylar模切绝缘片适合需要精准绝缘、局部保护、复杂形状、快速安装、阻燃性能和批量一致性的现代电池及电子设备制造应用。
收集一些 关于： Electrical‑Insulation Black Matte PC Mylar Sheet 纯英文、SEO友好、格式清晰、带表格的资料内容， 内容里面包含：Product Features: This film boasts excellent formability and mechanical properties, favorable dimensional stability at elevated temperatures, and high flame‑retardant rating. It is well‑suited for insulation applications in power supplies, disk drives, bus bars, TVs / monitors, PCBs and commercial equipment. When laminated with metal foil, it can serve for insulation and EMI/RFI shielding. 和上面图片是的文字.适合用于谷歌收录（内容原创、关键词密集、结构利于排名）。不包含具体公司推荐，只有行业通用信息、定义、优势、规格表等。直接用于博客、目录页、行业页等，不少于6000单词。不要参数表格，不要 SEO Keyword。文末显示中文翻译。不重复上面的内容
Electrical-Insulation Black Matte PC Mylar Sheet is a high-performance polycarbonate film designed for electrical insulation, mechanical protection, component separation, and industrial converting applications. The material combines the toughness of polycarbonate with a matte surface appearance, dimensional stability, formability, and flame-retardant options, making it suitable for demanding electrical and electronic assemblies.
Black matte PC film is particularly useful where a combination of electrical isolation, mechanical durability, controlled surface friction, and professional appearance is required. Depending on the selected material grade and construction, the film can be processed into flat insulation sheets, die-cut parts, formed covers, barriers, protective liners, and laminated structures.
The material can be used in power supplies, disk drives, bus bars, televisions, monitors, printed circuit boards, commercial electronic equipment, electrical control systems, industrial machinery, and other applications in which thin, lightweight insulation is needed.
A major advantage of polycarbonate film is its ability to provide a useful balance between flexibility and mechanical strength. Compared with many more brittle plastic films, PC can better tolerate bending, handling, forming, and impact. This makes it suitable for components that must be installed around corners, openings, mounting structures, or irregular electronic assemblies.
Black matte PC film can also be combined with metal foil. In this type of laminated construction, the PC film can provide electrical insulation while the conductive metal layer can contribute to electromagnetic interference and radio-frequency interference shielding. The final performance depends on the complete laminate construction, grounding method, frequency range, and equipment design.
Black matte PC Mylar sheet is a common industrial description for a thin polycarbonate insulation film with a matte black surface. Strictly speaking, PC film and traditional PET Mylar film are different polymer materials. In industrial product descriptions, however, the term “Mylar sheet” is sometimes used broadly for thin plastic electrical insulation films.
The substrate in this product is polycarbonate rather than polyethylene terephthalate.
Polycarbonate is an engineering thermoplastic known for its toughness, impact resistance, dimensional stability, optical properties, and processing versatility. When formulated for electrical applications, it can provide a useful combination of dielectric insulation and mechanical performance.
The matte surface gives the film a low-gloss appearance and can provide a different frictional characteristic from a highly polished surface.
For industrial applications, black matte PC film may be supplied as:
Flat sheets
Rolls
Die-cut components
Adhesive-backed parts
Laminated constructions
Formed insulation components
Protective covers
Custom electrical barriers
The distinction between PC and PET is important when selecting electrical insulation film.
Traditional PET Mylar-type film is widely used for electrical insulation because of its good dielectric properties, dimensional stability, chemical resistance, and cost effectiveness. PET is generally suitable for many conventional insulation applications.
Polycarbonate offers a different performance profile.
PC is particularly attractive when the application requires:
Higher impact resistance
Better crack resistance
Improved toughness
Greater forming capability
More demanding mechanical handling
Resistance to sudden impact
Complex die-cut or formed structures
For applications exposed to elevated temperatures, the actual temperature rating must always be confirmed for the specific grade and thickness. A general material description should not be treated as a guaranteed operating temperature.
The distinction is especially important when an insulation component must be bent, formed, clipped, or installed around a structural feature.
This film boasts excellent formability and mechanical properties, favorable dimensional stability at elevated temperatures, and high flame-retardant rating. It is well-suited for insulation applications in power supplies, disk drives, bus bars, TVs / monitors, PCBs and commercial equipment. When laminated with metal foil, it can serve for insulation and EMI/RFI shielding.
The major product characteristics can be summarized as follows:
| Feature | Functional Value |
|---|---|
| Polycarbonate substrate | Provides a strong and versatile electrical insulation base |
| Black matte surface | Offers low-gloss appearance and useful surface friction |
| Excellent formability | Supports bending, forming, and customized structures |
| Mechanical strength | Helps withstand handling and assembly stress |
| Dimensional stability | Supports consistent component geometry |
| Flame-retardant options | Suitable for electrical designs requiring improved fire performance |
| Die-cut compatibility | Allows custom insulation shapes |
| Adhesive compatibility | Can be integrated into self-adhesive constructions |
| Metal foil lamination | Can combine insulation with EMI/RFI shielding functions |
| Lightweight construction | Helps reduce bulk compared with rigid insulation parts |
The following functional advantages represent common application areas for polycarbonate film and have been incorporated from the supplied reference material:
Pasting, fixing, conductive shielding, and electrical insulation.
Fire resistance, flame-retardant protection, shock buffering, dust protection, and anti-skid functions.
Backlighting applications, elevated-temperature environments, corrosion protection, sealing, and component protection.
Spraying protection, electrical insulation, noise-control applications, and filtering structures.
Professional precision die processing can convert the film into a wide variety of custom shapes.
These functions demonstrate why PC film can serve as more than a simple electrical barrier. In practical engineering, the material may become part of a multifunctional component.
Electrical insulation is one of the most important uses of black matte PC film.
An insulation film can physically separate conductive components from:
Metal housings
Bus bars
PCB supports
Fasteners
Electrical terminals
Structural brackets
Heat sinks
Internal frames
Other conductive surfaces
The purpose is to reduce the possibility of unintended electrical contact.
The film itself must be selected according to the electrical requirements of the application. Important considerations include dielectric strength, insulation resistance, film thickness, operating temperature, environmental exposure, and mechanical integrity.
A suitable PC film can act as a dielectric barrier between electrically conductive components.
This is particularly useful in compact assemblies where components are positioned close together.
A thin film can occupy relatively little space while providing a defined insulating layer.
In high-voltage designs, however, insulation film should not be considered separately from the complete electrical architecture. Creepage, clearance, voltage stress, contamination, humidity, and the shape of conductive components must all be considered.
The black matte surface is one of the defining characteristics of this material.
Unlike a highly glossy surface, matte PC film has a subdued visual appearance.
This can be advantageous for:
Internal electrical components
Electronic housings
Display equipment
Commercial equipment
Industrial control panels
Protective liners
Decorative technical components
Black also provides light-blocking characteristics that can be useful in certain electronic assemblies.
The supplied reference identifies anti-skid performance as one of the potential functional advantages of polycarbonate film.
A matte or textured surface can provide a different coefficient of friction compared with a smooth surface.
This can be useful when the film is used as:
A protective liner
A positioning layer
A component separator
A surface protection sheet
A friction-supporting barrier
The actual friction performance depends on surface texture, mating material, pressure, temperature, contamination, and other conditions.
Polycarbonate is recognized for its toughness.
For electrical insulation applications, mechanical strength matters because the film may be:
Cut
Bent
Folded
Stamped
Formed
Installed manually
Inserted into narrow spaces
Compressed between components
A mechanically robust film is less likely to crack during normal handling than a more brittle material.
This characteristic can improve manufacturing reliability.
Impact resistance is another important advantage of PC.
Electrical equipment may experience accidental impact during:
Assembly
Transportation
Maintenance
Equipment installation
Mechanical vibration
Service operations
A tough insulation film can provide an additional protective layer.
It may also function as a shock-buffering component where the mechanical design permits.
Cracking can compromise the protective function of an insulation component.
PC film can offer useful crack resistance because of its toughness and flexibility.
This is particularly valuable when the film is formed around edges or contains:
Holes
Slots
Narrow sections
Corners
Cutouts
Mounting openings
Correct geometry remains important because even tough plastics can fail if sharp corners and excessive stress concentrations are introduced.
Formability is a major reason to choose PC film for customized electrical applications.
A formable grade can be processed into structures that are not completely flat.
Potential configurations include:
Folded barriers
Wrapped insulation
Curved covers
Edge protectors
Protective shields
Three-dimensional separators
This allows engineers to create insulation components that follow the physical structure of equipment.
A formed PC component can cover multiple surfaces using one piece of material.
For example, a single part may cover:
A horizontal surface
A vertical edge
A corner
A mounting region
This can reduce the number of individual insulation pieces.
It may also improve assembly consistency.
Dimensional stability is important in electrical equipment because insulation components often have precisely defined boundaries.
A component that changes shape excessively during operation may interfere with:
Connectors
Wires
Terminals
Fasteners
Heat sinks
Other insulation components
A dimensionally stable PC film can help maintain the intended geometry over the expected operating range.
The actual thermal dimensional stability should always be verified against the selected grade.
The supplied product description highlights favorable dimensional stability at elevated temperatures.
This makes the material relevant to equipment where internal temperatures rise during operation.
Potential applications include:
Power supplies
Industrial electronics
Motor controllers
Electrical control equipment
Commercial equipment
Electronic assemblies
Temperature suitability depends on the specific PC grade, thickness, stress level, exposure time, and surrounding materials.
Flame-retardant PC grades are commonly considered for electrical and electronic applications where improved resistance to ignition and flame propagation is required.
A flame-retardant formulation can be especially valuable in:
Power supplies
Electrical control equipment
Commercial electronics
PCB assemblies
Power conversion equipment
Industrial electrical products
A specific flame classification must always be associated with the exact material grade and test thickness.
Flame-retardant film contributes to the material-level fire-safety design.
It does not independently determine the fire safety of an entire electronic product.
System-level fire behavior can also depend on:
Electrical protection
Component spacing
Heat generation
Enclosure design
Ventilation
Wiring
Power density
Thermal management
Adjacent materials
Therefore, flame-retardant PC film should be evaluated as one element of the complete safety architecture.
The supplied reference also identifies dustproof performance as a potential application.
A PC film can function as a physical barrier over openings or sensitive surfaces.
Possible uses include:
Electronic enclosures
Control panels
Equipment covers
PCB protection
Internal barriers
Component liners
When combined with an adhesive layer or appropriate mechanical structure, the film can contribute to sealing and contamination control.
Thin PC film can be incorporated into sealing structures when the application requires a rigid or semi-rigid polymer barrier.
Potential functions include:
Closing openings
Protecting component interfaces
Separating internal regions
Supporting protective layers
Providing a backing layer for sealing materials
PC film should not automatically be treated as a replacement for an elastomeric gasket. Where compression sealing is required, the complete sealing structure must be designed accordingly.
Polycarbonate film can also act as a physical separation layer between components.
For example, it can isolate a metal component from another surface or protect a sensitive electronic region from environmental contact.
The actual chemical resistance depends on the specific PC formulation and exposure environment.
Applications involving aggressive chemicals should always be validated before production.
Electrical equipment may encounter:
Oils
Cleaning agents
Humidity
Industrial chemicals
Solvents
Lubricants
Processing residues
PC is compatible with many environments but is not universally resistant to every chemical.
A material compatibility test is recommended when the film will experience prolonged exposure.
Power supplies are one of the key application areas for black matte PC insulation film.
A switching power supply can contain:
Transformers
Inductors
Capacitors
Heat sinks
PCB assemblies
Metal brackets
Terminals
High-voltage areas
Insulation film can be used to separate conductive structures and protect selected components.
Printed circuit boards may be installed close to metal housings or structural components.
A thin PC film can be used as a protective barrier between the PCB and surrounding structures.
Custom cutouts can accommodate:
Screws
Connectors
Wiring
Mounting posts
Switches
Heat sinks
This enables the insulation layer to match the PCB architecture.
Bus bars carry electrical current and may be positioned near metal structures.
PC film can be converted into barriers, covers, separators, and localized insulation components around bus bars.
A custom shape can provide openings for bolts and connection points.
The insulation design should preserve the required electrical spacing.
The supplied product description specifically identifies disk drives as an application area.
Disk-drive assemblies contain precision mechanical and electronic components that may require electrical separation and protection.
Thin PC film can be used for:
Internal insulation
Component separation
Protective barriers
Cable routing protection
Mechanical interface protection
The exact design depends on the equipment architecture.
Televisions and monitors contain:
PCBs
Metal frames
Display modules
Power boards
Connectors
Wiring
Heat-producing components
PC insulation film can be used around selected internal structures.
Black matte material can also provide a visually compatible appearance inside dark-colored electronic assemblies.
Commercial electronic equipment often requires reliable insulation in compact internal assemblies.
Examples include:
Payment equipment
Office electronics
Display systems
Control equipment
Professional audiovisual equipment
Commercial power electronics
Custom PC film can provide targeted insulation without adding significant structural bulk.
Industrial machinery can combine electrical, mechanical, and thermal requirements.
PC film can serve as:
An electrical barrier
Protective liner
Component separator
Cable protection layer
Dust barrier
Shock-buffering layer
The selected grade should match the industrial environment.
When PC film is laminated with metal foil, the construction can combine insulation and electromagnetic shielding functions.
The polymer layer can electrically isolate the conductive foil from the protected component.
The metal foil can provide a conductive shielding layer.
This construction is useful where both electrical isolation and EMI/RFI control are required.
A simplified construction may consist of:
PC insulation film + conductive metal foil
The PC layer provides dielectric separation.
The conductive foil can interact with electromagnetic fields.
For effective shielding, the overall design must also consider:
Shield continuity
Grounding
Connection points
Frequency range
Apertures
Cable entry
Enclosure geometry
Shielding performance cannot be determined from the PC film alone.
Potential applications include:
Power electronics
Communication equipment
Control systems
Industrial electronics
Display equipment
Electronic enclosures
The final shielding effectiveness depends on the conductive layer and system design.
Radio-frequency interference can affect sensitive electronic circuits.
A conductive foil laminate can provide a barrier against certain electromagnetic fields.
PC film can electrically separate the shielding foil from the electronic component.
This makes the material useful in multifunctional insulation constructions.
These two functions may appear contradictory, but they can coexist in a multilayer construction.
The conductive foil provides the shielding function.
The PC film provides electrical isolation.
This combination is particularly useful when the conductive shielding layer must be located close to sensitive electronics without creating an unwanted electrical contact.
The supplied reference also identifies backlighting as a potential application.
Black or specially processed PC films can be incorporated into optical or electronic assemblies where controlled light transmission or blocking is required.
The actual optical behavior depends on:
Color
Surface finish
Thickness
Transparency
Light source
Printing or coating
Application geometry
Black PC is generally selected where light blocking is desirable rather than maximum light transmission.
The supplied reference includes noise-related applications.
PC film can serve as part of a multilayer structure in which the material provides physical separation or supports another noise-control material.
It should not be interpreted as a universal acoustic insulation material.
Its effectiveness depends on the complete structure and frequency range.
PC film can also be incorporated into filtering or protective assemblies.
Its role may include:
Structural support
Electrical insulation
Separation
Surface protection
Barrier formation
The filtering function itself generally depends on the overall assembly rather than the PC film alone.
The supplied reference mentions spraying protection.
PC film can be used as a temporary or permanent masking and shielding material depending on its adhesive and temperature characteristics.
Possible functions include:
Surface masking
Component protection
Overspray shielding
Process-area separation
The film must be compatible with the chemicals and temperatures used during spraying.
Black matte PC film can function as a liner inside an enclosure or assembly.
The liner can separate components from the enclosure wall.
It may also protect surfaces from:
Scratches
Mechanical contact
Dust
Minor impact
Abrasion
Mechanical handling can expose insulation film to scratching.
The surface finish and film formulation influence scratch behavior.
A matte surface can visually conceal minor surface marks better than a high-gloss surface in some applications, although this is not the same as being scratch-proof.
Where severe abrasion occurs, additional surface protection may be required.
Precision die processing is one of the most useful ways to convert PC film into finished components.
Custom die cutting can produce:
Washers
Rings
Covers
Barriers
Gaskets
Pads
Shields
Terminal insulators
PCB separators
Custom protective liners
This allows the material to become a finished functional component rather than simply a sheet.
Customers may require professional precision die processing to convert PC film into a wide variety of shapes.
Possible geometries include:
| Shape Type | Typical Function |
|---|---|
| Circular | Terminal and component insulation |
| Rectangular | PCB and housing insulation |
| Ring-shaped | Fastener and terminal isolation |
| Slotted | Wire and connector clearance |
| Irregular | Custom component protection |
| Multi-hole | Mechanical mounting compatibility |
| Tabbed | Positioning and assembly |
| Foldable | Three-dimensional insulation |
Die-cut holes can accommodate mounting hardware.
Common features include:
Screw holes
Bolt holes
Connector openings
Wire passages
Alignment holes
Ventilation openings
Hole placement should be controlled carefully because even small deviations can cause assembly interference.
Rounded corners are often useful in custom insulation components.
They can:
Reduce sharp edges
Improve handling
Reduce stress concentration
Improve fit
Support smoother installation
Corner radius should be designed according to the material thickness and forming requirements.
Slots can provide clearance for wires, connectors, and fasteners.
A custom PC film may contain several different cutout types within a single component.
This enables one insulation part to replace multiple smaller pieces.
Black matte PC film can be laminated with a pressure-sensitive adhesive.
The construction can be:
PC film + adhesive + release liner
The adhesive can make the component easier to install.
Potential adhesive options include acrylic-based pressure-sensitive systems and other application-specific formulations.
The final adhesive performance must be verified for the intended temperature and substrate.
Single-sided adhesive PC film has adhesive on one surface.
The opposite side remains available for:
Electrical insulation
Surface protection
Mechanical contact
Visual finishing
Secondary assembly
This is a practical configuration for many industrial insulation components.
Double-sided adhesive constructions can bond the PC film between two surfaces.
This may be useful for:
Layered insulation
Component bonding
Flexible barriers
Protective laminates
Both adhesive interfaces must be compatible with their respective mating surfaces.
The release liner protects the adhesive during storage and handling.
It is removed immediately before application.
A suitable release liner should:
Protect the adhesive
Resist premature separation
Allow controlled peeling
Support automated processing where required
Surface finish should be selected according to the intended function.
A matte surface can be beneficial for:
Reduced glare
Professional appearance
Surface friction
Light control
Internal equipment applications
A glossy surface may be preferable when:
Easy cleaning is important
Optical appearance is important
A smooth surface is required
Some custom constructions can combine different finishes on opposite sides.
Black is a popular industrial color because it can provide:
Light blocking
Low-reflection appearance
Visual uniformity
Professional appearance
Compatibility with dark housings
Color selection is mainly a design and functional consideration.
Flame-retardant performance must be determined by material formulation and testing rather than color alone.
A modern electrical product may use several different insulation components.
For example:
PCB → PC insulation film → metal frame
or:
Bus bar → PC barrier → enclosure
or:
Conductive foil → PC dielectric layer → electronic component
Each structure has different design requirements.
A custom PC component can sometimes perform both mechanical and electrical functions.
For example, a shaped insulation part can:
Separate conductive components
Support a wire
Protect an edge
Prevent abrasion
Provide positioning
Reduce unwanted movement
This multifunctional design can simplify the overall assembly.
Thin PC film can provide insulation without requiring a thick rigid plastic structure.
This can help reduce component weight.
Weight reduction can be valuable in:
Portable electronics
Automotive equipment
Battery systems
Industrial mobile equipment
Compact power supplies
Electrical equipment continues to become smaller and more densely packed.
Thin insulation film can occupy minimal space.
A custom die-cut component can cover only the required area.
This makes it possible to optimize insulation while preserving valuable internal volume.
Pre-cut insulation parts can reduce manual preparation.
Instead of cutting film during assembly, operators can use ready-made components.
Benefits may include:
Faster installation
Consistent dimensions
Reduced manual trimming
Less production waste
Improved repeatability
Custom die-cut PC parts can be developed for automated or semi-automated production.
Important factors include:
Part geometry
Release liner design
Adhesive peel characteristics
Packaging format
Dimensional consistency
Part orientation
The component should be developed together with the assembly process.
Die-cut nesting can improve the utilization of PC film.
Multiple small components can be arranged efficiently within a sheet or roll.
For high-volume manufacturing, optimized nesting can reduce scrap and material consumption.
Before mass production, prototypes can be used to verify:
Shape
Fit
Adhesive position
Hole location
Surface orientation
Forming behavior
Assembly sequence
Prototype evaluation is especially valuable for complex electronic assemblies.
A custom PC insulation component should ideally have a clear engineering drawing.
Useful information includes:
Part outline
Cutout locations
Hole dimensions
Bend positions
Adhesive areas
Surface requirements
Tolerances
Assembly orientation
A clear drawing helps ensure that the converted part matches the intended design.
Quality inspection may include:
| Quality Area | Inspection Focus |
|---|---|
| Appearance | Scratches, contamination, wrinkles, bubbles |
| Dimensions | Overall size and feature locations |
| Die cutting | Edge quality and shape accuracy |
| Adhesive | Coverage and positioning |
| Surface | Matte consistency and defects |
| Material | Correct grade and construction |
| Assembly fit | Proper installation and clearance |
| Electrical performance | Insulation characteristics where required |
The cut edge is important for electrical insulation.
Excessive tearing, deformation, or burr formation can affect installation.
Clean die-cut edges can improve assembly consistency.
For high-voltage applications, the finished edge should be evaluated as part of the electrical design.
Electronic assemblies can be sensitive to contamination.
Potential contaminants include:
Dust
Oil
Grease
Fingerprints
Processing residues
Adhesive particles
Clean production and appropriate packaging can help maintain surface quality.
Electrical products may repeatedly heat and cool during operation.
Thermal cycling can influence:
PC dimensions
Adhesive performance
Laminate stress
Component fit
Mechanical retention
Testing should reproduce the expected operating conditions.
Humidity can affect adhesives, electrical interfaces, and insulation performance.
For equipment intended for humid environments, the complete construction should be evaluated.
This includes the PC film, adhesive, metal foil if present, and surrounding components.
Industrial and automotive electronics may experience continuous vibration.
A loose insulation film can move and potentially create unwanted contact.
Adhesive attachment or suitable mechanical retention can help maintain position.
The final assembly should still be vibration tested.
Where cleaning chemicals, oils, solvents, or industrial fluids are present, compatibility should be checked.
The test should include the complete construction rather than only the PC film.
This is especially important for adhesive-backed products.
Long-term reliability depends on more than initial material performance.
The design should consider:
Aging
Heat
Humidity
Vibration
Adhesive degradation
Mechanical stress
Chemical exposure
Electrical stress
A well-designed insulation component should remain functional throughout the expected service period.
PC film is particularly attractive for power electronics when the application requires both mechanical toughness and electrical insulation.
It can be used around:
Transformers
Heat sinks
Power boards
Bus bars
Terminals
Metal brackets
Enclosures
The exact material grade should be selected according to the electrical and thermal environment.
Commercial equipment often requires a combination of appearance and technical performance.
Black matte PC film can provide:
Clean appearance
Low glare
Electrical isolation
Mechanical protection
Custom shape compatibility
This combination makes it suitable for internal and selected external components.
Industrial control systems may contain numerous circuit boards and metal structures.
Custom PC insulation can be used to isolate:
PCB edges
Terminal blocks
Metal panels
Internal brackets
Electrical connectors
The film can be die cut to accommodate the exact control cabinet architecture.
Electronic housings often contain conductive metal components.
A PC barrier can prevent direct contact between the electronics and the housing.
Custom cutouts can allow ventilation, connectors, and mounting points.
Power conversion equipment may operate at high electrical loads.
Insulation must therefore be mechanically stable and electrically appropriate.
Custom PC barriers can be used around:
Power modules
Bus bars
Capacitors
Transformers
Connectors
Metal frames
Battery electronics can benefit from thin custom insulation components.
Applications can include:
BMS protection
Terminal insulation
PCB isolation
Busbar barriers
Housing insulation
Wire separation
The specific battery environment should determine the final material and adhesive selection.
One of the most useful characteristics of PC film is that it can combine several functions.
A single component can potentially provide:
Electrical insulation + mechanical protection + positioning + surface protection
With a metal foil laminate, another function can be added:
EMI/RFI shielding
This multifunctional approach can reduce the number of separate components.
A typical custom development process can include:
Determine where the film will be installed.
Select a suitable PC grade and surface construction.
Choose an adhesive compatible with the target surface and environment.
Create the required die-cut shape.
Check fit and assembly behavior.
Evaluate insulation, temperature, mechanical, and environmental performance.
Confirm repeatability and quality.
| Industry | Typical Use |
|---|---|
| Power electronics | Internal electrical insulation |
| Power supplies | PCB and component separation |
| Battery systems | Localized electrical barriers |
| Displays | Internal insulation and light control |
| Disk drives | Component separation and protection |
| Industrial controls | PCB and housing isolation |
| Commercial equipment | Protective electrical liners |
| Communication equipment | Insulation and shielding structures |
| Automotive electronics | Lightweight protective barriers |
| Energy storage | Electrical isolation and component protection |
The main design advantages of black matte PC insulation film include:
Thin construction
Good mechanical toughness
Useful formability
Electrical insulation capability
Flame-retardant material options
Custom die-cut capability
Adhesive lamination compatibility
Metal foil lamination compatibility
Low-gloss black appearance
Lightweight construction
Space-saving design
Multifunctional application potential
For manufacturers, custom PC film can simplify component production.
Instead of fabricating complex rigid insulation parts, engineers may be able to use a thin converted film.
This can reduce:
Component count
Assembly steps
Manual trimming
Unnecessary material
Internal package volume
The actual manufacturing benefit depends on the design.
The matte surface provides a distinctive combination of visual and functional characteristics.
It can reduce visual reflections and provide a technical appearance.
In some applications, the surface texture can also improve handling.
When combined with precision converting, the material becomes suitable for highly customized electrical components.
Electrical-Insulation Black Matte PC Mylar Sheet is a versatile polycarbonate film solution for electrical, electronic, industrial, commercial, and power-related applications.
Its key value comes from the combination of formability, mechanical properties, dimensional stability, electrical insulation, flame-retardant material options, surface functionality, and precision converting capability.
The material is well suited to insulation applications in power supplies, disk drives, bus bars, TVs, monitors, PCBs, commercial equipment, industrial control systems, and power electronics.
The supplied reference also highlights a broader range of potential polycarbonate film functions, including pasting, fixing, conductive shielding, electrical insulation, fire and flame protection, shock buffering, dust protection, anti-skid functions, backlighting, elevated-temperature applications, corrosion protection, sealing, component protection, spraying protection, noise-related structures, and filtering applications.
One of the most important advantages is the ability to convert the film into customized shapes. Professional precision die processing can produce circular, rectangular, ring-shaped, slotted, multi-hole, tabbed, folded, and irregular components.
This makes black matte PC film particularly useful when standard rectangular insulation sheets cannot provide the required coverage.
For electrical equipment, the film can be designed as a barrier between a PCB and a metal housing, around a bus bar, beneath a power component, inside a commercial equipment enclosure, or between different conductive structures.
For power supplies, PC film can provide localized insulation around high-voltage components, transformers, heat sinks, terminals, and circuit boards.
For bus-bar applications, custom film can provide targeted separation while maintaining access to electrical connection points.
For display products, black matte PC can support internal insulation and light-control requirements.
For industrial equipment, it can provide electrical isolation while also contributing to mechanical protection, surface protection, positioning, or dust-control structures.
Another important capability is metal-foil lamination. When PC film is combined with conductive foil, the resulting multilayer structure can provide both dielectric insulation and EMI/RFI shielding. The PC layer separates the conductive foil from the protected electronics, while the conductive layer can participate in electromagnetic shielding. The effectiveness of the complete shielding structure depends on foil continuity, grounding, frequency range, enclosure design, and connection architecture.
For adhesive-backed constructions, pressure-sensitive adhesive can make the film easier to install. Single-sided adhesive, double-sided adhesive, and other application-specific constructions can be considered depending on the assembly method.
When adhesive is used, the complete laminate must be evaluated. The flame-retardant classification of a PC substrate does not automatically establish the same classification for the finished adhesive construction. Adhesive temperature resistance, aging behavior, surface compatibility, humidity resistance, and long-term adhesion should all be verified.
For elevated-temperature electrical applications, material selection should consider continuous operating temperature, peak temperature, exposure duration, mechanical stress, and surrounding materials. General material descriptions should not replace grade-specific technical validation.
For high-voltage insulation, the film should be incorporated into a complete electrical safety design. Dielectric strength is important, but so are creepage distance, clearance, surface contamination, humidity, component geometry, and mechanical stability.
The combination of black matte polycarbonate film and precision die processing provides a practical way to manufacture lightweight, custom-shaped insulation components. By tailoring the geometry to the product architecture, manufacturers can improve assembly consistency, reduce unnecessary material, and create insulation structures that occupy less space.
In conclusion, Black Matte PC Mylar Sheet is not simply a thin plastic film. With the appropriate grade, surface treatment, adhesive construction, lamination method, and die-cut geometry, it can become a multifunctional component for electrical insulation, mechanical protection, component separation, flame-retardant design, dust protection, surface protection, EMI/RFI shielding, and industrial assembly.
Its combination of toughness, formability, dimensional stability, customizability, and converting flexibility makes it a valuable material option for modern electrical and electronic products where space, reliability, fire performance, and precise component integration are important.
Phone
