A Metal Connecting Plate for Battery Tabs is a conductive metal component designed to establish reliable electrical and mechanical connections between battery cells, battery tabs, terminals, busbars, and other conductive parts within a battery assembly. In modern lithium ion battery packs, the quality of the interconnection system directly influences electrical efficiency, mechanical stability, manufacturing consistency, thermal behavior, and long term reliability.
Battery cells cannot simply be placed together and expected to function as a complete battery pack. Individual cells must be connected in carefully designed series and parallel configurations. These connections create the electrical pathways through which current travels between cells and ultimately reaches the external power terminals. A metal connecting plate, battery tab connector, conductive plate, or stamped interconnection component can therefore become an important part of the battery assembly structure.
Metal connecting plates may be produced from nickel, nickel plated steel, copper, aluminum, stainless steel, or other engineered conductive materials depending on the battery chemistry, current requirement, welding process, mechanical configuration, and environmental conditions. Nickel and nickel plated steel are particularly common for cylindrical-cell battery pack interconnections because they offer a useful combination of mechanical strength, corrosion resistance, manufacturability, and resistance-welding compatibility. Technical literature on battery-pack construction identifies nickel alloys and nickel plated steel among established materials for battery tabs and notes their suitability for resistance welding.
The design of a Metal Connecting Plate for Battery Tabs is not limited to electrical conductivity. A properly engineered component must also provide predictable weldability, adequate mechanical strength, dimensional accuracy, appropriate flexibility or rigidity, controlled surface condition, and compatibility with automated battery-pack assembly equipment.
This article explains the structure, materials, manufacturing methods, functions, applications, design considerations, welding principles, quality requirements, and practical selection considerations associated with Metal Connecting Plate for Battery Tabs.
1. What Is a Metal Connecting Plate for Battery Tabs?
A Metal Connecting Plate for Battery Tabs is a shaped conductive metal component used to connect one or more battery cells or battery tabs within a battery pack.
Depending on the battery design, the connecting plate may function as:
A cell-to-cell electrical connector
A battery tab extension
A series connection bridge
A parallel connection bridge
A busbar support component
A terminal transition plate
A welding plate
A battery module interconnection component
A current-carrying stamped metal part
A structural conductive element
The physical shape can range from a simple rectangular strip to a customized stamped component containing holes, slots, projections, bends, tabs, branches, or multiple connection points.
For cylindrical battery packs, the plate may be designed to span several cells. For example, an interconnection plate can be formed to match a specific arrangement of cylindrical cells and provide welding locations at predetermined positions.

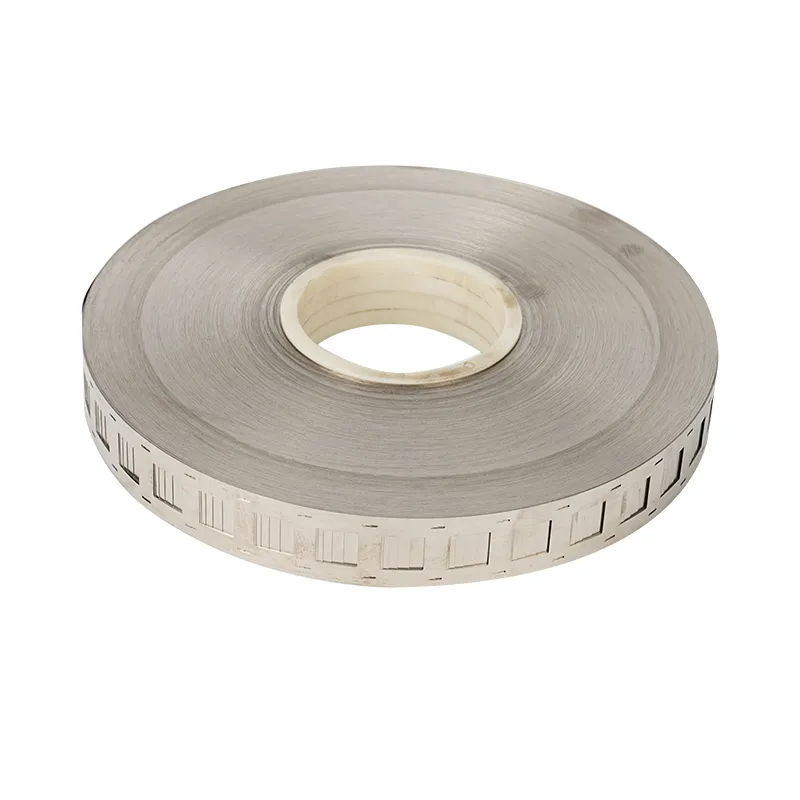

The component may be supplied as a continuous metal strip, pre-cut plate, precision stamped part, custom connecting sheet, or roll-fed component for automated production.
Battery pack construction commonly uses welded metal connections between individual cells rather than conventional soldering. Resistance welding and laser welding are among the joining technologies used for battery tabs and related components.
2. Role of Connecting Plates in Battery Systems
The fundamental function of a battery connecting plate is to create a controlled conductive pathway.
In a series-connected battery configuration, cells are electrically connected so that their voltages add together. In a parallel-connected configuration, cells share current capacity while maintaining approximately the same nominal voltage.
A connecting plate can therefore determine how electrical current flows through a battery module.
A well-designed plate should:
Provide stable electrical continuity.
Maintain adequate mechanical strength.
Support reliable welding.
Minimize unnecessary electrical resistance.
Remain stable during temperature changes.
Resist corrosion under the intended operating environment.
Match the physical geometry of the battery cells.
Support efficient manufacturing.
Avoid excessive heat generation.
Maintain connection integrity during vibration and mechanical shock.
The connecting plate also has to accommodate manufacturing tolerances. A battery pack consists of many individual components, and even small dimensional variations can accumulate across a large cell array. Precision stamping and controlled forming can help maintain consistent connection locations.
For battery packs containing numerous cylindrical cells, automated or semi-automated welding equipment may place and weld tabs repeatedly. Consistent material thickness and surface condition are therefore important for process repeatability.
3. Common Materials for Battery Connecting Plates
Pure nickel is a traditional battery tab material because of its favorable welding behavior and corrosion resistance.
Nickel has been used extensively in battery tab applications and can be welded to nickel, steel, stainless steel, and nickel plated steel components. However, nickel has higher electrical resistance than copper and can be relatively expensive.
For low and moderate current applications, pure nickel can provide a straightforward combination of:
Good corrosion resistance
Good weldability
Good forming characteristics
Stable surface properties
Reliable resistance welding
Good compatibility with battery manufacturing processes
Pure nickel connecting plates are particularly useful where welding performance is more important than minimizing raw material cost.
Nickel plated steel combines a steel substrate with a nickel surface layer.
The steel core provides mechanical strength and dimensional stability, while the nickel surface can provide corrosion resistance and a welding-friendly surface.
This material is widely associated with battery pack tabs and connectors. Technical battery-welding documentation specifically identifies nickel plated steel as a common battery tab material and describes its suitability for resistance welding.
Nickel plated steel can offer several practical advantages:
Higher mechanical strength than thin pure nickel in many configurations
Good forming performance
Good resistance welding characteristics
Corrosion protection from nickel plating
Lower material cost than thick pure nickel in suitable applications
Availability in various thicknesses and widths
The quality of the plating is important. A connecting plate with uneven, damaged, contaminated, or poorly controlled plating may produce inconsistent welding results.
Copper has excellent electrical conductivity and is therefore attractive for high-current battery applications.
However, copper presents different welding challenges because its high electrical and thermal conductivity changes the behavior of resistance welding. Battery-joining literature notes that copper can be more difficult to resistance weld because current and heat are distributed differently compared with more resistive tab materials.
Copper connecting plates may therefore require specialized welding strategies, surface treatments, plated welding zones, or hybrid material constructions.
Aluminum is lightweight and highly conductive, making it attractive for selected battery systems.
It is commonly associated with positive-side current collection in lithium ion battery architectures. Aluminum connecting components can be used where weight reduction and appropriate electrical performance are priorities.
However, aluminum naturally forms an oxide layer. This oxide can influence welding and electrical contact behavior, meaning that joining processes must be carefully selected.
Stainless steel may be used when corrosion resistance, mechanical strength, or structural requirements dominate.
It is not normally selected simply because it has the highest electrical conductivity. Instead, it may be considered for specific mechanical or environmental requirements.
4. Nickel Plated Steel Connecting Plates
Nickel plated steel is one of the most recognizable materials associated with battery connection plates.
A typical construction consists of:
Steel substrate + nickel plating + controlled surface finish
The steel substrate supplies structural support, while the nickel layer protects the surface and provides a suitable interface for electrical joining.
Nickel plated steel strips are available in different thicknesses and widths. Commercial battery-strip products commonly use thin material suitable for spot welding and battery pack assembly.
The actual thickness should not be selected simply from a general battery size. It should be determined from current requirements, weldability, cell configuration, available weld energy, thermal conditions, and mechanical requirements.
5. Relationship Between Plate Thickness and Current
One of the most important design considerations is the relationship between connecting-plate thickness and electrical current.
A thicker plate generally provides a larger conductive cross-sectional area, but thickness alone does not determine the current-carrying capability of a battery connection.
Other factors include:
Material resistivity
Plate width
Connection length
Ambient temperature
Operating temperature
Continuous current
Peak current
Duty cycle
Cooling conditions
Contact resistance
Number of parallel current paths
Weld resistance
A connecting plate that is too thin may experience excessive electrical heating or mechanical deformation.
A plate that is unnecessarily thick may create other problems:
Higher material cost
Greater forming force
More difficult welding
Higher weld-energy requirements
Increased pack weight
Reduced flexibility
Greater risk of damaging the cell during welding
Therefore, thickness should be optimized rather than maximized.
6. Plate Width and Electrical Performance
Width is another major design parameter.
Increasing the width of a conductive plate can increase its effective cross-sectional area and reduce resistance under otherwise comparable conditions.
However, a wide plate may interfere with:
Cell spacing
Housing dimensions
Cooling structures
BMS wiring
FPC components
Cell venting areas
Automated welding heads
A battery connecting plate must therefore balance electrical performance and physical packaging.
In high-density battery modules, a narrow connection may be preferred because available space is limited. In high-current systems, wider or thicker conductors may be necessary.
7. Connecting Plate Geometry
A Metal Connecting Plate for Battery Tabs can have many different geometries.
Common forms include:
A straight strip connects two or more adjacent conductive points.
An H-shaped component can connect multiple cells while maintaining a compact layout.
A U-shaped component may be formed around a cell or terminal area.
A Z-shaped structure can compensate for differences in height or connection position.
A bridge-shaped plate can connect two separated cell groups.
A larger stamped plate can contain multiple welding zones for connecting several cells simultaneously.
Complex geometries can integrate multiple holes, slots, bends, welding points, and locating features.
8. Precision Stamping
Precision stamping is commonly used for high-volume battery connecting components.
During stamping, a metal coil or sheet passes through a die system that cuts and forms the desired geometry.
Typical operations may include:
Blanking
Piercing
Slotting
Bending
Forming
Embossing
Coining
Projection forming
Edge shaping
Precision stamping is particularly useful when large quantities of identical battery connection plates are required.
The advantages include:
Consistent dimensions
High production efficiency
Repeatable geometry
Reduced manual labor
Compatibility with automated assembly
Ability to produce complex shapes
Custom battery connector products are commonly manufactured through precision stamping according to drawings or samples.
9. Laser Cutting
Laser cutting provides another manufacturing option.
It is useful for:
Prototypes
Small production batches
Complex profiles
Rapid design changes
Custom connecting plates
Compared with stamping, laser cutting can reduce the need for dedicated tooling during early development.
For large-scale mass production, however, stamping may become more economical when the geometry is stable and production quantities are high.
10. Die Cutting and Forming
Die cutting can be used to produce repeatable flat components from metal sheets.
Secondary forming can then create bends or raised features.
The selected manufacturing method should reflect:
Quantity
Material
Thickness
Shape complexity
Dimensional tolerance
Production speed
Tooling cost
Automation requirements
11. Battery Tab Welding
A connecting plate is only as reliable as its connection to the battery cell.
Common joining processes include:
Resistance spot welding
Laser welding
Ultrasonic welding
Projection welding
Parallel-gap resistance welding
Resistance welding is particularly common for thin nickel and nickel plated steel battery tabs.
Battery-welding documentation describes battery packs as using welded metal connections between individual cells and identifies nickel and nickel plated steel as established tab materials.
12. Resistance Spot Welding
Resistance spot welding creates localized heat by passing electrical current through the workpieces while pressure is applied.
The process depends on:
Welding current
Welding time
Electrode pressure
Electrode geometry
Material resistance
Surface condition
Plate thickness
Cell terminal construction
The objective is to create a sufficiently strong weld without transmitting excessive heat into sensitive battery components.
This is particularly important for lithium ion cells because excessive thermal input can damage internal components.
Technical guidance for battery tab welding emphasizes controlling weld energy and avoiding excessive penetration into cylindrical cell cans.
13. Why Spot Welding Is Preferred Over Conventional Soldering
Traditional soldering requires the introduction of significant heat into the connection.
Battery cells contain temperature-sensitive internal structures, separators, electrolyte systems, and sealing components.
Localized resistance welding can provide a much shorter thermal cycle.
The welding process can therefore create an electrical connection without heating the entire battery terminal to the same degree as a conventional soldering operation.
For battery pack manufacturing, this contributes to:
Faster assembly
Repeatable joining
Automated production
Lower localized thermal exposure
Better process control
14. Weld Energy Control
Weld energy must be matched to the materials and geometry.
Too little energy may result in:
Weak welds
Incomplete fusion
High contact resistance
Mechanical separation
Intermittent electrical connection
Too much energy may cause:
Excessive indentation
Material splash
Excessive heating
Surface damage
Cell damage
Plating degradation
Local deformation
Professional battery welding systems can monitor current, voltage, resistance, power, and related weld parameters to improve process consistency.
15. Importance of Surface Condition
The surface of a connecting plate has a direct effect on welding.
Potential contaminants include:
Oil
Grease
Dust
Oxides
Fingerprints
Residual stamping lubricant
Plating debris
Foreign particles
A clean and consistent surface helps maintain predictable electrical contact and welding behavior.
For nickel plated steel, plating uniformity is especially important because the welding interface is influenced by the nickel surface.
16. Nickel Plating Thickness
Nickel plating thickness depends on the material specification and application.
The plating should be sufficiently continuous to provide the intended surface protection and joining characteristics.
However, thicker plating is not automatically better.
An excessive plating layer can alter welding behavior, increase material cost, or affect dimensional tolerances.
Therefore, plating thickness should be controlled according to the intended application rather than selected purely by maximum value.
17. Corrosion Resistance
Battery packs may operate in environments involving:
Humidity
Temperature variation
Condensation
Dust
Salt exposure
Chemical contaminants
A nickel plated surface can provide protection against oxidation and corrosion of the underlying steel.
This is particularly useful for battery assemblies that require long service life.
However, plating alone does not make a battery connection immune to corrosion. Damaged edges, scratches, cut surfaces, and mechanical defects may expose the substrate.
Designers should therefore consider the entire component rather than only the flat plated surface.
18. Mechanical Strength
A battery connecting plate experiences mechanical forces during:
Assembly
Cell expansion
Transportation
Vibration
Impact
Thermal cycling
Pack deformation
The connection plate must remain sufficiently stable to prevent cracks, tearing, or fatigue around weld locations.
Mechanical strength is especially important for battery packs used in:
Electric tools
Electric bicycles
Robotics
Portable equipment
Industrial equipment
Automotive applications
Energy storage systems
Battery connection materials are selected partly for their ability to withstand mechanical stresses while maintaining reliable electrical connections.
19. Vibration Resistance
A battery pack may experience continuous vibration during transportation or operation.
A connecting plate should not behave like a brittle rigid bridge that concentrates excessive stress around the weld.
Appropriate geometry can distribute mechanical forces more effectively.
Design techniques may include:
Rounded corners
Controlled bends
Stress-relief sections
Flexible connection arms
Appropriate weld spacing
Reinforced regions
20. Thermal Cycling
Battery packs repeatedly heat and cool during operation.
Metal expands when heated and contracts when cooled.
Different materials have different coefficients of thermal expansion. If a connecting plate and battery terminal expand differently, stress may develop around the weld.
Good battery connection design therefore considers:
Material compatibility
Plate thickness
Connection length
Weld geometry
Thermal expansion
Operating temperature
21. Electrical Resistance
Every battery connection introduces some electrical resistance.
The total resistance includes contributions from:
Plate resistance
Weld resistance
Contact resistance
Terminal resistance
Busbar resistance
Connection interfaces
Although the resistance of an individual plate may be small, a battery pack containing hundreds of cells can contain a large number of connection points.
Small increases in resistance can accumulate.
The resulting effects may include:
Increased heat generation
Lower voltage under load
Reduced energy efficiency
Greater thermal stress
Consequently, low and consistent connection resistance is an important engineering objective.
22. Contact Resistance
Contact resistance depends on:
Surface condition
Material combination
Contact pressure
Surface roughness
Oxide formation
Plating
Weld quality
A properly welded connection is generally preferable to relying on a simple mechanical contact interface for a permanent battery interconnection.
23. Battery Cell Compatibility
A connecting plate must match the cell type.
Common cylindrical cell formats include:
18650
21700
26650
32700
Other customized cylindrical formats
The number in a cylindrical cell designation generally refers to approximate physical dimensions, although actual cell dimensions and terminal designs can vary between products.
A plate designed for one cell arrangement should not automatically be assumed to fit another.
24. 18650 Battery Applications
The 18650 format has been widely used in portable battery packs and power systems.
A connecting plate for 18650 cells may be designed for:
1S configurations
2S configurations
3S configurations
4S configurations
Multi-parallel configurations
Custom series-parallel arrays
The geometry must account for cell diameter, center spacing, terminal position, insulation requirements, and welding location.
25. 21700 Battery Applications
The 21700 format provides a larger cylindrical cell envelope than 18650.
This can allow higher cell capacity in many battery designs.
A connecting plate for 21700 cells must accommodate the specific center-to-center spacing and terminal geometry of the battery holder or module.
A design developed for 18650 cells should not simply be scaled without considering:
Cell spacing
Current requirement
Weld position
Plate width
Mechanical clearance
Insulation distance
26. Prismatic Battery Applications
Prismatic cells use a different mechanical architecture.
Connecting plates may be larger and thicker than those used for small cylindrical cells.
Depending on the cell design, conductive plates may connect:
Positive terminals
Negative terminals
Module busbars
Cell groups
External terminals
Laser welding may become more relevant for larger battery connections.
27. Pouch Cell Applications
Pouch cells use flexible electrode tabs rather than cylindrical metal cans.
Connecting plates may be used to extend, reinforce, or connect tabs to busbars and module-level conductors.
Special attention should be given to:
Tab geometry
Insulation
Seal area
Mechanical stress
Heat exposure
Tab bending radius
The connecting structure should not place unnecessary mechanical load on the sealed pouch region.
28. Battery Module Applications
A battery module consists of multiple cells assembled into a larger unit.
Metal connecting plates may be used to create:
Cell-level series connections
Cell-level parallel connections
Module-level connections
Terminal transitions
Busbar connections
The plate may also be integrated with:
Cell holders
Insulation sheets
BMS components
FPC assemblies
Thermal management structures
29. Energy Storage Battery Applications
Stationary energy-storage systems may contain large numbers of cells.
Connecting plates and busbars must accommodate:
High continuous current
Long operating periods
Thermal cycling
Vibration during transportation
Maintenance requirements
High manufacturing consistency
In these systems, conductor sizing and connection reliability become particularly important.
30. Electric Vehicle Applications
Electric vehicle battery systems require carefully engineered electrical connections.
Depending on the architecture, connecting plates can participate in:
Cell interconnection
Module interconnection
Busbar systems
High-current pathways
Monitoring structures
Automotive applications generally demand strict control over dimensional tolerances, welding quality, mechanical durability, and traceability.
31. Portable Power Equipment
Portable power tools and compact battery systems are common applications for metal battery connection components.
Examples include:
Cordless drills
Electric screwdrivers
Portable vacuum cleaners
Garden tools
Portable lighting
Small power stations
Consumer electronics
The compact size of these products makes efficient internal interconnection especially important.
32. Battery Management System Integration
A connecting plate may be designed alongside a Battery Management System.
The BMS monitors parameters such as:
Cell voltage
Pack voltage
Temperature
Charging behavior
Discharging behavior
Some battery modules integrate current-carrying metal structures with sensing wires or flexible printed circuits.
The metal connection design must therefore leave sufficient space for sensing connections and insulation.
33. Insulation Requirements
Metal connecting plates are conductive components.
They must therefore be positioned carefully to prevent unintended electrical contact.
Common Insulating Materials include:
PET film
Polycarbonate film
Fish paper
Nomex paper
EVA foam
Fiberglass tape
Insulation design should account for:
Working voltage
Clearance
Creepage
Temperature
Mechanical movement
Abrasion
Moisture
34. Edge Quality
Stamped or laser-cut metal plates have edges that may become sharp.
Sharp edges can damage:
Insulation film
Battery separators
Wires
FPC layers
Adhesive materials
Edge quality is therefore an important consideration.
Depending on the application, edges may require:
Deburring
Rounded corners
Controlled stamping clearance
Formed edges
35. Dimensional Tolerances
A battery connecting plate must maintain accurate dimensions.
Important dimensions can include:
Overall length
Overall width
Thickness
Hole diameter
Slot width
Hole spacing
Cell spacing
Bend angle
Welding projection position
Tight tolerances may be required when the component is integrated into automated battery assembly equipment.
36. Custom Metal Connecting Plates
Custom battery connection plates are often developed according to:
CAD drawings
Samples
Battery dimensions
Cell arrangement
Welding equipment
Current requirements
Pack enclosure dimensions
Custom stamping allows designers to integrate multiple functions into a single component.
For example, one plate may contain:
Several welding points
A locating hole
A folded section
A terminal extension
A reinforcing rib
This can reduce the number of individual components in the battery pack.
37. Continuous Strip Versus Preformed Plate
Metal connecting materials can be supplied in several forms.
Continuous strip is useful for automated processing and customized cutting.
Pre-cut components are suitable when the final geometry is fixed.
Stamped connectors provide repeatable high-volume production.
Roll material can support continuous automated assembly.
The best form depends on production equipment and manufacturing volume.
38. Advantages of Metal Connecting Plates
A properly designed connecting plate can provide:
Stable electrical connection
Repeatable welding
Efficient assembly
Compact battery architecture
Good mechanical support
Controlled current paths
Reduced manual wiring
Compatibility with automated production
Flexible custom geometry
39. Manufacturing Quality Control
Quality control should cover the complete component rather than only visual appearance.
Typical inspection areas include:
Confirm the substrate material and grade.
Measure material thickness at multiple locations.
Verify strip or plate width.
Check nickel coverage and surface consistency where applicable.
Verify stamped dimensions and hole positions.
Check cut edges for excessive burrs.
Evaluate actual welding performance under controlled process conditions.
Check tensile or pull strength where required.
Measure resistance or electrical continuity.
40. Packaging Requirements
Metal battery connecting plates should be packaged to prevent:
Bending
Scratching
Oxidation
Contamination
Deformation
Mixing of different specifications
Small precision components can be packed in trays, bags, boxes, reels, or other protective packaging.
For automated production, carrier reels or organized trays can improve feeding efficiency.
41. Storage Conditions
Metal components should generally be stored in a clean and dry environment.
Storage conditions should minimize:
High humidity
Condensation
Chemical contamination
Dust
Direct exposure to corrosive substances
Nickel plated components should be protected from scratches that expose the underlying substrate.
42. Common Design Errors
A very thick or wide plate does not automatically create a better battery connection.
It can increase cost and make welding more difficult.
An undersized plate may produce excessive heating and mechanical weakness.
A material may have excellent electrical conductivity but still be difficult to weld reliably.
A plate that looks correct on paper may interfere with cell holders or insulation.
Sharp edges can damage insulation.
Repeated thermal cycles can stress rigid connections.
43. Pure Nickel Versus Nickel Plated Steel
Pure nickel and nickel plated steel should be evaluated according to the actual battery design.
Pure nickel provides a consistent nickel surface throughout its thickness.
Nickel plated steel provides a steel core with nickel at the surface.
The selection depends on:
Current requirement
Thickness
Welding process
Mechanical strength
Material cost
Corrosion requirements
Forming requirements
Nickel plated steel can be attractive when higher mechanical strength and cost efficiency are important.
Pure nickel may be attractive where material uniformity and established welding behavior are priorities.
44. Why Material Selection Matters
The connecting plate is a functional part of the electrical circuit.
Its material determines:
Electrical resistance
Heat generation
Welding characteristics
Mechanical strength
Corrosion behavior
Weight
Cost
Formability
Consequently, selecting material only by price is not recommended.
A low-cost material that creates welding defects or excessive resistance may increase total battery manufacturing cost.
45. Connection Reliability
Battery pack reliability is strongly influenced by connection reliability.
A battery cell can perform correctly while the pack still experiences failure caused by:
Poor welds
Cracked connections
Excessive contact resistance
Corrosion
Mechanical fatigue
Insulation damage
The connection plate should therefore be considered a critical battery-pack component rather than merely a piece of metal.
46. Electrical and Mechanical Balance
A successful battery connecting plate must balance electrical and mechanical performance.
High conductivity is useful, but a highly conductive material that cannot be welded reliably may not be appropriate.
High strength is useful, but an excessively rigid plate can transmit stress into the battery cell.
Good engineering seeks a balanced solution.
47. Production Automation
Modern battery manufacturing increasingly uses automated assembly.
Automated systems require:
Consistent component dimensions
Predictable surface conditions
Stable feeding
Accurate welding locations
Controlled tolerances
Reliable component identification
Stamped metal connecting plates are well suited to high-volume automated manufacturing because their geometry can be repeated with high consistency.
48. Connecting Plates and Battery Safety
Electrical connections should be designed with safety in mind.
Potential hazards include:
Short circuits
Overheating
Weld failure
Insulation damage
Mechanical deformation
Incorrect polarity
Excessive current density
A connecting plate should never create an unintended conductive path between positive and negative structures.
Appropriate insulation and clearance must therefore be included in the overall pack design.
49. Connection Plate Inspection Before Assembly
Before battery assembly, components should be checked for:
Correct material
Correct thickness
Correct dimensions
Correct geometry
Surface contamination
Burrs
Scratches
Plating defects
Deformation
This helps prevent defective components from entering the welding process.
50. Welding Process Validation
A new connecting plate design should undergo welding validation before mass production.
Testing can include:
Weld appearance
Peel testing
Pull testing
Electrical resistance testing
Cross-section inspection
Thermal testing
Vibration testing
Process repeatability testing
Welding parameters should be developed using the actual cell terminal, connecting plate, electrode configuration, and production equipment.
51. Battery Connecting Plate Design Workflow
A practical development process can follow these steps:
Determine whether the design uses cylindrical, prismatic, or pouch cells.
Establish the required series and parallel arrangement.
Determine continuous and peak current requirements.
Compare nickel, nickel plated steel, copper, aluminum, and other suitable materials.
Balance current capacity, welding, mechanical requirements, and cost.
Create the required cell spacing and welding positions.
Confirm clearance and protection requirements.
Develop appropriate welding parameters.
Evaluate connection strength.
Measure resistance and thermal performance.
Evaluate thermal cycling, humidity, vibration, and other relevant conditions.
Select stamping, laser cutting, forming, or another manufacturing method according to volume.
52. Metal Connecting Plate for Battery Tabs in High Current Systems
High-current applications require particular attention to conductor cross-section.
When current increases, resistive heat generation becomes increasingly important.
The connecting plate must therefore be designed around:
Material resistivity
Cross-sectional area
Connection length
Number of parallel paths
Thermal dissipation
Maximum operating temperature
In some battery systems, copper or copper-based components may be selected for high-current paths, while nickel plated steel remains attractive for cell-level welded connections.
53. Lightweight Battery Connection Design
Weight reduction is an important goal in many portable and electric mobility applications.
The connecting plate contributes to total pack weight.
However, reducing thickness without considering current and mechanical requirements can create reliability problems.
A lightweight design should instead optimize:
Material
Thickness
Width
Geometry
Current distribution
Weld layout
Strategic shaping can sometimes reduce material without sacrificing necessary strength.
54. Environmental Durability
Battery packs can be exposed to challenging conditions.
A connecting plate may encounter:
Moisture
Temperature changes
Vibration
Shock
Chemical vapors
Dust
Condensation
The material and surface finish should therefore be selected according to the expected environment.
Nickel plated steel can provide useful surface protection for applications where corrosion resistance is important.
55. Applications Beyond Lithium Ion Batteries
Metal battery connection plates can also be used in other rechargeable battery systems.
Potential applications include:
Nickel metal hydride batteries
Specialty rechargeable battery packs
Portable power systems
Industrial battery modules
Backup power equipment
The material and geometry should always be matched to the chemistry and terminal construction.
56. Importance of Engineering Documentation
For industrial battery applications, technical documentation can include:
Material certificate
Dimensional drawing
Plating specification
Surface specification
Mechanical test report
Electrical test report
Welding validation record
Inspection standard
Packaging specification
Clear documentation improves communication between component designers, battery manufacturers, and assembly engineers.
57. Customization Options
A Metal Connecting Plate for Battery Tabs can be customized in many ways.
Customization may include:
Material
Thickness
Width
Length
Hole position
Hole size
Cell spacing
Bend angle
Shape
Plating
Surface treatment
Welding projection
Packaging
Quantity
Custom components are particularly valuable when standard strips cannot match the battery architecture.
58. Future Development Trends
Battery technology continues to evolve toward:
Higher energy density
Higher charging rates
Higher discharge rates
Larger cells
Lower pack weight
Greater automation
Integrated battery structures
These trends increase the importance of advanced interconnection design.
Future metal connecting plates may incorporate:
More precise stamped geometries
Integrated sensing features
Hybrid conductive materials
Improved thermal management
Optimized welding zones
Automated feeding structures
More compact busbar integration
59. Practical Selection Checklist
Before selecting a Metal Connecting Plate for Battery Tabs, confirm:
What battery cell format is being used?
What is the cell arrangement?
What is the maximum continuous current?
What is the peak current?
Which welding method will be used?
What is the cell terminal material?
Is nickel plated steel suitable?
What thickness is required?
What width is required?
Is custom stamping necessary?
What insulation system will surround the plate?
What operating temperature is expected?
What environmental exposure is expected?
What mechanical loads will occur?
What dimensional tolerances are required?
What quality-control tests are needed?
Answering these questions before production can reduce the risk of unsuitable material selection.
60. Conclusion
Metal Connecting Plate for Battery Tabs is an important category of battery interconnection component used to establish electrical and mechanical connections between cells and conductive structures.
The best design is not simply the most conductive or thickest metal plate. Instead, it is the component that provides the appropriate combination of electrical performance, weldability, mechanical strength, dimensional accuracy, corrosion resistance, thermal stability, insulation compatibility, and manufacturing efficiency.
Nickel and nickel plated steel remain important choices for many cell-level battery connections because they offer established welding characteristics and practical mechanical performance. Copper and aluminum may become more appropriate where electrical conductivity, weight, or high-current requirements dominate.
For cylindrical battery packs, connecting plates can be precisely designed around cell spacing and welding positions. For prismatic and pouch batteries, larger or specialized conductive structures may be required.
Modern battery manufacturing also places increasing emphasis on precision stamping, automated welding, consistent material surfaces, and repeatable quality control. A carefully engineered Metal Connecting Plate for Battery Tabs can contribute to stable electrical performance, reliable mechanical assembly, efficient production, and long service life.
The final specification should always be validated against the actual cell, welding equipment, current requirement, thermal environment, mechanical conditions, and battery architecture rather than relying solely on a generic material or dimension.
This website uses cookies to ensure you get the best experience on our website.
Phone
