The 18650 Nickel Strip Battery Connecting Plate is a conductive interconnection component designed for cylindrical lithium ion battery pack assembly. It is commonly used to connect 18650 cells in series and parallel configurations while providing a practical interface for resistance spot welding. Because 18650 cells have compact cylindrical housings and relatively small terminal areas, the geometry, thickness, width, material composition, and weldability of the connecting strip can significantly influence the electrical and mechanical performance of the completed battery pack.
Nickel Strip is widely used in cylindrical battery interconnection because it can be resistance welded to many steel battery cans while maintaining a flexible, thin profile. Commercial battery-pack materials include both pure nickel strip and nickel-plated steel strip, and these should not be treated as electrically or mechanically identical materials. Current requirements, welding equipment, pack architecture, thermal conditions, and manufacturing cost should all be considered when selecting the appropriate connecting plate.
The term 18650 Nickel Strip Battery Connecting Plate can describe a flat nickel strip, stamped battery connecting plate, pre-cut nickel tab, multi-cell connecting piece, or custom-shaped conductive strip used around 18650 cylindrical cells. Depending on the battery configuration, the connecting component can link cells within a parallel group, bridge adjacent series groups, connect a cell group to a busbar, or provide a transition point toward a battery management system and external power terminals.
For modern battery manufacturing, the connecting plate is more than a simple conductive strip. It forms part of the electrical pathway between individual cells and the larger battery system. A properly specified nickel connecting plate can support consistent welding, stable electrical contact, mechanical retention, efficient assembly, and reliable insulation design.
This article provides an industry-oriented overview of 18650 nickel strip battery connecting plates, including material selection, structural design, electrical characteristics, welding considerations, battery-pack applications, quality control, storage, customization, and procurement considerations.
1. What Is an 18650 Nickel Strip Battery Connecting Plate?
An 18650 Nickel Strip Battery Connecting Plate is a thin conductive metal component used to electrically connect cylindrical 18650 lithium ion cells. The name combines three important characteristics:
18650 identifies the cylindrical cell format.
Nickel Strip identifies the conductive strip material or surface system.
Battery Connecting Plate describes the component's function within a battery assembly.
An 18650 cell is approximately 18 mm in diameter and 65 mm in length, although actual finished-cell dimensions can vary depending on cell construction, protection components, wrapping, and manufacturing tolerances.
The connecting plate is normally positioned against the positive or negative terminal of a cell and attached using an appropriate welding process. In battery-pack construction, multiple strips can form a continuous conductive path across several cells.
The connecting plate therefore performs several functions simultaneously:
Electrical conduction
Cell-to-cell interconnection
Mechanical attachment
Welding interface
Current distribution
Pack-layout integration
Connection between battery groups
Support for compact battery architecture
A simple strip may be sufficient for a low-current battery pack, while a high-current design may require wider conductors, multiple layers, specialized stamped plates, copper-based composite conductors, or additional busbar structures.
The selection should always be based on the actual electrical and mechanical requirements of the finished battery system rather than simply choosing a strip because it is marketed for 18650 cells.
2. Why Nickel Strip Is Used for 18650 Battery Connections
Nickel has several characteristics that make it useful for battery interconnection.
First, nickel can be resistance welded to suitable battery-can materials. Spot welding creates localized heating rather than heating the entire cell terminal, which makes it more suitable for cylindrical lithium-ion cell assembly than prolonged direct soldering.
Second, thin nickel strip can be formed into relatively simple shapes. It can be cut, punched, stamped, bent, or supplied in rolls depending on the production process.
Third, nickel has useful corrosion resistance. This is important because battery assemblies can experience humidity, temperature changes, contamination, and long operating periods.
Fourth, nickel strip provides a practical compromise between conductivity, weldability, mechanical flexibility, and manufacturing cost.
Pure nickel and nickel-plated steel should nevertheless be distinguished. Pure nickel provides the electrical and welding characteristics of nickel throughout the strip, while nickel-plated steel combines a steel substrate with a nickel surface layer. These constructions can behave differently during welding and under high-current operation.
3. Understanding Pure Nickel and Nickel-Plated Steel
Pure nickel strip uses nickel as the primary strip material. Battery-grade pure nickel is commonly supplied in thin gauges suitable for resistance welding.
Typical advantages include:
Consistent nickel composition
Good corrosion resistance
Stable surface characteristics
Suitable spot-welding behavior
Predictable electrical properties
Good flexibility in thin gauges
Good resistance to environmental oxidation
Pure nickel is often considered when electrical performance and long-term reliability are more important than minimizing raw material cost.
Some commercial battery-strip specifications list nickel content around 99.6% or higher for pure-nickel products. However, the actual composition should always be confirmed through the supplier's material certificate rather than inferred from the product name.
Nickel-plated steel consists of a steel substrate with a nickel coating.
Its advantages can include:
Lower material cost
High mechanical strength
Good formability
Easy availability
Suitable performance for many lower-current applications
Compatibility with common battery welding processes
However, nickel-plated steel should not automatically be considered equivalent to pure nickel.
The steel substrate contributes substantially to the electrical resistance and thermal behavior of the strip. The quality and thickness uniformity of the nickel coating can also influence corrosion resistance and welding behavior.
For this reason, battery designers should specify whether the connecting plate is pure nickel or nickel-plated steel rather than simply specifying "nickel strip."
4. Basic Structure of an 18650 Battery Connecting Plate
A simple 18650 nickel connecting plate normally consists of a flat metallic strip.
The basic construction can be described as:
Nickel conductive layer → battery terminal → welded connection
For nickel-plated steel, the structure is different:
Nickel coating → steel substrate → nickel coating

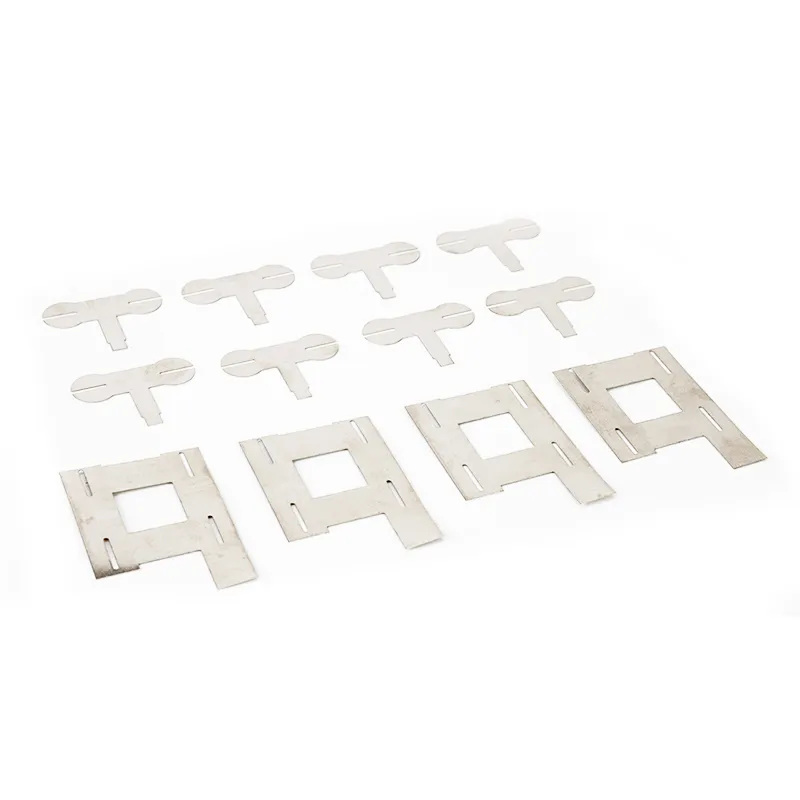

The actual construction can become more sophisticated when the component is stamped or engineered for a particular battery architecture.
Possible forms include:
Straight strips
Pre-cut strips
Multi-cell connecting plates
U-shaped connectors
Z-shaped connectors
Bridge connectors
Zigzag connectors
H-shaped plates
Custom stamped plates
Fusible connecting strips
Narrow terminal tabs
Wide current-collection plates
The final geometry should correspond to the cell arrangement and electrical path.
5. Typical 18650 Battery Pack Configurations
18650 cells can be combined into numerous series and parallel configurations.
A notation such as 4S2P means:
4 cell groups connected in series
2 cells connected in parallel within each group
A 3S4P arrangement contains three series groups with four parallel cells per group.
The nickel connecting plates must be designed around this electrical topology.
In a parallel connection, the strip connects multiple cells of the same electrical polarity.
In a series connection, the connecting plate bridges the positive terminal of one group to the negative terminal of the next group.
This makes strip geometry particularly important.
A connecting plate that works well for a 2P arrangement may not be appropriate for a 6P arrangement because the current distribution, strip length, heat generation, and weld count can all change.
6. Electrical Function of the Connecting Plate
The connecting plate forms part of the current path.
When current flows through a metal strip, electrical resistance produces heat. The relationship between current, resistance, and heat makes conductor design an important part of battery-pack engineering.
A longer strip generally has greater electrical resistance than an otherwise identical shorter strip. A wider or thicker strip generally provides a larger conductive cross-sectional area.
Consequently, designers should consider:
Strip material
Strip thickness
Strip width
Strip length
Number of parallel paths
Number of cells
Continuous current
Peak current
Pulse current
Ambient temperature
Cooling conditions
Weld resistance
Contact resistance
The connecting plate should therefore be evaluated as part of the complete electrical system rather than as an isolated component.
7. Thickness Selection
Thickness is one of the most important parameters of an 18650 nickel connecting plate.
Common battery-strip thicknesses encountered in the market include approximately:
0.10 mm
0.12 mm
0.15 mm
0.20 mm
0.30 mm
Some manufacturers offer additional gauges for specialized battery designs. Commercial specifications also show 0.10–0.30 mm as a common range for 18650 battery nickel strip.
Thickness should not be selected solely according to maximum current.
A thicker strip can carry more current, but it can also require greater welding energy. If the welding equipment is not capable of producing a reliable weld through the selected strip, increasing thickness may actually reduce assembly reliability.
Therefore:
Electrical requirement + welding capability + mechanical requirement = appropriate strip thickness
8. Width Selection
Strip width determines the conductive cross-sectional area and influences the welding footprint.
Common narrow strip widths may include:
3 mm
4 mm
5 mm
7 mm
8 mm
10 mm
12 mm
15 mm
20 mm
Custom widths can also be manufactured.
For example, commercially available 18650 battery strip products are offered in several widths and thicknesses, including 0.1 mm strip in widths such as 3, 4, 5, 7, 8, and 10 mm.
A wider strip may distribute current over a larger area, but it must still fit the cell layout and avoid unwanted contact with neighboring terminals.
9. Strip Length and Battery Layout
Strip length should correspond to the physical distance between the cells or groups being connected.
Excessively long conductive paths can:
Increase electrical resistance
Increase voltage drop
Increase heat generation
Complicate insulation
Reduce assembly efficiency
An excessively short strip can:
Create mechanical stress
Pull against weld points
Make assembly difficult
Prevent correct cell alignment
For production applications, pre-cut connecting plates can improve repeatability.
10. Welding Compatibility
Resistance spot welding is widely used for attaching nickel strips to cylindrical battery cells.
The basic process involves:
Positioning the strip
Holding the strip against the cell terminal
Applying electrode pressure
Delivering a short electrical pulse
Creating a localized weld
Inspecting the weld
The welding parameters must be matched to:
Strip thickness
Strip material
Cell-can material
Electrode geometry
Welding current
Pulse duration
Electrode pressure
Surface condition
Battery-pack guidance commonly emphasizes controlling current, pulse duration, electrode pressure, and strip thickness to achieve repeatable weld quality.
11. Why Spot Welding Is Preferred for Many 18650 Assemblies
Direct soldering can introduce substantial heat into a lithium-ion cell terminal.
Spot welding concentrates energy at the connection point and can reduce the duration of thermal exposure to the cell.
This is one reason resistance spot welding is widely used for cylindrical lithium-ion battery-pack assembly.
A proper welding process can provide:
Fast production
Consistent connections
Limited localized heating
Good mechanical retention
Automated production capability
Repeatable weld patterns
However, spot welding is not automatically safe or reliable. Poorly controlled welding can cause weak welds, excessive heating, burn-through, splashing, or damage to the cell.
12. Weld Pattern Design
The number and location of weld points influence connection reliability.
Multiple weld points can provide redundancy and distribute current.
For example, production designs may use two or more weld points per cell connection depending on strip dimensions and electrical requirements. Some practical assembly guides recommend multiple weld points and mechanical inspection after welding.
The final weld pattern should be validated experimentally.
Important factors include:
Distance between weld points
Distance from the cell edge
Strip thickness
Terminal geometry
Electrode diameter
Welding energy
Desired peel strength
Current distribution
A larger number of welds does not necessarily mean a better connection if the additional welding introduces excessive heat into the cell.
13. Positive Terminal Considerations
The positive end of an 18650 cylindrical cell normally has a raised button terminal.
This creates a smaller effective welding target than the flat negative can.
The connecting plate must therefore be accurately positioned.
Important considerations include:
Correct alignment
Insulation around the positive terminal
Avoidance of neighboring conductive surfaces
Correct electrode positioning
Adequate weld coverage
Mechanical stability
A misaligned strip can potentially create an unintended conductive path between terminals.
14. Negative Terminal Considerations
The negative side of many cylindrical cells is associated with the metal can and provides a relatively broad flat welding surface.
This can simplify strip placement.
Nevertheless, the negative connection still requires:
Proper strip positioning
Clean contact surfaces
Controlled welding parameters
Appropriate insulation
Correct current-path design
The physical simplicity of the negative terminal does not eliminate the need for process control.
15. Electrical Resistance and Heat Generation
Every conductive connection has some resistance.
In an 18650 battery pack, total resistance may include:
Cell internal resistance
Nickel strip resistance
Weld resistance
Contact resistance
Busbar resistance
Fuse resistance
Connector resistance
Wiring resistance
Even a small resistance can produce meaningful heat at high current.
For this reason, battery designers should not evaluate nickel connecting plates only by nominal material conductivity. The complete interconnection system should be considered.
A high-current pack may require:
Wider strips
Multiple parallel strips
Thicker conductors
Copper-based conductors
Reinforced busbars
Shorter current paths
Improved thermal management
16. Mechanical Function
The connecting plate is also a mechanical component.
It must withstand:
Vibration
Cell movement
Thermal expansion
Pack assembly stress
Handling
Transportation
Repeated temperature changes
A strip that is too rigid may transfer excessive mechanical stress to the weld.
A strip that is too thin may become susceptible to tearing or fatigue.
The optimal design balances:
Electrical conductivity + weldability + flexibility + mechanical strength
17. Nickel Strip as a Fuse Element
In some battery designs, the narrow nickel connection can intentionally act as a current-limiting link.
The principle is straightforward: a deliberately narrow conductor can heat and open under abnormal current conditions.
However, this should not be assumed to provide complete battery protection.
A battery pack normally requires an appropriately engineered protection system, which may include:
Battery management system
Overcurrent protection
Thermal protection
Cell balancing
Fuses
Circuit protection
The nickel connecting plate should only serve a protective function when its behavior has been specifically engineered and validated.
18. Battery Pack Applications
The 18650 Nickel Strip Battery Connecting Plate is used in many cylindrical-cell applications.
Typical areas include:
Portable power systems
Rechargeable equipment
Portable lighting
Electronic devices
Battery-powered instruments
Cordless drills
Screwdrivers
Saws
Sanders
Portable workshop equipment
E-bike battery packs
Electric scooters
Small electric mobility equipment
Compact energy-storage modules
Backup power systems
Portable energy storage
Low-voltage battery banks
Measurement equipment
Portable instruments
Communication equipment
Emergency power systems
The final application determines the required strip material, thickness, width, welding pattern, insulation system, and current capacity.
19. Battery Management System Integration
An 18650 battery pack usually requires more than cell-to-cell connections.
A BMS may monitor:
Cell-group voltage
Pack voltage
Current
Temperature
Charging condition
Discharging condition
Cell balance
Nickel connecting plates can form the main cell interconnection structure while smaller conductors connect the BMS sampling points.
Careful separation between power paths and signal paths can reduce unwanted electrical interference and simplify assembly.
20. Insulation Around Nickel Connecting Plates
Metal Connecting Plates must be properly insulated from unintended conductive surfaces.
Common battery-pack Insulation Materials include:
Fish paper
Polyimide tape
PET insulation film
PVC heat-shrink tubing
Insulation rings
Electrical insulating sheets
Flame-retardant polymer films
The positive terminal is particularly important because it must be isolated from the surrounding cell can and adjacent conductive components.
Insulation design should account for:
Voltage
Temperature
Mechanical abrasion
Moisture
Creepage distance
Clearance
Long-term aging
21. Cell Holder Compatibility
Cell holders and spacers help maintain a consistent distance between 18650 cells.
They can:
Prevent cells from moving
Maintain consistent alignment
Improve welding accuracy
Create ventilation gaps
Reduce mechanical stress
Improve pack assembly efficiency
The connecting plate should be designed around the actual cell-holder geometry.
If the strip is too wide, it may interfere with the holder.
If it is too narrow, the available welding area may be reduced.
22. Surface Quality
The surface of the nickel connecting plate should be uniform and free from obvious defects.
Important quality indicators include:
Smooth surface
Uniform thickness
Consistent width
Minimal burrs
No severe scratches
No oil contamination
No obvious oxidation
Uniform plating where applicable
Surface contamination can influence welding consistency.
For automated production, dimensional consistency becomes particularly important because welding machines rely on predictable strip positioning.
23. Edge Quality
Edges are often overlooked during battery-strip selection.
Poorly processed edges may have:
Sharp burrs
Cracks
Uneven edges
Excessive roughness
These defects can damage insulation materials or create mechanical stress concentrations.
Precision slitting and stamping can produce more controlled edges.
For high-volume battery manufacturing, edge quality should be included in incoming inspection requirements.
24. Stamped 18650 Connecting Plates
Instead of using a simple roll strip, manufacturers can produce stamped connecting plates.
Stamping allows complex shapes to be manufactured in large quantities.
Possible designs include:
Multi-cell plates
H-shaped connections
Parallel-group plates
Series bridge plates
Fusible links
Integrated mounting holes
Custom tabs
BMS connection features
Stamped parts can improve production efficiency when the battery architecture is standardized.
25. Pre-Cut Nickel Connecting Plates
Pre-cut components can reduce assembly labor.
Advantages include:
Consistent dimensions
Faster installation
Reduced cutting waste
Improved positioning
Easier automation
Better production repeatability
Pre-cut parts are especially useful when large quantities of identical battery packs are produced.
26. Custom Nickel Connecting Plates
Custom battery connecting plates can be designed according to:
Cell count
Series-parallel configuration
Cell spacing
Current requirement
Welding machine
BMS layout
Insulation requirements
Housing dimensions
Custom manufacturing may include:
Slitting
Cutting
Punching
Stamping
Bending
Forming
Surface treatment
Custom packaging
A CAD or DXF drawing can be used to communicate complex geometries during production.
27. Typical Material Options
An 18650 battery connecting plate can be manufactured from several material systems.
Suitable where high-quality nickel construction and stable welding behavior are required.
Suitable where cost, mechanical strength, and general battery-pack assembly are priorities.
Can provide a combination of high electrical conductivity and nickel surface weldability in specialized applications.
Advanced battery designs may combine different metals to balance conductivity and weldability.
Material selection should be based on the actual current path and welding process.
28. Pure Nickel Versus Nickel-Plated Steel
A simple comparison can help explain the difference.
Pure nickel
Nickel throughout the strip
Higher material cost
Good corrosion resistance
Consistent material properties
Suitable for demanding electrical applications
Nickel-plated steel
Steel core
Nickel surface
Generally lower cost
Higher mechanical strength
Different resistance characteristics
Suitable for many standard battery-pack applications
A supplier's specification should clearly identify the substrate and surface treatment.
The phrase "nickel strip" alone is not sufficient for engineering procurement.
29. Current Capacity Considerations
There is no universal current rating for an 18650 nickel strip.
The actual allowable current depends on:
Material
Cross-sectional area
Strip length
Ambient temperature
Cooling
Duty cycle
Continuous current
Peak current
Number of parallel paths
Connection resistance
Some online battery-pack guides provide approximate current ranges for particular pure-nickel dimensions, but such values should be treated as application-specific estimates rather than universal standards.
For production battery systems, current capacity should be verified through electrical and thermal testing.
30. Thermal Considerations
Heat generation is a critical factor in battery interconnection.
A strip that carries current continuously can become warmer than its surroundings.
The temperature rise depends on:
Electrical resistance
Current
Strip geometry
Airflow
Cell arrangement
Pack enclosure
Thermal interface materials
Duty cycle
High-temperature operation can accelerate aging of battery cells and insulation materials.
Therefore, the nickel connecting plate should be considered together with the pack's thermal-management strategy.
31. Vibration Resistance
Battery packs used in mobility applications may experience continuous vibration.
A connecting plate must maintain its welded joints under mechanical movement.
Potential causes of connection fatigue include:
Poor weld penetration
Excessive strip rigidity
Excessive strip tension
Cell movement
Improper holder design
Repeated thermal expansion
Mechanical validation can include vibration testing and weld-strength inspection.
32. Corrosion Resistance
Battery packs may be exposed to:
Humidity
Condensation
Salt contamination
Dust
Chemical vapors
Temperature cycling
Nickel is generally resistant to many environmental conditions, making it useful for battery interconnection.
However, corrosion resistance also depends on:
Material purity
Surface condition
Plating quality
Edge exposure
Pack sealing
Environmental conditions
A nickel-plated steel product should receive particular attention at cut edges because the underlying steel may become exposed.
33. Manufacturing Tolerances
For battery automation, dimensional consistency is extremely important.
Typical control parameters include:
Thickness tolerance
Width tolerance
Length tolerance
Flatness
Burr height
Hole position
Stamping accuracy
Surface quality
Consistent dimensions improve automated welding and reduce positioning errors.
34. Quality Inspection
A comprehensive inspection program can include:
Verify:
Material grade
Thickness
Width
Surface condition
Plating condition
Supplier documentation
Measure:
Length
Width
Thickness
Hole positions
Stamped geometry
Evaluate:
Weld appearance
Weld strength
Weld consistency
Electrical resistance
Heat damage
Check:
Continuity
Pack voltage
Insulation resistance
Polarity
BMS connections
Mechanical integrity
35. Weld Strength Testing
Weld strength is one of the most important quality parameters.
A simple mechanical pull or peel test can help determine whether the welding process is producing adequate attachment.
A good weld should remain mechanically secure under the intended mechanical load.
However, a visual inspection alone cannot always prove weld quality.
Production environments may therefore combine:
Visual inspection
Pull testing
Electrical resistance testing
Process monitoring
Destructive sampling
36. Electrical Resistance Testing
Low connection resistance is desirable for minimizing:
Voltage drop
Heat generation
Energy loss
Resistance measurements should be made using appropriate equipment and test methods.
Because very small connection resistances can be difficult to measure accurately with ordinary multimeters, production testing may require specialized low-resistance measurement equipment.
37. Common Problems During Welding
Typical welding problems include:
Possible causes:
Insufficient welding energy
Poor electrode pressure
Dirty surface
Excessive strip thickness
Incorrect welding parameters
Possible causes:
Excessive current
Excessive pulse duration
Poor electrode positioning
Possible causes:
High electrical resistance
Excessive welding energy
Poor cooling
Inadequate conductor cross-section
Possible causes:
Variable strip thickness
Uneven electrode pressure
Surface contamination
Unstable welding equipment
Industry guidance emphasizes process optimization and inspection because inconsistent welding can contribute to elevated resistance and battery-pack reliability problems.
38. Storage of Nickel Connecting Plates
Nickel strips should be stored under suitable conditions.
Recommended practices include:
Keep material dry
Avoid direct water exposure
Keep packaging closed
Prevent contamination
Avoid excessive humidity
Protect against mechanical deformation
Store away from corrosive chemicals
The storage environment should be appropriate for the specific material and surface treatment.
39. Packaging Requirements
Packaging should prevent:
Bending
Scratching
Contamination
Oxidation
Moisture exposure
Edge damage
Roll products should be properly supported.
Stamped connecting plates should be packed so that individual components do not become entangled or deformed.
For precision parts, protective film or interlayer packaging can be used.
40. Automated Battery Assembly
Modern battery manufacturing increasingly uses automated processes.
An 18650 Nickel Strip Battery Connecting Plate can be integrated into:
Automatic strip feeders
Robotic welding systems
Vision inspection
Automated cell sorting
Automated pack assembly
Inline resistance testing
For automation, the strip must have consistent:
Thickness
Width
Flatness
Feeding tension
Edge condition
Surface condition
Custom pre-cut and stamped connecting plates can simplify robotic assembly.
41. Connection Plates for High-Volume Production
Large-scale production requires repeatability.
A suitable connecting plate should allow:
Stable feeding
Fast welding
Low defect rates
Consistent dimensions
Easy inspection
Efficient packaging
Reliable traceability
Material batches should ideally be traceable to manufacturing records.
42. The Role of Nickel Connecting Plates in Battery Safety
The connecting plate is one component of a larger safety system.
Battery safety also depends on:
Cell quality
Cell matching
BMS design
Insulation
Thermal management
Mechanical structure
Overcurrent protection
Charger compatibility
Manufacturing process
A high-quality nickel strip cannot compensate for an incorrectly designed battery pack.
43. Cell Matching Before Assembly
Cells within the same battery pack should be appropriately matched according to the battery manufacturer's specifications.
Important parameters can include:
Capacity
Voltage
Internal resistance
Manufacturing batch
Age
State of charge
Practical battery-pack guidance recommends matching cells before connecting them into groups.
44. Insulation and Short-Circuit Prevention
A metal connecting plate can become dangerous if it contacts an unintended conductive surface.
Potential short-circuit risks exist around:
Positive terminals
Adjacent cells
Metal housings
BMS components
Exposed busbars
Insulation should therefore be applied systematically.
Suitable materials can include fish paper, polyimide tape, PET film, insulation rings, and heat-shrink materials.
45. 18650 Nickel Strip Battery Connecting Plate for Power Tools
Power-tool battery packs often require high current and strong mechanical construction.
The connecting system should account for:
High discharge current
Repeated vibration
Shock
Compact enclosure
Thermal management
Long operating cycles
The nickel strip may be combined with larger busbars or multiple conductive paths when the required current exceeds the capability of a single thin strip.
46. 18650 Connecting Plates for E-Bike Batteries
E-bike battery packs may contain many 18650 cells arranged in complex series-parallel configurations.
Connecting plates must accommodate:
High discharge current
Long operating periods
Vibration
Temperature changes
Compact pack geometry
For high-current applications, the designer should evaluate both the strip and every weld connection because the welds can become important parts of the total electrical resistance.
47. 18650 Connecting Plates for Energy Storage
Compact energy-storage systems may use 18650 cells when modularity and energy density are important.
The connecting plate can provide:
Parallel cell connection
Series group connection
Modular busbar connection
BMS integration
Compact assembly
Long-duration energy storage may place greater emphasis on thermal management and long-term connection stability than on short-duration peak current.
48. Connecting Plate Geometry Optimization
Geometry can be optimized to reduce material usage while maintaining electrical and mechanical performance.
Design variables include:
Strip width
Strip thickness
Bend angle
Connection length
Weld location
Cutout shape
Fuse section
Parallel paths
Computer-aided design can help optimize custom stamped connecting plates.
49. Material Traceability
For professional battery manufacturing, traceability can include:
Material batch
Material grade
Thickness
Surface treatment
Manufacturing date
Production lot
Inspection results
This information can help identify the source of defects if a welding or electrical problem occurs.
50. Procurement Checklist
When purchasing an 18650 Nickel Strip Battery Connecting Plate, consider the following questions:
Is it:
Pure nickel?
Nickel-plated steel?
Nickel-plated copper?
Another composite material?
Confirm:
Thickness
Width
Length
Tolerance
Confirm:
Plating
Surface finish
Oxidation condition
Cleanliness
Confirm:
Recommended welding method
Compatible strip thickness
Welding-energy range
Weld test requirements
Specify:
18650 cell arrangement
Series count
Parallel count
Continuous current
Peak current
Environmental conditions
51. Why "18650" Should Not Be the Only Specification
The 18650 format defines cell dimensions, but it does not define the electrical requirements of the battery pack.
Two different 18650 battery packs can require completely different connecting plates.
For example:
A small consumer battery may operate at relatively low current.
A power-tool pack can demand substantially higher current.
An e-bike pack may require continuous high-current operation and strong vibration resistance.
An energy-storage pack may emphasize long-term stability and thermal performance.
Therefore, procurement should specify the entire application rather than simply requesting "18650 nickel strip."
52. Common Dimensions
There is no single universal 18650 nickel connecting plate size.
Common commercial examples include thin strips around 0.1–0.2 mm thick, with widths such as 5–10 mm, while specialized designs use wider or thicker materials. Commercial products also demonstrate 0.15 mm × 27 mm multi-cell configurations and other custom geometries.
The correct dimension should be selected according to the pack's electrical and mechanical requirements.
53. Preformed Multi-Cell Connecting Plates
Preformed plates can simplify assembly for fixed cell layouts.
Examples include:
2P plates
3P plates
4P plates
5P plates
6P plates
7P plates
Commercial battery-strip products are available in preconfigured multi-cell formats, demonstrating how connecting geometry can be tailored to specific pack layouts.
Such components can reduce manual cutting and positioning.
54. Laser Cutting and Stamping
Two common methods for producing custom connecting plates are laser cutting and stamping.
Advantages:
Flexible geometry
Suitable for prototypes
Easy design changes
Good for low-volume customization
Advantages:
High production speed
Suitable for high-volume manufacturing
Consistent geometry
Lower unit cost at sufficient volume
The appropriate method depends on volume, geometry, material thickness, and dimensional requirements.
55. Nickel Connecting Plate Surface Treatments
Some battery connecting components may use:
Bare nickel
Nickel plating
Tin plating
Other engineered surface treatments
Surface treatment can influence:
Corrosion resistance
Solderability
Welding behavior
Contact characteristics
Appearance
Any surface treatment should be validated against the selected welding process.
56. Sustainability Considerations
Material efficiency is increasingly important in battery manufacturing.
A properly designed connecting plate can minimize:
Excess metal
Production waste
Unnecessary conductor length
Packaging material
Efficient stamping layouts can improve material utilization.
At the end of battery life, metallic components can also contribute to material-recovery processes, although recycling procedures depend on the overall battery construction.
57. Design Considerations for Compact Battery Packs
Compact battery packs require careful routing of connecting plates.
The designer should maintain adequate clearance between:
Positive terminals
Negative terminals
Adjacent strips
BMS components
Housing structures
The connecting plate should not interfere with cell holders, insulation, thermal interfaces, or enclosure components.
58. Importance of Manufacturing Cleanliness
Clean surfaces are important for stable welding.
Potential contaminants include:
Oil
Dust
Fingerprints
Oxidation
Metal particles
Packaging residue
Production environments should establish suitable cleaning and handling procedures.
Operators should avoid unnecessary contact with the welding surface.
59. Quality Control During Production
A production-quality system may monitor:
Strip dimensions
Welding current
Welding time
Electrode pressure
Weld resistance
Weld strength
Pack voltage
Insulation resistance
Temperature
Process monitoring can help identify abnormalities before finished battery packs reach final inspection.
60. Future Development of 18650 Battery Connecting Technology
Battery interconnection technology continues to develop.
Future connecting systems may increasingly combine:
Nickel
Copper
Aluminum
Composite metals
Integrated busbars
Flexible printed circuits
Advanced fuse structures
Automated welding
Laser welding
Intelligent inspection
The basic purpose remains the same: create reliable, low-loss, mechanically stable electrical pathways between cells.
61. Practical Selection Summary
The selection process can be simplified into several steps.
Confirm that the battery uses 18650 cells.
Identify:
Series count
Parallel count
Continuous current
Peak current
Choose between:
Pure nickel
Nickel-plated steel
Nickel-plated copper
Composite materials
Determine:
Thickness
Width
Length
Geometry
Confirm compatibility with the actual spot welder and electrode system.
Measure temperature rise under realistic operating conditions.
Perform appropriate weld and vibration testing.
Ensure the completed assembly prevents unintended electrical contact.
62. Recommended Technical Specification Format
For professional procurement, a specification can be written in the following format:
Product Name: 18650 Nickel Strip Battery Connecting Plate
Application: 18650 Cylindrical Lithium Ion Battery Pack
Material: Pure Nickel or Nickel Plated Steel
Thickness: Customized according to pack current and welding requirements
Width: Customized according to cell layout
Length: Customized or supplied in roll form
Surface: Bare Nickel or Nickel Plated
Processing: Slitting Cutting Stamping Punching
Welding: Resistance Spot Welding
Configuration: Series Parallel Cell Connection
Packaging: Roll or Pre Cut Pieces
Inspection: Dimensional Surface Welding and Electrical Testing
This format gives purchasing and engineering teams a clearer basis for product selection.
63. Final Considerations
The 18650 Nickel Strip Battery Connecting Plate is a small component, but it plays an important role in the overall performance of a cylindrical lithium-ion battery pack.
The best connecting plate is not necessarily the thickest, widest, or most expensive option. It is the component whose material, dimensions, welding behavior, electrical performance, mechanical characteristics, and insulation requirements are correctly matched to the battery architecture.
Pure nickel and nickel-plated steel should be evaluated separately. Strip thickness should be selected together with welding capability. Width and geometry should correspond to the current path and cell arrangement. Weld quality should be verified rather than judged solely by appearance.
For professional applications, the connecting plate should be evaluated as part of the complete battery interconnection system, including cells, welds, BMS, busbars, insulation, thermal management, housing, and protection circuitry.
Reliable battery-pack manufacturing depends on the interaction of all these components.
This website uses cookies to ensure you get the best experience on our website.
Phone
