The 32650 Single Parallel H Type Battery Cell Nickel Plated Steel Strip Roll is a preformed battery interconnection component designed for cylindrical battery pack assembly. Its H-shaped geometry is developed around the dimensional arrangement of 32650 cylindrical cells and can simplify the connection of two cells arranged in a single parallel group. Nickel-plated steel construction combines a steel substrate with a nickel surface layer, providing a practical balance between mechanical strength, corrosion resistance, formability, weldability, and material cost.
In cylindrical battery pack manufacturing, the interconnection strip is more than a simple piece of conductive metal. It becomes part of the electrical pathway between cells and must also withstand localized heat during resistance spot welding, mechanical movement during assembly, vibration during service, and repeated thermal expansion and contraction. For this reason, the geometry, thickness, surface condition, plating quality, dimensional tolerance, and weldability of a battery Nickel Strip all influence the final performance of the battery assembly.
A single-parallel H type configuration is particularly useful when two 32650 cells need to be connected in parallel before the resulting groups are connected in series. Preconfigured strip geometry can reduce manual positioning work, maintain consistent cell spacing, and improve repeatability during battery pack production. Commercial examples show H-shaped 32650 nickel-plated strips in thicknesses such as 0.12 mm and 0.15 mm, while customized versions may be available in other thicknesses and dimensions.
This article provides an industry-oriented overview of 32650 battery nickel strip, including its construction, material characteristics, H type geometry, manufacturing considerations, welding behavior, electrical role, mechanical performance, dimensional design, battery pack applications, quality control, storage, handling, selection criteria, and common design considerations.
1. What Is a 32650 Nickel Plated Steel Strip?
A 32650 nickel plated steel strip is a thin conductive metal component designed to interconnect cylindrical 32650 battery cells. The number “32650” generally refers to the approximate dimensional designation of the cylindrical cell format, with a nominal diameter around 32 mm and a nominal length around 65 mm, although actual cell dimensions can vary according to manufacturer, terminal construction, insulation, and cell design.
The strip normally consists of a steel base material covered by a nickel coating. The steel substrate provides mechanical strength and dimensional stability, while the nickel surface provides a suitable metallic surface for battery pack interconnection and helps protect the underlying steel against corrosion.
Unlike a simple flat metal strip, an H type battery strip is stamped or formed into a predetermined geometry. The geometry can include cell-contact areas, connecting bridges, holes, slots, or other positioning features. These features allow the strip to correspond to the arrangement of cylindrical cells.
The term single parallel refers to a configuration in which two cells are connected in parallel within one group. Depending on the battery design, multiple single-parallel groups can subsequently be connected in series to achieve the required voltage and capacity.
H-shaped 32650 strips are commercially offered as preconfigured components for 2P layouts, and dimensions such as approximately 46.5–49.5 mm overall width and 0.15 mm thickness can be found among current market examples. Exact dimensions should always be matched to the actual cell diameter, center spacing, terminal geometry, insulation system, and welding equipment rather than copied from a generic product.
2. Why the H Type Configuration Matters
The H-shaped configuration provides a geometric connection between two neighboring cylindrical cells. Instead of cutting individual straight strips and manually arranging them, a preformed H type strip integrates multiple connection sections into one component.
This approach offers several manufacturing benefits.
First, it helps establish repeatable cell spacing. A battery pack may contain dozens or hundreds of cylindrical cells, and even small positioning errors can accumulate across a large assembly. A correctly designed preformed strip can help maintain consistent electrode alignment.
Second, an H type strip can simplify the welding sequence. The operator or automated welding machine can position the strip over the appropriate terminals and perform the required welds at predetermined locations.
Third, the preconfigured geometry can reduce material waste compared with manually cutting multiple pieces from continuous strip stock.
Fourth, H-shaped strips can improve assembly consistency. Instead of relying on an operator to determine the correct length and location of every connection, the stamped geometry provides a visual and physical reference.
For battery manufacturers, consistency is especially important because variations in connection geometry can affect current distribution, weld quality, mechanical stress, and production efficiency.
3. Understanding Single Parallel Battery Connections
A single-parallel battery group contains two cells electrically connected in parallel. When cells are connected in parallel, their positive terminals are connected together and their negative terminals are connected together.
The resulting group maintains approximately the same nominal voltage as an individual cell while increasing available capacity and current capability, assuming the cells are appropriately matched.
For example, two cells with the same nominal voltage and similar capacity can be arranged as a 2P group. If additional groups are connected in series, the complete battery architecture can be described using an arrangement such as 2P followed by a specified number of series groups.
The nickel strip is therefore responsible for creating low-resistance electrical paths between the appropriate cell terminals.
However, the strip should not be considered independently from the complete battery system. Current distribution depends on:
Cell chemistry
Cell capacity
Cell internal resistance
Cell terminal geometry
Strip material
Strip thickness
Strip width
Weld count
Weld location
Current path length
Pack operating current
Thermal conditions
Busbar design
BMS architecture
A properly designed 32650 nickel strip must therefore be selected according to the complete electrical and mechanical requirements of the pack.
4. Construction of Nickel Plated Steel Battery Strip
The basic construction consists of two major metallic components:
Steel substrate
The steel core provides structural strength and allows the strip to maintain its designed geometry during stamping, handling, and welding.
Nickel surface coating
The nickel layer covers the steel substrate and provides the exposed metallic surface. Nickel offers good corrosion resistance and is widely used as a surface material for battery connection components.
The quality of the coating is important. A uniform coating can provide more consistent surface characteristics from one section of the strip to another. Poor coating uniformity, contamination, scratches, or exposed substrate areas can negatively affect appearance, corrosion resistance, and welding consistency.
Some products use nickel-plated steel specifically because it provides a compromise between the characteristics of pure nickel and the lower material cost of steel-based construction. Market specifications for battery connection strip commonly identify SPCC or similar steel substrates combined with nickel plating.
5. Nickel Plated Steel Compared With Pure Nickel
Battery connection strips are available in both nickel-plated steel and pure nickel.
Pure nickel provides excellent corrosion resistance and predictable electrical and welding behavior. Nickel grades such as Nickel 200 and Nickel 201 are commonly used for battery interconnection applications.
Nickel-plated steel, however, uses a steel substrate beneath the nickel surface. This construction provides higher mechanical stiffness and can reduce material cost.
The choice depends on application requirements.
For lower-power battery packs, portable equipment, lighting systems, and many general-purpose battery assemblies, nickel-plated steel may provide a practical solution.
For high-current applications, the designer should carefully evaluate electrical resistance, thermal rise, weld behavior, and the actual current path before selecting nickel-plated steel.
Material substitution should never be based solely on appearance. Two strips may look nearly identical while having substantially different substrate materials, coating thicknesses, electrical properties, and welding behavior.
6. Electrical Function in a 32650 Battery Pack
The main electrical purpose of the strip is to transfer current between cells.
When a battery pack operates, current flows through the interconnection components. Every conductor has resistance, and the resulting voltage drop and heat generation increase as resistance and current increase.
The relationship can be represented by the familiar electrical principles:
Voltage drop increases with resistance and current.
Resistive heating increases approximately with the square of current.
This means that a connection component that appears electrically adequate under a low-current condition may behave differently at a substantially higher discharge rate.
The resistance of a battery strip depends on several factors:
Substrate material
Nickel layer thickness
Strip thickness
Strip width
Current path length
Weld resistance
Contact resistance
Surface condition
Temperature
For this reason, the strip should be evaluated as part of the entire interconnection system rather than using the resistance of the metal strip alone.
7. Current Distribution in Single Parallel Groups
In a 2P arrangement, two cells share the current path. Ideally, current distribution between the cells is reasonably balanced.
However, real battery packs rarely achieve perfect current sharing.
Differences can arise from:
Cell internal resistance
Cell state of charge
Cell capacity
Cell temperature
Weld resistance
Strip geometry
Connection length
Contact pressure
Cell aging
If one cell has substantially higher resistance than another, the current distribution may become uneven.
The nickel strip therefore plays an important role in maintaining a predictable electrical pathway.
A symmetrical H type geometry can be advantageous because both cells are connected through a deliberately designed pattern rather than through randomly cut pieces of strip.
8. H Type Geometry and Cell Spacing
The exact geometry of an H type strip depends on the cell format and pack design.
32650 cells are larger in diameter than common 18650 cells, so the strip must accommodate a larger cell spacing and larger terminal region.
Current market examples show 32650 nickel strips using different cell-spacing dimensions, including approximately 32.5 mm and 34.5 mm configurations. Other H type products use customized overall dimensions to match specific battery layouts.
This demonstrates an important engineering principle:
A strip designed for one 32650 cell arrangement should not automatically be assumed to fit every 32650 cell.
The actual cell diameter, terminal position, holder design, center distance, insulation thickness, and welding pattern must be checked.
9. Typical Thickness Selection
Battery nickel strips are available in various thicknesses.
Common market examples for 32650 H type strips include approximately:
0.12 mm
0.15 mm
0.20 mm
Other customized thicknesses
Some suppliers list 0.12–0.30 mm as a possible range for H type battery strips, while other 32650 products use 0.15 or 0.20 mm.
Thickness selection should consider:
Required current
Weldability
Pulse energy
Number of weld points
Available welding equipment
Strip width
Thermal requirements
Mechanical requirements
Pack configuration
A thicker strip is not automatically better.
Increasing thickness can improve the cross-sectional area available for current flow, but it can also change the welding energy required. A welding machine configured for a thin strip may not produce the same weld quality on a substantially thicker strip.
Therefore, thickness and welding parameters should be developed together.
10. Strip Width and Current Path
Width is another important design variable.
A wider strip provides a larger conductive cross-sectional area and can reduce electrical resistance for a given material and thickness.
However, excessive width can create several practical problems:
More difficult positioning
Greater risk of interference with cell insulation
Increased weight
More complex stamping
Higher material usage
Reduced flexibility
Potential interference with BMS components
The ideal width is therefore a compromise between electrical performance, weldability, mechanical design, insulation clearance, and manufacturing efficiency.
For preformed H type strips, the overall width may be determined primarily by the center-to-center spacing of the two cells and the required terminal connection area.
11. Nickel Plating and Corrosion Resistance
The nickel coating provides protection to the steel substrate and contributes to surface durability.
Battery packs may experience temperature changes, humidity, condensation, handling contamination, and long operating periods. A properly controlled nickel coating can help protect the underlying steel from environmental exposure.
Surface quality should be inspected for:
Peeling
Blisters
Pinholes
Scratches
Oxidation
Uneven coating
Exposed substrate
Contamination
A strip that has visible coating damage may not be suitable for demanding battery applications.
The coating should remain sufficiently adherent during stamping and welding. Excessive mechanical deformation can damage the coating, particularly around sharp corners or punched openings.
12. Spot Welding Compatibility
The primary joining method for many cylindrical battery nickel strips is resistance spot welding.
Spot welding uses controlled electrical current and pressure to create localized heat at the interface between the strip and the cell terminal.
The welding process must balance:
Welding current
Pulse duration
Electrode pressure
Electrode geometry
Number of pulses
Strip thickness
Surface condition
Cell terminal construction
The objective is to produce a strong electrical and mechanical joint without causing unacceptable damage to the battery cell.
Battery welding should therefore be developed through controlled process qualification rather than relying on generic machine settings.
A current market description of H-shaped 32650 strips specifically identifies spot welding as their intended joining process.
13. Why Weld Quality Matters
A battery pack can contain a large number of individual weld points.
If one weld has significantly higher resistance than the others, it may become a localized heating point.
Potential consequences of poor welding include:
Increased contact resistance
Local temperature rise
Intermittent electrical connection
Mechanical separation
Voltage imbalance
Reduced pack efficiency
Increased maintenance risk
The visual appearance of a weld alone is not enough to establish quality.
A reliable production process may use combinations of:
Visual inspection
Pull testing
Peel testing
Electrical resistance measurement
Destructive weld evaluation
Process monitoring
Statistical process control
14. Welding Parameter Development
There is no universal welding parameter for every 32650 nickel strip.
The correct setting depends on the actual combination of:
Strip + cell terminal + welding electrode + welding machine + pressure + pulse profile.
Changing the strip from 0.12 mm to 0.20 mm can alter the required energy.
Changing from pure nickel to nickel-plated steel can also alter welding behavior.
Similarly, a different cell terminal finish may require a different welding window.
Therefore, production engineers should establish a validated process window using the actual production materials.
15. Avoiding Excessive Heat During Welding
Cylindrical battery cells are heat-sensitive components.
During spot welding, heat should remain localized near the intended weld interface.
Excessive welding energy can increase heat transfer into the cell.
Potential risks include:
Cell temperature rise
Damage to insulation
Damage to internal components
Accelerated cell aging
Safety-related failure
For this reason, battery welding systems should be appropriately controlled and qualified.
The strip should be thin enough and weldable enough to produce a secure joint without requiring unnecessarily high welding energy.
16. Mechanical Strength of the Strip
Electrical conductivity is not the only consideration.
The strip must also withstand handling and assembly forces.
Mechanical requirements may include resistance to:
Bending
Pulling
Vibration
Assembly movement
Thermal expansion
Transport shock
A steel-based substrate provides useful mechanical stiffness.
This can be particularly beneficial when a preformed H type strip must maintain its shape while being transported, positioned, and welded.
However, excessive stiffness may also increase stress on weld points if the cells move relative to one another.
Therefore, mechanical design should consider both strip strength and pack structural support.
17. Battery Holder Compatibility
Many 32650 battery packs use cell holders or positioning structures.
The holder establishes:
Cell center spacing
Cell orientation
Mechanical stability
Insulation clearance
Welding access
An H type strip should be compatible with the selected holder.
A mismatch between the strip and holder can lead to:
Misaligned weld locations
Strip deformation
Poor electrode contact
Excessive mechanical stress
Insufficient insulation distance
For this reason, the strip should be selected together with the cell holder rather than independently.
18. Single Parallel H Type Strip Versus Straight Strip
A straight strip is essentially continuous flat stock that must be cut or arranged manually.
An H type strip is preformed for a specific cell arrangement.
The straight strip provides greater flexibility because the user can create many different geometries.
The H type strip provides greater convenience and repeatability for standardized battery layouts.
For high-volume production, preformed geometry can reduce assembly time.
For prototypes and highly customized packs, continuous strip material may sometimes provide greater flexibility.
The choice depends on production volume and pack architecture.
19. Single Parallel H Type Versus Multi Parallel Designs
Battery nickel strips can be designed for:
1P
2P
3P
4P
Higher parallel configurations
The appropriate geometry depends on the battery architecture.
A single-parallel H type strip connects two cells.
A larger multi-parallel strip may connect three, four, or more cells.
Current market examples demonstrate that 32650 nickel strip designs can be supplied for different parallel configurations, including 2P, 3P, and 4P layouts.
The greater the number of cells connected through a common strip, the more important current distribution and heat management become.
20. Battery Pack Applications
The 32650 Single Parallel H Type Battery Cell Nickel Plated Steel Strip Roll can be used in a range of cylindrical-cell battery applications.
Typical applications include:
Lithium-ion battery packs
Lithium iron phosphate battery packs
Solar energy storage packs
Portable energy storage
Electric mobility systems
Power tools
Lighting batteries
Backup power systems
Battery modules
Industrial battery assemblies
Custom battery packs
Current commercial descriptions also associate 32650 nickel strips with applications such as solar storage, electric mobility, power tools, and energy-storage systems.
The final suitability depends on current demand, cell chemistry, thermal design, electrical architecture, and applicable safety requirements.
21. Use in Lithium Iron Phosphate Battery Packs
32650 cells are frequently associated with lithium iron phosphate battery designs.
LFP cells are valued for characteristics such as long cycle life and thermal stability.
However, using an LFP cell does not eliminate the need for careful interconnection design.
The nickel strip still has to provide:
Reliable electrical connection
Stable mechanical connection
Appropriate weldability
Suitable corrosion resistance
Adequate current-carrying capability
The battery chemistry changes the operating characteristics of the pack, but it does not remove the fundamental importance of interconnect quality.
22. Use in Solar Energy Storage
Solar storage systems can use cylindrical cells assembled into larger battery modules.
In such systems, the nickel strip becomes part of the cell-to-cell electrical network.
Compared with small consumer devices, energy-storage systems may operate for much longer periods and may experience significant thermal cycling.
Therefore, long-term stability becomes especially important.
Designers should evaluate:
Continuous current
Peak current
Ambient temperature
Enclosure ventilation
Cell balancing
Weld reliability
Strip temperature
Insulation system
BMS protection
23. Use in Portable Energy Storage
Portable energy-storage devices require a combination of:
Compact dimensions
Low weight
Reliable electrical connections
Mechanical durability
Efficient manufacturing
The preformed H type strip can simplify assembly when the battery layout is standardized.
Because the strip is designed around the cell arrangement, it can reduce the need for manual cutting and positioning.
However, portable products may also experience vibration, impact, and frequent transportation, making mechanical weld reliability particularly important.
24. Use in Power Tool Battery Packs
Power tools may experience high instantaneous current demand.
Battery pack interconnections therefore need careful consideration.
A strip that works adequately for a low-current lighting application may not necessarily be appropriate for a high-power tool.
For power-tool battery designs, engineers should evaluate:
Peak discharge current
Continuous discharge current
Number of parallel cells
Strip cross section
Weld count
Thermal rise
BMS current rating
The battery strip should be considered part of the complete high-current path.
25. Material Selection for the Steel Substrate
The steel substrate should have suitable characteristics for battery strip manufacturing.
Important properties include:
Thickness uniformity
Tensile strength
Elongation
Surface quality
Dimensional stability
Stamping performance
Weldability
A substrate with poor dimensional consistency can cause variation during stamping.
Poor ductility may lead to cracking around punched holes or sharp corners.
Surface defects may also become visible through the nickel coating or contribute to coating irregularities.
26. Nickel Coating Thickness
Nickel coating thickness affects surface protection and manufacturing behavior.
A very thin coating may provide inadequate protection if not properly controlled.
An excessively thick coating may increase material cost and potentially alter welding characteristics.
Commercial battery strip specifications can include nickel coating thickness values around the micrometer range, with some manufacturers offering customized coating levels.
For procurement, it is better to specify:
Nominal coating thickness
Minimum coating thickness
Measurement method
Coating uniformity
Both-side or single-side coating
Surface finish
rather than simply requesting “nickel plated.”
27. Dimensional Tolerances
Dimensional tolerance is particularly important for preformed H type strips.
Relevant dimensions can include:
Overall length
Overall width
Strip thickness
Cell spacing
Hole diameter
Hole position
Slot length
Bridge width
Contact pad dimensions
A small dimensional error can become significant when many cells are assembled together.
For example, if the cell center distance does not match the holder, the strip may need to be forced into position, introducing mechanical stress.
Precision stamping and inspection therefore contribute directly to assembly quality.
28. Holes and Slots
Some battery strips include holes or slots.
These features can serve several purposes:
Positioning
Weight reduction
Clearance
Screw mounting
Visual alignment
Holder integration
Hole geometry must be designed carefully because sharp internal corners can concentrate mechanical stress.
The location of holes should also avoid areas where they would reduce the effective electrical cross-sectional area excessively.
29. Stamping and Forming Process
H type strips are commonly produced through stamping or precision forming.
The general manufacturing process may include:
Steel strip preparation
Nickel plating
Coil inspection
Slitting
Precision stamping
Hole or slot formation
Deburring
Dimensional inspection
Surface inspection
Coiling or packing
Final quality verification
For high-volume production, progressive stamping tools can produce repeated geometries with consistent dimensions.
Tooling accuracy directly influences final strip geometry.
30. Burr Control
Burrs are unwanted raised edges created during cutting or punching.
Battery strip burrs can cause problems because the strip may be installed close to cell insulation.
Potential issues include:
Insulation damage
Scratching
Assembly interference
Reduced safety clearance
Poor appearance
Therefore, burr height should be controlled during stamping.
The appropriate limit depends on strip thickness and the battery assembly design.
31. Surface Cleanliness
Before welding, the strip surface should be clean.
Potential contaminants include:
Oil
Dust
Metal particles
Oxide
Packaging residue
Finger oils
Contamination can alter welding behavior.
For automated battery production, controlling the cleanliness of incoming strip material can help reduce weld variability.
32. Coil or Roll Packaging

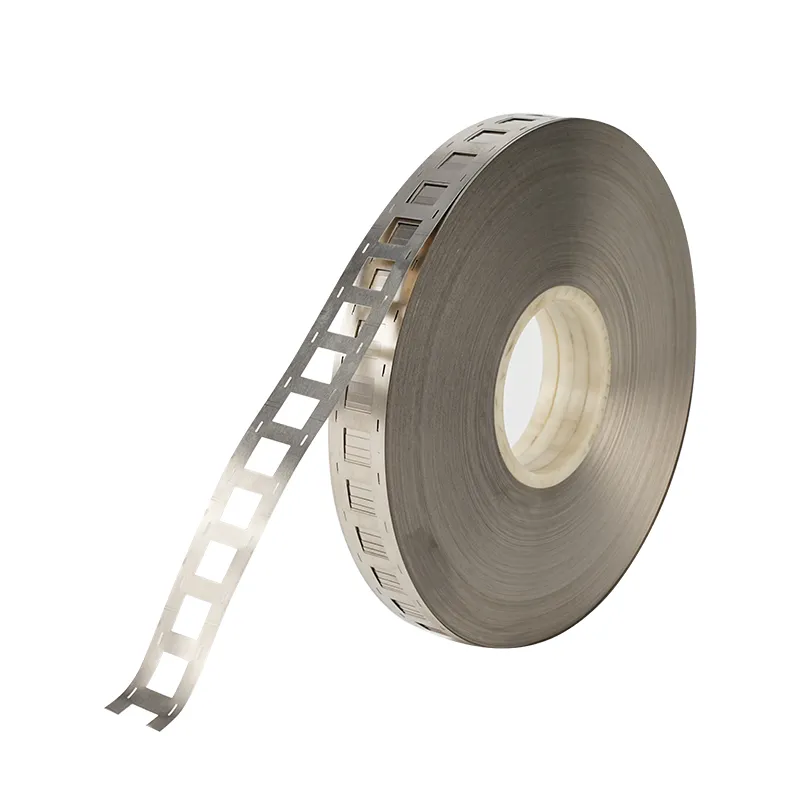

The word “roll” in 32650 Single Parallel H Type Battery Cell Nickel Plated Steel Strip Roll generally indicates that the preformed or continuous strip is supplied in a wound form suitable for storage, transportation, or automated processing.
Roll packaging offers several advantages:
Efficient storage
Reduced handling
Continuous feeding
Easier automated assembly
Lower packaging volume
However, the winding tension should be controlled.
Excessive winding tension can deform delicate stamped features.
Poor winding can also create telescoping, edge damage, or uneven feeding.
33. Roll Length and Production Efficiency
Longer rolls can reduce the frequency of material replacement during production.
However, roll length should be selected based on:
Stamping process
Feeding equipment
Production volume
Storage conditions
Packaging requirements
For manual assembly, shorter lengths may be easier to handle.
For automated lines, longer rolls can improve productivity.
34. Edge Quality
Edge quality is an important but sometimes overlooked property.
The strip edges should be:
Smooth
Consistent
Free from severe burrs
Free from cracks
Free from exposed substrate caused by excessive damage
Good edge quality helps protect surrounding insulation and improves automated feeding.
35. Temperature Considerations
Battery packs can operate across a wide temperature range.
The strip therefore experiences thermal expansion and contraction.
Nickel-plated steel has different thermal properties from the cell can, electrode materials, insulation, and other components.
Repeated thermal cycling can introduce mechanical stress at weld points.
For demanding applications, thermal cycling tests can help determine whether the strip and weld joints remain stable.
36. Vibration Resistance
Battery packs used in vehicles, electric bicycles, scooters, portable equipment, and industrial machinery may experience vibration.
The strip must remain securely attached to the cell terminals.
The mechanical design should avoid excessive unsupported strip length.
Cell holders, adhesive insulation, compression structures, and module housings can all contribute to vibration resistance.
The nickel strip should therefore be evaluated as part of the complete mechanical structure.
37. Insulation Requirements
The nickel strip is conductive and must be separated from unintended conductive structures.
Battery pack insulation may include:
Fish paper
PET insulation
PC insulation
Heat shrink film
Cell holders
Insulating sheets
Electrical tape
Busbar covers
Insulation design should ensure that the conductive strip cannot contact the opposite polarity, enclosure, or adjacent conductive component.
Particular attention should be given to:
Strip edges
Weld points
Holes
Corners
Cell ends
38. Relationship With Battery Management Systems
The nickel strip is a power-path component, while the Battery Management System performs monitoring and protection functions.
BMS wiring may connect to selected cell groups for:
Voltage measurement
Temperature monitoring
Balancing
Overvoltage protection
Undervoltage protection
The strip should be arranged so that BMS sensing wires can be routed without creating accidental short circuits.
In larger battery assemblies, the power interconnection pattern and sensing architecture should be designed together.
39. Importance of Cell Matching
A high-quality nickel strip cannot compensate for poorly matched cells.
Cells in a parallel group should generally be appropriately matched according to the battery design requirements.
Important parameters can include:
Capacity
Open-circuit voltage
Internal resistance
State of charge
Age
Manufacturer specifications
Significant differences between parallel cells can result in uneven current distribution.
The strip provides the electrical connection, but the battery system designer remains responsible for cell matching and pack-level control.
40. Electrical Resistance of the Complete Connection
The total resistance of a battery connection is not simply the resistance of the nickel-plated steel.
It includes:
Strip resistance + weld resistance + cell terminal resistance + additional interface resistance
Even if the strip itself has low resistance, poor welds can dominate the total connection resistance.
Therefore, pack validation should evaluate the complete connection.
For high-current applications, thermal imaging under controlled load can also help identify unexpected hot spots.
41. Thermal Management
Battery interconnects generate some heat when current flows.
The amount depends on current and resistance.
If the strip becomes significantly hotter than surrounding components, the design should be reviewed.
Thermal management can include:
Increasing conductive cross section
Optimizing weld layout
Reducing connection length
Improving airflow
Improving heat conduction
Adjusting parallel configuration
Using a different conductor material
Thermal design must be integrated with the cell and module enclosure.
42. Quality Inspection of Nickel Plated Steel Strip
A comprehensive incoming inspection may include:
Check for:
Scratches
Oxidation
Stains
Plating defects
Burrs
Deformation
Measure:
Thickness
Width
Length
Hole position
Cell spacing
Overall geometry
Verify:
Steel grade
Nickel coating
Coating thickness
Mechanical properties
Evaluate:
Weld strength
Weld appearance
Electrical resistance
Welding consistency
43. Common Manufacturing Defects
Potential defects include:
Uneven nickel coating
May cause inconsistent surface properties.
Excessive burrs
May damage insulation.
Incorrect cell spacing
May prevent proper installation.
Strip deformation
May cause poor electrode contact.
Surface contamination
May affect welding.
Cracking around holes
May reduce mechanical reliability.
Incorrect thickness
May alter electrical and welding behavior.
Quality control should identify these defects before the strip reaches final battery assembly.
44. Common Procurement Mistakes
One common mistake is specifying only the phrase “32650 nickel strip.”
This description is incomplete.
A proper specification should identify:
Cell format
Parallel configuration
Geometry
Material
Thickness
Width
Cell spacing
Hole pattern
Nickel coating
Surface finish
Welding method
Packaging format
Another mistake is choosing the strip solely according to price.
The lowest material price may not provide the lowest overall battery production cost if it causes higher scrap, poor weld yield, or assembly problems.
45. Do Not Assume All 32650 Cells Have Identical Dimensions
The term 32650 describes a cell format, not necessarily one universal physical design.
Differences can occur in:
Actual diameter
Actual length
Positive terminal shape
Negative terminal geometry
Terminal height
Insulation ring dimensions
Cell holder compatibility
Therefore, the strip should be matched to the actual cell model used in production.
46. Selecting Between 0.12 mm, 0.15 mm, and 0.20 mm
A general selection approach can be used.
May be suitable for applications where lower strip thickness and easier welding are priorities.
A commonly encountered thickness for preformed 32650 battery strips and a practical compromise between mechanical strength, conductive cross section, and weldability. Current commercial 32650 H type examples include 0.15 mm products.
Provides greater cross-sectional area but may require different welding parameters and greater welding energy.
These values should not be treated as universal current ratings.
Actual current capability must be validated through electrical and thermal testing.
47. Why Current Rating Should Not Be Based on Thickness Alone
A thicker strip does not automatically mean a proportionally higher allowable current.
The actual current distribution depends on:
Width
Length
Material resistivity
Temperature
Weld resistance
Number of parallel paths
Pack cooling
Duty cycle
A short, wide conductor can behave very differently from a long, narrow conductor even when both have the same thickness.
Therefore, battery interconnect design should use the complete geometry.
48. Custom H Type Nickel Strip
Custom manufacturing may be useful when standard H type geometry does not match a particular battery module.
Custom parameters can include:
Strip thickness
Overall width
Cell spacing
Hole dimensions
Hole position
Bridge dimensions
Weld pad dimensions
Roll length
Plating thickness
Surface finish
Customized geometry can be particularly useful for OEM battery packs and automated production lines.
49. Design for Automated Assembly
Automated battery assembly requires highly consistent components.
The strip should have:
Stable dimensions
Consistent feeding
Controlled winding
Predictable stamping
Low burrs
Consistent weld surface
Repeatable hole positioning
A preformed H type roll can be integrated into a feeding system where the strip is indexed and positioned automatically.
The design should therefore account for machine tolerances rather than only manual assembly requirements.
50. Storage of Nickel Plated Steel Strip
Battery strips should be stored in a clean and dry environment.
Recommended general practices include:
Avoid excessive humidity
Protect from condensation
Keep packaging intact
Avoid direct contamination
Prevent mechanical deformation
Avoid contact with corrosive substances
Store rolls securely
If the surface becomes contaminated or oxidized during long-term storage, welding behavior may change.
51. Handling During Assembly
Operators should avoid unnecessary bending of preformed H type strips.
The following practices can help:
Use clean gloves where appropriate
Avoid dragging strips across dirty surfaces
Do not crush rolls
Avoid dropping rolls
Protect stamped features
Keep conductive components separated from unintended conductive surfaces
Proper handling helps maintain surface and dimensional quality.
52. Environmental Considerations
Nickel-plated steel is a durable metallic material, but battery pack manufacturers should still consider environmental exposure.
Potential environmental conditions include:
High humidity
Temperature cycling
Dust
Salt-containing environments
Chemical exposure
Condensation
For demanding applications, corrosion testing and environmental qualification may be appropriate.
The final battery enclosure and sealing design also have a major effect on environmental durability.
53. Relevance to Energy Storage Systems
Energy-storage systems often operate for long periods.
This makes connection reliability particularly important.
A battery strip used in an energy-storage module should be evaluated for:
Long-term weld stability
Corrosion resistance
Thermal cycling
Mechanical vibration
Continuous current
Maintenance conditions
The strip should be selected based on the complete operating profile rather than the nominal battery capacity alone.
54. Relevance to Electric Mobility
Electric bicycles, scooters, carts, and other electric mobility products can use cylindrical battery cells.
These products can experience:
Vibration
Shock
Outdoor humidity
Repeated charging
High discharge currents
The nickel strip must therefore provide both electrical and mechanical reliability.
The strip should be supported by an appropriate holder and protected by a suitable insulation system.
55. Environmental and Regulatory Documentation
Depending on the target market, purchasers may request documentation related to:
Material composition
Nickel coating
Restricted substances
RoHS
REACH
Material certificates
Quality inspection reports
The exact requirements depend on the finished battery product and destination market.
Suppliers should provide documentation that accurately reflects the actual material supplied.
56. Traceability
For professional battery manufacturing, traceability can be valuable.
Important traceability information may include:
Raw material batch
Plating batch
Stamping batch
Production date
Inspection results
Packaging batch
Shipment information
If a problem is discovered in production, traceability allows affected material to be identified more efficiently.
57. Packaging for Export
For international shipment, the strip should be protected against:
Moisture
Impact
Deformation
Contamination
Abrasion
Rolls should be secured inside suitable packaging.
If the strip contains precision stamped features, the packaging should prevent the features from being crushed or distorted.
58. Sustainable Manufacturing Considerations
Material efficiency can be improved through optimized stamping layouts.
Manufacturers can reduce scrap by designing:
Efficient nesting
Appropriate bridge dimensions
Optimized strip width
Reusable coil layouts
Metal scrap generated during stamping can generally be collected for recycling according to local industrial recycling practices.
59. Future Development of Battery Interconnection Strips
Battery interconnection technology continues to evolve.
Future development may focus on:
Higher current density
Lower resistance
Improved weldability
Better automated feeding
More compact geometry
Higher dimensional precision
Integrated sensing structures
Improved thermal management
Customized stamped architectures
As battery packs become more integrated, the nickel strip may increasingly be designed together with holders, busbars, sensing circuits, and thermal structures.
60. 32650 Nickel Strip as Part of a Complete Battery System
It is important to understand that the strip is only one part of a battery pack.
A reliable battery system requires coordinated design of:
Cells
Nickel strips
Welds
Insulation
Cell holders
BMS
Fuses
Busbars
Thermal management
Enclosure
Charging system
A high-quality strip cannot compensate for poor cell selection, inadequate insulation, incorrect welding, or insufficient protection circuitry.
61. Practical Selection Checklist
Before purchasing a 32650 Single Parallel H Type Battery Cell Nickel Plated Steel Strip Roll, confirm the following:
Is the strip designed for the exact 32650 cell geometry?
Is the configuration single parallel or another parallel arrangement?
Does the cell spacing match the holder?
Is the substrate nickel-plated steel or pure nickel?
What is the nominal thickness?
What is the nickel coating thickness?
Is the strip suitable for the intended welding process?
Are hole and slot dimensions correct?
Are burrs controlled?
Is the surface clean?
Is the roll format compatible with the assembly process?
Has the strip been validated under the required current and temperature conditions?
These questions help prevent compatibility problems during production.
62. Recommended Technical Specification Format
A professional purchasing specification can describe the product using a format such as:

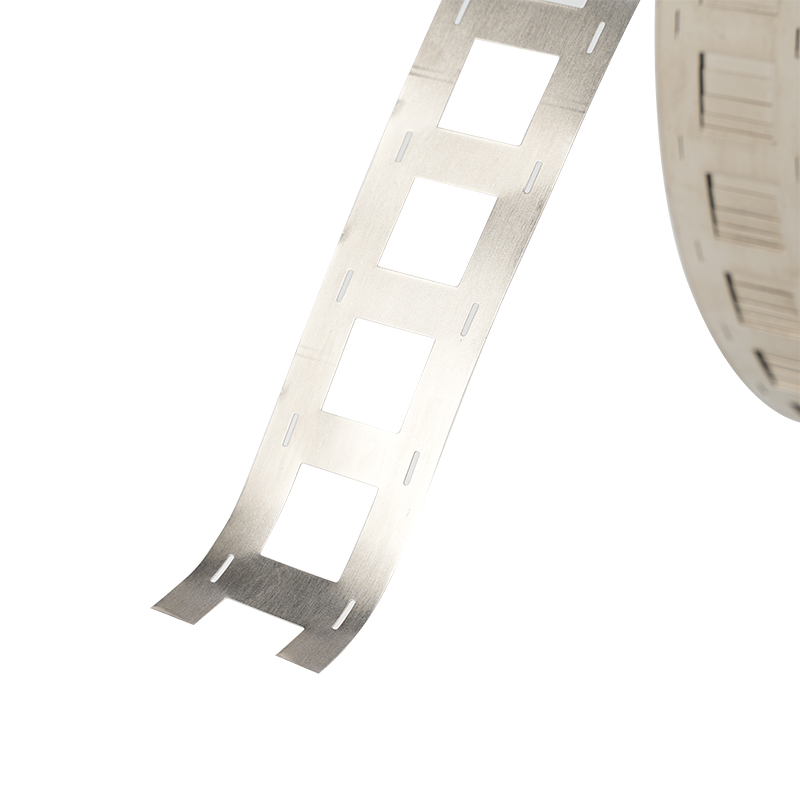

Product: 32650 Single Parallel H Type Battery Cell Nickel Plated Steel Strip Roll
Cell Format: 32650 cylindrical cell
Configuration: Single parallel or 2P
Material: Nickel plated steel
Geometry: H type
Thickness: Application dependent
Cell Spacing: Matched to the actual cell and holder
Surface: Nickel plated
Joining Method: Resistance spot welding
Supply Form: Roll
Application: Cylindrical lithium battery pack assembly
Inspection: Dimensional, surface, material, coating, and weldability verification
This specification can then be expanded with exact production dimensions.
63. Advantages of a Preformed H Type Roll
The main advantages can be summarized as follows:
Preformed geometry helps maintain repeatable cell positioning.
Operators do not need to manually cut and position every individual connection strip.
Optimized stamping can reduce unnecessary material consumption.
Roll-fed strip designs can support automated assembly.
Predetermined connection areas simplify welding.
The steel substrate provides structural support.
The nickel surface helps protect the steel substrate.
Nickel-plated steel can offer a cost-oriented alternative to solid nickel in suitable applications.
64. Limitations and Considerations
Despite its advantages, nickel-plated steel is not universally suitable.
Potential limitations include:
Higher electrical resistance than highly conductive copper-based conductors
Welding behavior dependent on coating and substrate
Possible coating damage during severe forming
Limited suitability for extremely high-current paths
Need for precise welding process control
Need for careful thermal evaluation
For very high-current battery architectures, engineers may consider copper busbars, pure nickel, nickel-copper composite structures, or other specialized conductors depending on system requirements.
65. Difference Between Nickel Strip and Copper Busbar
Nickel strip and copper busbars serve related but different roles.
Nickel strip is particularly convenient for direct cell terminal welding.
Copper provides much higher electrical conductivity and can be advantageous for high-current busbars.
However, copper is more challenging to resistance-weld directly to some cell terminal structures.
Therefore, battery systems may use nickel or nickel-plated steel near individual cells and copper conductors for larger current collection paths.
The optimal architecture depends on current, voltage, thermal requirements, cell configuration, and manufacturing process.
66. Difference Between Nickel Plated Steel and Pure Nickel Strip
The two materials should not be treated as identical.
Pure nickel provides a highly conductive nickel path and excellent corrosion resistance.
Nickel-plated steel provides a nickel surface over a steel core.
The latter may offer:
Higher mechanical strength
Lower material cost
Good stamping performance
Suitable weldability for many applications
However, designers should verify the electrical and welding characteristics for their specific application.
67. Importance of Product Consistency
For battery manufacturing, consistency can be more important than a single high-performance sample.
A good production strip should maintain consistent:
Thickness
Width
Coating
Cell spacing
Geometry
Surface finish
Burr level
Consistent material supports consistent welding.
Consistent welding supports consistent electrical resistance.
Consistent electrical resistance supports more predictable battery performance.
68. Quality Assurance Through Process Control
Manufacturers can establish process controls at several stages.
Check substrate and plating.
Monitor dimensions and burrs.
Check H geometry.
Check roll deformation.
Verify finished dimensions and appearance.
Perform periodic destructive and electrical testing.
This layered approach reduces the probability that a defective strip reaches final battery assembly.
69. Frequently Asked Questions
It is a preformed battery interconnection strip designed around 32650 cylindrical cells, commonly used to connect two cells in a parallel arrangement.
No. Nickel-plated steel has a steel substrate with a nickel surface coating, while pure nickel strip is primarily nickel throughout its thickness.
Not automatically. Cell dimensions, terminal geometry, spacing, and holder design must be checked.
0.15 mm is a commonly offered thickness, but suitability depends on current, welding parameters, geometry, and thermal requirements. Current market products include 0.15 mm 32650 H type strips.
Yes. H type nickel-plated battery strips are commonly designed for resistance spot welding.
Roll supply supports efficient storage, feeding, handling, and potentially automated battery assembly.
Yes. Battery strip designs can be customized in thickness, spacing, width, hole pattern, and overall geometry according to the battery layout.
70. Conclusion
The 32650 Single Parallel H Type Battery Cell Nickel Plated Steel Strip Roll is a specialized battery interconnection component designed to simplify the assembly of cylindrical 32650 cell groups. Its preformed H geometry supports consistent two-cell parallel connections, while the nickel-plated steel construction combines a mechanically strong substrate with a corrosion-resistant metallic surface.
The value of this component comes from the combination of material, geometry, dimensional accuracy, surface quality, and weldability. A properly specified strip can contribute to efficient battery pack assembly, stable electrical interconnection, repeatable welding, and improved production consistency.
However, the correct product cannot be selected solely by searching for a nominal “32650 nickel strip.” Cell dimensions, parallel configuration, strip thickness, cell spacing, welding method, current requirement, insulation system, and thermal conditions must all be considered. Current market examples demonstrate that 32650 H type strips are available in different geometries and thicknesses, including 0.12 mm, 0.15 mm, and 0.20 mm configurations.
For professional battery pack manufacturing, the best approach is to validate the complete interconnection system—including strip, weld, cell terminal, holder, insulation, and BMS architecture—rather than evaluating the nickel strip as an isolated component.
This website uses cookies to ensure you get the best experience on our website.
Phone
