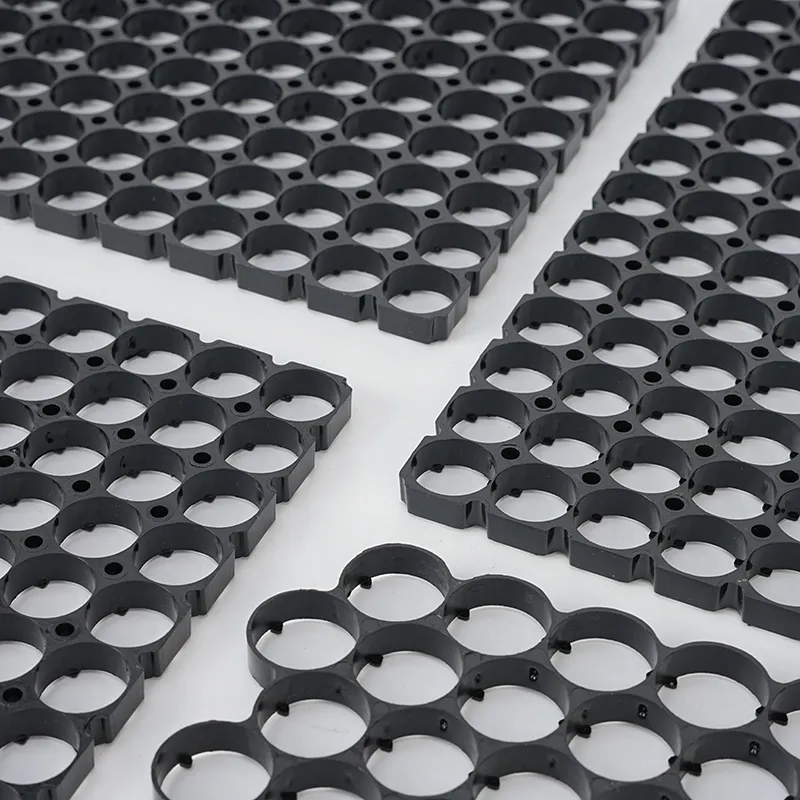

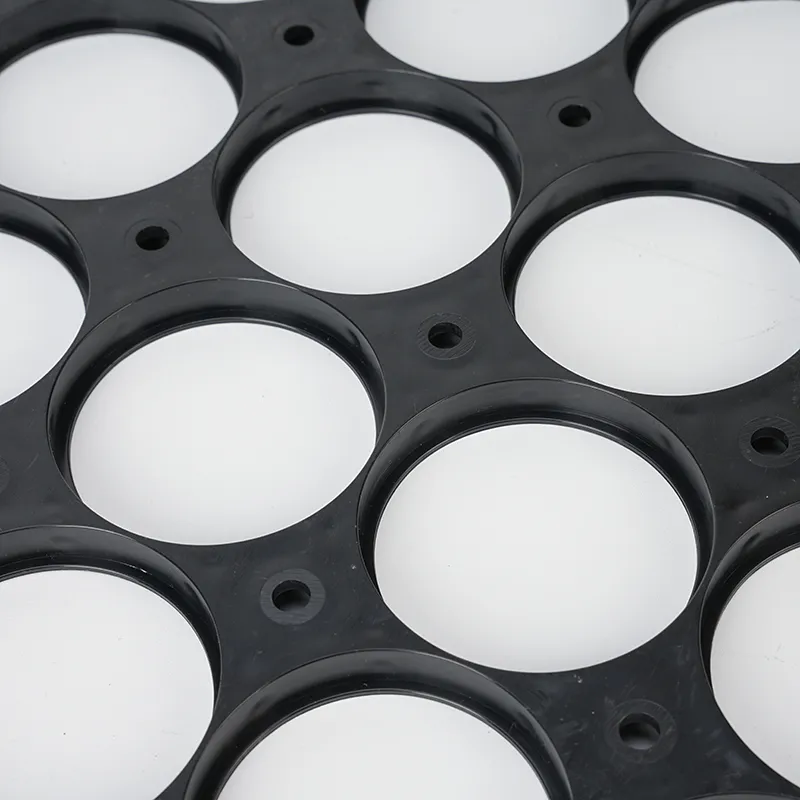

A 21700 Multi Specification Battery Cell Mounting Bracket is a precision-molded positioning component designed to organize, support, separate, and electrically isolate cylindrical lithium-ion battery cells during battery pack and module assembly. It is commonly used with 21700 cylindrical cells and can also be engineered to accommodate multiple cylindrical cell specifications through different hole diameters, spacing arrangements, or modular structural designs.
The mounting bracket is an important mechanical component in cylindrical battery pack construction. Although it does not normally serve as the primary current-carrying component, it directly influences cell positioning, mechanical stability, insulation, assembly accuracy, vibration resistance, airflow, and the overall reliability of the finished battery module.
For applications involving 21700 lithium-ion cells, maintaining consistent cell spacing is especially important. A suitable Cell Mounting Bracket keeps individual cells aligned while creating controlled gaps between neighboring cells. These gaps can support airflow, reduce mechanical contact, and provide additional space for thermal management and electrical insulation.
The bracket can be manufactured using engineering plastics such as ABS, PC, PP, PA, or other application-specific polymer materials. For demanding battery environments, flame-retardant grades and materials with improved heat resistance, impact resistance, chemical resistance, and dimensional stability may be selected.
The concept of a multi-specification battery cell mounting bracket is particularly useful for battery manufacturers that need flexible tooling and modular battery pack designs. Instead of relying on a single fixed cell holder configuration, a multi-specification design can be adapted to different cylindrical cell arrangements, assembly layouts, and pack dimensions.
Material selection is one of the most important considerations when designing a battery cell mounting bracket. The material must provide sufficient mechanical strength while maintaining dimensional stability throughout assembly and service.
For lithium-ion battery modules, the bracket may encounter vibration, mechanical shock, elevated temperatures, thermal cycling, humidity, and contact with manufacturing contaminants. Therefore, ordinary low-strength plastics may not always be appropriate for demanding applications.
Flame-retardant engineering plastics can improve the fire-resistance characteristics of the mechanical structure surrounding cylindrical cells.
A flame-retardant material does not eliminate the possibility of thermal runaway or battery fire. Instead, it can help limit ignition and flame propagation from the plastic component under specified test conditions.
When selecting flame-retardant materials, battery manufacturers should consider the applicable safety requirements, material grade, thickness, certification, processing conditions, and final product geometry.
ABS and PC are widely recognized engineering thermoplastics.
ABS provides good impact resistance, processing performance, and dimensional stability, while PC offers high impact strength and relatively strong heat resistance. An ABS plus PC blend can combine desirable characteristics from both polymer families.
For battery cell mounting components, ABS plus PC may provide:
Good impact resistance
Good dimensional stability
Practical injection molding performance
Suitable surface hardness
Good mechanical support
Improved resistance to moderate temperature exposure
Good appearance and manufacturing consistency
The actual performance depends on the specific polymer grade and formulation rather than simply the material name.
Battery packs may operate in cold environments during transportation, storage, outdoor use, or vehicle operation.
A suitable mounting bracket should maintain sufficient toughness at the intended minimum operating temperature. Poor low-temperature performance can cause brittle fracture when the battery module experiences impact or vibration.
Low-temperature resistance should therefore be evaluated together with:
Impact strength
Cell retention force
Wall thickness
Mounting geometry
Polymer grade
Temperature cycling
Assembly stress
During battery operation, internal components can experience temperature increases caused by electrical resistance, charging and discharging, environmental temperature, or thermal-management conditions.
The mounting bracket should maintain its shape within the expected temperature range. Excessive softening, deformation, or shrinkage could affect cell spacing and mechanical retention.
Heat resistance should be evaluated according to the actual application rather than relying only on a material's nominal heat-deflection temperature.
Battery modules can be subjected to vibration, transportation shocks, installation forces, and mechanical impacts.
High-impact materials help the cell mounting bracket withstand these conditions without cracking or losing its positioning function.
Impact resistance is particularly important around thin retaining walls, snap-fit structures, mounting holes, and cell openings.
A battery cell mounting bracket may be exposed to humidity, oils, cleaning agents, adhesives, electrolyte-related contaminants, or other chemicals depending on the production environment and battery architecture.
Chemical resistance helps preserve the physical properties of the polymer over time.
However, chemical compatibility should always be verified using the actual material grade and actual chemical exposure. A polymer that performs well against one chemical may behave differently when exposed to another.
Definition of a 21700 Battery Cell Mounting Bracket

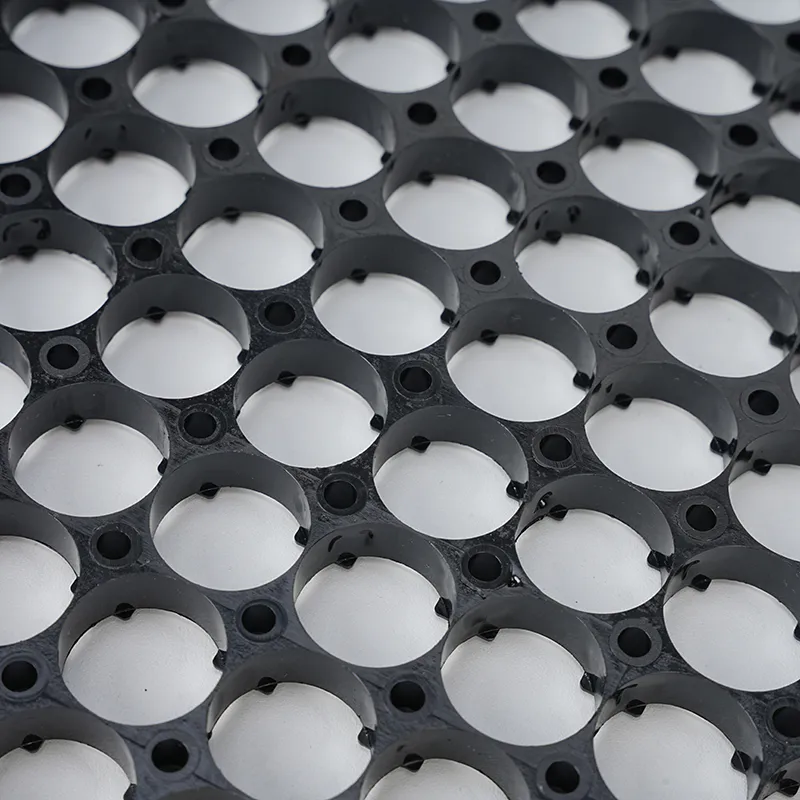

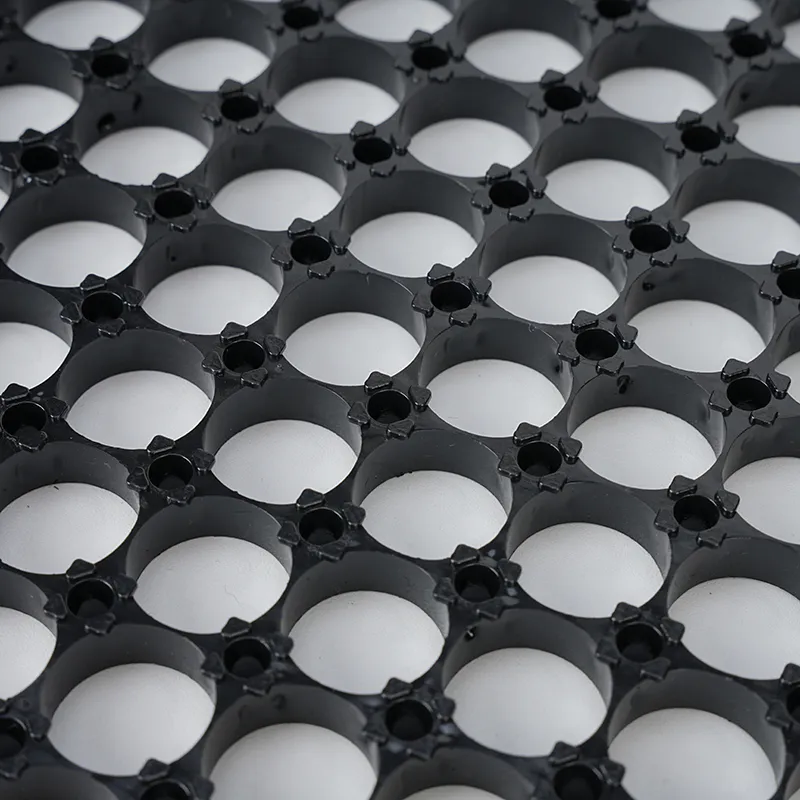

A battery cell mounting bracket is a structural positioning component used to hold cylindrical cells in a predetermined arrangement.
For a 21700 battery module, the bracket normally contains multiple circular openings or semi-circular retaining structures. Each opening receives a cylindrical cell and prevents excessive lateral movement.
The component may be installed at the top, bottom, or both ends of a cylindrical cell array.
A two-piece holder configuration is common. One bracket supports one end of the cells while another bracket supports the opposite end. Together, they establish the relative position of the cylindrical cells.
The mounting bracket may also contain:
Mounting holes
Alignment pins
Snap-fit features
Reinforcement ribs
Airflow channels
Welding clearance areas
Insulation barriers
Wiring channels
Busbar positioning features
Module fastening interfaces
The exact structure depends on the battery pack architecture.
Why 21700 Cells Require Accurate Positioning
The 21700 cylindrical cell format has a nominal diameter of approximately 21 mm and a nominal length of approximately 70 mm, although actual dimensions vary by manufacturer and cell design.
When dozens or hundreds of cylindrical cells are assembled together, small positioning errors can accumulate across the entire module.
A cell mounting bracket reduces these variations by defining a repeatable cell position.
Accurate positioning helps:
Maintain uniform cell spacing.
Prevent neighboring cells from touching.
Improve Nickel Strip or busbar alignment.
Facilitate automated assembly.
Maintain predictable airflow channels.
Improve module dimensional consistency.
Reduce mechanical movement.
Simplify inspection.
Support consistent welding operations.
Improve overall pack assembly efficiency.
The mounting bracket therefore functions as an important interface between individual battery cells and the larger module structure.

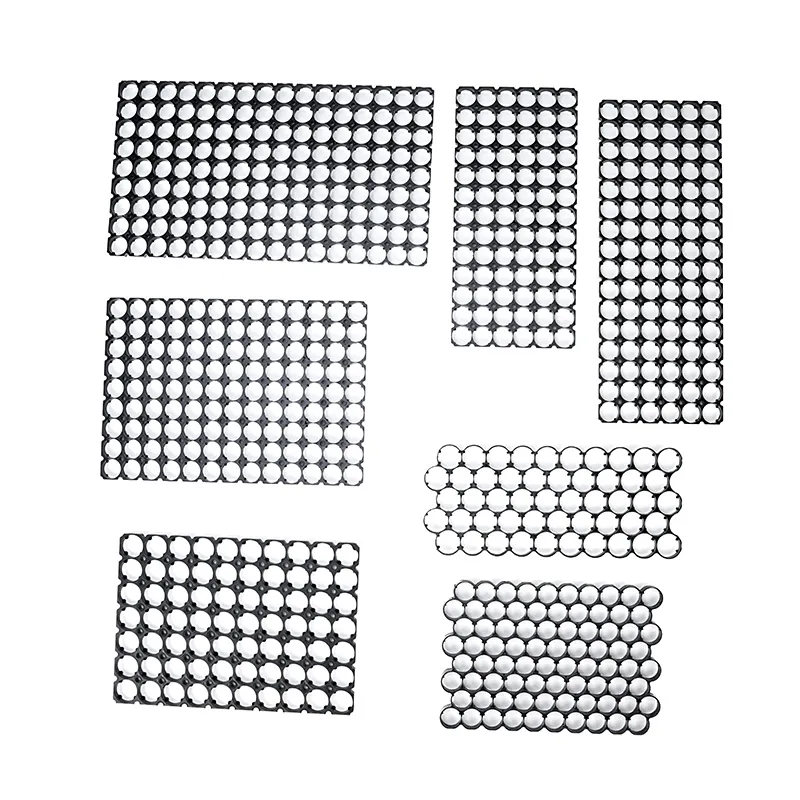

Multi Specification Design
The term multi specification generally refers to a mounting bracket designed to support multiple cylindrical cell arrangements, dimensions, or configuration requirements.
This does not necessarily mean that one physical hole can safely accommodate every cylindrical cell diameter. Instead, multi-specification designs can use modular sections, interchangeable components, different hole sizes, or adaptable geometries.
Potential configurations include:
21700 cell arrangements
Other cylindrical cell formats with similar dimensions
Different series and parallel layouts
Different cell spacing requirements
Different module widths
Different pack enclosure dimensions
A modular approach can reduce tooling changes and simplify product development.
However, the actual cell diameter and tolerance must always be matched to the mounting opening. Excessive clearance can permit movement, while insufficient clearance can create assembly stress.
Cell Spacing and Mechanical Stability
Cell spacing is a fundamental design parameter.
The bracket must provide sufficient distance between adjacent cylindrical cells while avoiding unnecessary empty space.
If cells are positioned too closely, several problems can occur. Neighboring cells may contact one another, electrical insulation distances may be reduced, and airflow may become restricted.
If spacing is excessive, the module may become unnecessarily large and heavy.
The appropriate spacing depends on:
Cell diameter
Cell surface insulation
Thermal design
Busbar geometry
Welding method
Module enclosure
Cooling method
Vibration requirements
Manufacturing tolerance
A mounting bracket provides a physical reference for maintaining this spacing.
Electrical Insulation Function
Although the bracket is primarily a mechanical component, electrical insulation is another important function.
The plastic structure can separate adjacent cylindrical cells and reduce the possibility of unintended electrical contact.
This is particularly important in high-voltage battery modules containing many cells connected in series.
The bracket can create insulating barriers between:
Positive cell terminals
Negative cell terminals
Adjacent cell bodies
Nickel strips
Busbars
Conductive module components
Metal housing structures
The actual dielectric performance depends on the polymer grade, thickness, geometry, contamination level, humidity, and applied voltage.
For high-voltage applications, insulation should be verified through appropriate electrical testing.
Support for Nickel Strip Welding
Nickel-plated steel strips and nickel strips are frequently used in cylindrical battery pack assembly.
During resistance spot welding, the battery cells must remain accurately positioned. If a cell moves during welding, the electrode alignment and welding location can become inconsistent.
A mounting bracket helps stabilize the cell array.
The bracket may also include structural features that provide clearance around the welding area.
A good design should avoid placing excessive plastic material directly beneath areas exposed to welding heat.
The relationship between the cell holder and nickel strip should be considered during the initial mechanical design stage.
Important considerations include:
Strip width
Strip thickness
Welding electrode diameter
Welding position
Cell spacing
Holder wall thickness
Welding heat
Welding force
Electrical insulation
Access for automated equipment
The holder should support repeatable welding without interfering with the welding electrodes.
Airflow and Thermal Management
A battery cell mounting bracket can also contribute to thermal management.
Some designs use openings, slots, ribs, or hollow sections to create controlled airflow channels around cylindrical cells.
This can be useful in forced-air cooled battery systems.
For naturally ventilated packs, the holder can help maintain open spaces around the cells.
For liquid-cooled battery modules, the primary thermal pathway is normally provided by dedicated cooling structures rather than the plastic cell holder. Nevertheless, the holder geometry still needs to avoid obstructing thermal interfaces.
Thermal design should consider:
Cell heat generation
Cell-to-cell spacing
Cooling medium
Airflow direction
Cooling plate location
Thermal interface materials
Module enclosure
Ambient temperature
Maximum operating temperature
The bracket itself is not normally a substitute for a dedicated thermal-management system.
Structural Reinforcement
A battery cell mounting bracket needs sufficient rigidity to maintain the cell arrangement during handling and transportation.
Reinforcement ribs are commonly incorporated into injection-molded designs.
Ribs can increase stiffness without requiring an excessively thick wall.
Proper rib design can improve:
Bending resistance
Dimensional stability
Vibration resistance
Cell retention
Mounting strength
Assembly accuracy
However, excessively thick sections may cause molding defects such as sink marks, warpage, or uneven cooling.
Injection-molded battery holders therefore require balanced structural design.
Injection Molding Considerations
Injection molding is commonly used for producing large quantities of battery cell mounting brackets.
The process provides repeatable dimensions and allows complex structures to be integrated into one component.
Important molding considerations include:
Uniform wall thickness helps reduce warpage and improves cooling consistency.
Appropriate draft angles allow the molded component to be removed from the tooling without damaging the part.
Gate placement affects filling behavior, weld lines, shrinkage, and visual quality.
Ejector pins should be positioned so that they do not deform critical cell-positioning surfaces.
Engineering plastics experience material shrinkage after molding. Tool dimensions must compensate for the expected shrinkage of the selected polymer.
Uneven wall thickness, asymmetric geometry, and inconsistent cooling can cause warpage.
Because cell holders depend on dimensional accuracy, excessive warpage can directly affect battery assembly.
ABS and PC Engineering Plastic for Battery Holders
ABS and PC blends can be useful when the application requires a balance between impact strength, processing performance, and heat resistance.
ABS contributes toughness and manufacturing practicality.
PC contributes higher impact resistance and improved thermal capability.
A properly selected ABS PC grade can therefore provide a practical solution for cylindrical cell mounting brackets.
Potential characteristics include:
High impact resistance
Good dimensional stability
Good molding performance
Moderate heat resistance
Electrical insulation
Good surface finish
Structural rigidity
Practical manufacturing cost
The specific formulation should be selected according to the intended battery environment.
For higher-temperature applications, other engineering plastics such as PA, PBT, PPS, or specialized flame-retardant materials may also be considered.
Comparison of Common Holder Materials
ABS is widely used for molded mechanical components where good impact resistance and processing performance are important.
Its advantages include good toughness, easy molding, and relatively stable dimensions.
However, standard ABS may not be suitable for high-temperature applications.
Polycarbonate provides excellent impact resistance and good heat resistance.
It can be useful where mechanical toughness is more important.
ABS PC blends combine characteristics of ABS and polycarbonate.
They are frequently considered for applications requiring a balance between toughness, heat resistance, processability, and dimensional stability.
Polypropylene has good chemical resistance and relatively low density.
It may be suitable for certain battery holder applications, particularly where chemical resistance and lightweight construction are priorities.
Polyamide provides good mechanical strength and wear resistance.
Certain PA grades can perform well at elevated temperatures, although moisture absorption needs to be considered.
PBT offers good dimensional stability, electrical properties, and chemical resistance.
It can be useful for electrical and battery-related components.
PPS is a high-performance engineering polymer with excellent thermal and chemical resistance.
It is generally considered for demanding applications where higher material performance justifies increased material and processing costs.
Cell Holder Versus End Plate
A battery cell holder should not be confused with a structural end plate.
The two components have different functions.
A cell holder primarily:
Positions cells
Maintains cell spacing
Provides insulation
Supports assembly
Provides limited mechanical retention
Supports airflow
A module end plate primarily:
Provides structural compression
Transfers mechanical loads
Supports module enclosure interfaces
Maintains module rigidity
End plates may be made from aluminum, steel, reinforced plastics, FR-4 laminates, or other structural materials depending on the battery architecture.
A complete battery module may use both components.
Cylindrical Battery Pack Applications
21700 battery cell mounting brackets are suitable for many cylindrical-cell applications.
Common examples include:
Portable energy storage systems
Power tool battery packs
Electric mobility systems
Backup battery systems
Industrial battery modules
Solar energy storage packs
Robotics power systems
Communication backup batteries
Light electric vehicles
Consumer electronics battery assemblies
The holder geometry should be customized according to the actual number of cells and the required series-parallel configuration.
Series and Parallel Cell Arrangement
Cylindrical cells can be electrically connected in series, parallel, or a combination of both.
A series connection increases pack voltage.
A parallel connection increases available capacity and current capability.
For example, an assembly described as 10S4P contains ten series groups with four cells connected in parallel in each group.
The mounting bracket does not determine the electrical connection by itself. However, its geometry must be compatible with the electrical layout.
The holder should provide appropriate physical space for:
Nickel strips
Busbars
Insulation sheets
BMS wiring
Temperature sensors
Fuse elements
Protective components
Integration With Battery Management Systems
A Battery Management System monitors and protects lithium-ion battery packs.
The mounting bracket can indirectly support BMS integration by providing organized spaces for wiring and sensing components.
Potential design features include:
Cable routing channels
Sensor mounting points
Wire retention clips
BMS board mounting holes
Insulation barriers
Clearance for sampling wires
Temperature sensors are often positioned close to selected cells.
The holder should provide secure sensor placement without interfering with the cell surface or thermal management.
Vibration Resistance
Battery modules in vehicles and portable equipment can experience continuous vibration.
Cell movement can gradually damage:
Nickel strips
Welded joints
Wire connections
Cell surfaces
Protective films
A well-designed holder reduces relative movement between cells.
Mechanical stability depends on more than the plastic holder alone. The complete system includes:
Cell holder
Cells
Nickel strips
Busbars
Compression structures
Module enclosure
Adhesive materials
End plates
Therefore, vibration testing should be performed on the complete assembly.
Shock Resistance
Battery packs may experience accidental drops, transportation impacts, or equipment shocks.
A high-impact cell mounting bracket can help maintain cell alignment during such events.
Rounded corners and reinforced mounting areas can reduce local stress concentration.
Snap-fit features should also be designed carefully. A snap that is too rigid may fracture during assembly, while a snap that is too flexible may fail to retain the component.
Chemical Resistance in Battery Environments
Chemical resistance is an important consideration for long-term battery reliability.
Potential environmental substances include:
Cleaning agents
Oils
Adhesives
Humidity
Electrolyte-related contaminants
Plasticizers
Manufacturing chemicals
The actual chemical exposure varies considerably between battery designs.
Testing should use representative environmental conditions rather than generic assumptions.
Temperature Cycling
Battery packs can experience repeated temperature changes.
For example, a pack may move from a cold storage environment to a warm operating environment and then return to a lower temperature.
Repeated thermal expansion and contraction can create mechanical stress.
A suitable holder should maintain sufficient dimensional stability during these cycles.
Testing may include:
High-temperature exposure
Low-temperature exposure
Thermal cycling
Humidity exposure
Mechanical vibration
Mechanical shock
The actual test conditions should be established according to the intended application and relevant product standards.
Cell Retention Design
The mounting bracket should hold cells securely without applying excessive force.
Too little retention can allow movement.
Too much interference can damage the cell casing or create assembly difficulties.
A suitable design may use:
Circular retaining walls
Flexible tabs
Snap-fit structures
Partial cylindrical supports
Top and bottom holders
Elastic polymer features
The appropriate retention method depends on the battery cell specification and module structure.
Cell Diameter Tolerance
Not every 21700 cell has exactly the same external dimensions.
Manufacturing tolerances, protective sleeves, labels, insulation films, and surface coatings can affect the effective diameter.
Therefore, a mounting bracket should be designed around the actual cell envelope rather than relying solely on the nominal cell designation.
This is especially important for multi-specification holders.
Before production, engineers should verify:
Maximum cell diameter
Minimum cell diameter
Cell length
Sleeve thickness
Terminal geometry
Manufacturing tolerance
Importance of Cell Insulation
Cylindrical lithium-ion cells may have conductive metal cans.
If adjacent cells or conductive structures contact one another unintentionally, electrical faults may occur.
Cell mounting brackets provide mechanical separation but should not be considered the only insulation layer unless the complete design has been validated for that purpose.
Additional insulation may include:
PET film
Mylar insulation
Fish paper
Electrical tape
Insulating sleeves
Polymer barriers
The holder, cell insulation, busbar insulation, and module housing should be considered as an integrated electrical protection system.
Mounting Bracket and Nickel Plated Steel Strip
Nickel-plated steel strips are commonly used for connecting cylindrical cells.
The bracket maintains cell alignment while the strip provides the electrical interconnection.
This creates a functional division:
Cell holder = mechanical positioning
Nickel-plated steel strip = electrical connection
The two components must be designed together.
If the cell spacing does not match the nickel strip geometry, the welding process can become difficult.
For this reason, mounting brackets for automated battery assembly should be designed around the intended strip width and welding pattern.
Manufacturing Accuracy
Dimensional consistency is essential for battery cell mounting brackets.
Critical dimensions can include:
Cell opening diameter
Center-to-center distance
Overall bracket length
Overall bracket width
Mounting hole position
Retaining feature height
Wall thickness
Alignment pin position
Poor dimensional consistency can result in:
Difficult cell insertion
Loose cells
Excessive assembly force
Misaligned welding strips
Module dimensional variation
Production inspection should therefore focus on functional dimensions rather than only visual appearance.
Quality Inspection
Quality inspection can include several stages.
Check for:
Cracks
Flash
Short shots
Burn marks
Deformation
Contamination
Surface defects
Measure critical cell openings, spacing, and mounting features.
Verify the polymer grade and flame-retardant formulation where applicable.
Evaluate retention, impact, and structural strength.
Evaluate performance after temperature cycling, humidity, and chemical exposure when required.
Install actual battery cells and verify:
Cell insertion
Cell retention
Cell spacing
Nickel strip alignment
Module assembly
Wiring clearance
Design for Automated Assembly
Modern battery manufacturing increasingly relies on automated production.
A suitable mounting bracket can improve automation by providing predictable cell positions.
Automation-friendly features may include:
Alignment holes
Robotic gripping surfaces
Reference edges
Consistent cell openings
Stackable geometry
Snap-fit connections
Tooling access
Welding clearance
The bracket should minimize the need for manual cell repositioning.
Modular Cell Holder Architecture
A modular architecture can be useful for manufacturers producing different battery pack configurations.
Instead of creating a completely new holder for every pack, a modular system can use common structural sections combined with different connecting pieces.
Potential benefits include:
Reduced tooling requirements
Faster product development
Easier maintenance
More flexible production
Simplified inventory management
However, modularity should not compromise cell retention or insulation.
Multi Specification Bracket Design Principles
A good multi-specification mounting bracket should balance flexibility with mechanical precision.
Important design principles include:
The holder should accommodate the actual maximum cell dimensions.
Spacing should support electrical insulation, mechanical stability, and thermal management.
The bracket should resist deformation during assembly and use.
The structure must not interfere with resistance welding or other connection processes.
Material and geometry should account for expected temperature changes.
Flame-retardant polymer grades may be appropriate where required.
Critical features should be easy to inspect during production.
Battery Pack Assembly Process
A typical cylindrical battery module assembly process may include several steps.
First, the battery cells are inspected for dimensions, electrical performance, and physical condition.
The cells are then inserted into the lower cell mounting bracket.
Cells are arranged according to the required series-parallel configuration.
A second mounting bracket may then be installed on the opposite side.
Nickel strips or busbars are positioned over the cell terminals.
Electrical connections are produced using the selected welding process.
Insulation components are installed around conductive areas.
The BMS wiring and temperature sensors are connected.
The completed module is installed into its enclosure.
Final electrical and mechanical testing is performed.
The mounting bracket supports the entire process by maintaining repeatable cell positioning.
Safety Considerations
Lithium-ion battery assembly requires appropriate safety controls.
Cell mounting brackets are passive mechanical components, but their design can influence the overall battery structure.
Important safety considerations include:
Preventing unintended cell movement
Maintaining electrical clearance
Avoiding damage to cell insulation
Preventing conductive contact
Maintaining welding clearance
Supporting thermal management
Avoiding excessive mechanical stress
Using appropriate flame-retardant materials when required
The holder should never be used to compensate for inadequate electrical or thermal protection elsewhere in the pack.
Flame Retardancy and Battery Safety
Flame-retardant plastics are often considered for battery module components because polymers are combustible to varying degrees.
A flame-retardant formulation can improve resistance to ignition and flame propagation under standardized test conditions.
However, flame retardancy is only one part of battery safety.
A complete battery safety design also requires consideration of:
Cell chemistry
Electrical protection
Overcharge protection
Short-circuit protection
Thermal management
Venting
Mechanical protection
BMS controls
Module enclosure
Fire propagation mitigation
Therefore, a flame-retardant cell holder should be regarded as one element of a broader safety strategy.
Thermal Runaway Considerations
Lithium-ion cells can experience thermal runaway under severe abnormal conditions.
A cell mounting bracket cannot prevent every possible thermal event.
However, the mechanical structure can be designed to reduce certain risks associated with cell movement and improve the consistency of the module architecture.
For advanced battery systems, designers may consider:
Cell-to-cell spacing
Fire-resistant materials
Thermal barriers
Venting paths
Propagation-resistant structures
Cooling pathways
Pressure relief mechanisms
The final design must be validated using appropriate battery safety testing.
Environmental Durability
A battery mounting bracket may be exposed to different environmental conditions throughout its service life.
These can include:
High humidity
Low humidity
High temperature
Low temperature
Dust
Vibration
Mechanical shock
Chemical exposure
Material selection and structural design should reflect the intended environment.
Outdoor energy storage systems may require more stringent environmental durability than indoor consumer battery products.
Lightweight Battery Module Design
Weight reduction is an important consideration in electric mobility and portable energy storage.
Engineering plastics provide a relatively low-density alternative to metal cell positioning structures.
A lightweight cell holder can reduce the mass of non-energy-producing components.
However, weight reduction should not compromise:
Structural strength
Cell retention
Electrical insulation
Fire resistance
Thermal management
Assembly reliability
The goal should be optimized structural efficiency rather than simply minimum material usage.
Customization Options
A custom 21700 battery cell mounting bracket can be developed according to application-specific requirements.
Possible customization areas include:
Cell quantity
Cell arrangement
Hole diameter
Cell spacing
Bracket dimensions
Mounting holes
Reinforcement ribs
Snap-fit structures
Cable channels
Sensor mounts
Insulation barriers
Surface texture
Material grade
Flame-retardant formulation
Customization is particularly useful when the battery module has a unique enclosure or irregular cell arrangement.
Prototype Development
Before mass production, a prototype should be evaluated using actual cells and assembly equipment.
Prototype testing can identify:
Incorrect cell clearance
Excessive insertion force
Insufficient retention
Welding interference
Assembly tolerance problems
Warpage
Thermal expansion issues
Wiring conflicts
Rapid prototyping can reduce the risk of expensive tooling modifications.
Choosing the Right Cell Mounting Bracket
When selecting a 21700 cell mounting bracket, buyers and engineers should evaluate more than cell compatibility.
Important factors include:
Cell dimensions: Verify the actual diameter and length.
Material: Select ABS, PC, ABS PC, PP, PA, PBT, PPS, or another polymer according to environmental requirements.
Flame resistance: Consider flame-retardant grades for applications where relevant.
Temperature range: Verify both minimum and maximum temperatures.
Mechanical strength: Evaluate retention and vibration resistance.
Electrical insulation: Check dielectric requirements.
Cell spacing: Ensure adequate clearance.
Welding compatibility: Confirm nickel strip and electrode access.
Thermal design: Make sure the holder does not obstruct cooling.
Manufacturing tolerance: Confirm dimensional repeatability.
Assembly method: Consider manual, semi-automatic, or fully automated production.
Common Design Mistakes
Several mistakes can reduce the reliability of cylindrical cell holders.
Designing only around nominal dimensions can result in interference when actual cells have protective sleeves or manufacturing tolerances.
Too much clearance allows cells to move.
Too little clearance increases insertion force and may damage the cell surface.
A holder can physically fit the cells but still interfere with welding electrodes.
Mechanical separation alone may not provide adequate electrical protection.
Improper ribs can cause warpage and uneven molding.
Plastic dimensions can change with temperature.
The polymer should be evaluated under realistic temperature, humidity, chemical, and mechanical conditions.
Maintenance and Long-Term Reliability
Cell mounting brackets normally require little maintenance after assembly, but their condition should be inspected during battery servicing where applicable.
Inspection can identify:
Cracked plastic
Broken retaining tabs
Deformed openings
Discoloration from excessive heat
Loose cells
Damaged insulation
Signs of mechanical impact
A damaged holder should not be ignored because cell movement can eventually affect electrical connections and insulation.
Application in Energy Storage Systems
Energy storage systems frequently contain large numbers of cylindrical cells.
A well-designed mounting bracket can help divide a large battery assembly into organized modules.
This modular approach simplifies:
Assembly
Inspection
Transportation
Service
Thermal management
Wiring
BMS integration
The mounting structure also helps maintain consistent spacing throughout the module.
Application in Power Tool Batteries
Power tools can subject battery packs to strong vibration and repeated mechanical shock.
The holder therefore needs sufficient impact resistance and cell retention.
Compact dimensions are also important because power tool batteries often have strict enclosure limitations.
A custom 21700 mounting bracket can integrate directly with the housing and accommodate the required series-parallel arrangement.
Application in Electric Mobility
Electric bicycles, scooters, motorcycles, and other light electric vehicles may use cylindrical battery cells.
These applications can involve vibration, road shock, temperature variation, and frequent charging cycles.
A robust cell mounting bracket helps maintain the mechanical arrangement of the cells.
For vehicle applications, the holder must be considered together with the complete module structure, enclosure, cooling system, electrical interconnection, and vibration isolation system.
Application in Portable Energy Storage
Portable energy storage systems require a combination of high energy density, lightweight construction, and mechanical reliability.
A plastic cell holder can provide accurate cell organization while minimizing structural weight.
The holder may also include spaces for:
BMS components
Temperature sensors
Wiring
Insulation
Busbars
Cooling channels
Importance of Dimensional Stability
Dimensional stability is particularly important in large cylindrical battery arrays.
Even a small change in cell spacing can accumulate across multiple rows.
For example, if every cell position has a small dimensional deviation, the total deviation at the end of a long cell array can become significant.
Stable molding conditions and appropriate material selection therefore contribute directly to assembly quality.
Surface Finish and Part Appearance
Surface appearance is generally secondary to mechanical function, but it can still provide information about molding quality.
A high-quality bracket should have a consistent surface without:
Cracks
Excessive flash
Sink marks
Burn marks
Short shots
Warpage
For automated assembly, consistent geometry is generally more important than decorative surface appearance.
Packaging and Transportation
Finished plastic mounting brackets should be packaged to prevent deformation during transportation.
Thin retaining walls can be vulnerable to mechanical pressure.
Packaging should protect against:
Bending
Impact
Moisture
Contamination
Excessive stacking pressure
The packaging method should be suitable for the geometry and polymer properties of the product.
General Technical Reference
Typical engineering considerations for a 21700 cell mounting bracket may include:
Product type: Cylindrical lithium-ion cell mounting bracket
Compatible cell family: 21700 and selected related cylindrical formats
Common materials: ABS, PC, ABS PC, PP, PA, PBT, PPS
Material option: Flame-retardant engineering plastic
Main function: Cell positioning and mechanical support
Secondary function: Electrical separation and airflow organization
Manufacturing process: Injection molding
Customization: Available according to module geometry
Cell arrangement: Series, parallel, and series-parallel
Assembly: Manual, semi-automatic, or automated
Application: Battery modules and battery PACK systems
Design focus: Position accuracy, insulation, strength, thermal compatibility, and durability
These values are general engineering references rather than universal specifications. Actual dimensions and performance should be confirmed against the selected cell and battery architecture.
Future Development of Battery Cell Mounting Structures
As cylindrical battery technology develops, cell mounting structures are also becoming more integrated.
Future designs may combine:
Cell positioning
Electrical insulation
Thermal management
Sensor integration
Wiring management
Structural reinforcement
Fire propagation mitigation
Advanced battery packs increasingly use integrated mechanical architectures.
This means that a cell holder may no longer be a simple plastic grid. It can become an engineered module component with multiple functions.
Lightweight materials, flame-retardant polymers, precision injection molding, and automated assembly compatibility are likely to remain important development directions.
Conclusion
The 21700 Multi Specification Battery Cell Mounting Bracket is an important mechanical component for cylindrical lithium-ion battery modules. Its primary role is to position cells accurately, maintain consistent spacing, provide mechanical retention, and contribute to electrical separation and organized module assembly.
Material selection is critical. ABS, PC, ABS PC, PP, PA, PBT, PPS, and flame-retardant engineering plastics can be considered according to temperature, mechanical, chemical, electrical, and fire-safety requirements.
A high-quality design should provide good dimensional stability, impact resistance, low-temperature performance, heat resistance, and chemical resistance. It should also be compatible with nickel strip welding, BMS wiring, insulation materials, and the intended thermal-management system.
For multi-specification battery applications, modular geometry can provide additional flexibility while reducing tooling and assembly complexity. Nevertheless, every application should be validated using the actual battery cells, cell tolerances, welding equipment, environmental conditions, and complete module structure.
In modern lithium-ion battery manufacturing, the cell mounting bracket is more than a simple plastic spacer. It is a precision mechanical interface that helps connect cell geometry, electrical interconnection, thermal management, insulation, automation, and structural reliability into one organized battery module.
This website uses cookies to ensure you get the best experience on our website.
Phone
