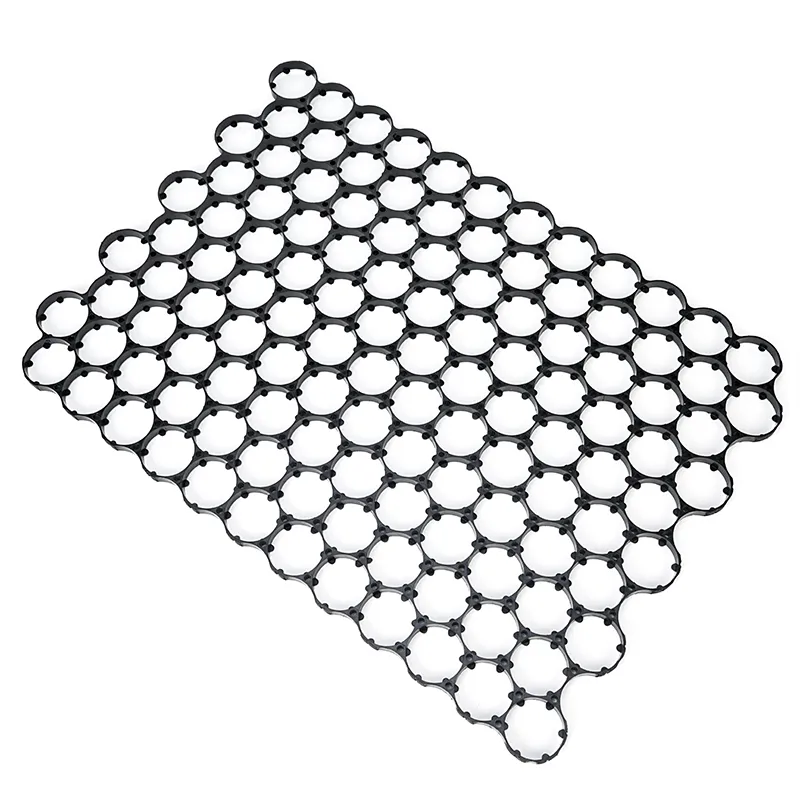

The 21700 10x12 Staggered Battery Cell Holder Bracket is a precision plastic positioning component designed for cylindrical lithium-ion battery pack assembly. It is primarily used to organize multiple cylindrical cells into a stable and repeatable arrangement while maintaining controlled spacing between adjacent cells. The staggered 10x12 configuration is particularly suitable for compact battery modules where efficient use of internal space, mechanical stability, insulation, and assembly convenience are important.
A cylindrical battery pack may contain dozens, hundreds, or even more individual cells. Without a suitable positioning structure, cells can shift, rotate, collide with neighboring cells, or become misaligned during assembly. A battery cell holder provides a defined mechanical framework that keeps each cell in its intended position.
The 21700 battery holder bracket can be manufactured from engineering plastics selected for impact resistance, heat resistance, low-temperature resistance, strength, lightweight construction, and long-term durability. Depending on the application, flame-retardant or electrically Insulating Materials can also be considered.
The holder concept can be adapted for several cylindrical cell formats, including 18650, 21700, 26650, and 32650. Different cell sizes require different opening dimensions and center spacing, so a customized battery holder should always be designed around the actual dimensions and tolerances of the selected cell.
The 10x12 arrangement indicates a layout containing up to 120 cell positions when every position is populated. A staggered arrangement can improve packing efficiency compared with a simple rectangular grid and can provide an alternative way to manage spacing, airflow, wiring, and module dimensions.
Professional Customization
Professional customization is an important part of Cylindrical Battery Holder development.
Different battery packs have different requirements for:
Cell quantity
Cell diameter
Cell length
Cell spacing
Series and parallel configuration
Module dimensions
Cooling method
Electrical insulation
Welding process
BMS wiring
Enclosure design
Mechanical strength
Operating temperature
Fire-resistance requirements
A customized holder can be developed to match the complete battery module rather than forcing the module to conform to a standard holder.
For example, a battery designer may need a 10x12 staggered layout for a specific enclosure. Another application may require a 10x10, 8x12, or irregular arrangement. The same basic holder concept can be adapted to different cell counts and module dimensions.
Customization can also include mounting holes, alignment structures, cable channels, reinforcement ribs, retaining clips, airflow openings, and interfaces for additional insulation components.
18650 21700 26650 and 32650 Compatibility
Cylindrical lithium-ion batteries are manufactured in several standardized size families.
Common formats include:
18650 — approximately 18 mm diameter and 65 mm length.
21700 — approximately 21 mm diameter and 70 mm length.
26650 — approximately 26 mm diameter and 65 mm length.
32650 — approximately 32 mm diameter and 65 mm length.
These nominal designations are useful for identifying cell families, but they should not be treated as exact physical dimensions for holder design.
The actual cell envelope can vary depending on:
Cell manufacturer
Protective sleeve
Cell terminal configuration
Manufacturing tolerance
Surface wrapping
Positive terminal structure
Therefore, a customized battery holder should be developed according to actual cell measurements.
A holder designed for 21700 cells should not automatically be assumed to accommodate 18650, 26650, or 32650 cells without modifying the opening diameter and structural geometry.
Vertical Pillar Battery Bracket
A vertical pillar battery bracket is a holder structure in which vertical support columns separate and stabilize neighboring cylindrical cells.
Vertical pillars can provide several functions.
They can:
Maintain cell-to-cell spacing
Improve structural rigidity
Reduce cell movement
Create airflow channels
Support upper and lower holder alignment
Provide reinforcement
Help organize wiring
Separate conductive components
The pillar geometry can be circular, rectangular, tapered, ribbed, or otherwise optimized for injection molding and mechanical requirements.
The appropriate pillar dimensions depend on the selected polymer, cell weight, module size, expected vibration, and desired mechanical strength.
A pillar should be sufficiently strong to maintain cell positioning without unnecessarily increasing the weight or obstructing thermal pathways.
Honeycomb Battery Holder
The term honeycomb battery holder generally refers to a battery cell positioning structure in which adjacent cell openings are arranged in a honeycomb-like or staggered pattern.
A staggered cylindrical cell layout can make more efficient use of available space.
In a conventional rectangular grid, the centerlines of adjacent rows align vertically and horizontally.
In a staggered configuration, one row is offset relative to the next row.
This geometry can provide:
Efficient space utilization
Controlled cell spacing
Improved structural distribution
Multiple airflow pathways
Compact module dimensions
Flexible mechanical reinforcement
The exact benefits depend on the cell diameter, center distance, bracket wall thickness, and surrounding module structure.
Customized Battery Holder
A customized battery holder is designed according to the specific cell and battery pack requirements.
Customization may include:
The opening diameter is matched to the selected cylindrical cell.
The center-to-center distance is selected according to mechanical, thermal, insulation, and electrical requirements.
The holder can be designed for a specified number of cylindrical cells.
Possible arrangements include:
Straight rows
Staggered rows
Honeycomb arrangements
Circular arrays
Irregular arrays
Custom series-parallel layouts
Mounting holes and locating structures can be added for integration with the battery enclosure.
Channels can be incorporated to help route BMS wires and sensor cables.
Why Plastic Is Used for Battery Cell Holders
Plastic is widely used for cylindrical Battery Positioning Components because it can combine low weight, electrical insulation, mechanical strength, and manufacturing flexibility.
Injection-molded plastics can produce complex geometries in high quantities.
A single molded component can integrate:
Cell openings
Support pillars
Reinforcement ribs
Snap-fit structures
Mounting holes
Cable channels
Alignment features
This reduces the need for multiple individual mechanical parts.
Plastic also provides electrical isolation between conductive cell cans and neighboring structural components when appropriately designed and validated.
Impact Resistance
Impact resistance is important for a battery cell holder because the module can experience mechanical shock during:
Transportation
Assembly
Installation
Equipment operation
Vehicle movement
Accidental impact
A brittle holder can crack around thin walls, retaining tabs, mounting holes, or support pillars.
An impact-resistant engineering plastic can help maintain structural integrity.
Material selection should consider both room-temperature impact resistance and low-temperature impact behavior.
Heat Resistance
Battery modules can generate heat during charging and discharging.
The cell holder is located close to the heat-producing cells and may therefore experience elevated temperatures.
A suitable material should retain sufficient dimensional stability at the expected operating temperature.
Heat resistance is important because excessive deformation can change:
Cell spacing
Cell retention
Welding alignment
Airflow
Insulation clearance
Module dimensions
For higher-temperature battery systems, specialized engineering plastics may be preferable to standard commodity plastics.
Low Temperature Resistance
Battery packs can operate in cold climates and may be transported or stored at low temperatures.
Some plastics become less flexible as temperature decreases.
If a holder becomes too brittle, mechanical shock can cause cracking.
Low-temperature resistance is therefore an important consideration for outdoor energy storage, electric vehicles, power equipment, and other applications exposed to cold environments.
The actual minimum operating temperature should be established before material selection.
Strength and Durability
The holder should maintain its geometry throughout the intended service life of the battery module.
Long-term durability depends on:
Material grade
Wall thickness
Pillar geometry
Cell weight
Temperature
Vibration
Mechanical loading
Chemical exposure
Assembly stress
A strong holder does not necessarily need to be heavy.
Through optimized rib structures and appropriate polymer selection, the component can achieve a useful balance between rigidity and weight.
Lightweight Battery Pack Construction
Weight reduction is an important objective in many battery applications.
A plastic cell holder can replace heavier metallic positioning structures where the application permits.
Reducing non-energy-producing structural mass can improve the overall energy-to-weight ratio of the battery system.
However, lightweight construction should not sacrifice:
Cell retention
Electrical insulation
Mechanical stability
Thermal performance
Fire-safety requirements
Assembly reliability
The best design is generally the one that achieves the required performance with efficient material usage.
21700 Battery Cell Positioning
The 21700 cylindrical cell format has become widely used in high-capacity battery applications.
The larger diameter compared with an 18650 cell allows manufacturers to develop packs with different combinations of energy density, current capability, mechanical structure, and manufacturing efficiency.
A 21700 cell holder must provide accurate openings that prevent excessive movement.
The holder should also maintain sufficient clearance for:
Cell sleeves
Insulation
Busbars
Welding electrodes
Thermal pathways
10x12 Staggered Configuration
A 10x12 arrangement can be interpreted as ten positions in one direction and twelve positions in the other direction, creating up to 120 cell locations when fully populated.
A staggered configuration offsets alternating rows.
This layout can be advantageous when the designer wants to improve packing efficiency while retaining controlled cell separation.
The exact physical size of a 10x12 holder depends on:
Cell diameter
Center spacing
Row offset
Outer wall thickness
Reinforcement structure
Mounting features
Consequently, the phrase “10x12” describes the cell arrangement rather than defining one universal holder dimension.
Staggered Versus Straight Grid Arrangement
A straight grid places cells in aligned rows and columns.
A staggered arrangement offsets adjacent rows.
The choice depends on the intended module design.
A staggered layout may:
Reduce unused space
Improve packing efficiency
Provide different airflow paths
Distribute mechanical loads
Allow compact enclosure design
A straight grid may be preferable when:
Automated positioning requires aligned coordinates
Busbar geometry favors straight rows
Wiring is organized in rectangular paths
The enclosure has a conventional rectangular architecture
Neither configuration is universally superior. The correct geometry depends on the complete battery design.
Mechanical Cell Retention
Cell retention is one of the primary functions of a mounting bracket.
A suitable holder should keep the cylindrical cells in their designated positions while avoiding excessive mechanical stress.
Possible retention methods include:
Circular openings
Partial cylindrical walls
Flexible retaining tabs
Snap-fit clips
Upper and lower brackets
Reinforced side walls
The retention force should be sufficient to resist movement under expected vibration and shock.
At the same time, excessive interference can make assembly difficult and may damage the cell surface or insulation sleeve.
Top and Bottom Battery Holders
Many cylindrical battery modules use two complementary holder structures.
The lower holder supports one end of the cells.
The upper holder supports the opposite end.
Together, the two components form a stable positioning system.
This arrangement can be particularly useful for large cell arrays.
The top and bottom brackets can be designed with identical or different geometries depending on:
Positive terminal design
Negative terminal design
Nickel strip layout
Busbar structure
BMS wiring
Thermal management
Module enclosure
Electrical Insulation
A battery cell holder can contribute to electrical isolation by maintaining physical separation between adjacent cells and conductive components.
This is especially important in series-connected battery modules where the potential difference between neighboring cells can be significant.
The holder material should have suitable electrical insulation characteristics for the application.
However, the holder should not automatically be considered the sole insulation barrier.
A complete battery pack may require additional insulation such as:
PET film
Mylar
Fish paper
Insulating tape
Heat-shrink tubing
Plastic barriers
Insulating coatings
The complete system should be tested for the required dielectric strength and clearance distances.
Compatibility With Nickel Plated Steel Strip
Cylindrical lithium-ion cells are commonly connected using nickel or nickel-plated steel strips.
The battery holder must therefore be designed around the intended connection system.
Important factors include:
Strip width
Strip thickness
Welding location
Cell terminal height
Electrode access
Holder wall position
Clearance around welding areas
If the holder blocks the welding electrode, the production process may become difficult.
For this reason, cell holder and nickel strip designs should be developed together.
Spot Welding Considerations
Resistance spot welding is widely used for connecting cylindrical battery cells.
During welding, the cells must remain stable.
A holder can reduce movement and improve consistency between the welding position and cell terminal.
However, the holder should not be exposed unnecessarily to high welding heat.
The design should provide appropriate clearance around:
Welding electrodes
Nickel strips
Cell terminals
Welding sparks
Heat-affected areas
The exact welding parameters must be established using the actual cell, strip material, welding equipment, and holder geometry.
Thermal Management
Thermal management is essential for lithium-ion battery systems.
Cell holders can support thermal design by maintaining consistent spacing and avoiding unnecessary obstruction of cooling pathways.
In air-cooled modules, open structures can facilitate air circulation.
In liquid-cooled systems, the holder may be designed around cooling plates or thermal interfaces.
Possible thermal-management structures include:
Air channels
Ventilation openings
Cell spacing
Cooling plate interfaces
Thermal pads
Heat-conductive structural components
The holder itself is generally not a replacement for dedicated thermal-management equipment.
Airflow Channels
Staggered cell layouts can naturally create interconnected spaces around cylindrical cells.
A holder can preserve these spaces through carefully positioned ribs and pillars.
Good airflow design should consider:
Air inlet
Air outlet
Pressure drop
Cell heat generation
Fan capacity
Module enclosure
Dust protection
The holder should not create unnecessary obstructions.
Battery Holder and BMS Integration
The Battery Management System requires electrical connections to measure cell voltage and temperature and to control the battery system.
A customized holder can include features that support BMS installation.
Examples include:
Wire clips
Cable channels
Sensor mounting points
BMS board supports
Sampling wire guides
Cable clearance zones
Organized wiring can reduce assembly errors and improve serviceability.
Temperature Sensor Positioning
Temperature sensors are often placed near selected battery cells.
A customized holder can include a dedicated sensor position.
This can help keep the sensor consistently located during assembly.
The sensor should maintain appropriate thermal contact with the intended measurement point without damaging the cell surface.
Vibration Resistance
Battery modules used in vehicles and mobile equipment may experience continuous vibration.
Vibration can gradually affect:
Cell position
Welded connections
Insulation
BMS wires
Busbars
Mounting hardware
A rigid and properly retained cell holder reduces unnecessary movement.
However, vibration resistance must be evaluated at the complete module level.
Shock Protection
A battery holder can help distribute mechanical loads and reduce cell movement during shock events.
Rounded edges and reinforced structures can reduce local stress concentrations.
Snap-fit structures should be designed so that they can withstand both assembly forces and service loads.
Honeycomb Structure and Material Efficiency
Honeycomb-like structures can provide useful mechanical stiffness while limiting material consumption.
The principle is similar to many lightweight structural designs: geometry can increase stiffness without requiring a completely solid block of material.
In battery holders, this can be achieved through:
Thin support walls
Vertical pillars
Reinforcement ribs
Repeating cell openings
Staggered structural patterns
Injection molding allows these features to be integrated into one component.
Injection Molding Manufacturing
Injection molding is commonly used to manufacture plastic battery cell holders.
The process involves melting polymer pellets, injecting the material into a mold, allowing it to cool, and removing the finished component.
The process is well suited to battery holders because one mold can create many repeated cell openings and structural features simultaneously.
Important molding considerations include:
Mold design
Polymer shrinkage
Wall thickness
Draft angle
Gate position
Cooling system
Ejection system
Warpage control
Dimensional tolerance
Wall Thickness
Wall thickness affects strength, molding quality, cooling rate, weight, and dimensional stability.
Very thin walls may lack sufficient mechanical strength.
Very thick sections can increase weight and may cause:
Sink marks
Internal stress
Uneven cooling
Warpage
Longer cycle times
Balanced wall thickness is therefore important.
Reinforcement Ribs
Reinforcement ribs can increase stiffness without requiring a solid thick wall.
Ribs may be positioned around:
Cell openings
Outer walls
Mounting holes
Pillars
Connection points
However, rib thickness must be carefully designed to avoid molding defects.
Dimensional Accuracy
Battery holders require consistent dimensions because small positioning errors can accumulate across a large cell array.
Critical dimensions may include:
Opening diameter
Cell center distance
Row offset
Overall length
Overall width
Mounting hole position
Pillar height
Retaining feature dimensions
Production inspection should focus on these functional dimensions.
Cell Tolerance and Holder Tolerance
A holder must account for tolerance on both the battery cell and the molded component.
For example, if the holder opening is designed too closely to the nominal cell diameter, a cell near the upper dimensional limit may be difficult to insert.
If the opening is too large, a smaller cell may move excessively.
A suitable tolerance stack-up analysis should consider:
Maximum cell diameter
Minimum cell diameter
Maximum holder opening
Minimum holder opening
Cell sleeve thickness
Molding tolerance
Thermal expansion
ABS Material
ABS is commonly used for mechanical plastic components.
Potential advantages include:
Good impact resistance
Good processability
Reasonable dimensional stability
Good surface finish
Relatively low cost
Standard ABS may have limitations at elevated temperatures, so the material grade should be matched to the intended battery environment.
PC Material
Polycarbonate provides excellent impact resistance and good heat resistance.
It may be appropriate when a battery holder needs stronger resistance to mechanical impact or elevated temperatures.
PC can also provide good dimensional stability when properly processed.
ABS PC Material
ABS PC blends combine characteristics of ABS and polycarbonate.
They can provide a useful balance between:
Impact resistance
Heat resistance
Processability
Dimensional stability
Mechanical strength
This material combination can be considered for demanding cylindrical battery holder applications.
PP Material
Polypropylene offers low density and good chemical resistance.
It can be useful where lightweight construction and chemical durability are priorities.
However, its mechanical and thermal characteristics differ from ABS and PC, so the material should be selected according to the specific application.
PA Material
Polyamide, commonly called nylon, can provide good mechanical strength and wear resistance.
Certain PA grades offer good high-temperature performance.
One important consideration is moisture absorption, which can affect dimensions and mechanical properties.
PBT Material
PBT provides good electrical insulation, dimensional stability, and chemical resistance.
It is frequently considered for electrical and electronic applications.
Flame Retardant Engineering Plastic
For applications where flame resistance is important, flame-retardant polymer grades may be selected.
Flame-retardant materials can help limit ignition and flame propagation under specified test conditions.
However, material flame classification should not be confused with complete battery fire safety.
Battery safety also depends on:
Cell chemistry
Electrical protection
BMS controls
Thermal management
Module structure
Venting
Fire propagation control
Chemical Resistance
Battery holders may be exposed to environmental substances during manufacturing and operation.
Potential exposure can include:
Cleaning agents
Oils
Adhesives
Humidity
Electrolyte-related contaminants
Industrial chemicals
Chemical resistance should be verified against the actual substance and exposure conditions.
A material's general chemical resistance does not guarantee compatibility with every chemical.
Environmental Durability
Battery holders can be used in environments ranging from indoor energy storage to outdoor electric mobility.
Environmental requirements may include resistance to:
Humidity
Low temperatures
High temperatures
Vibration
Shock
Dust
Chemical exposure
The material and structure should be selected according to the actual service environment.
Battery Pack Assembly
A typical cylindrical battery assembly process can include:
Cell inspection.
Cell sorting.
Holder preparation.
Cell insertion.
Cell alignment.
Upper holder installation.
Nickel strip placement.
Spot welding.
Insulation installation.
BMS wiring.
Temperature sensor installation.
Module enclosure assembly.
Electrical testing.
Mechanical inspection.
Final battery pack testing.
The holder supports several of these steps by maintaining consistent cell positions.
Manual Assembly
For low-volume or prototype production, cells may be inserted manually.
A well-designed holder can simplify manual assembly by providing clear openings and stable positioning.
Features such as tapered openings, alignment marks, and accessible retaining structures can improve assembly efficiency.
Automated Assembly
Large-scale battery manufacturing increasingly uses automation.
A holder suitable for automated assembly should provide:
Repeatable dimensions
Stable orientation
Clear reference surfaces
Accurate cell openings
Robotic access
Welding clearance
Consistent stacking
Reliable positioning
The holder can become an important datum component for the complete assembly process.
Battery Holder for Energy Storage
Energy storage systems often contain large numbers of cylindrical cells.
A 10x12 staggered holder can help organize a large cell array into a compact mechanical module.
Applications can include:
Residential energy storage
Commercial energy storage
Industrial backup systems
Solar energy storage
Portable power stations
Communication backup batteries
The final configuration depends on required voltage, capacity, current, cooling, and enclosure dimensions.
Battery Holder for Power Tools
Power tool battery packs experience significant mechanical shock and vibration.
A durable cell holder can help protect the internal cell arrangement.
The compact geometry of a customized holder can also help manufacturers use available enclosure space efficiently.
Battery Holder for Electric Mobility
Electric bicycles, scooters, motorcycles, and other electric mobility systems may use cylindrical cells.
These applications can expose battery modules to:
Road vibration
Mechanical shock
Temperature variation
Humidity
Long operating cycles
The holder should therefore be designed as part of a complete mechanical protection system.
Portable Battery Systems
Portable battery packs require low weight and compact dimensions.
Plastic cell holders can support lightweight construction while providing accurate cell organization.
The holder can also integrate cable channels and sensor mounting features.
Industrial Battery Modules
Industrial battery systems often prioritize durability and long service life.
A robust holder can help maintain cell alignment under continuous operation.
Material selection may be more demanding for industrial applications because temperature, vibration, and chemical exposure can be higher.
Cell Spacing and Thermal Expansion
Plastic expands and contracts with temperature.
Battery cells also change dimensions slightly as temperature changes.
A holder should therefore include sufficient design clearance to accommodate expected dimensional variation.
Excessive clearance can reduce mechanical stability, while insufficient clearance can create stress.
Cell Holder Versus Battery Enclosure
The cell holder and battery enclosure have different functions.
The holder organizes individual cells.
The enclosure protects the complete battery assembly from the external environment.
The enclosure may provide:
Impact protection
Dust protection
Water resistance
Structural support
Mounting interfaces
The holder works inside the enclosure.
Cell Holder Versus End Plate
A cell holder should also be distinguished from a structural end plate.
The holder positions cells.
The end plate can provide structural compression and module-level rigidity.
Some advanced battery systems may integrate multiple functions into one structural component, but traditional cylindrical battery modules often use separate positioning and structural components.
Custom Hole Diameter
Hole diameter is one of the most important customization parameters.
The opening should correspond to the actual cell diameter and required retention mechanism.
The design may include a slight clearance or interference depending on the selected assembly method.
The correct value should be determined through prototype testing rather than a universal assumption.
Custom Cell Pitch
Cell pitch is the distance between the centers of neighboring cells.
A smaller pitch can create a more compact battery pack.
A larger pitch can provide more space for:
Cooling
Insulation
Wiring
Structural reinforcement
Thermal barriers
The optimal pitch depends on the complete battery design.
Custom Outer Dimensions
The outer dimensions of a 10x12 holder depend on cell diameter, spacing, and holder wall structure.
Customized outer dimensions can help the holder fit:
Aluminum enclosures
Plastic battery housings
Metal module frames
Custom energy-storage cabinets
Power-tool housings
Mounting Holes
Mounting holes allow the holder to connect to the surrounding battery structure.
Possible mounting methods include:
Screws
Bolts
Plastic clips
Snap-fit connections
Alignment pins
Rivet-style mechanical connections
The mounting method should be selected according to service requirements and enclosure design.
Snap Fit Design
Snap-fit structures can reduce the need for separate fasteners.
They can simplify assembly and allow quick installation.
However, snap-fit components must be designed for the selected polymer.
Important considerations include:
Deflection
Stress concentration
Fatigue
Assembly force
Disassembly requirements
Temperature effects
Design for Serviceability
Battery modules may require inspection or repair.
A service-friendly holder can provide accessible mechanical connections and clear component identification.
However, serviceability must be balanced against the need for permanent structural stability.
Quality Control
A professional battery holder manufacturing process should include quality-control procedures.
Inspection may cover:
Check for:
Cracks
Flash
Short shots
Burn marks
Warpage
Contamination
Verify:
Opening diameter
Cell spacing
Row offset
Outer dimensions
Mounting hole position
Confirm:
Polymer grade
Flame-retardant grade where required
Material consistency
Install representative cells and verify:
Cell insertion
Cell retention
Alignment
Spacing
Welding clearance
Prototype Testing
Prototype testing should use the actual intended cells whenever possible.
A prototype can reveal problems that are difficult to identify from drawings alone.
Testing may identify:
Excessive cell clearance
Difficult insertion
Holder deformation
Incorrect spacing
Welding interference
BMS wiring conflicts
Thermal-management obstruction
Enclosure interference
Prototype validation can reduce tooling modification costs.
Mechanical Testing
Mechanical testing may include:
Cell retention testing
Compression testing
Impact testing
Vibration testing
Snap-fit testing
Mounting strength testing
The exact test method should reflect the intended application.
Environmental Testing
Environmental testing may include:
High-temperature exposure
Low-temperature exposure
Thermal cycling
Humidity exposure
Chemical resistance testing
Testing should be conducted using actual material grades and representative part geometries.
Storage and Transportation
Finished plastic holders should be packaged to prevent deformation.
Long thin pillars and retaining clips can be damaged by excessive stacking pressure.
Packaging should protect against:
Impact
Compression
Moisture
Contamination
Bending
Common Problems During Battery Holder Development
An opening that is too small can make assembly difficult.
An opening that is too large can allow cell movement.
Incorrect center spacing can create problems with nickel strip placement.
Plastic structures can interfere with welding electrodes.
This can increase weight and cause molding defects.
Thin pillars may deform or break under vibration.
A polymer that performs well at room temperature may not perform adequately at high or low temperatures.
Cell insulation sleeves can increase the effective external diameter.
Plastic dimensions vary with temperature.
How to Choose a 21700 Staggered Cell Holder
A suitable holder should be selected according to the complete battery system.
Start with the actual cell dimensions.
Then determine the required cell quantity and arrangement.
Next, establish the center spacing based on electrical, mechanical, and thermal requirements.
Select a polymer according to:
Temperature
Impact
Chemical exposure
Flame requirements
Mechanical loading
Electrical insulation
Then confirm compatibility with the intended nickel strip and welding process.
Finally, test the holder in the complete battery module.
Professional Customization Process
A typical customized development process can include:
Provide the actual cell model or detailed dimensional information.
Specify the number of cells and series-parallel configuration.
Provide the available internal enclosure space.
Define insulation, thermal, mechanical, and assembly requirements.
Develop the holder geometry using CAD software.
Produce prototype samples.
Install actual cells and related components.
Evaluate mechanical and environmental performance.
Develop production tooling after the design is validated.
Use controlled injection-molding parameters for consistent production.
Advantages of a Customized 10x12 Staggered Holder
A customized 10x12 staggered battery holder can offer several practical benefits.
It can improve:
Cell positioning
Assembly consistency
Space utilization
Mechanical stability
Electrical separation
Airflow organization
Welding alignment
BMS wiring management
A customized design can also be adapted to a particular battery enclosure.
Importance of Lightweight and Durable Design
The ideal battery holder should be both lightweight and durable.
Lightweight construction reduces the mass of the battery pack.
Durability helps the module survive transportation, assembly, vibration, and long-term operation.
These objectives can be achieved through:
Optimized polymer selection
Honeycomb geometry
Reinforcement ribs
Vertical pillars
Controlled wall thickness
Efficient material distribution
Future Development
Cylindrical battery systems continue to evolve toward higher energy density, faster charging, improved thermal management, and more automated manufacturing.
Battery holders are also becoming more integrated.
Future cell holder designs may combine:
Mechanical positioning
Electrical insulation
Airflow management
Temperature sensing
Wiring management
Fire-resistant structures
Automated assembly interfaces
The cell holder can therefore become a multifunctional battery module component rather than a simple plastic spacer.
Conclusion
The 21700 10x12 Staggered Battery Cell Holder Bracket is a practical mechanical solution for organizing cylindrical lithium-ion cells in compact battery modules.
Its main purpose is to maintain accurate cell positioning and spacing while supporting mechanical stability, electrical separation, assembly efficiency, and thermal-management requirements.
The staggered configuration can provide efficient use of internal space and can be adapted to different battery module architectures. The holder can also be developed with vertical pillars, honeycomb-style openings, reinforcement ribs, mounting holes, snap-fit structures, airflow channels, and BMS wiring features.
Engineering plastics such as ABS, PC, ABS PC, PP, PA, PBT, and specialized flame-retardant materials can be considered depending on the required mechanical, thermal, chemical, electrical, and fire-resistance properties.
Although the product is commonly associated with 21700 cells, professional customization can also address other cylindrical cell families such as 18650, 26650, and 32650. The actual holder geometry must always be matched to the physical dimensions and tolerances of the selected cells.
For battery manufacturers, pack designers, and module assembly operations, a well-engineered customized holder can improve assembly accuracy, reduce cell movement, simplify welding alignment, organize internal wiring, and contribute to a more stable and durable battery pack
This website uses cookies to ensure you get the best experience on our website.
Phone
