Double Sided Fiberglass Adhesive Tape for Surface Bonding is a reinforced pressure sensitive adhesive material developed for applications that require strong two-sided adhesion, dimensional stability, controlled handling, and reliable attachment between functional components. Unlike conventional double sided adhesive films, fiberglass reinforced tape combines an adhesive system with a mechanically stable reinforcement layer. This construction helps the tape maintain its shape during converting, die cutting, laminating, and assembly.
In electrical equipment, battery modules, electronic assemblies, industrial components, insulation systems, and structural mounting applications, bonding performance is influenced by much more than adhesive strength. Surface energy, substrate cleanliness, temperature, humidity, pressure, vibration, component geometry, thermal expansion, and assembly speed can all affect the final result. A well-designed double sided fiberglass Adhesive Tape addresses these factors through a balanced combination of reinforcement, adhesive properties, release liner design, and process compatibility.
The reinforcement layer is particularly important where a tape must resist stretching during application. A fiberglass mesh structure can improve dimensional stability while still allowing the tape to conform to moderately irregular surfaces. This makes reinforced double sided tape useful for component attachment, insulation material lamination, battery module assembly, foam bonding, label mounting, and many other industrial operations.
For modern manufacturing lines, Adhesive Tapes can also simplify assembly by reducing the number of mechanical fasteners required. Instead of drilling holes, installing screws, or using rivets for lightweight components, manufacturers can use pre-cut adhesive parts to create clean and repeatable attachment points. This approach can reduce assembly steps and provide greater flexibility when dealing with thin materials, delicate insulation layers, and compact electronic structures.
This article provides an industry-focused overview of Double Sided Fiberglass Adhesive Tape for Surface Bonding, including its construction, working mechanism, material characteristics, surface compatibility, battery applications, electrical insulation applications, processing methods, design considerations, quality requirements, storage, testing, and selection principles.
1. What Is Double Sided Fiberglass Adhesive Tape?

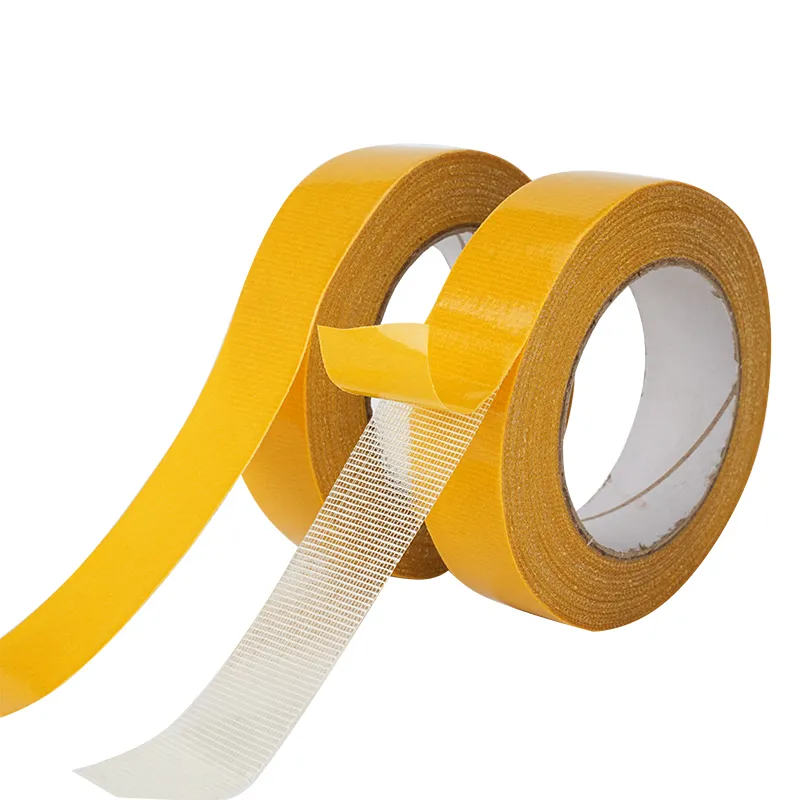

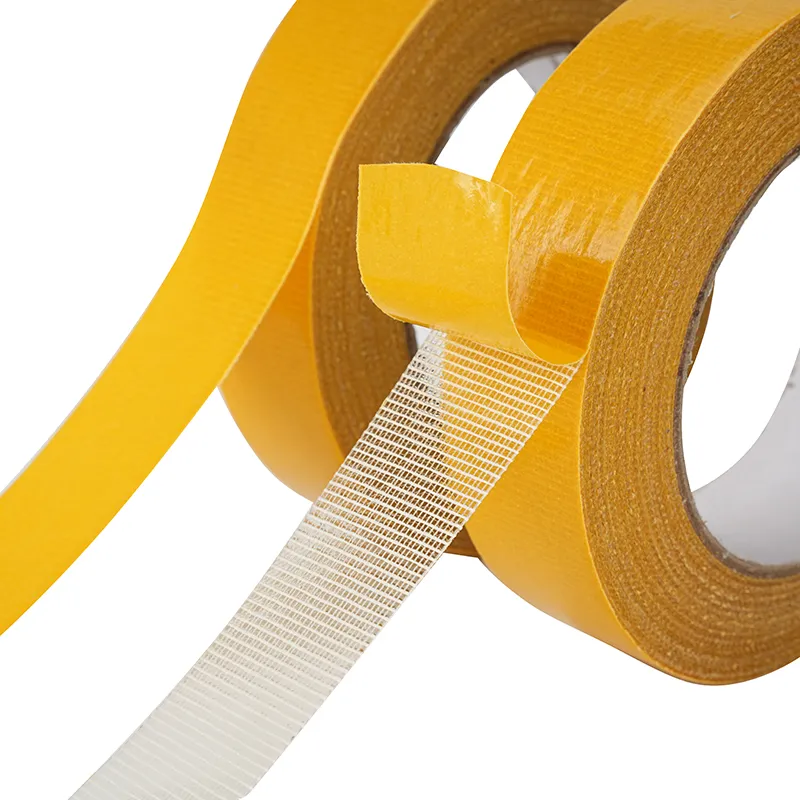

Double Sided Fiberglass Adhesive Tape is a reinforced adhesive tape with pressure sensitive adhesive on both sides of a fiberglass-supported carrier. The tape is designed to bond two surfaces simultaneously while maintaining better dimensional stability than an unsupported adhesive film.
The term “double sided” refers to the adhesive being available on both faces of the reinforcement structure. The term “fiberglass” identifies the reinforcing material, which contributes tensile strength and dimensional stability. The term “pressure sensitive adhesive” indicates that bonding can normally be activated by applied pressure rather than by water, heat, solvent, or chemical curing.
In practical manufacturing, this type of tape can be supplied in rolls, sheets, narrow strips, master rolls, or converted die-cut shapes. Depending on the application, the tape can be processed into circles, rectangles, rings, tabs, strips, gaskets, mounting pieces, or custom profiles.
The main objective is not simply to create a sticky surface. The complete tape construction is engineered to provide controlled adhesion while maintaining handling strength and process consistency.
A typical reinforced construction contains:
PET Film
Bi-directional fiberglass mesh cloth reinforcement layer
Double-sided acrylic pressure-sensitive adhesive
Double-sided glassine release liner
Each layer performs a different function.
The PET film can contribute dimensional support and help stabilize the construction. The bi-directional fiberglass mesh provides reinforcement and limits excessive stretching. The acrylic pressure-sensitive adhesive provides bonding to the selected substrates. The glassine release liner protects the adhesive surfaces before use and allows the tape to be processed and applied efficiently.
2. Structure of Double Sided Fiberglass Adhesive Tape
The specified structure is:
PET Film + Bi-directional Fiberglass Mesh Cloth Reinforcement Layer + Double-sided Acrylic Pressure-sensitive Adhesive + Double-sided Glassine Release Liner
This multilayer design provides a balance between mechanical strength, adhesive performance, converting capability, and assembly convenience.
PET, or polyethylene terephthalate, is widely used as a supporting film in industrial adhesive constructions because it offers dimensional stability, mechanical strength, and relatively consistent thickness.
In reinforced adhesive tape, PET can help maintain the geometry of the tape during processing. This is particularly useful during slitting, laminating, die cutting, and automated application.
PET also provides a smooth and stable base for the reinforcement and adhesive system.
The film thickness can be adjusted according to the desired tape construction. Thinner films can support lightweight applications where flexibility is important, while thicker constructions may provide improved handling strength.
The fiberglass mesh reinforcement layer is one of the most important features of the tape.
A bi-directional mesh contains reinforcing fibers arranged in intersecting directions. This construction provides tensile reinforcement across more than one axis.
During installation, ordinary unsupported adhesive films can stretch, deform, wrinkle, or become difficult to position. Fiberglass reinforcement helps minimize these problems.
The mesh can also improve the dimensional integrity of die-cut adhesive components. This is valuable when the final part must maintain a defined shape during assembly.
The adhesive layer is responsible for establishing contact with the target surface.
Acrylic pressure-sensitive adhesive systems are commonly selected for industrial bonding because they can provide balanced adhesion, aging performance, and environmental resistance.
Adhesive behavior depends on formulation and substrate. A tape that performs well on aluminum may behave differently on polypropylene, painted metal, powder-coated surfaces, foam, or electrical insulation film.
Therefore, the phrase “strong adhesive” should not be interpreted as universal compatibility. The actual bonding performance must be evaluated against the intended substrate.
The release liner protects the adhesive surfaces before application.
Glassine is a smooth, dense paper-based release liner commonly used in adhesive products. It allows the adhesive tape to be unwound, converted, handled, and applied without premature adhesion.
The liner can also improve processing efficiency during die cutting and lamination.
For high-volume production, consistent liner release is important because excessively high or low release force can interfere with automated dispensing.
3. Why Fiberglass Reinforcement Matters
Fiberglass reinforcement distinguishes this type of tape from many conventional double sided adhesive films.
Adhesive alone is primarily responsible for bonding. Fiberglass reinforcement contributes mechanical stability.
This distinction is important because a bonding material may need to perform two separate functions:
Attach the component to the substrate.
Maintain its physical shape during handling and service.
A reinforced construction can improve the second function without requiring an excessively thick adhesive layer.
Fiberglass reinforcement may provide:
Improved tensile strength
Better dimensional stability
Reduced stretching
Better die-cutting behavior
Improved handling during installation
More controlled component positioning
Increased resistance to deformation
Improved stability during lamination
These characteristics make fiberglass reinforced tape particularly useful for parts that are manufactured as adhesive laminates.
4. Surface Bonding Mechanism
Pressure sensitive adhesive bonding begins when the adhesive contacts the surface and pressure is applied.
The adhesive must achieve sufficient intimate contact with the substrate. Surface contamination, roughness, moisture, dust, oil, and release agents can prevent the adhesive from contacting the actual substrate.
Pressure helps the adhesive flow into microscopic surface irregularities.
The final bonding result depends on several factors:
Adhesive formulation
Substrate material
Surface energy
Surface cleanliness
Contact area
Applied pressure
Bonding temperature
Dwell time
Environmental conditions
Mechanical loading
This means that adhesive tape performance should be considered as a system rather than as a single numerical property.
5. Surface Preparation
Surface preparation is one of the most important factors in achieving reliable bonding.
Before applying Double Sided Fiberglass Adhesive Tape, the surface should generally be:
Clean
Dry
Free from oil
Free from dust
Free from loose particles
Free from condensation
Free from excessive oxidation or contamination
Metal surfaces may contain machining oil or protective coatings. Plastics may contain mold-release residues. Painted surfaces may contain low-surface-energy additives.
A simple cleaning process can significantly improve consistency.
For many industrial applications, a suitable cleaning agent may be used after confirming compatibility with the substrate and adhesive system.
The surface should be allowed to dry before tape application.
6. Bonding Pressure and Contact Area
Pressure is important because pressure sensitive adhesive requires intimate contact.
When a tape is placed on a surface without sufficient pressure, microscopic gaps can remain between the adhesive and substrate.
Applying controlled pressure can increase contact.
A larger bonding area generally distributes load more effectively than a very small bonding point.
However, increasing adhesive area does not automatically solve every bonding problem. Poor surface preparation or an incompatible substrate can still result in weak adhesion.
For automated manufacturing, pressure rollers, laminating rollers, or controlled pressing fixtures can help produce more consistent results.
7. Double Sided Fiberglass Tape in Lithium-ion Battery Assembly
Battery manufacturing is one of the important application areas for reinforced adhesive tapes.
Lithium-ion battery modules contain cells, cooling structures, Insulation Materials, electrical connections, sensing components, protective films, Brackets, and enclosure components.
Many of these parts must be positioned securely while maintaining electrical isolation and mechanical stability.
Double Sided Fiberglass Adhesive Tape can be used as a bonding and mounting material for selected non-primary structural applications.
It can help:
Mount insulation components
Attach lightweight brackets
Secure wire clips
Bond foam layers
Attach labels
Fix protective materials
Laminate insulation sheets
Position components during assembly
Reduce reliance on small mechanical fasteners
The specific application must always consider the battery manufacturer's mechanical, electrical, thermal, and safety requirements.
8. Bonding Between Cells and Thermal Pads or Cooling Plates
One typical application is attaching cylindrical or prismatic cells to thermal management components.
Battery cells may need to remain positioned relative to:
Liquid cooling plates
Thermal interface pads
Thermal insulation layers
Module housings
Structural supports
Double sided Fiberglass Mesh Tape can be used in suitable designs to secure selected interfaces.
The reinforced tape can provide a controlled adhesive layer while the fiberglass structure helps resist stretching during installation.
For battery thermal systems, it is important to distinguish between bonding and thermal conductivity.
A conventional fiberglass reinforced adhesive tape should not automatically be considered a thermal interface material.
If heat transfer is a primary design requirement, the thermal resistance and thermal conductivity of the complete interface must be evaluated separately.
9. Micro-gap Filling and Anti-vibration Support
Many assemblies contain small dimensional variations.
A rigid mechanical fixture may not accommodate every minor variation.
A pressure sensitive adhesive layer can conform to microscopic surface irregularities, while the reinforcement provides dimensional stability.
This combination may help create a stable interface.
In applications involving vibration, the adhesive layer can also act as a compliant connection between components.
This can reduce direct hard contact between certain parts.
However, adhesive tape should not be considered a substitute for engineered vibration isolation in high-load or high-frequency applications without testing.
10. Structural Component Mounting Inside Battery Modules
Modern battery modules often contain compact components such as:
FPC brackets
Wire clips
Sampling cable holders
Insulation sheets
Protective films
Identification labels
Lightweight support pieces
Some of these components do not require conventional mechanical fastening.
Double sided fiberglass adhesive tape can provide a clean mounting method for selected components.
Compared with screws or rivets, adhesive mounting can avoid drilling holes and may reduce the number of mechanical parts.
It can also be useful where components are thin and drilling could compromise their integrity.
11. FPC Bracket Attachment
Flexible printed circuits are widely used in electronic assemblies and battery monitoring systems.
FPC components can require positioning relative to module housings, support structures, or insulation layers.
A die-cut reinforced adhesive piece can provide a repeatable attachment location.
The tape should be selected based on:
FPC material
Bracket material
Required holding force
Temperature exposure
Vibration environment
Service life
Assembly process
Care should be taken to avoid placing adhesive where it could interfere with electrical contacts, connectors, sensing areas, or required flex zones.
12. Sampling Wire Clip Mounting
Battery modules can contain numerous sensing and sampling wires.
Wire clips help organize these wires and prevent uncontrolled movement.
Double sided fiberglass adhesive tape can be used to attach suitable wire management clips to module structures.
The primary objective is often positional stability rather than heavy structural loading.
Proper placement can help prevent wires from contacting sharp edges or moving into undesirable areas.
The adhesive area should be designed to withstand expected vibration and environmental exposure.
13. Insulation Sheet Mounting
Battery insulation materials may include:
PC insulation film
PET film
Fish paper
Aramid paper
Flame-retardant sheets
Foam insulation
Double sided fiberglass tape can laminate or mount selected insulation materials to a housing or support structure.
This can convert a loose sheet into a pre-positioned component.
The advantage is particularly valuable in production lines where workers or automated equipment must repeatedly install insulation at the same location.
14. EVA Foam and Fiberglass Adhesive Tape
EVA foam is frequently used for cushioning, spacing, vibration reduction, and sealing-related functions.
A double sided Fiberglass Mesh Adhesive Tape can be laminated to EVA foam to produce a self-adhesive foam component.
The resulting construction can combine:
Foam cushioning
Adhesive attachment
Reinforced handling
Controlled installation
This can be useful for battery modules, electronics, control cabinets, industrial equipment, and enclosure assemblies.
The compatibility between acrylic adhesive and EVA foam should be verified because foam formulation, density, surface condition, and additives can affect adhesion.
15. Fish Paper Lamination
Fish paper is commonly used as an electrical insulation material in battery and electrical assemblies.
When a fish-paper sheet is laminated with double sided adhesive tape, it can become easier to install.
This can provide several advantages:
Faster assembly
Improved positioning
Reduced loose-part handling
More consistent placement
Simplified production workflows
The adhesive should remain outside areas where electrical clearance or insulation requirements could be compromised.
16. Permanent Bonding for Identification Labels
Industrial assemblies require identification and traceability.
Labels may include:
Product information
Serial numbers
QR codes
Production codes
Safety information
Inspection marks
Component identification
Double sided adhesive tape can provide durable attachment to aluminum housings and other suitable surfaces.
In battery module manufacturing, traceability labels can be particularly important for production control and maintenance.
The label construction should be compatible with the expected environmental conditions.
17. Explosion-proof and Safety Labels
Some electrical and battery systems use warning labels and safety identification.
Where label adhesion must remain stable over the intended service life, a reinforced adhesive system can provide strong attachment.
However, the suitability of the tape depends on:
Label substrate
Housing material
Surface finish
Temperature
Humidity
Chemical exposure
Required service life
For safety-critical labels, adhesive qualification should be included in the overall product validation process.
18. QR Code and Traceability Label Bonding
QR codes and other machine-readable labels are increasingly used for manufacturing traceability.
Labels may need to remain attached during:
Assembly
Transportation
Storage
Field service
Cleaning
Temperature cycling
A suitable double sided adhesive tape can help prevent edge lifting and premature label separation.
The tape thickness should also be considered because excessive thickness can affect label positioning or create unwanted edges.
19. Electrical Panel Applications
Double Sided Fiberglass Adhesive Tape can also be considered for electrical panel assemblies.
Electrical panels may contain:
Insulation sheets
Protective barriers
Cable management components
Labels
Lightweight covers
Foam pads
Spacers
Protective films
Adhesive mounting can simplify the installation of selected parts.
The tape should not be treated as a universal replacement for electrical insulation systems. The electrical requirements of the complete assembly must be evaluated.
20. Insulation and Electrical Safety
One important consideration is that adhesive bonding and electrical insulation are not always the same function.
A tape may physically hold an insulation sheet in place without itself being the primary insulation barrier.
For electrical applications, engineers should evaluate:
Dielectric strength
Insulation resistance
Thickness
Creepage distance
Clearance
Temperature rating
Flame behavior
Moisture resistance
Long-term aging
The complete system must satisfy the applicable electrical safety requirements.
21. Coil and Winding Applications
Fiberglass reinforced adhesive tape may also be suitable for selected coil-related applications.
Coils and windings can require:
Layer separation
Component positioning
Lead fixing
Protective attachment
Insulation material mounting
The actual tape grade should be selected according to temperature, voltage, winding geometry, and electrical insulation requirements.
For high-temperature winding systems, a tape designed specifically for the required thermal class may be necessary.
22. Electronic Component Fixing
Electronic assemblies frequently contain lightweight parts that require stable positioning.
Potential examples include:
Small brackets
Sensor holders
Wire guides
Insulation pads
Foam cushions
Identification labels
Protective covers
The advantage of double sided adhesive tape is that it can create a low-profile attachment without adding screws or clips.
The reinforcement helps maintain tape geometry during component placement.
23. Advantages of Double Sided Fiberglass Adhesive Tape
The main advantages include dimensional stability, reinforced strength, two-sided bonding, clean appearance, flexible converting, and convenient assembly.
The fiberglass reinforcement limits excessive stretching.
Both surfaces can be bonded without adding separate adhesive components.
Fiberglass provides mechanical reinforcement to the adhesive laminate.
Pre-cut adhesive pieces can be installed quickly.
Tape can provide attachment without bulky mechanical fasteners.
The tape can be slit, laminated, and die cut into custom shapes.
Adhesive parts can hold lightweight components in predefined positions.
The absence of screws and rivets can produce a smoother finished assembly.
24. Comparison with Conventional Double Sided Tape
Conventional double sided tape can be effective for many general bonding applications.
However, unsupported adhesive films can sometimes stretch during handling.
Fiberglass reinforcement addresses this issue by adding a mechanically stable layer.
This can be beneficial when the tape must be:
Die cut
Laminated
Applied to narrow sections
Positioned precisely
Handled at high speed
Used as a structural mounting aid
The appropriate choice depends on the application rather than simply selecting the strongest adhesive available.
25. Comparison with Mechanical Fasteners
Mechanical fasteners such as screws, rivets, and clips provide strong physical attachment.
However, they may require:
Holes
Additional hardware
Drilling
Assembly tools
Increased component thickness
Adhesive bonding can eliminate some of these requirements.
For lightweight components, adhesive tape can therefore simplify assembly.
However, high-load mechanical joints may still require mechanical fastening or a hybrid attachment method.
26. Advantages for Automated Manufacturing
Automation places additional requirements on adhesive materials.
A tape used on a production line should have predictable:
Unwinding
Liner release
Thickness
Adhesion
Die-cutting
Dimensional stability
Consistent tape behavior can reduce process variation.
For automated application, the adhesive component may be supplied as pre-cut shapes.
This allows robotic or semi-automatic equipment to pick, position, and press the adhesive part.
27. Die Cutting
Die cutting is an important converting process for reinforced adhesive tape.
Common shapes include:
Rectangles
Squares
Rings
Strips
Tabs
Custom brackets
Corner pieces
Frame shapes
The fiberglass mesh provides dimensional reinforcement during cutting.
Die-cut parts can be supplied on release liners or carrier sheets for easy handling.
28. Laminating Process
Lamination combines the adhesive tape with another material.
Possible laminated materials include:
EVA foam
Fish paper
PET film
PC film
Nonwoven insulation
Rubber
Cushioning materials
A laminated part can be supplied to the production line as a ready-to-install component.
This reduces the need for separate adhesive application during final assembly.
29. Slitting and Narrow Strip Conversion
Wide master rolls can be converted into narrow rolls.
Narrow strips may be useful for:
Edge bonding
Cable management
Label mounting
Small insulation pieces
Component attachment
Foam strip lamination
Slitting accuracy is important because inconsistent widths can create problems during automated application.
30. Tape Thickness Selection
Tape thickness should be selected based on the application.
A thinner construction may be suitable where:
Space is limited
Low profile is required
Minimal gap is preferred
A thicker construction may be useful where:
Surface irregularities exist
Additional cushioning is desirable
Gap compensation is required
However, thicker tape does not automatically mean stronger bonding.
Adhesive formulation and substrate compatibility remain important.
31. Width Selection
Tape width influences contact area and application efficiency.
Narrow tape is suitable for small components and restricted spaces.
Wider tape can provide larger bonding coverage.
The width should be designed according to the actual component geometry.
For custom products, roll width and finished part width can be optimized for die-cutting efficiency.
32. Temperature Considerations
Temperature can significantly affect pressure sensitive adhesives.
At low temperatures, adhesive flow may decrease.
At elevated temperatures, adhesive softening may increase.
Long-term exposure can also cause changes in adhesive properties.
Therefore, application temperature and service temperature should be considered separately.
A tape may apply well at room temperature but require additional validation for continuous elevated-temperature service.
33. Humidity and Moisture Resistance
Humidity can affect both adhesive systems and substrates.
Metal surfaces can develop condensation.
Paper-based insulation materials can absorb moisture.
Foams can also change dimensions under certain environmental conditions.
The tape selection process should therefore include expected humidity exposure.
Where moisture resistance is important, the complete adhesive assembly should be tested under appropriate environmental conditions.
34. Chemical Exposure
Industrial equipment may encounter:
Cleaning agents
Oils
Greases
Solvents
Electrolyte-related contamination
Industrial chemicals
Acrylic adhesive generally offers useful environmental stability, but performance depends on formulation.
Chemical compatibility testing is recommended when the tape will be exposed to aggressive substances.
35. Vibration Resistance
Vibration can cause repeated stress at the adhesive interface.
A properly selected pressure sensitive adhesive can provide a degree of damping while maintaining attachment.
Fiberglass reinforcement helps maintain tape integrity.
For vibration-sensitive assemblies, engineers should evaluate:
Load direction
Bond area
Temperature
Vibration frequency
Component mass
Substrate rigidity
Testing under actual mechanical conditions is preferable to relying only on static peel strength.
36. Aging Performance
Adhesive materials may change over time.
Potential aging mechanisms include:
Adhesive oxidation
Plasticizer migration
Substrate changes
Moisture exposure
Thermal cycling
UV exposure
Mechanical fatigue
Long-term performance should therefore be evaluated for the intended service environment.
For industrial products, accelerated aging tests can provide useful information for material qualification.
37. Thermal Cycling
Battery modules and electrical equipment can experience repeated temperature changes.
During thermal cycling, different materials may expand and contract at different rates.
For example, aluminum, plastic, foam, fiberglass, and insulation films may have different coefficients of thermal expansion.
An adhesive joint must accommodate the resulting stress.
The reinforced tape construction can help maintain its geometry, while the adhesive layer provides a compliant interface.
38. Surface Energy and Adhesion
Not all surfaces are equally easy to bond.
High-surface-energy materials such as clean metals generally provide favorable adhesive contact.
Some plastics have lower surface energy.
Examples may include:
Polypropylene
Polyethylene
Certain fluoropolymer surfaces
These materials may require specialized adhesive formulations or surface treatment.
The tape should therefore be qualified on the exact substrate rather than assumed compatible based only on material category.
39. Aluminum Surface Bonding
Aluminum is common in battery housings, electrical enclosures, heat dissipation structures, and industrial panels.
Clean aluminum can provide a favorable bonding surface.
However, aluminum may also contain:
Oxide layers
Oils
Processing residues
Protective coatings
Surface preparation is therefore important.
Painted and anodized aluminum should be evaluated separately because the surface finish changes adhesive behavior.
40. Plastic Surface Bonding
Plastic components are widely used in battery and electronic assemblies.
The tape may bond to:
ABS
PC
PET
PVC
Acrylic
Other engineering plastics
Performance varies by formulation.
Plasticizers, mold-release agents, surface treatments, and fillers can influence adhesion.
Testing is recommended for each important plastic substrate.
41. Foam Surface Bonding
Foam materials present unique bonding challenges.
The tape may adhere strongly to the foam surface while the foam itself fails internally.
This is called cohesive failure of the substrate.
Foam density and cell structure influence performance.
When laminating EVA foam, the adhesive construction should be selected according to the foam's surface characteristics and expected load.
42. Glassine Liner Handling
The release liner must be removed before bonding.
During manual assembly, operators should avoid touching the adhesive surface.
Fingerprints and contamination can reduce adhesive performance.
For automated production, liner release consistency is important.
The liner should also be stored flat or in its original packaging to prevent unnecessary deformation.
43. Application Procedure
A general application process is:
Check for dust, oil, moisture, loose coatings, and other contaminants.
Use an appropriate cleaning method compatible with the substrate.
Ensure the substrate is free of moisture before bonding.
Remove the release liner and position the tape carefully.
Use uniform pressure across the bonding area.
Place the component onto the exposed adhesive.
Press the component firmly and evenly.
Where required, allow sufficient time for the adhesive bond to develop.
44. Common Application Errors
Several mistakes can reduce adhesive performance.
These include:
Bonding onto dusty surfaces
Applying tape to wet surfaces
Touching adhesive with bare fingers
Stretching the tape during application
Using insufficient pressure
Applying on incompatible coatings
Removing the liner too early
Using insufficient bonding area
Exposing the assembly to service conditions before sufficient bond development
Correct application procedures can improve production consistency.
45. Storage Recommendations
Adhesive tape should generally be stored in a clean, dry environment.
Recommended practices include:
Keep rolls in original packaging
Avoid direct sunlight
Avoid excessive humidity
Avoid extreme temperatures
Prevent contamination
Avoid unnecessary compression
Protect die-cut components from deformation
Storage conditions should follow the technical requirements of the specific adhesive construction.
46. Quality Control
Industrial adhesive tape should undergo quality inspection.
Typical checks can include:
Thickness
Width
Roll length
Adhesive appearance
Liner condition
Tensile properties
Peel adhesion
Holding performance
Dimensional stability
Release force
For battery and electrical applications, additional functional testing may be required.
47. Peel Adhesion Testing
Peel adhesion measures the force required to separate the tape from a substrate under defined test conditions.
Testing can be performed on representative materials such as:
Aluminum
Stainless steel
PET
PC
Painted surfaces
Foam
Electrical insulation films
The result depends heavily on test conditions.
Therefore, peel values should always be interpreted with the corresponding substrate and test method.
48. Shear Holding Performance
Shear testing evaluates how well the adhesive maintains attachment when a load acts parallel to the bonding surface.
This is especially relevant for vertically mounted components.
A tape may have good peel adhesion but insufficient shear resistance for a particular application.
Therefore, both peel and shear performance can be useful during material selection.
49. Tensile Strength and Reinforcement
Fiberglass reinforcement contributes to the mechanical integrity of the tape.
Tensile testing can help evaluate resistance to stretching.
This is particularly useful when the tape is used for narrow strips or die-cut components.
A stronger carrier can make the tape easier to process and position.
50. Dimensional Stability Testing
Dimensional stability testing evaluates whether the tape changes length or width under environmental or thermal conditions.
This property is important for precision components.
If the tape shrinks or stretches excessively, it may affect the position of the bonded part.
Fiberglass reinforcement can reduce such dimensional changes.
51. Electrical Testing
When used around electrical components, the relevant tape construction may need to undergo electrical testing.
Possible parameters include:
Dielectric strength
Insulation resistance
Volume resistivity
Surface resistivity
Breakdown voltage
The appropriate tests depend on the intended electrical function.
A bonding tape should not be automatically classified as an electrical insulation material unless its construction has been qualified for that purpose.
52. Flame Performance
For some electrical and battery applications, flame behavior may be important.
Flammability requirements depend on:
Product type
Equipment design
Application environment
Applicable regulations
Customer specifications
The adhesive, reinforcement, liner, and laminated substrate should be considered as a complete system.
53. Battery PACK Assembly Considerations
Battery PACK assembly combines mechanical, electrical, thermal, and environmental requirements.
Adhesive tape selection should consider:
Cell type
Module geometry
Housing material
Cooling structure
Insulation requirements
Service temperature
Vibration
Moisture
Chemical exposure
Required service life
The tape should be used only in functions for which its properties have been verified.
54. Cylindrical Cell Applications
Cylindrical cells such as common cylindrical lithium-ion formats may require positioning within a module.
Adhesive materials can be used around selected surfaces to secure supporting components or thermal interface structures.
The tape should not interfere with cell terminals, safety vents, electrical contacts, or required thermal pathways.
55. Prismatic Cell Applications
Prismatic cells typically have larger flat surfaces.
This geometry can provide a larger bonding area for selected adhesive applications.
However, cell expansion and mechanical movement should be considered.
The adhesive joint must not unintentionally create stress concentrations on sensitive cell surfaces.
56. Module Housing Bonding
Aluminum module housings can provide suitable surfaces for adhesive mounting.
Potential applications include:
Insulation sheets
Wire clips
Labels
Protective pads
Lightweight brackets
Before bonding, surface treatment and coating compatibility should be evaluated.
57. Thermal Management Applications
Battery thermal management systems can include:
Cooling plates
Thermal pads
Heat spreaders
Insulation layers
Thermal interface materials
Adhesive tape can provide mounting support for selected parts.
However, the tape should not block required thermal contact areas unless it is specifically designed for that purpose.
Thermal resistance should always be considered in thermal interface designs.
58. Mechanical Load Design
Adhesive joints should be designed around the actual loading condition.
Important loading types include:
Peel
Shear
Tensile
Cleavage
Impact
Vibration
Adhesive tapes generally perform better when loads are distributed across the bonding area rather than concentrated at a small edge.
Rounded corners and sufficient overlap can help improve joint reliability.
59. Edge Lifting
Edge lifting can occur when the tape is exposed to peel forces.
Sharp corners and narrow adhesive areas may increase the likelihood of edge separation.
Designers can reduce this risk by:
Increasing bonding area
Avoiding unnecessary sharp corners
Improving surface preparation
Selecting suitable adhesive strength
Applying sufficient pressure
60. Bond Line Design
The bonding area should be designed around the actual component.
A very small adhesive pad may not provide sufficient holding force.
An excessively large pad may increase material consumption without improving performance proportionally.
Optimized die-cut designs can balance performance and material efficiency.
61. Environmental Durability
Industrial tape applications may encounter:
High temperature
Low temperature
Humidity
Condensation
Vibration
Dust
Chemical exposure
Thermal cycling
Environmental testing should replicate realistic service conditions.
A laboratory room-temperature result cannot represent every field environment.
62. Benefits for Lightweight Assembly
The low thickness and lightweight nature of adhesive tape can be beneficial for compact assemblies.
Replacing selected fasteners with adhesive mounting can reduce:
Component count
Assembly hardware
Drilling operations
Local stress from fasteners
It can also help maintain a clean external appearance.
63. Sustainability Considerations
Material efficiency is increasingly important in industrial manufacturing.
A tape-based attachment can reduce the number of separate mechanical components.
However, multilayer adhesive products can be difficult to recycle because they contain multiple materials.
Environmental evaluation should therefore consider the entire product life cycle.
Manufacturers may also consider optimized thickness and reduced liner consumption where technically appropriate.
64. Customization Options
Industrial adhesive tape can often be customized by:
Width
Roll length
Thickness
Adhesive formulation
Liner type
Mesh structure
Die-cut shape
Lamination material
Packaging format
Customization should begin with the application requirement rather than with a predetermined tape specification.
65. Die-cut Adhesive Components
Custom die-cut parts can improve assembly efficiency.
A die-cut component can match the exact shape of a bracket, insulation sheet, foam pad, or label.
This reduces manual cutting and improves repeatability.
For large-volume production, die-cutting can also reduce installation time.
66. Pre-laminated Insulation Components
A major application opportunity is pre-laminating adhesive tape onto insulation materials.
The resulting component can be delivered as a ready-to-use part.
This approach can simplify:
Material handling
Assembly
Positioning
Quality inspection
Production scheduling
It can be particularly valuable for battery and electronic manufacturing.
67. Adhesive Tape for Production Lines
Production lines require predictable materials.
The tape should unwind consistently and maintain dimensional stability.
For automated application, release liner properties are especially important.
Poor liner release can cause:
Tape lifting
Misalignment
Machine stoppage
Adhesive transfer
Feeding problems
Therefore, converting and liner quality are important parts of overall product performance.
68. Selecting the Right Fiberglass Adhesive Tape
Selection should begin with a clear application definition.
Ask:
What materials need to be bonded?
What is the required bond area?
What load will be applied?
What temperature will the joint experience?
Is vibration present?
Is moisture present?
Are chemicals present?
Is electrical insulation required?
Is the tape applied manually or automatically?
Is die cutting required?
Is lamination required?
These questions help narrow down the appropriate construction.
69. Application-Specific Evaluation
There is no universal adhesive tape that is ideal for every application.
A tape optimized for aluminum bonding may not be optimal for low-energy plastics.
A tape designed for high-temperature electrical applications may have different flexibility characteristics from a general-purpose mounting tape.
Therefore, application-specific testing is essential.
70. Practical Selection Workflow
A practical workflow can include:
Application definition → substrate identification → environmental analysis → mechanical load analysis → tape construction selection → prototype testing → environmental testing → production validation
This approach reduces the risk of selecting materials based only on catalog descriptions.
71. Prototype Testing
Before mass production, sample testing can reveal potential problems.
Prototype evaluation should examine:
Initial adhesion
Application handling
Positioning
Liner removal
Edge lifting
Component movement
Thermal behavior
Environmental aging
The prototype should use the same substrate and surface finish expected in production.
72. Production Validation
After prototype approval, production validation should confirm that the tape behaves consistently under actual manufacturing conditions.
This can include:
Application speed
Pressing pressure
Storage time
Operator handling
Automated dispensing
Die-cut part feeding
Final inspection
Production conditions can affect adhesive performance differently from laboratory conditions.
73. Common Questions
Fiberglass reinforcement generally improves the mechanical stability and tensile integrity of the tape construction. Actual bonding strength depends on adhesive formulation and substrate.
Yes, suitable grades can be used on aluminum, provided the surface is properly prepared and the adhesive is compatible with the aluminum finish.
Certain constructions can bond EVA and other foams. Compatibility testing is recommended because foam surfaces vary significantly.
It can be used for suitable bonding, mounting, lamination, and positioning applications when the tape has been qualified for the intended battery environment.
The adhesive tape construction may provide electrical insulation characteristics, but the specific product must be tested and qualified before being used as an electrical insulation barrier.
74. Future Development of Reinforced Adhesive Tape
The development of industrial adhesive tape is moving toward more specialized constructions.
Potential development directions include:
Higher temperature resistance
Improved low-temperature adhesion
Better chemical resistance
Lower thickness
Higher dimensional stability
Improved flame performance
Automated application compatibility
Customized die-cut structures
Reduced liner consumption
Improved battery assembly compatibility
As electronic equipment becomes smaller and battery systems become more integrated, adhesive materials are increasingly required to perform multiple functions within compact spaces.
75. Conclusion
Double Sided Fiberglass Adhesive Tape for Surface Bonding is a reinforced adhesive solution designed for applications where two-sided bonding must be combined with dimensional stability and reliable handling.
Its construction of PET Film + Bi-directional Fiberglass Mesh Cloth + Double-sided Acrylic Pressure-sensitive Adhesive + Double-sided Glassine Release Liner provides a balanced material architecture.
The PET film contributes dimensional support, the fiberglass mesh provides reinforcement, the acrylic adhesive creates the bonding interface, and the glassine release liner protects the adhesive before application.
In lithium-ion battery and battery PACK manufacturing, the tape can be considered for bonding between cells and selected thermal management components, mounting lightweight structural accessories, attaching insulation sheets, laminating EVA foam and fish paper, and fixing identification and traceability labels.
In electrical and electronic applications, it can support component positioning, insulation material attachment, cable management, enclosure mounting, and other lightweight bonding operations.
The most important principle is that tape selection should always be based on the complete application environment. Substrate type, surface condition, temperature, humidity, vibration, chemical exposure, mechanical load, electrical requirements, and manufacturing process should all be evaluated.
With appropriate material selection and application control, Double Sided Fiberglass Adhesive Tape can provide a clean, efficient, and repeatable bonding method for modern industrial assemblies.
This website uses cookies to ensure you get the best experience on our website.
Phone
