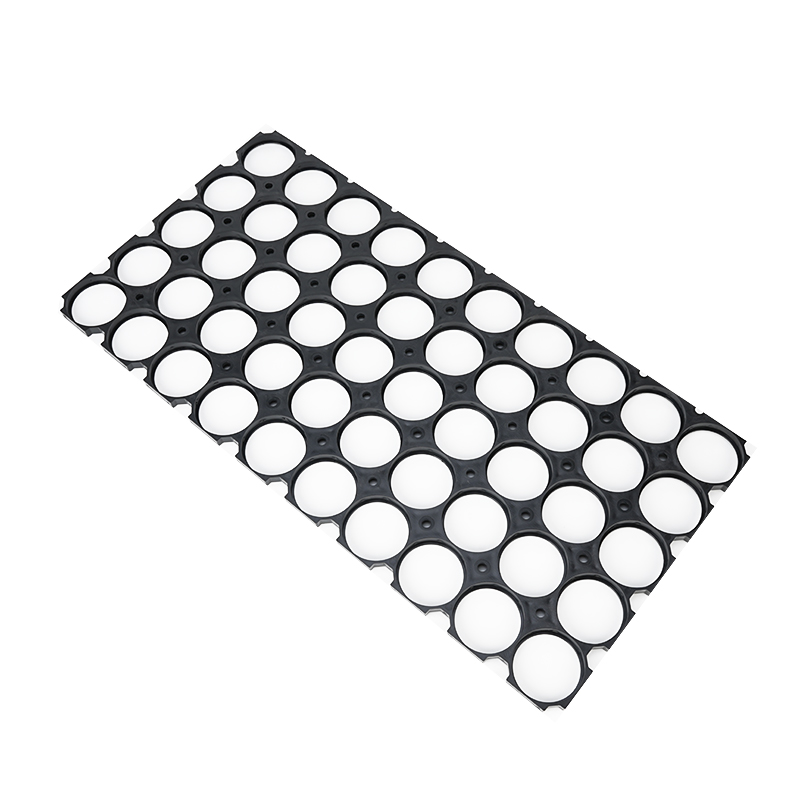

The 42700 Fire Resistant 5x10 Interlocking Battery Cell Holder Bracket is a modular battery assembly component designed to provide fixed positioning, organized spacing, and mechanical support for cylindrical 42700 lithium ion battery cells. Developed for applications where multiple cylindrical cells must be arranged into a stable battery pack structure, this type of interlocking cell holder helps maintain consistent cell alignment while supporting flexible pack configurations.
A 5x10 configuration generally refers to an arrangement designed to accommodate 50 cylindrical cells when the complete holder layout is populated. The actual number of cells used in a finished battery pack depends on the electrical design, series and parallel requirements, enclosure dimensions, cell specifications, and the selected holder configuration.
The holder bracket is typically manufactured through injection molding using engineering thermoplastics such as ABS, PP, PC, or PA nylon. Material selection depends on the required mechanical strength, temperature resistance, dimensional stability, electrical insulation requirements, flame-retardant performance, manufacturing process, and intended application environment.
The interlocking structure allows individual holder sections to connect with adjacent sections, creating a larger and more organized cell-supporting platform. This modular approach is useful for custom battery pack assembly because different holder sections can be combined into various arrangements instead of requiring a completely different support structure for every battery design.
The black appearance commonly used for cylindrical battery cell holders provides a clean industrial appearance and makes the holder easy to identify during battery pack assembly, inspection, maintenance, and component sorting.
For DIY battery pack builders, prototype developers, battery system integrators, electronics manufacturers, and industrial battery assembly applications, a 42700 cylindrical cell holder can provide a practical mechanical foundation for organizing cells before electrical interconnection, insulation, enclosure installation, and final pack assembly.
The holder itself should not be considered a complete battery safety system. A properly engineered battery pack also requires suitable electrical insulation, cell protection, current protection, thermal management, appropriate battery management electronics where applicable, mechanical enclosure design, and correct welding or interconnection methods.
A 42700 battery cell holder is a mechanical component designed around the approximate dimensional format of cylindrical cells commonly identified by the 42700 designation. In general cylindrical-cell naming conventions, the first two digits can indicate an approximate diameter class and the following digits can indicate an approximate length class. However, actual cell dimensions and tolerances can vary by manufacturer and cell design, so the holder should always be matched to the actual cell dimensions before mass assembly.
The main purpose of the holder is to prevent cylindrical cells from moving excessively within a battery pack. Cylindrical cells have a rounded outer surface, which means that an unsupported group of cells can shift, rotate, or separate under vibration or mechanical movement. A purpose-designed cell holder provides individual cavities or locating positions that keep cells organized.
For a large 5x10 battery cell arrangement, mechanical organization becomes particularly important. Fifty cylindrical cells placed together without a dedicated positioning structure can be difficult to align accurately. A modular interlocking bracket helps create a repeatable cell layout and reduces unwanted movement during subsequent battery assembly operations.
The holder can also contribute to consistent spacing between neighboring cells. Uniform spacing can be useful for mechanical clearance, electrical insulation, thermal design, and airflow planning. The precise spacing provided by a particular holder depends on its cavity geometry and molding design.
One of the most important functions of the 42700 Fire Resistant 5x10 Interlocking Battery Cell Holder Bracket is fixed positioning for cylindrical cells.
Each cell cavity is designed to receive a cylindrical battery cell and help maintain its location relative to neighboring cells. Instead of allowing cells to contact each other randomly, the holder creates a predefined arrangement.
Fixed positioning offers several practical benefits during battery pack assembly.
First, it improves assembly consistency. When every cylindrical cell has a designated position, the installer can follow a repeatable layout instead of manually estimating cell spacing.
Second, fixed positioning helps prevent unnecessary cell movement. Battery packs may be exposed to transportation vibration, equipment vibration, or mechanical shock. A properly fitted holder can reduce free movement of the cells.
Third, fixed positioning simplifies electrical interconnection. When cells remain aligned, Nickel Strips, busbars, or other appropriate electrical interconnection components can be positioned more consistently. The holder does not itself establish the electrical connection, but it can support the mechanical geometry required for organized interconnection.
Fourth, consistent positioning can simplify insulation planning. Battery designers can more easily determine where insulating sheets, insulating rings, barriers, or protective materials need to be placed when the cells follow a defined layout.
Finally, fixed positioning can improve maintenance and inspection. A structured cell arrangement makes it easier to visually identify individual cells and inspect the overall battery pack layout.
The interlocking design is a key feature of this type of battery cell holder.
Traditional single-piece battery holders may be manufactured for a specific number of cells. An interlocking system takes a modular approach by allowing holder components to connect with one another.
This design can provide greater flexibility for custom battery pack construction.
For example, a battery designer may require a relatively small prototype containing only a few cells. Another application may require a larger battery system containing dozens or hundreds of cells. A modular holder concept allows different sections to be combined according to the required physical layout.
Interlocking components may use molded connecting features such as tabs, slots, clips, dovetail-style interfaces, or other mechanical engagement structures. The exact locking geometry depends on the holder design.
A well-designed interlocking mechanism should provide sufficient retention while remaining practical for assembly and disassembly. Excessive locking force can make installation difficult, while insufficient retention can result in holder separation during handling.
The interlocking structure is particularly useful for custom battery packs because it allows the mechanical layout to be adapted to different series and parallel arrangements.
The 5x10 format provides a compact way to describe a large cylindrical-cell arrangement.
In a fully populated 5x10 configuration, the holder can accommodate 50 cylindrical cells. The final electrical configuration can vary significantly.
For example, the same physical quantity of cells could be configured into different combinations of series and parallel connections depending on the cell voltage, capacity, desired output voltage, current requirements, battery management system, and application.
The mechanical holder does not determine the electrical configuration.
This distinction is important when designing a battery pack. A 5x10 mechanical arrangement describes the physical organization of the cells, while the electrical configuration determines how those cells are connected.
A battery designer may therefore use the same general holder concept for different electrical architectures if the physical cell arrangement is compatible.
The 5x10 arrangement can be useful where a relatively high number of cylindrical cells must be organized in a rectangular or grid-style battery module. The exact dimensions of the completed module depend on cell diameter, cell spacing, holder wall thickness, interlocking geometry, and any additional insulation or structural components.
Battery packs are rarely identical. Different applications require different dimensions, cell quantities, electrical configurations, and enclosure shapes.
For this reason, custom sizes are an important consideration when selecting a 42700 cell holder.
A modular holder system can support different physical configurations by combining holder sections or selecting a suitable cavity count. Depending on the product design, configurations may include smaller arrangements for prototypes and larger arrangements for commercial battery assemblies.
Custom sizing can also involve:
Different cell quantities
Different row and column arrangements
Different overall holder dimensions
Different cell spacing
Different mounting features
Different interlocking structures
Different wall thicknesses
Different material grades
Different flame-retardant requirements
Different mechanical retention characteristics
Different enclosure compatibility
For custom battery pack projects, the holder dimensions should be evaluated together with the actual 42700 cell dimensions.
Nominal cell naming should not be treated as a substitute for dimensional verification. Even cells that share a nominal designation can have differences in length, diameter, terminal configuration, insulating wrap thickness, and other physical characteristics.
Fire-resistant or flame-retardant performance is an important consideration for battery pack mechanical components.
Common thermoplastics used for cylindrical cell holders include ABS, PP, PC, and PA nylon. However, not every grade of these materials is automatically flame retardant.
The final material performance depends on the specific resin formulation, additives, reinforcement, processing conditions, thickness, and applicable testing standard.
ABS is one of the commonly used materials for molded battery cell holders because it provides a practical balance of mechanical strength, dimensional stability, processability, and cost.
Flame-retardant ABS grades can be selected when additional resistance to ignition and flame propagation is required. A suitable grade may also provide improved heat resistance compared with standard ABS.
ABS is widely suited to injection molding and can produce detailed cavity structures and interlocking features.
Polypropylene is another thermoplastic that may be used for battery holder applications.
PP is lightweight and offers good chemical resistance and useful fatigue characteristics. Certain PP grades can also be formulated for flame-retardant applications.
The suitability of PP depends on the required operating temperature, mechanical load, dimensional requirements, and applicable safety specifications.
Polycarbonate provides high impact resistance and good dimensional performance. Flame-retardant PC grades are available for applications requiring enhanced resistance to ignition and flame propagation.
PC can be considered when a holder requires a combination of mechanical toughness and elevated-temperature performance.
Polyamide, commonly known as nylon, can provide strong mechanical properties and good temperature resistance. Certain high-temperature or flame-retardant PA grades are used in demanding engineering applications.
PA can absorb moisture, which may affect dimensional characteristics depending on the grade and environment. Therefore, material selection should consider humidity, operating temperature, dimensional tolerances, and mechanical requirements.
Battery cell holders are commonly produced using injection molding.
Injection molding is well suited to components containing repeated cylindrical cavities, thin structural walls, interlocking features, locating ribs, mounting structures, and other detailed geometries.
During injection molding, thermoplastic material is heated until it reaches a suitable flow condition. The material is then injected into a mold cavity under controlled pressure. After cooling and solidification, the molded holder is removed from the mold.
Injection molding can provide:
Repeatable dimensions
Consistent cavity geometry
High-volume production capability
Integrated interlocking structures
Smooth molded surfaces
Consistent cell positioning
Reduced secondary processing
Efficient production of complex plastic components
The quality of a molded battery holder depends on mold design, resin quality, processing temperature, injection pressure, cooling conditions, shrinkage control, and dimensional inspection.
For precision battery pack assembly, dimensional consistency is particularly important because even small variations can influence cell fit and overall module alignment.
Black is a commonly selected color for battery cell holders.
A black holder provides a clean and recognizable appearance that can be useful during manufacturing and assembly. It can also provide visual contrast against metallic battery components, Insulation Materials, and electrical connection components.
Color does not by itself determine flame-retardant performance.
A black plastic component should therefore not automatically be assumed to be fire resistant. Flame-retardant performance must be associated with the actual material grade and applicable test results.
For product identification, black can nevertheless be practical because it is commonly associated with industrial electrical and battery components.
Multiple size options allow battery designers to select a holder that matches the required cell quantity and mechanical arrangement.
Common considerations include:
Cell diameter
Cell length
Number of cells
Row count
Column count
Cell-to-cell spacing
Holder outer dimensions
Interlocking geometry
Mounting location
Enclosure dimensions
Required insulation clearance
Cooling requirements
A flexible holder system can reduce the need to design an entirely new mechanical support structure for every battery configuration.
For prototype and DIY applications, modular sizing is especially useful because battery projects frequently evolve during development.
A designer may begin with a small number of cells, evaluate the electrical performance, and later scale the pack to a larger configuration. An interlocking holder concept can make this transition more straightforward.
The 42700 Fire Resistant 5x10 Interlocking Battery Cell Holder Bracket can be useful for DIY battery pack projects where cylindrical cells need organized mechanical support.
DIY builders often work with custom pack dimensions that are not covered by standard battery enclosures. A modular holder allows the builder to arrange cells according to the intended physical design.
Typical DIY applications may include:
Custom lithium ion battery packs
Portable power systems
Robotics projects
Electric mobility prototypes
Backup power projects
Solar energy storage prototypes
Experimental battery modules
Portable electronic equipment
Custom electronics projects
Battery-powered tools and equipment
The holder is primarily a mechanical component. DIY battery construction still requires appropriate knowledge of lithium ion battery safety.
Cells must be correctly identified, inspected, matched where appropriate, and handled using safe assembly procedures. Electrical connections should be designed according to the cell specifications and the intended pack configuration.
A large battery pack contains many components beyond cylindrical cells.
A typical system may include:
Cylindrical cells
Cell holders
Nickel strips or suitable busbars
Battery management system
Protective fuses
Temperature sensors
Enclosure
Wiring
Connectors
Structural supports
Thermal management components
The cell holder contributes mainly to the mechanical organization of the cells.
A good holder arrangement can create predictable spaces between cells and provide a repeatable geometry for the remaining components.
Mechanical organization becomes increasingly important as the number of cells increases. A small two-cell prototype can often be positioned manually. A large 5x10 configuration containing 50 cells requires much more consistent positioning.
Battery cell spacing should be considered as part of the overall thermal and mechanical design.
Lithium ion cells can generate heat during charging, discharging, and high-current operation. The ability of a battery pack to manage heat depends on many factors, including cell chemistry, current level, cell resistance, ambient temperature, enclosure design, airflow, thermal interface materials, and cooling architecture.
A cell holder can help establish consistent spacing between cylindrical cells.
However, a holder should not be described as a complete cooling system.
The actual thermal performance of a battery pack must be evaluated at the system level. If forced airflow, liquid cooling, heat spreaders, thermal pads, or other cooling methods are required, the holder geometry should be compatible with those components.
Open areas around cell bodies may also assist with planned airflow, but the effectiveness depends on the overall pack design.
The plastic structure of a battery holder can provide mechanical separation between cells, but battery pack designers should not rely solely on the holder for electrical insulation.
Additional insulation may be necessary depending on the pack design.
Common battery insulation materials include:
Polyester film
Polycarbonate film
Polyimide tape
Fish paper
Insulating rings
Adhesive insulation sheets
Heat-shrink tubing
The correct insulation material depends on operating voltage, temperature, mechanical requirements, dielectric properties, chemical compatibility, and the intended safety standard.
The holder can help maintain spacing, while separate insulation components can provide additional electrical protection.
Before installing 42700 cells, the actual dimensions should be checked.
Important dimensions include:
Cell body diameter
Cell body length
Positive terminal configuration
Negative terminal configuration
Protective wrap thickness
Terminal protrusion
Dimensional tolerance
Cell holders are generally designed around a specific dimensional range.
If the cavity is too small, inserting the cell can damage the cell wrap or create excessive mechanical stress.
If the cavity is too large, the cell may move excessively.
A suitable fit should hold the cell securely while allowing practical assembly and removal.
The modular 42700 battery holder concept provides several mechanical advantages.
The holder establishes a predefined arrangement for cylindrical cells.
Individual cavities reduce uncontrolled movement and rotation.
Interlocking sections can support larger or customized configurations.
Different physical layouts can be created to suit various battery pack dimensions.
Molded cavities help maintain predictable distances between adjacent cells.
The black industrial appearance provides a visually consistent component for battery assembly.
Injection molding supports repeatable cavity dimensions and integrated mechanical features.
Modular components can simplify custom battery pack prototyping and assembly.
The interlocking concept can support different cell counts and configurations.
Selecting a battery cell holder should not be based solely on cell diameter.
Several engineering factors should be considered.
The holder cavity should match the actual cell dimensions.
The material should meet the mechanical, thermal, electrical, and flame-retardant requirements of the intended application.
The holder should remain dimensionally stable under the expected operating environment.
The holder should withstand the loads generated during assembly, transportation, vibration, and normal use.
The connection between holder sections should remain secure during handling and installation.
Additional insulating components may be required to prevent accidental electrical contact.
The holder should be compatible with the pack's cooling strategy.
The completed holder and cell assembly must fit within the intended enclosure.
Molded dimensions should be consistent enough to provide reliable cell positioning.
Material selection should be based on application requirements rather than assuming one material is universally superior.
ABS may be suitable where a balance of strength, molding performance, dimensional stability, and cost is desired.
PP may be appropriate where low weight and chemical resistance are important.
PC may be considered where higher impact resistance and stronger thermal performance are required.
PA nylon may be appropriate for applications requiring higher mechanical and temperature performance, particularly when an engineering-grade flame-retardant formulation is selected.
The specific grade should always be verified against the required material properties.
A material datasheet can provide useful information about:
Heat deflection temperature
Continuous-use temperature
Impact strength
Tensile strength
Flexural strength
Flame classification
Density
Moisture absorption
Dimensional stability
Chemical resistance
The term "fire resistant" is frequently used in product descriptions, but it should be interpreted carefully.
A plastic holder can be manufactured from a flame-retardant material designed to reduce ignition or flame propagation. This does not mean the holder is completely fireproof or capable of preventing every battery-related thermal event.
Lithium ion battery safety is a system-level issue.
Cell chemistry, cell condition, charging behavior, overcurrent protection, thermal management, electrical insulation, mechanical protection, and battery management all influence safety.
For technical documentation, it is more precise to describe a holder as using a flame-retardant material when the material grade has verified flame-retardant properties.
A mechanical holder can contribute to battery pack safety by maintaining cell positioning and reducing unintended movement.
Proper cell positioning can reduce the risk of mechanical interference between cells and other components.
It can also help create predictable spaces for insulation and structural components.
However, the holder cannot independently prevent:
Internal cell failure
Overcharging
External short circuits
Excessive current
Thermal runaway
Incorrect welding
Damaged cells
Improper charging
Manufacturing defects
A complete battery pack safety design requires multiple layers of protection.
A typical battery pack assembly process may involve several stages.
Cells should be selected according to the intended electrical and mechanical design.
Cells should be inspected for damage, deformation, corrosion, damaged insulation wraps, and other visible defects.
The cell dimensions should be compared with the holder cavity dimensions.
Interlocking holder sections can be connected according to the desired cell arrangement.
Cells are inserted into the appropriate cavities using suitable assembly procedures.
Cells are interconnected according to the designed series and parallel arrangement.
Appropriate insulation materials are installed where required.
A suitable battery management system may be installed according to the battery chemistry and pack architecture.
The cell holder assembly is installed inside the intended enclosure or structural housing.
The completed battery pack should undergo appropriate electrical, mechanical, insulation, and functional checks.
The exact assembly procedure varies according to the battery design.
Custom battery packs often require unusual physical arrangements.
Standard battery enclosures may be designed around common cell counts, but specialized equipment can require different shapes.
A modular interlocking holder allows battery designers to build a support structure that more closely follows the available space.
This can be useful for:
Compact electronics
Robotics
Portable energy systems
Industrial equipment
Backup systems
Experimental platforms
Specialized battery modules
Custom mobility applications
The modular approach can also reduce development time because the mechanical support concept does not have to be completely redesigned for every cell count.
Mechanical stability is an important characteristic of a battery holder.
Cylindrical cells can rotate and move if they are not restrained. A properly designed cavity provides a locating surface around the cell body.
The holder should maintain sufficient retention without placing excessive force on the cell.
Mechanical stability is particularly important during:
Battery pack transportation
Equipment vibration
Repeated handling
Assembly
Enclosure installation
Electrical interconnection
Maintenance
The completed pack may require additional structural reinforcement depending on its size and application.
Dimensional stability is especially important for injection-molded battery holders.
A holder that changes dimensions significantly under heat, humidity, or mechanical loading may affect cell fit and interlocking performance.
Different plastic materials have different thermal expansion characteristics and moisture behavior.
For this reason, the selected material and design should be evaluated under the expected environmental conditions.
Important environmental factors may include:
Ambient temperature
Operating temperature
Storage temperature
Humidity
Chemical exposure
Mechanical vibration
Long-term loading
Injection-molded battery holders generally have a molded plastic surface.
The surface finish can influence appearance, handling, cleaning, and visual inspection.
A smooth surface may make the component easier to inspect and clean.
The black finish commonly used for battery cell holders also helps create a consistent industrial appearance.
Surface texture depends on mold design and manufacturing requirements.
The 42700 5x10 interlocking holder can be considered for a broad range of cylindrical-cell battery applications.
Potential applications include:
Custom Battery Packs
Used as a mechanical support structure for customized cylindrical-cell battery assemblies.
DIY Energy Storage
Useful for experienced DIY builders developing custom battery modules.
Robotics
Can help organize cylindrical cells inside robotic power systems.
Portable Power
May be incorporated into custom portable power equipment.
Electronic Equipment
Suitable for equipment requiring a structured multi-cell battery assembly.
Industrial Prototypes
Useful during battery system research and mechanical prototyping.
Battery Module Development
Can help engineers evaluate physical cell arrangements before final enclosure production.
Educational Projects
May be useful for controlled battery assembly demonstrations and mechanical design studies.
The physical 5x10 arrangement should be distinguished from the electrical configuration.
For example, 50 cells could theoretically be arranged into different series-parallel architectures depending on the application.
The electrical arrangement determines:
Nominal voltage
Maximum current capability
Pack capacity
Energy capacity
Charging requirements
Protection requirements
Battery management requirements
The holder determines mainly:
Cell location
Mechanical spacing
Physical arrangement
Interlocking structure
Mechanical support
This separation between mechanical and electrical design is important when developing custom battery packs.
A battery cell holder can potentially be customized in several ways.
Possible customization areas include:
Cavity count
Holder length
Holder width
Cell spacing
Interlocking geometry
Mounting holes
Structural ribs
Wall thickness
Material grade
Flame-retardant formulation
Color
Surface texture
Connector geometry
Custom injection molding may be appropriate for large-volume production or specialized applications.
For smaller production quantities, modular standard components can reduce tooling requirements.
Quality control is important for battery holder production.
Typical inspection points include:
Overall dimensions
Cell cavity diameter
Cell cavity depth
Center-to-center spacing
Interlocking feature dimensions
Warpage
Flash
Cracks
Surface defects
Material consistency
Color consistency
Mechanical engagement
Fit with representative cells
Dimensional inspection can help ensure that the holder remains compatible with the intended cylindrical battery cells.
Plastic battery holders should be stored in a clean and dry environment.
During transportation, the components should be protected from excessive deformation, impact, and contamination.
Storage conditions can influence some engineering plastics, particularly materials that are sensitive to moisture.
The holder should also be protected from unnecessary exposure to high temperatures or direct heat sources.
When installing 42700 cells into a holder, the following factors should be considered:
Verify cell compatibility before installation.
Inspect the cell insulation wrap.
Avoid forcing oversized cells into cavities.
Avoid damaging the protective cell wrap.
Ensure each cell is fully seated.
Check that holder sections are properly interlocked.
Verify the intended cell orientation.
Confirm adequate electrical insulation.
Check the completed mechanical assembly before electrical connection.
The exact installation method should follow the requirements of the battery pack design.
Battery packs using cylindrical cells may require periodic inspection depending on the application.
The holder can make visual inspection easier because cells remain arranged in predictable positions.
Inspection may include checking for:
Loose holder sections
Broken interlocking features
Cell movement
Damaged insulation
Deformation
Signs of overheating
Corrosion of electrical components
Mechanical damage
If a cell shows signs of swelling, leakage, severe deformation, overheating, or other abnormal behavior, the battery should be handled according to appropriate lithium ion battery safety procedures.
From a design perspective, an interlocking holder can simplify several stages of development.
It provides a repeatable mechanical reference for cell placement.
It can also make CAD modeling easier because the cell arrangement is based on known cavity positions.
For prototypes, modular holders allow designers to test different physical configurations without immediately committing to a custom enclosure.
For production systems, a consistent holder geometry can support repeatable assembly processes.
The combination of fixed cell positioning, modular interlocking, multiple size options, and engineering thermoplastic construction makes this type of holder suitable for a wide range of custom cylindrical-cell battery projects.
The 42700 Fire Resistant 5x10 Interlocking Battery Cell Holder Bracket is a modular cylindrical battery cell mounting solution designed for organized 42700 lithium ion battery pack assembly. It provides fixed positioning for cylindrical cells and helps maintain consistent spacing in multi-cell battery configurations.
The holder is commonly manufactured from injection-molded engineering plastics such as ABS, PP, PC, or PA nylon. Flame-retardant material grades can be selected when additional resistance to ignition and flame propagation is required.
The interlocking structure allows multiple holder sections to be connected for customized battery pack layouts. The 5x10 format can accommodate up to 50 cylindrical cells when fully populated, subject to the actual holder design and compatible cell dimensions.
Multiple configurations and dimensions can be developed for different battery pack requirements. The black color provides a clean industrial appearance and allows the holder to be easily identified during assembly.
For DIY battery builders, battery pack designers, electronics developers, robotics projects, industrial prototypes, and custom energy storage applications, a 42700 cell holder provides a practical mechanical foundation for organizing cylindrical cells.
The holder is designed for mechanical support and cell positioning. A complete battery pack should also include suitable electrical insulation, protection circuitry, thermal management, mechanical enclosure design, and appropriate battery safety measures.
The major features of a 42700 Fire Resistant 5x10 Interlocking Battery Cell Holder Bracket include fixed positioning, modular interlocking construction, flexible sizing, injection-molded thermoplastic materials, and a black industrial appearance.
Fixed Positioning: Individual cylindrical cell cavities help maintain stable cell alignment.
Custom Sizes: Multiple configurations can support different 42700 lithium ion battery pack designs.
Flame-Retardant Materials: Suitable flame-retardant grades of ABS, PP, PC, or PA nylon may be selected according to application requirements.
Injection Molded Construction: Injection molding supports repeatable cavity geometry and integrated interlocking features.
Multiple Dimensions: Different holder dimensions can accommodate various battery pack layouts.
Black Color: A practical industrial appearance provides easy visual identification.
Interlocking Design: Holder sections can be joined to create larger battery assemblies.
DIY Assembly: Suitable for custom battery pack prototyping and mechanical organization.
Cylindrical Cell Support: Designed around the geometry of compatible 42700-format cylindrical cells.
Modular Battery Architecture: Supports flexible mechanical layouts for different cell counts.
When preparing a specification for this type of holder, the following information is useful:
Product Type: Cylindrical battery cell holder bracket
Compatible Cell Format: 42700 cylindrical battery cells
Nominal Layout: 5x10
Potential Cell Capacity: Up to 50 cells in a fully populated 5x10 arrangement
Structure: Interlocking modular holder
Primary Function: Fixed positioning and mechanical support
Common Materials: ABS, PP, PC, PA nylon
Manufacturing Process: Injection molding
Material Option: Flame-retardant grades available depending on material selection
Typical Color: Black
Application: Custom cylindrical lithium ion battery pack assembly
Design Type: Modular
Cell Arrangement: Grid-style cylindrical cell configuration
Customization: Size, layout, cavity quantity, spacing, and material may be configurable
Actual product specifications should always be confirmed against the particular holder design and material grade.
A 42700 battery cell holder is a molded mechanical component designed to organize and support compatible cylindrical battery cells. It provides individual cell positioning and helps maintain a consistent multi-cell arrangement.
A fully populated 5x10 arrangement can accommodate 50 cells when the holder is designed with one cavity per position.
It can be used for compatible cylindrical lithium ion battery cells when the actual cell dimensions match the holder cavity specifications.
ABS, PP, PC, and PA nylon are common material options. Flame-retardant grades can be selected according to the required application and testing requirements.
Standard ABS is not automatically flame retardant. Flame-retardant performance depends on the specific ABS grade and formulation.
Black is commonly used for industrial battery holders because it provides a practical appearance and clear visual identification. Color itself does not determine flame-retardant performance.
Depending on the manufacturing design, customization may include dimensions, cavity count, spacing, interlocking geometry, material, and other mechanical features.
Not every battery pack requires a holder, but a properly designed holder can significantly improve mechanical organization and cell positioning in multi-cell cylindrical battery assemblies.
The plastic structure can separate cells mechanically, but additional insulation may be necessary depending on the battery design and electrical requirements.
The holder is primarily a mechanical component. Thermal management must be designed at the battery-pack level.
It can be useful for DIY battery pack projects when the user has appropriate battery assembly knowledge and follows suitable lithium ion safety procedures.
No. The 5x10 designation describes the physical cell arrangement. Battery voltage depends on the electrical series configuration.
No. Battery capacity depends on cell capacity and the electrical parallel configuration, not simply the mechanical holder layout.
A properly fitted holder can reduce cell movement and contribute to mechanical stability, but overall vibration resistance depends on the complete battery enclosure and structural design.
The most important factors include cell diameter, cell length, cavity dimensions, cell spacing, holder dimensions, interlocking method, material grade, temperature requirements, and enclosure compatibility.
Before selecting or designing a holder, evaluate the following:
Confirm the actual 42700 cell dimensions.
Confirm the required cell quantity.
Define the physical row and column arrangement.
Determine the required cell spacing.
Select the appropriate plastic material.
Verify flame-retardant requirements.
Evaluate operating temperature.
Check enclosure dimensions.
Check interlocking strength.
Plan electrical insulation.
Plan thermal management.
Define the electrical series-parallel configuration separately.
Consider vibration and mechanical shock.
Confirm the desired mounting method.
Inspect representative samples before production.
Verify the holder with the actual battery cells.
The 42700 Fire Resistant 5x10 Interlocking Battery Cell Holder Bracket is a practical modular component for organizing compatible cylindrical battery cells in custom battery pack applications. Its primary functions are fixed positioning, consistent cell alignment, mechanical support, and modular assembly.
The 5x10 layout can provide positions for up to 50 compatible cylindrical cells when fully populated. The interlocking structure allows holder sections to be combined into different configurations, making the design useful for custom battery pack development.
ABS, PP, PC, and PA nylon are commonly considered materials for this type of molded component. When flame-retardant performance is required, an appropriate tested flame-retardant material grade should be selected rather than relying on the base polymer name alone.
The black molded appearance provides a clean industrial look and makes the component easy to identify during battery assembly. Multiple dimensions and configurations can support different physical battery pack requirements.
For DIY battery builders, prototype developers, robotics engineers, electronics designers, and industrial battery system developers, a modular 42700 cell holder can simplify cell organization and provide a repeatable mechanical foundation for multi-cell battery construction.
The holder should always be considered as one component of the overall battery system. Safe battery design requires appropriate cell selection, electrical protection, insulation, thermal management, mechanical enclosure design, correct interconnection techniques, and suitable testing procedures.
This website uses cookies to ensure you get the best experience on our website.
Phone
